The X-Tronic® Model #3020-XTS is an ESD Safe Anti-static 75 Watt Variable Power Soldering Iron Station with 5 Extra Soldering Tips and Many New Features and Extras!!!
The Model #3020-XTS is a Low Cost, but High Quality ESD Safe 75 Watt Anti-static Soldering Iron Station (60 Watts for Soldering Iron & 15 Watts for Soldering Iron Mother Board) with some Great Added Features. This Complete Kit is manufactured by X-Tronic® for the Beginner as well as the Expert and will Exceed Your Expectations with its Quality & Durability compared to any Soldering Iron Station in its Class.
This unit Features a Blue LED Fully Adjustable Temperature Display, a 10 Minute Sleep Timer, Auto Cool Down Function and a C/F (Celsius/Fahrenheit) Switch. The Soldering Iron Features an Ergonomic Heat Resistant Grip, there are 5 Extra Soldering Tips Included, the Soldering Station Features a Side Mounted Solder Roll Holder, a 100% Silicone Tools/Soldering Tips/Small Parts Mat, a 50g Roll of 60/40 Solder, a Brass Sponge Soldering Tip Cleaner with a Supply of Cleaning Flux in it and a Heat Resistant Chrome Coated Soldering Iron Holder with a Heat Resistant Ring Manufactured from Bakelite®.
PLEASE NOTE: We can ONLY ship this product to the 48 Contiguous United States (No PO Boxes Please) and we DO NOT ship Internationally nor do we ship to Canada, Alaska, Hawaii, Puerto Rico, Guam or The Virgin Islands. We also cannot ship to APO's or FPO's due the the high cost of shipping via the USPS. If this, or any other, X-Tronic® product is shipped to a destination outside of the United States and Canada, the Guarantee on this product becomes Null & Void!

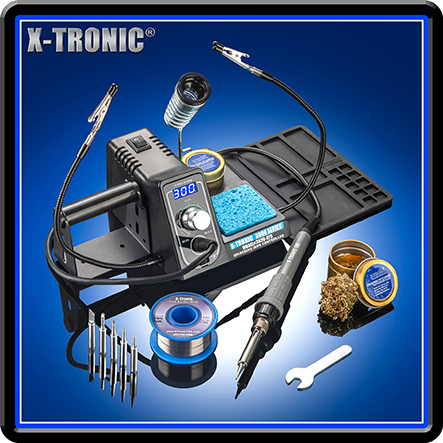

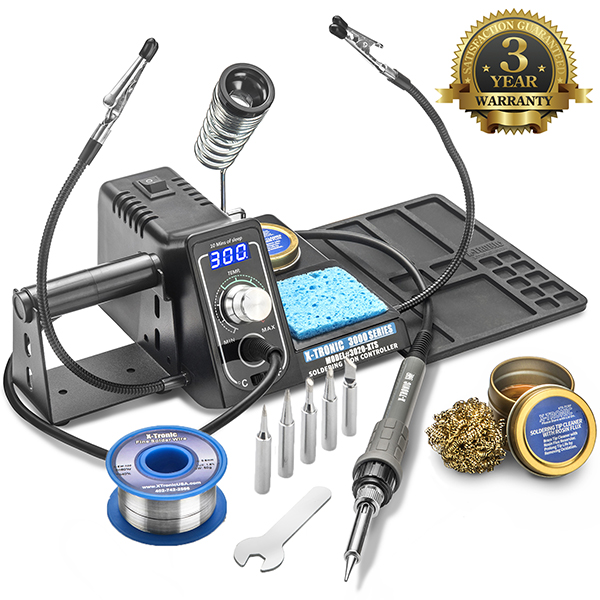

The 1st Photo (above left) shows the X-Tronic 3020 Unit with all parts and assembled including the new set of 2 Helping Hands that are now Featured with this unit.

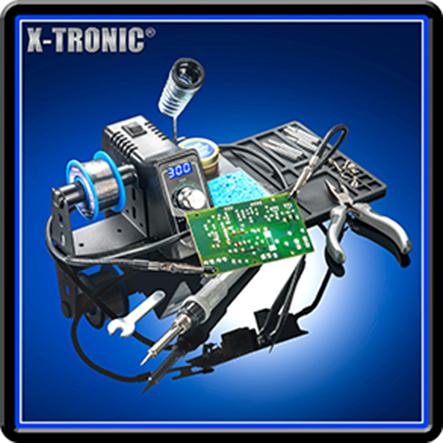

The 2nd Photo (above middle) shows the 2 Helping Hands being used to prop up a PCB in front of the unit so you can work on it right in front of the soldering station.
The 1st Photo (above left) shows the 60 Watt Soldering Iron with a Very Comfortable Ergonomic Grip that comes with this unit. Please Note that the 3020-XTS Soldering Station has a 75 Watt Ouput which 60 Watts is "used" for the Soldering Iron & 15 Watts is "used" for the Small Mother Board inside the Soldering Iron.
The 2nd Photo (above middle) shows the 5 Extra Soldering Tips that come with this unit. There is 1 of Each of the Following Sizes/Styles Included: 1 Each T-1, 1 Each T-B, 1 Each T-3C, 1 Each T-2.4D & 1 Each T-K. All Soldering Tips are Manufactured from High Quality Copper and Coated with Nickel-Chromed Alloys for Strengthening the Hardness of the Tips.
The 3rd Photo (above right) shows the 50g Roll of 60/40 Tin Lead Rosin Core Solder Wire for Electrical Soldering and DIY Projects. This Roll of Solder Wire fits very nicely on the Side Solder Roll Holder that is attached to the side of the Soldering Station.
The 1st Photo (above left) shows a close up of the Control Panel with the Brushed Metal Control Knob, the Blue LED Temperature Display and the C/F (Celsius/Fahrenheit) Toggle Switch.
The 2nd Photo (above middle) shows the Chromed Tempered/Hardened Steel Soldering Iron Holder with a Heat Resistant Ring Manufactured from Bakelite®.
The 3rd Photo (above right) shows where the Brass Sponge with Cleaning Flux and the Wet Sponge are Conveniently Located on the Soldering Station.
The 1st Photo (above left) show the Brass Sponge Cleaning Tin which also includes a Nice Supply of Solid Rosin Flux at the bottom of the tin for help with cleaning your soldering tip which we are sure you will greatly appreciate! There is also a Wet Sponge included with the package for further cleaning.
The 2nd Photo (above middle) shows the Heat Resistant 100% Silicone Tools/Soldering Tips/Small Parts Mat that comes with our X-Tronic 3020-XTS Soldering Station and measures 4-5/8"W x 5-1/4"L. You will find this Very Handy to use while you are working on a PCB or anything else that has small parts you would like to keep separate from each other.
The 3rd Photo (above right) shows the new set of 2 Helping Hands that now come with out unit. These 2 Helping Hands screw into each side of the soldering station and are Very Helpful when working on smaller PCB's to hold them Propped Up right in front of you. Of course, both of these Helping Hands come with every unit, but it is Optional whether you attach them or not. There is a wrench included to tighten these to the sides of the unit securely.
The Following is a Copy of the Article from Wirecutter that Ranked this X-Tronic 3020-XTS Soldering Station as the "The Best Soldering Iron" Sold in the USA.
The Actual Quoted Results From Wirecutter: "After spending more than 20 hours researching and testing eight soldering irons, we found the X-Tronic Model 3020-XTS LED Display Soldering Iron Station to be the best one for beginners and hobbyists alike.
- ESD Safe
- Soldering Iron Station Output: 75 Watts (60 Watts for the soldering iron & 15 Watts for the mother board in the soldering iron.
- Soldering Iron Wattage: 60 Watts
- 45 Inch Soldering Iron Cord measured from Base Power Unit to Tip of Soldering Iron
- 55 Inch Power Cord from Control Unit to Wall Plug
- 10 Minute Sleep Timer Function
- Auto Cool Down Function
- Celsius to Fahrenheit Toggle Switch
- Blue LED Temperature Readout on Control Unit
- PID (Proportional-Integral-Derivative) Technology - often referred to as Magic Temperature Compensation Technology
- Temperature Range: 392°F~896°F/200°F~480°C
- Soldering Iron Temperature Stability: 3.6°F/2.0°C
- Storage Environment: -68°F~176°F/-20°C~80°C
- Shipping Weight: 2 Lbs.
- Actual Unit Weight: 1.5 Lbs.
- AC 110V/120V - 60 Hz ONLY - NO 220V/230V Available
If you have ANY QUESTIONS about this product, feel free to send us your questions thru eBay's Messaging System or click on "Ask a Question" below. Our business hours are: 8am-4pm CST Monday through Thursday, 8am-noon CST Friday. We are not open weekends. We are not open major National Holidays.
3 YEAR - 100% GUARANTEE:
