Worm Gear Speed Reducer NMRV063 for NEMA52 Motor 15 20 25 30 40 50 60 80 100:1

Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide
$89.79
Ratio
10:1
Nominal Ratio
100:1
Model
NMRV063 NEMA52
Country/Region of Manufacture
China
Brand
Unbranded
Rabbet
NEMA52 default=130mm
Input Flange Model
NEMA32/34/52 (default=NEMA52)
Output Bore Size
25mm
Application
Matched with Servo/Stepper Motor
Speed Ratio:
10 15 20 25 30 40 50 60 80 100 :1
Input Bore Size
14/19/22/24mm (default=22mm)
condition
New





Turbo-Worm reducer type selection



Table 1

Model

NMRV063-30

Type

Worm-Gear Reducer

Speed Ratio

30:1

Input Bore Size

14/19/22/24mm (default=22mm)

Input Flange Model

NEMA32/34/52 (default=NEMA52)

Rabbet

default=110mm

Output Bore Size

25mm

Country of Origin

China(One year warranty)

Application

Matched with Servo/Stepper Motor

Goods Color

Blue/Argentate (default: Argentate)




 1

General specifications

Model NMRV063
Speed Ratio Range 5/7.5/10/15/20/25/30/40/50/60/80/100
Input Shaft Diameter for Motor 14/19/22/24mm for Stepper &Servo Motor
Flange Frame(A*A) 80*80 110*110 130*130mm

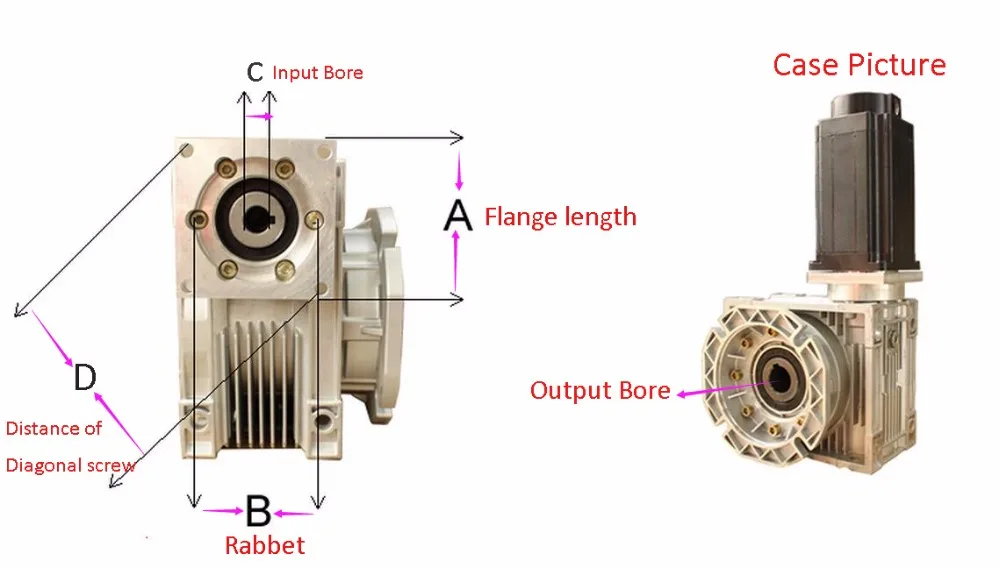

please choose the correct ratio you need, if not please tell us what kind of product type do you need. Such as:


1. Motor Drawing

2. Speed Ratio

3. Input/Output Bore(C)

4. Input Square Flange Length (A)

     5. Distane of Diagonal Screw(D)

6. Rabbet (B)

 2

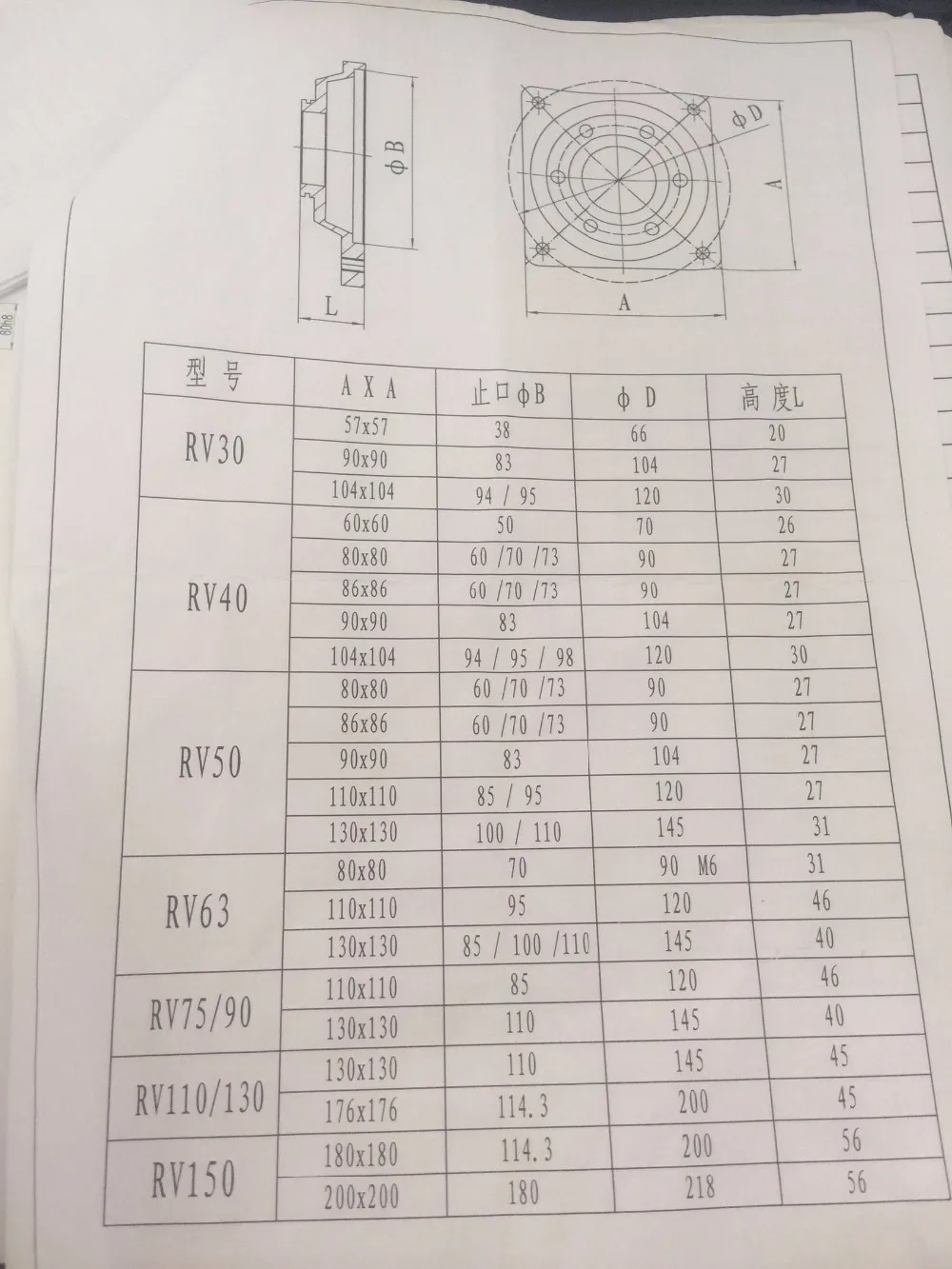

 NMRV063 Mounting Dimensions
