WiFi Adapter EPEVER WiFi 2.4G RJ45 D Use For Epever Solar Controller Inverter

Send from USA,2-8 days delivery with tracking.

WiFi Adapter WiFi 2.4G RJ45 D Use For Epever Solar Controller Inverter

This wifi only can be use for epever brand item,can't be use for other,please note.

• Applicable Models Product series Communication Interface type LS-B series RS485 RJ45 VS-A series VS-BN series Tracer-A series Tracer-BN series SHI series STI series eTracer-AD series 3.81-4P eTracer-BND series iTracer-ND series

• WiFi Adapter

  EPEVER WiFi 2.4G RJ45 D


  Overview:

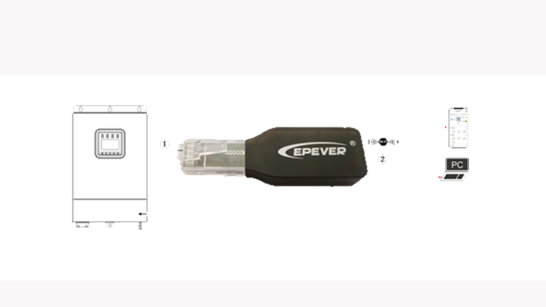

  Through a local 2.4G WiFi network, the EPEVER WiFi 2.4G RJ45 D can transmit all operational data from the EPEVER solar controller, inverter, or inverter/charger to the EPEVER cloud server in real time. Users can remotely monitor the connected devices and program parameters via the EPEVER server platform and mobile APP.







  Features:




    Applicable to EPEVER controllers, inverters, or inverter/charger with RJ45 port

  Ÿ Use immediately after connecting; easy and convenient operation

  Ÿ Directly powered by the communication port

  Ÿ Up to 20 meters of communication distance

  Ÿ Support the Local monitoring and "EPEVER Cloud" working mode.




•


• Specifications：

• Model Parameter	EPEVER WiFi   2.4G RJ45 D
  Working voltage	5V± 0.5V(Powered by RS485 com. port)
  Power consumption	Peak emission: 150mA;    Idle: 310uA
  Enclosure	IP30
  Communication method	RS485
  Communication parameters	115200Bps, 8N1
  Interface standard	EPEVER communication standard V1-1.0
  Work frequency	2.4 ~ 2.4835GHz
  Work temperature range	-40℃~ 85℃
  Dimension	63mm x 19mm x 10mm
  Net weight	7.7g

•


• Package : 1pcs wifi adapter
