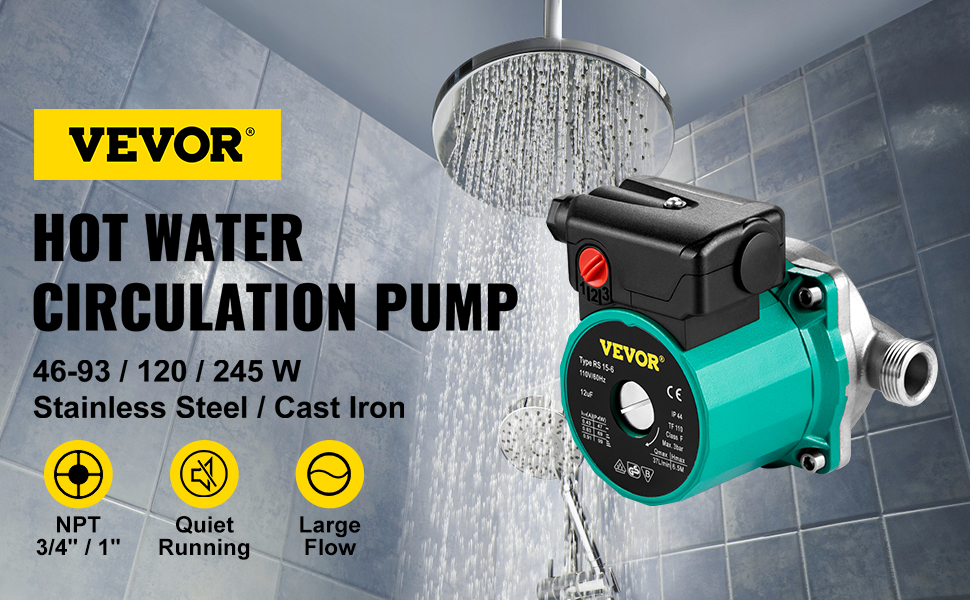

Brass Fittings & 3-Speed / Two-way Control & 25dB
This water circulator pump is made of a premium stainless steel/cast iron pump head and aluminum pump housing, features high power efficiency, low energy consumption, ample water flow, low noise running, and easy installation. Convenient for daily use, perfect for family water heating systems, such as remote villas, cabins, etc.
- Stainless Steel/Cast Iron Material
- Considerate Switch
- Large Flow & Quiet Running
- Easy Installation
Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Key Features
-
Durable Material
Our recirculating pump is made of stainless steel / cast iron head, aluminum housing, and PES/PP impeller. And also, they are equipped with brass fittings and a water stop. As a result, rust-proof, waterproof, corrosion-proof, and leakages-proof can last for years.
Boost Water Flow
Powerful flow with 5.28/7.66/9.5/8/16 GPM and the highest head lift can reach 13.2/20/36/49.2 ft. The maximum pressure of this water circulator pump is 10 Bar(145Psi). High efficient and large flow but low energy consumption.
Intelligent Control
The circulator pump features a susceptible built-in electronic sensor. Type A/B/C can range power from 46W to 93W with a 3-speed control. Type D/E has two control methods-manual start or automatic start. More convenient efficient to use the pump.

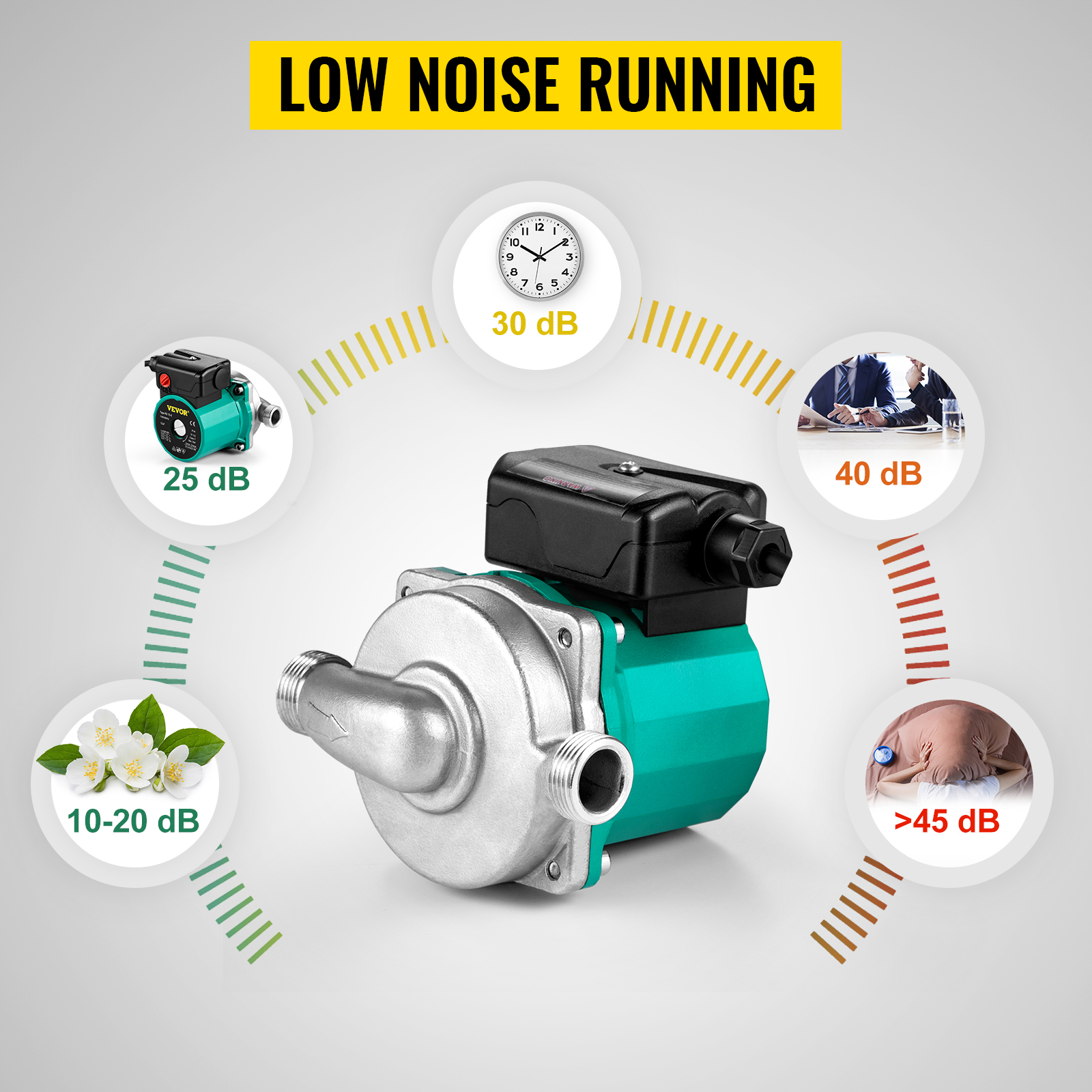

Quiet Operation
This circulating pump for hot water boasts a powerful motor for stable performance and low noise. The average noise level is only 25dB, enabling you to enjoy the pump without disturbing your life.

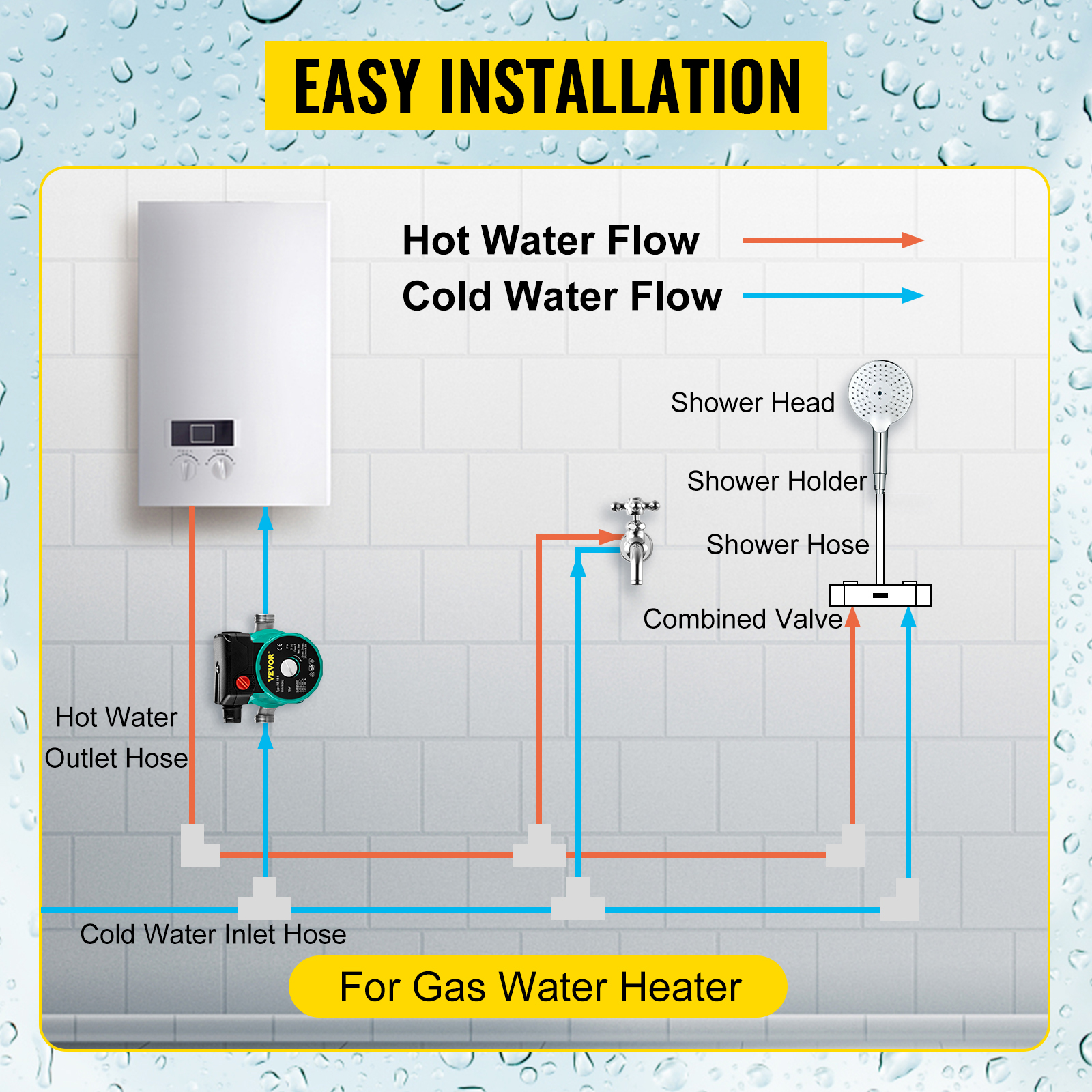

Effortless to Install
The recirculating hot water pump is easy to install on appliances and industrial electric or gas water equipment. However, you need to keep the pump shaft horizontally after installation.
Various Application
The recirculating pump for a water heater is a convenient water pressure boosting pump used in the water heating system, such as solar water heater, electric water heater, domestic water pipelines, etc.
- Model: VV-BXG-RS15 6SB
- Power: 46-93/120/245W
- Voltage: 110-120V/60HZ
- Body Color: Red&Silver / Green&Silver / Red&Black
- Pump Head: Stainless Steel/Cast Iron
- Pump Housing: Aluminum
- Impeller Material: PES/PP
- Shaft Material: 45 # Steel/Ceramic
- Bearing Material: Carbon
- Noise Level: 25dB
- Inlet/Outlet Dia.: NPT 3/4"(1.9 cm) / 1"(2.54 cm)
- Max. Flow Rate: 8/9.5/10.5/16 Gpm(30/36/40/60 L/min)
- Max. Head Lift: 20/29.53/36/49.2ft (6/9/11/15m)
- Rated Pressure: 0.6 Bar(8.7 Psi) / 1 Bar(14.5 Psi) / 1.28 Bar(18.5 Psi)
- Max. Pressure: 10 Bar/ 145 Psi
- Cable Length: 4 ft / 1.25 m
- Liquid temperature:32~212℉/0~100℃
- Ambient temperature: 32~104℉/0~40℃
- Mounting Position: Shaft Horizontal
- Protection Level: IP44
- Insulation Class: F
- Product Size: 4.9x4.8x4.4 in(12.4x12x11 cm) / 4.8x3.7x6.2 in(12.2x9.4x15.7 cm) / 5.1x4.6x4.7 in(13x11.7x12 cm) / 6.3x4x4.7 in(16x10x12 cm) / 7.1x5.7x5.9 in(18x14.5x15 cm)

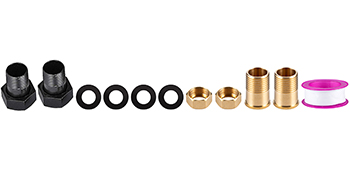

Package ContentType A
- 1 x Water Circulation Pump
- 2 x Coupling
- 2 x Seal
- 1 x Product Manual
Features & Details
- Stainless Steel/Cast Iron Material: Our recirculating pump is constructed with a heavy-duty stainless steel pump / cast iron head, aluminum pump housing, and PES/PP impeller, rust-proof, waterproof. Brass fittings and water-stop will come with the pump for corrosion-proof and leakage-proof.
- Large Flow & Quiet Running: Powerful circulator pump has max. 30/40/60 L/min water flow, max. 10 bar pressure and max. 13.2/20/36/49.2 ft head lift. In addition, super silent running property(about 25dB) can provide you with a quiet pump: high performance but low noise.
- Considerate Switch: Type A/B/C pump features a three-power control switch in 46/67/93W. Type D/E features a manual/auto mode power rated at 120/245W. It is convenient for you to adjust the flow rate as your different requirements. Meanwhile, the built-in electrical sensor automatically enables the pump to start up or shut off according to the water flow.
- Easy Installation: Our circulating pump for hot water can be used directly to drinking water pipelines with a wrench, fitting with an NPT 3/4" / 1" inlet/outlet hose. The water taste of lubricating oil will disappear after 3 to 5 times of use. The shaft of the pump should be kept horizontal after installation.
- Wide Application: The recirculating hot water pump is suitable for many applications, such as city buildings, suburban villas, houses, water and pressurized with industrial equipment, air conditioning, boilers, solar circulating system, water heater system and so on.
