VACUUM BAGGING KIT -VACUUM BAG FILM, SEALANT TAPE, PEEL PLY, BREATHER, BLEEDER

Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide
$48.3
Model
MAX VACCUM KIT
Country/Region of Manufacture
United States
Type
Vacuum Bag Kit
MPN
MAXVACUUMKIT
Brand
MAX VACUUM KIT
condition
New

VACUUM BAGGING KIT

Kit Includes
2 Rolls Gray Vacuum Sealant Tape

2 Yards By 60 Inches Wide Breather Polyester Peel Ply

2 Yards By 60 Inch Wide 4 Ounce Breather Cloth

2 Yards By 60 Inches Room Temperature Or Heat-cure (350°F Max) Vacuum Bagging Film



VACUUM BAGGING KIT comes with all the necessary components needed for a vacuum bagging operation of up to <60-inch wide (depending on the height of the part) by 60-inch long part.

It can also be used for resin-infusion, VARTAM and heat cured/autoclave curing of the structural- strength laminating process.


Vacuum bagging (or vacuum bag laminating) is a method that uses vacuum pressure to consolidate the composite lay-up.
The laminate is vacuum bagged until the polymer resin cures and effectively consolidates all the fabric and resin to a homogenous and void-free FRP laminate.



Cured laminates demonstrate higher mechanical properties due to the complete integration and resin distribution of the composite laminate.

The vacuum bagging process can also be used for applying uniform pressure to the adherents or substrates in bonding or laminating process while the adhesive cures and develops the physical bond.
Vacuum bagging is commonly used for high performance composite structures and traditional wood veneering and in large and small  bonding applications.

For Vacuum Bagging Process


Multi Plywood Sheet Wood Transom Vacuum Laminated With

MAX BOND LOW VISCOSITY
https://www.ebay.com/itm/311947117608



2 Plies of 3/4 Inch Plywood Vacuum Laminated


Vacuum Bagging Theory

Vacuum bagging uses negative atmospheric or vacuum pressure to hold laminate plies together.
The laminate is sealed within an airtight envelope and  the internal atmosphere within the envelope is evacuated by a vacuum pump to full vacuum pressure.

Perfect vacuum can only be achieved in the absence of atmosphere or in deep outer space.

In many instances, 27 to 29 inches of Mercury (Hg) is sufficient vacuum pressure to produce a well consolidated composite laminate.

14 Pounds Per Square Inch Of Consolidation Pressure Is Applied At 29 In Hg Vacuum Pressure.

EPOXY RESIN FOR VACUUM INFUSION OR DRY LAY-UP VACUUM BAGGING WITH
MAX 1618 1.5 GALLON KIT
 https://www.ebay.com/itm/311946441558


12 Plies Of Carbon Fiber Laminate With MAX 1618 A/B And Vacuumed Bagged.

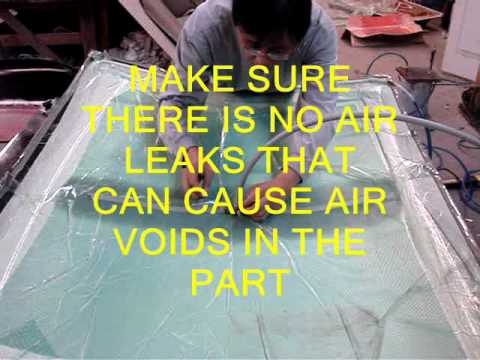

General Principle Of Vacuum Bagging

General Principles of Vacuum Bagging

Video will open in a new window
Using the eBay App? Paste link into a browser window:

MAX 1618 A/B VACUUM ASSISTED RESIN TRANSFER MOLDING PROCESS
VACUUM INFUSION VIDEO
(Green Flow Media Sold Separately)

Vacuum Infusion With MAX 1618 A/B

Video will open in a new window
Using the eBay App? Paste link into a browser window:

Fiberglass Tooling Board With MAX 1618 A/B
48" x 96" 20 Plies
7500 Fiberglass Fabric (https://www.ebay.com/itm/312585593625)



 ULTIMATE COMPRESSIVE STRENGTH TEST OF Fiberglass Tooling Board Compressive Test

Video will open in a new window

Compressive Load 6500 Pounds To Failure
Divided By .0.498 Square Inch (Length x Width)
=
13,052 PSI Maximum Compressive Strength

PLEASE CHECK OUT OTHER AVAILABLE RESIN SYSTEMS AT OUR eBay STORE
For our complete listing, please Visit our eBay store!

DON'T FORGET OUR EPOXY MIXING KIT
Click The Link To Add To Order  https://www.ebay.com/itm/222623932456

EVERYTHING YOU NEED TO MEASURE, MIX, DISPENSE OR APPLY

Proportioning the correct amount is equally as important to attain the intended cured properties of the resin system.
The container in which the epoxy and curing agent is mixed is an important consideration when mixing an epoxy resin system.
It must withstand the tenacity of the chemical and must be free of contamination.
Most epoxy curing agent has a degree of corrosivity, as a general practice, protective gloves should be worn when handling chemicals of the same nature.

MIXING KIT CONTENTS

1 Each Digital Scale -Durable, Accurate Up To 2000.0 Grams

4 Each 32-ounce (1 Quart) Clear HDPE Plastic Mix Cups

4 Each 16-ounce (1 Pint) Clear HDPE Plastic Mix Cups

One Size Fits All Powder-Free Latex Gloves

2 Each Graduated Syringes

Wooden Stir Sticks

Assorted Size Foam Brush



IMPORTANT NOTICE

Your purchase constitutes the acceptance of this disclaimer. Please review before purchasing this product.

The user should thoroughly test any proposed use of this product and independently conclude the satisfactory performance in the application.
Likewise, if the manner in which this product is used requires government approval or clearance, the user must obtain said approval.

The information contained herein is based on data believed to be accurate at the time of publication.
Data and parameters cited have been obtained through published information, PolymerProducts and  Polymer Composites Inc. laboratories using materials under controlled conditions.
Data of this type should not be used for a specification for fabrication and design. It is the user's responsibility to determine this products fitness for use.

There is no warranty of merchantability for fitness of use, nor any other express implied warranty.
The user's exclusive remedy and the manufacturer's liability are limited to refund of the purchase price or replacement of the product within the agreed warranty period.
Polymer Composites, Inc and its direct representative will not be liable for incidental or consequential damages of any kind.
Determination of the suitability of any kind of information or product for the use contemplated by the user, the manner of that use and whether there is any infringement of patents is the sole liability of the user.
