Specialty Lighting - Ushio HPL 750W 115V+ 300HR Stage & Studio Lamp || Don't get caught with the lights out!

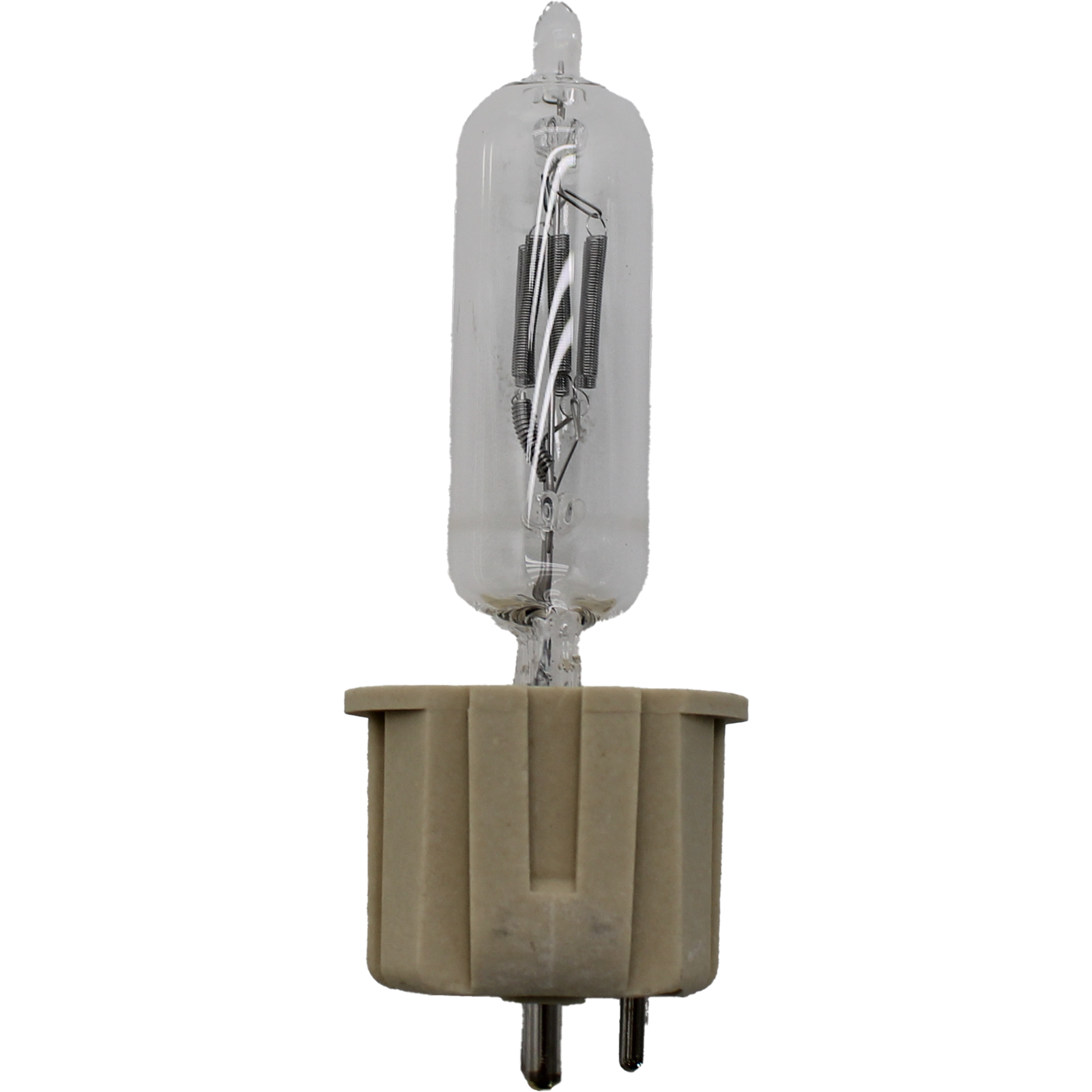

Ushio HPL 750W 115V+ 300HR Stage & Studio Lamp 750/115 - 1000675
16.99
1000675-HPL
Introducing the revamped Ushio HPL+ lamp, now the most powerful HPL available. With its newly designed ultra-compact filament, this lamp enhances the optical efficiency of your ETC Source Four™ fixtures, delivering up to 20% more lumens—meaning you get more light without changing the fixture.
Unlike competing HPL lamps, which have larger filament dimensions, Ushio’s innovative 6.0mm x 9.5mm filament design was developed in collaboration with ETC engineers. This compact profile optimizes light distribution, maximizing both axial and radial efficiency.
The precise optics of the Source Four require equally precise lamp engineering. Ushio has addressed this need by creating a reduced geometry filament that meets high manufacturing standards. Enjoy measurable performance, reliable quality, a range of lamp types, and cutting-edge design tailored for your theatrical needs.
DATA SPECIFICATIONS
| USHIO Item Code | 1000675 |
| Product Series | HPL |
| Prod. ID / ANSI Code | HPL-750/115V+ |
| Description | HPL-750/115V+, JS115V-750WC, 1500 Hour |
| Description 2 | 750W 115V+ |
| Item Type | Halogen |
| Base | HT/SNK |
| Voltage | 115 |
| Wattage | 750 |
| Burn Position | ANY |
| Bulb Shape | T6 |
| Bulb Finish | CLEAR |
| Color Temp (K) | 3250 |
| Efficacy (lm/W) | 29.2 |
| Filament | 4-C8 |
| Front Glass Cover | NO |
| Initial Lumens (lm) | 21900 |
| Luminous Flux (lm) | 21900 |
| Life (hr) | 300 |
| Diameter (mm) | 18.35 |
| MOL (mm) | 104 |
| Light Center Length (mm) | 60.3 |
| Case Qty | 10 |
Works with the following ETC Source Four™ fixtures:
- Source Four jr: Rated up to 575W
- Source Four jr Zoom: Rated up to 575W
- Source Four: Rated up to 750W
- Source Four Zoom: Rated up to 750W
- Source Four PAR EA: Rated up to 750W
- Source Four PAR MCM: Rated up to 575W
- Source Four PAR Nel: Rated up to 750W
Product Details
|
HPL+ lamps feature ultra-compact filament geometry, enhancing optical efficiency by up to 20 percent for ETC Source Four fixtures. |
|
Ceramic heat sink base provides consistent resistance to electric conductivity throughout the lamp's life. |
|
Unique four- and six-filament designs improve light collection efficiency in compact fixtures. |
|
Tapered pins ensure a reliable and easy fit into fixture sockets, minimizing installation difficulties. |
|
Available in a wide range of voltages and wattages, offering flexibility between maximum output and extended lamp life. |
