USB Port GRBL 3 Axis Control Board Integrated Driver For CNC Engraving Machine

Slide Slide Slide Slide Slide Slide Slide Slide Slide
$27.89
Brand
LUNYEE
Application
Milling Machine
Country/Region of Manufacture
China
Custom Bundle
No
Modified Item
No
Motherboard
32 bit
System
GRBL
Driver
Integrated driver
Power Supply
DC12-48V
Support
Servo/Offline controller/Limit switch
Connection
USB Cable
condition
New



Features:

1. The spindle motor and laser cannot be connected at the same time

2. The offline control board and the SUB data cable cannot be connected at the same time

3. Turn on the power after the electrical connection is completed

4. The positive and negative of the input power must not be reversed, and the reverse connection will burn

5. The 48VDC interface cannot be connected to the switching power supply, and the voltage that can be passed through the DC seat of the control board cannot be greater than 5A.




Parameters:

▶Power Supply:DC12-48V

▶Spindle:24V  0-500W

▶Stepper Motor:X/Y1/Y2/Z

▶Fan:5V

▶Connect Laser:2pin/3pin/2pin-2pi

▶Support:Servo/Offline controller/Limit switch

▶Connection:USB Cable




Packing list:

1* controller

1* USB cable

1*775 motor cable

Terminal definition diagram：

Connect To 48V Spindle Motor :

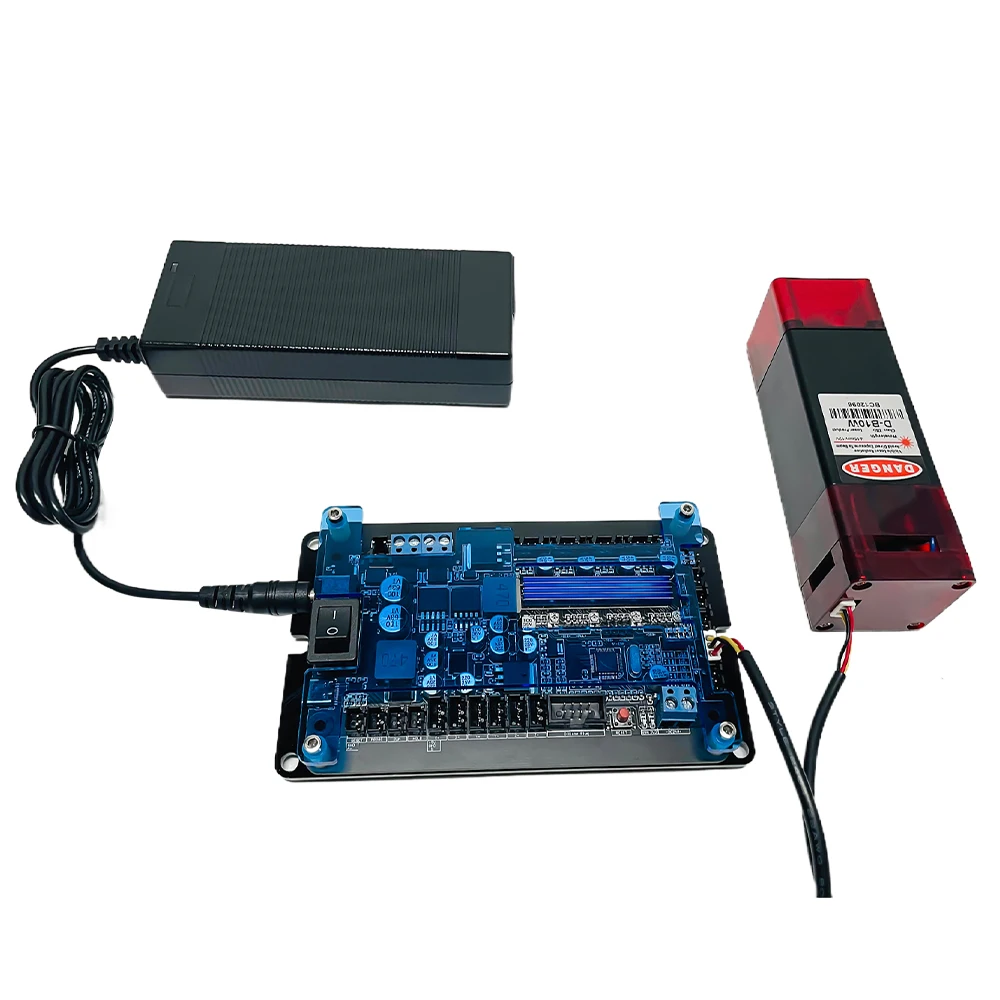

Connect To 24V Laser Module:

Install on Machine:
