US Stock SFX M4-M24R 110V Electric Tapping Arm Oil Spraying With ANSI Tap Collet

Slide Slide Slide Slide Slide Slide Slide Slide Slide
$1999.0
Speed
550RPM
Package Dimensions:
700*650*250mm
Machine Type
Electric Tapping Machine
Vertical Working Area:
400mm(Adjustable)
Operation panel
English Version
Custom Bundle
No
Tap Capacity
0.94 in
Working Direction
Any Direction
Tapping Range
M4-M24
Modified Item
No
Power Types
The AC Power
Brand
SFX
G.W
58kg（128lbs）
Unit Type
Unit
Arm Reach
47.2 in
Rocker Arm Radius
1200mm(47.2 in)
Voltage
110 V
Model
SFX -M24HR
Country/Region of Manufacture
China
Unit Quantity
1
Power
1200W
condition
New

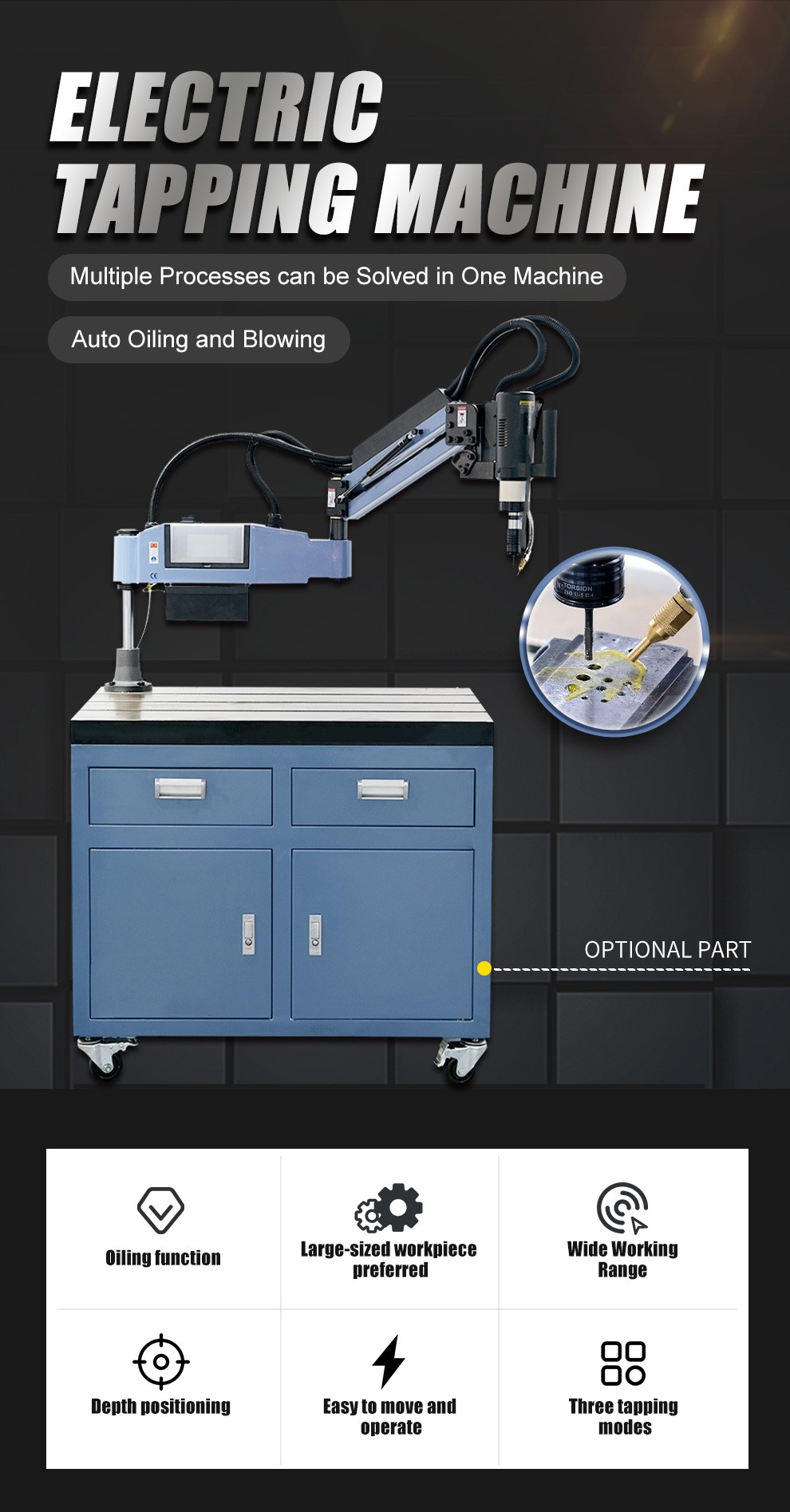

US Stock SFX 1200W High Rotary Speed Electric Tapping Arm Flexible Tapping M4-M24 110V With ANSI Tap Collet for Steel Aluminum Tapping

The SFX M24HR universal electric tapping machine is suitable for small, medium, and large size taps. It can achieve tapping M4-M24 for Aluminum; and M4-M20 for Steel and Stainless Steel. The electric tapping arm is of high rotary speed for fast tapping.  Equipped with 9pcs ASNI tap collets set for different thread tapping.

Specification:

  • Product name: Electric tapping machine
  • Model: SFX-M24HR
  • Voltage: 110V
  • Power: 1200W
  • Tapping range: M4-M24 for Aluminum; M4-M20 for Steel and Stainless Steel
  • Motor speed:0-550rpm(adjustable)
  • Working radius: 1200mm
  • Working direction: Universal
  • Package dimensions:700*650*250cm

  • Package weight: 58KG (128 lbs)

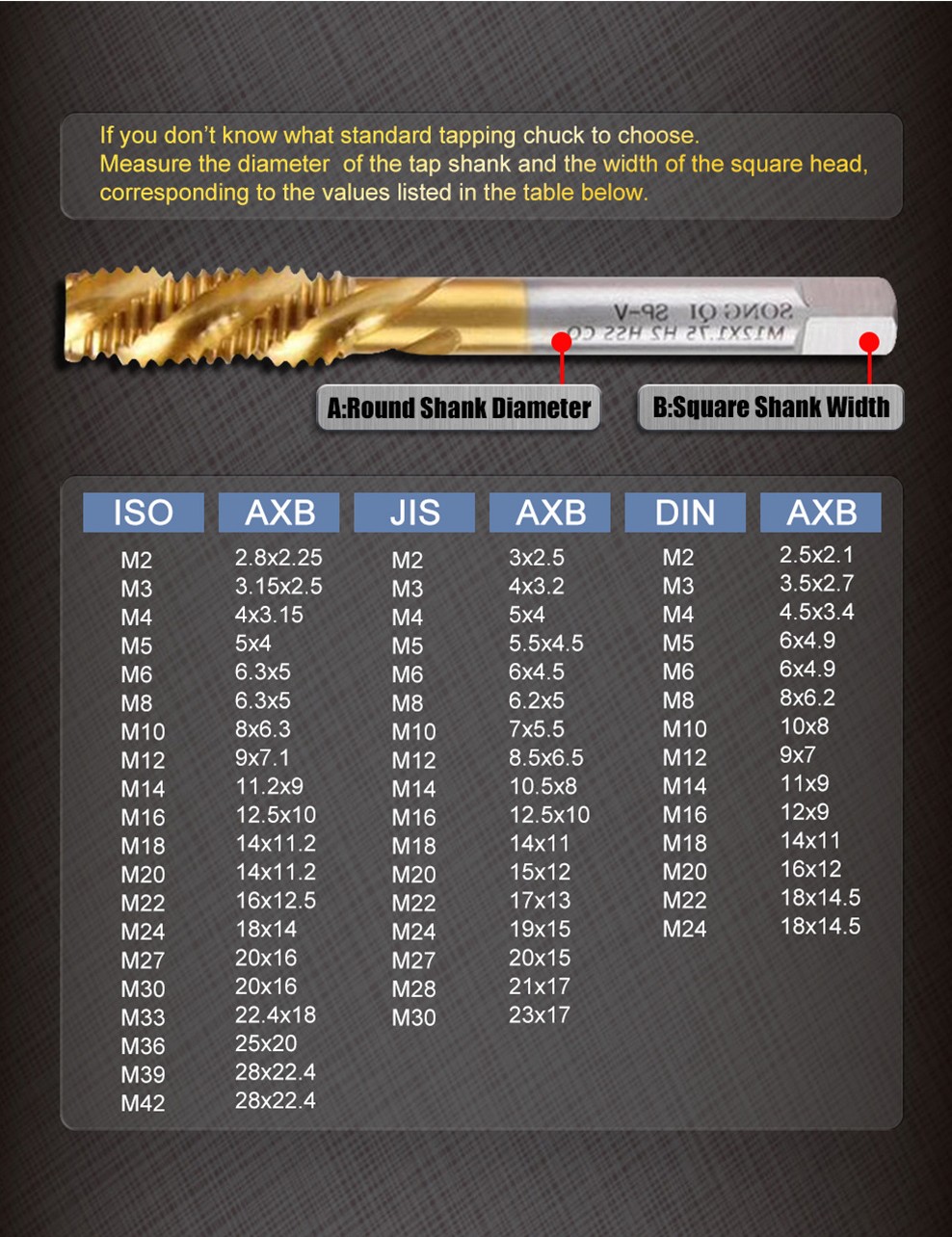

Tapping Chuck configuration:
  • ANSI Collet GT12-1/4 5/16 5/32 1/16 3/16 7/32 3/8 7/16 1/2 : 9pc
Service:
  • US stock; fast free shipping with door to door service.
  • One-year warranty provided
  • After-sales support
