US M6-M30 Tap Collets 1200mm Arm 360° Universal Tapping Machine Electric Tapper

Slide Slide Slide Slide Slide Slide Slide Slide
$1899.0
Brand
SFX
Speed
200RPM
Machine Type
Electric Tapping Machine
Arm Reach
1180mm for horizontal direction, 400mm for vertica
Tap Capacity
M6-M30
Voltage
110V/220V
Model
SFX M6-M30
Country/Region of Manufacture
China
Modified Item
No
condition
New
US M6-M30 Tap Collets 1200mm Arm 360° Universal Tapping Machine Electric Tapper

  • US stock, free shipping, 3-6 days to your door.

  • Feature:
  1. Easy to move and operate, large-sized workpieces preferred
  2. Three tapping models:  Manual tapping model, automatic tapping model with depth setting, deep hole intermittent model.

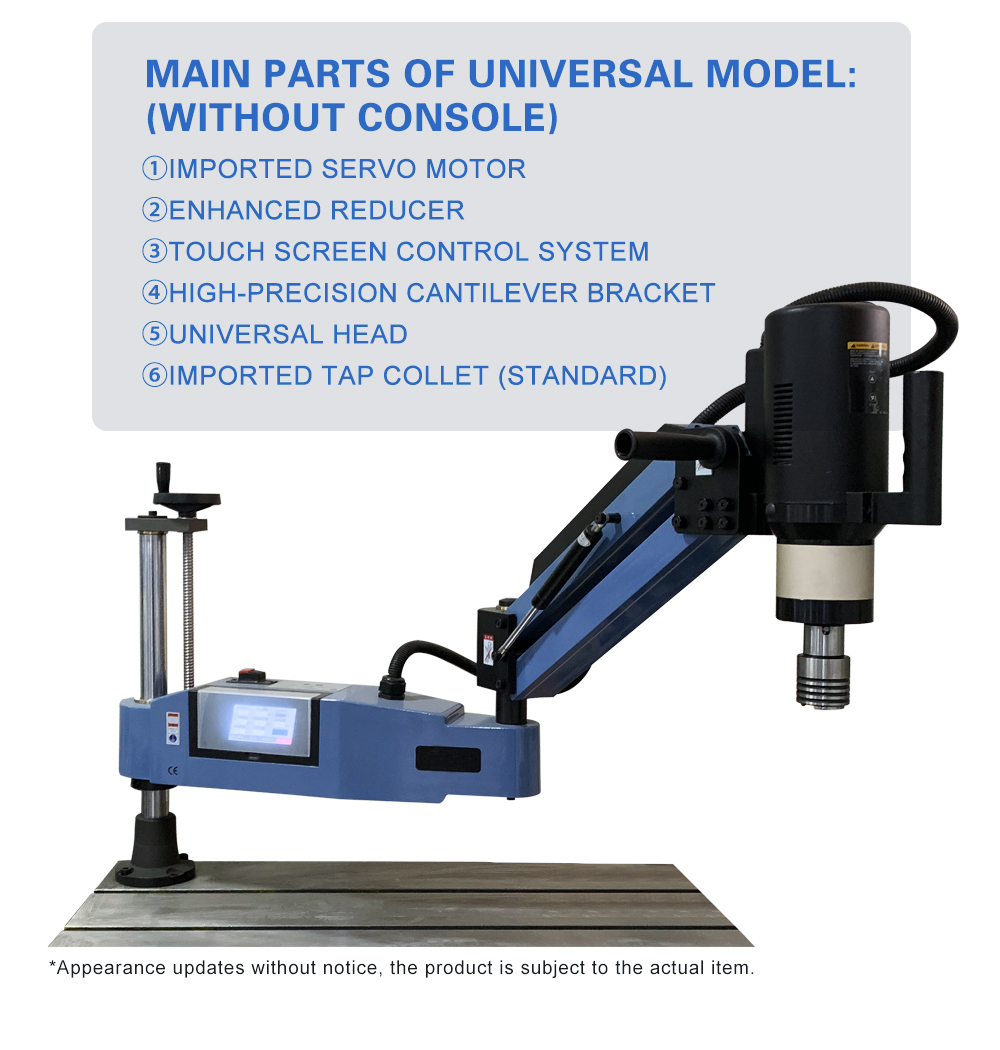

  3. Enhanced Reducer: Gear durable. Intelligent Control System: Stable and reliable program.
  4. Universal head: Electric tapping machine with Vertical and horizontal tapping in any direction.

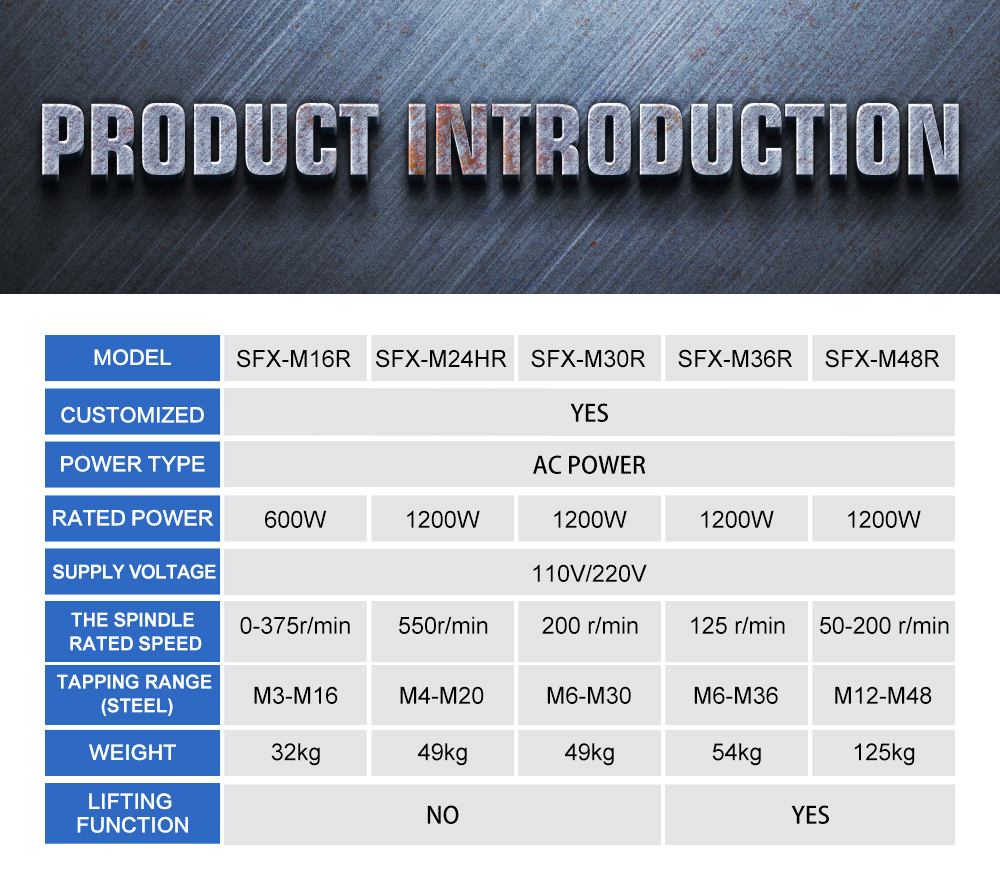

  • Technical Parameter:
  • Tapping range: M6-M30 for stainless, and M6-M33 for Aluminum
  • Tapping direction: Universal
    Spindle speed: 200RPM
    Working area: 1180mm for horizontal direction, 400mm for vertical direction (Adjustable)
    Applicable material: aluminum, copper, A3 steel, 45steel, cast iron, Q235, S136, mold steel, 718H, 40Cr, stainless steel and other metal materials, wooden, plastic etc.
    Standard accessories: 1 set tapping arm, 1 set servo and reducer, 1set tap holder, universal joint(tapping for a vertical and horizontal)

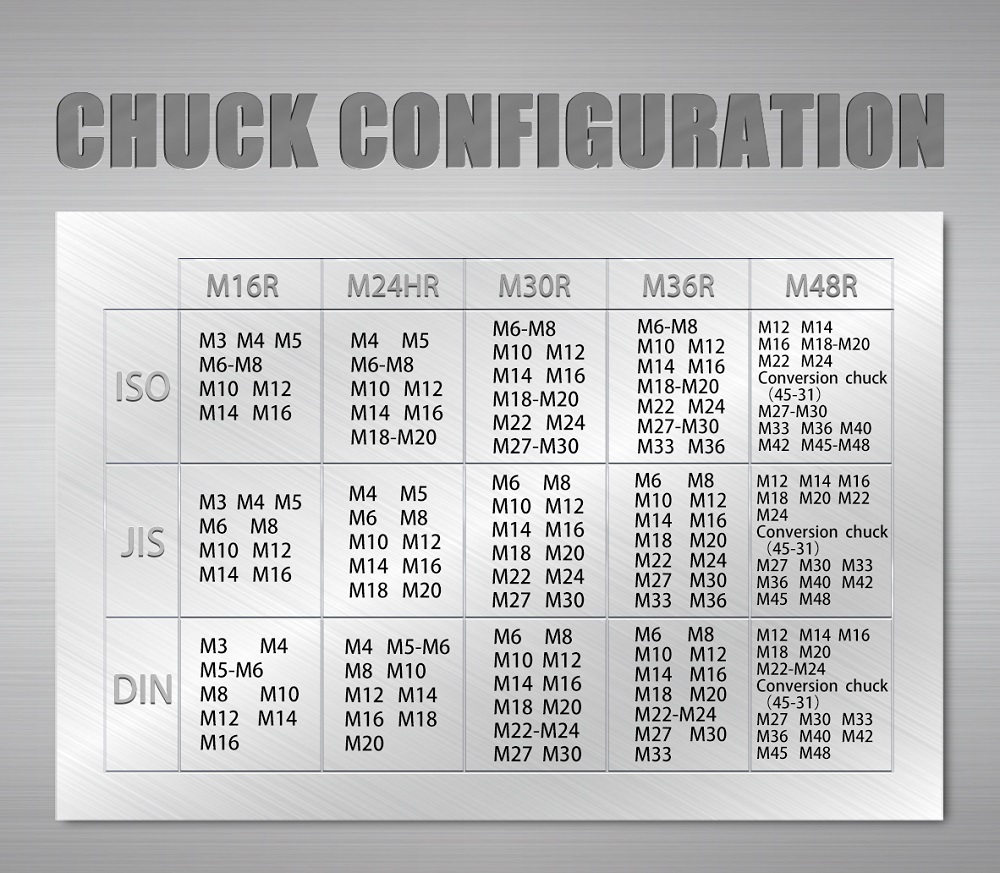

    Please note: One set ISO Collect chuck is included. If you need JIS, ANSI or DIN chuck, please contact us. The working table is not included.

    Warranty: 1year. We would repair the machine for free if there is any technical problems caused, man-made errors are not included.
