Upgrade T04e T3.63 A/R 48.1 Trim Turbocharger Compressor 420+hp Stage3

Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide
$136.02
Bearing Type:
Floating Bearing
Brand
MaXpeedingrods
Compressor A/R:
0.5
Compressor Inducer /Exducer (MM):
52.7 / 76.00
Compressor Trim:
48.1
Cooling type:
Oil cooled
Exhaust Inlet Flange
T3 4 bolt Flange Patterns
Exhaust Outlet  Flange
V-Band Flange (ID/OD: 2.5"/3.1")
Features
Individual
Finish
Painted
FIT FOR
for all 4 or 6 CYL, 1.5L-2.5L Engines
Hole Size
Oil Inlet: M12*1.25 & 2*M8*1.25, Oil Outlet: 2*M8*1.25
Horse Power
420HP +
Interchange Part Number
T3 Turbo, T04E, Turbo Turbocharger Turbolader Turbine
Items Included
Clamps, T-Bolts
Manufacturer Part Number
9FISUB
Manufacturer Warranty
2 Year
Model
T3 T04E
Modification Description
High Quality Material, Cast Housing with Durable Steel
Modified Item
Yes
Notice
This is aftermarket replcement part
OE/OEM Part Number
Universal Turbo,for all 4 or 6 CYL, 1.5L, 1.8L 2.0L,2.5L Engines , T3 Turbo, 4 bolt , T04E TURBO, with Gasket, turbosuperchargers, turbocharger compressor wheel, Turbolader, Turbocompresor,, Turbo, Turbocharger, Turbocharger, Turbine, Universal Turbo, For BMW 325i, 325CI, for Toyota Corolla, for Honda Accord
Performance Part
Yes
Placement on Vehicle
Front
PSI
0.5bar - 1bar ( 7.3psi - 14.5psi )
Superseded Part Number
Universal turbo for all 4 6 Cylinder engine
technology
100% BALANCING TEST VSR machine technology
Thrust Bearings
270 Degrees
Turbine A/R:
0.63
Turbine Inducer / Exducer (mm)
64.8/55.8
Turbine Trim:
74.2
Type
Turbocharger
Universal Fitment
Yes
UPC
6941503373663
condition
New
06msr-ca

Upgrade T04e T3.63 A/R 48.1 Trim Turbocharger Compressor 420+hp Stage3



Universal T3 T04E V-band Turbocharger .63 A/R W/ Wastegate

Application:


Perfect for all 4 or 6 CYL, 1.5L-2.5L Engines

*Notice:Please confirm that there is enough space in your car to install this turbo before purchasing.



Product Specific:

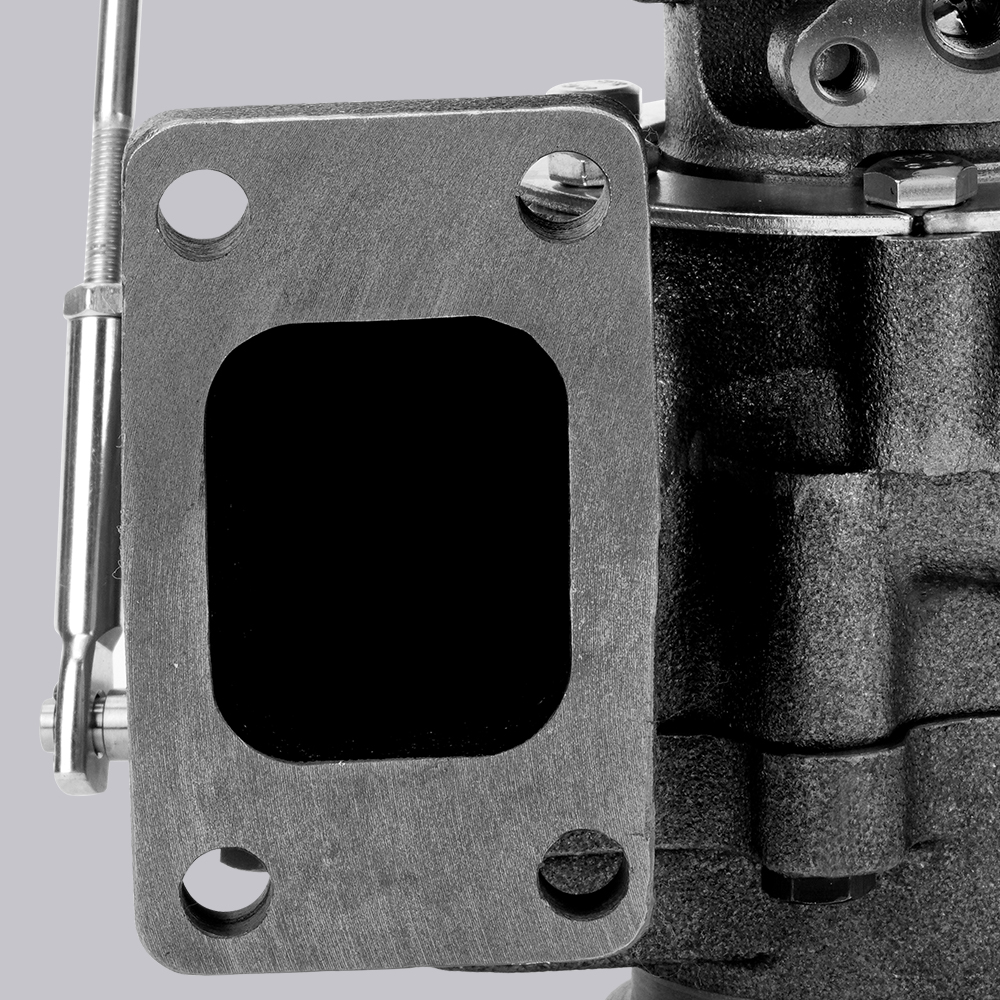

Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns

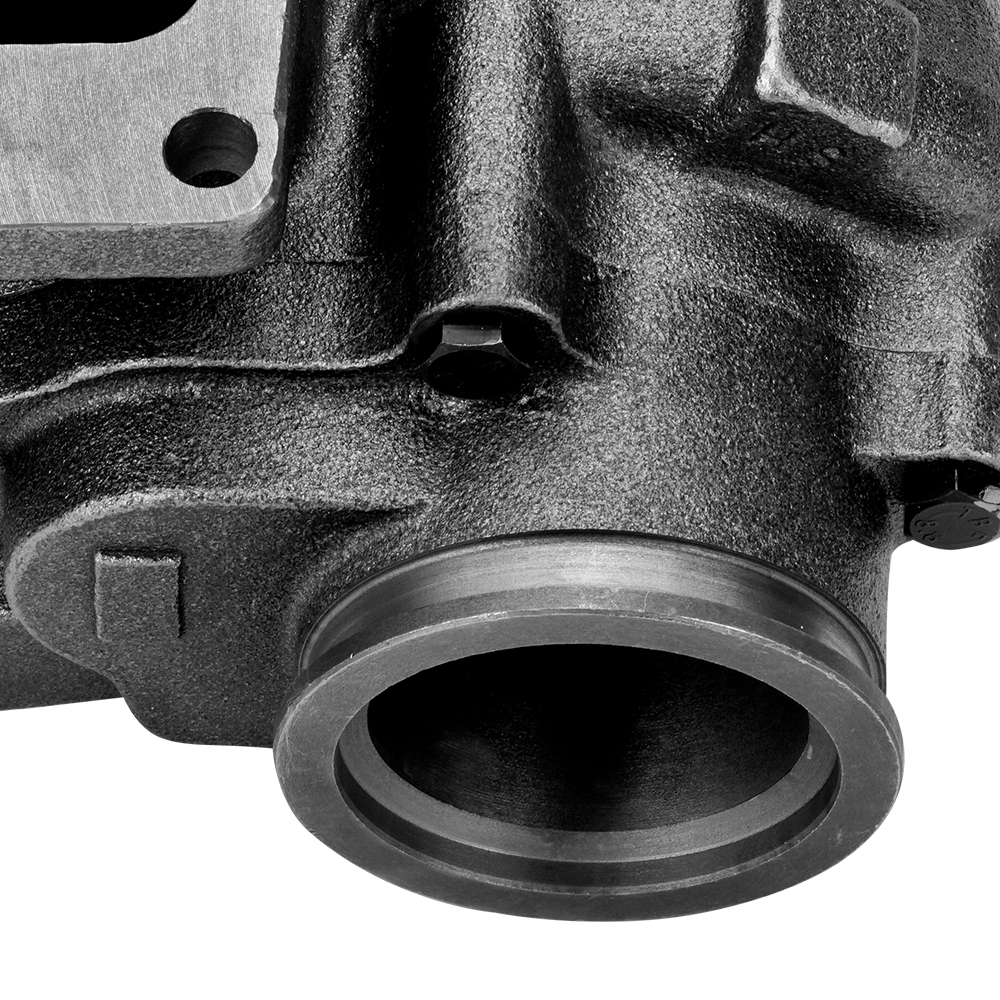

Exhaust Outlet  Flange: V-Band Flange (ID/OD: 2.5"/3.1")

Turbine Side:
Turbine Trim: 74.2
Turbine A/R: 0.63
Turbine Inducer: 64.8mm
Turbine Exducer: 55.8mm
Turbine exhaust outlet : 79mm
Turbine exhaust inlet: 44.7mm (length) / 85.8mm (width)
Compressor Side:
Compressor Trim: 48.1
Compressor A/R: 0.5
Compressor Inducer: 52.7mm
Compressor Exducer: 76mm
Compressor outlet:78 mm
Compressor inlet:51.5 mm

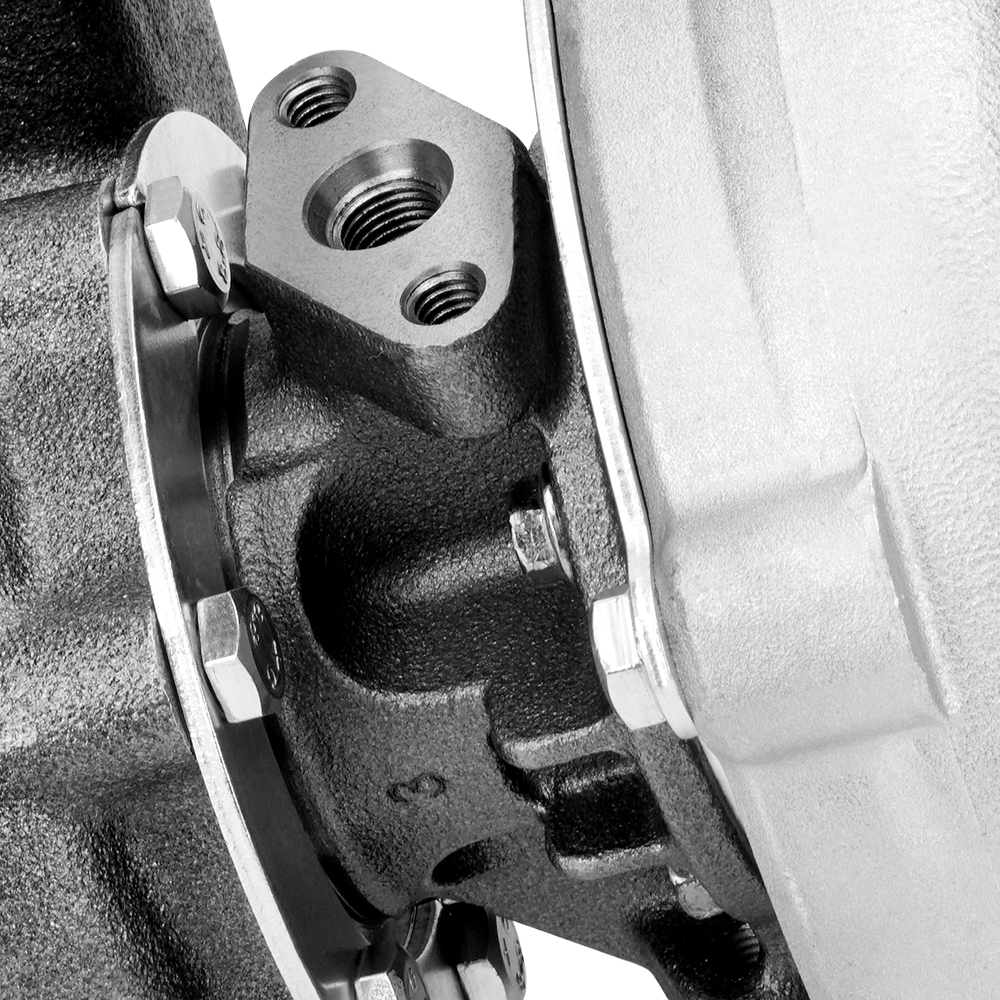

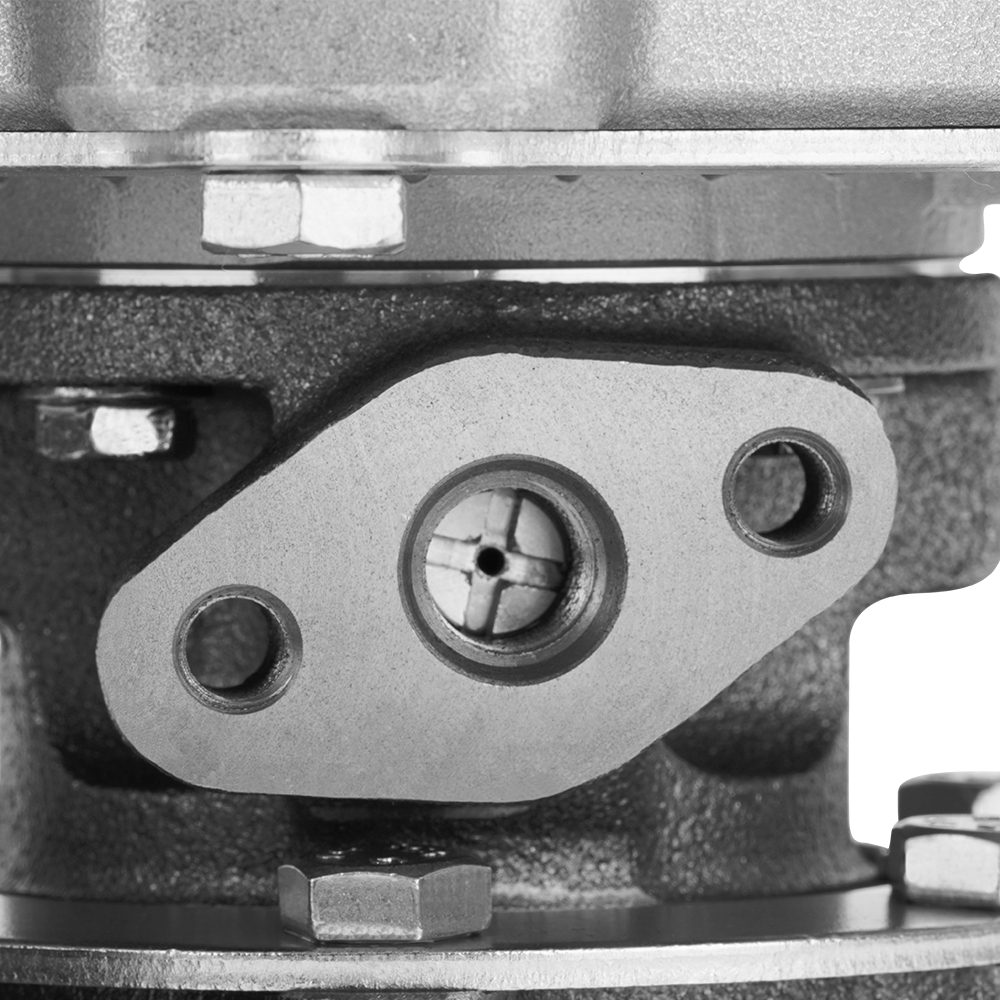

Oil Inlet: M12*1.25 & 2*M8*1.25
Oil Outlet: 2*M8*1.25
Bearing: Journal Bearing
Cooling Type: Oil Cooled
Wastegate: w/ Wastegate
Thrust Bearings: 270 Degrees
Hosepower: Up to 420 HP
Turbo Type: Individual
Condition: 100% Brand New

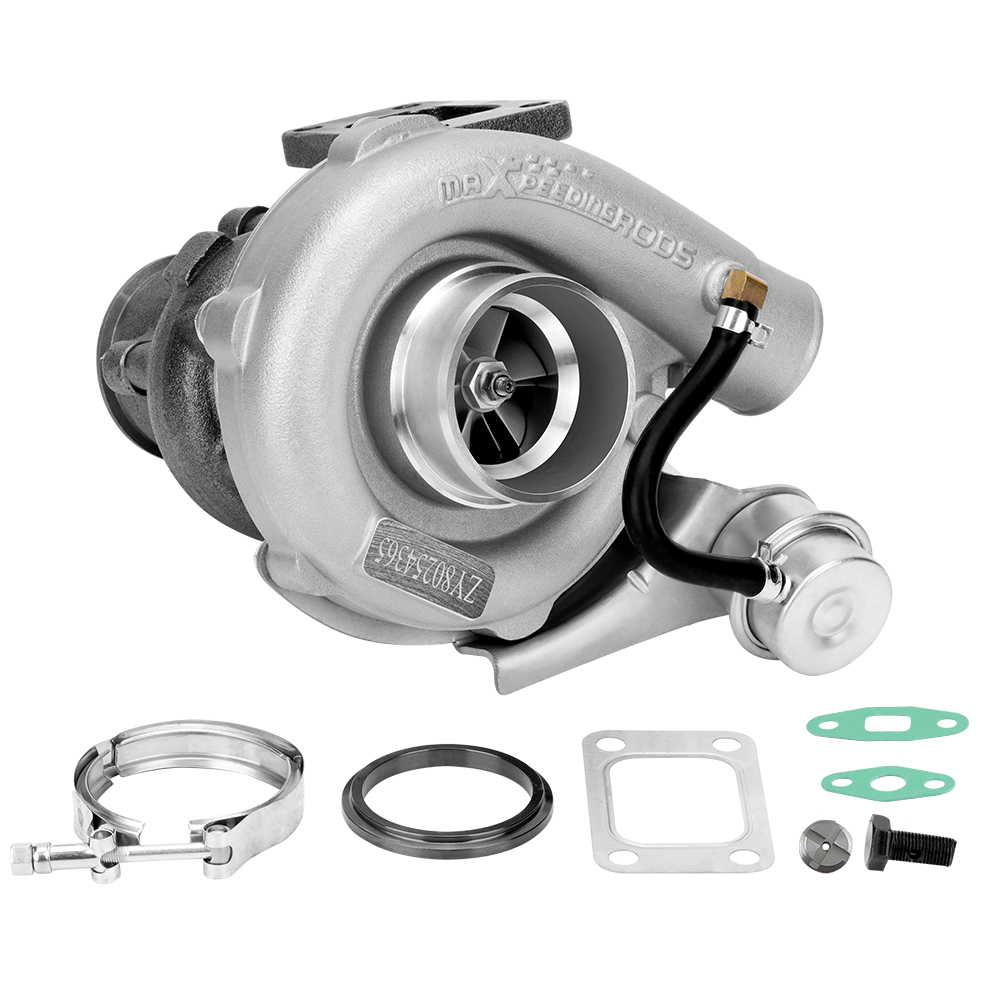

Accessories: You will get exactly as shown as picture above
Package Size: 30x 28x 24 cm
Package Weight: 9180g



Features:

*Product Material

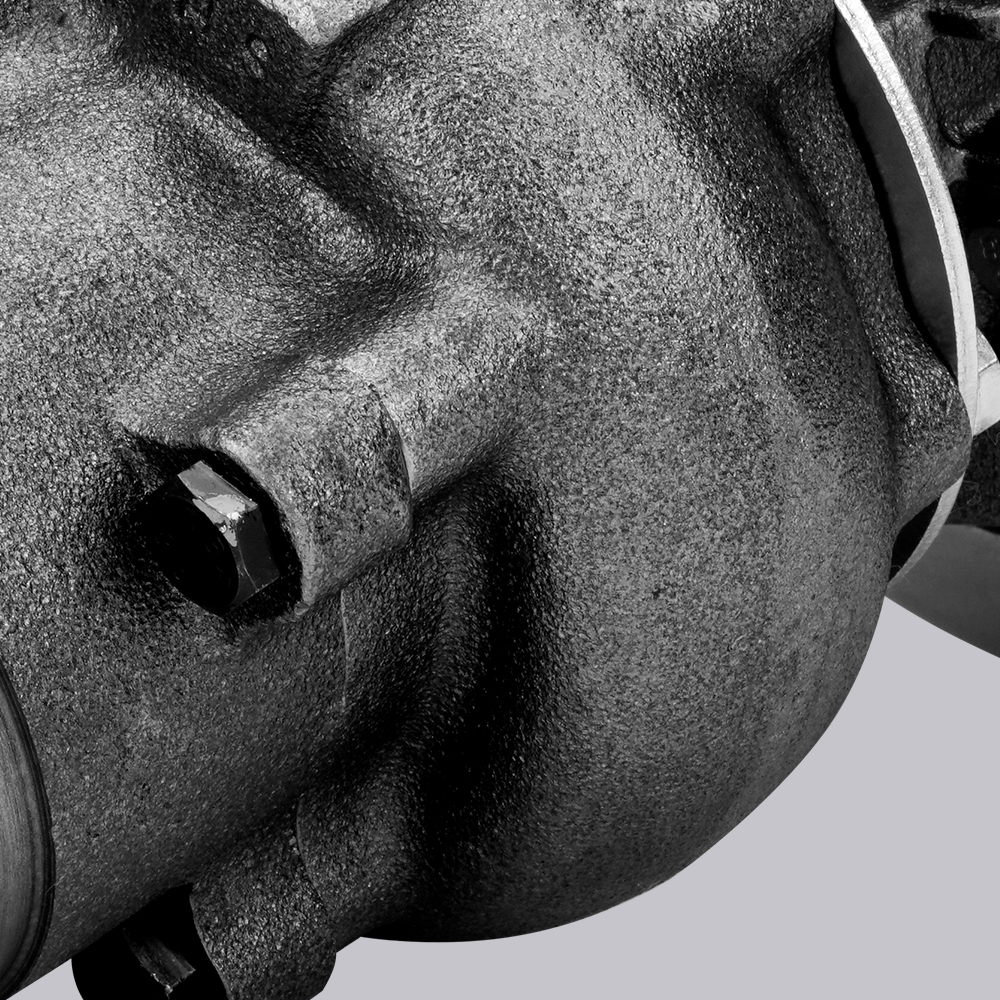

1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
2. Steel turbine wheel: K418 alloy -  high  oxidation stability and resistance  up  to 900℃
3. Compressor housing: ZL104 aluminum with lightweight
4. Compressor wheel: Cast aluminium blades – superior air tightness & corrosion resistance

*Product Features
1. Rich experience in turbo production and own factory
2. High-Speed oil seal ring and Precision clearance
3. Built for durability and strength

* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS  VSR3
2. G3-min-Flow VNT Turbo testing
3.  Advanced Actuator Tester/Programmer



Note:

* Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
* Make sure the oil drain line is lower than the turbo itself.
* Ensure exhaust outlet are well sealed by welding
* The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
* This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
