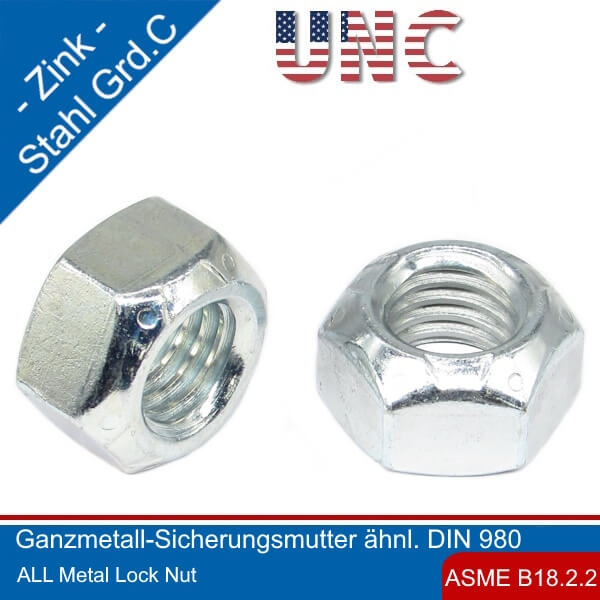

Unc Full Metal Lock Nut - Top Lock Oval - Steel Grade C Zinc Plated

Slide Slide Slide
$1.9
Threaded-
1/4-20 UNC
Quantity.-
10 pieces
Type
All-metal lock nuts
Screw Size
1/4 inch - 1 Inch
Head Form
Wood Screws Countersunk Head
American name
All Metal Lock Nut | Top Lock Nut | Stover Nut®
Material
Steel
Measurement System
Inch
Number per pack
Packaging unit: 1 - 100 pieces
Backup function
Conical shape on the top
Brand
Geprüfter Lieferant / Hersteller
Thread Size
1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1
Model
Customs mother
Drive
Hexagon Wrench
Norm
IFI 100/107
Finish
Galvanized
Class
Grade C (~10)
condition
New

Bridge Ganzmetall-Sicherungsmutter Top Lock Oval Steel Grade C Galvanized

The description of this item has been automatically translated. If you have any questions, please feel free to contact us.


American Fasteners since 2006

Large selection ✔️ Top quality ✔️ competent advice ✔️

Item description

UNC all-steel lock nut, top locking, 1/4" - 1", IFI 100/107 steel Grade C zinc plated

UNC all-steel lock nut IFI 100/107 steel grade C galvanized

  • Thread type: UNC, Unified National Coarse, American coarse thread according to ANSI B1.1
  • Material: Steel
  • Strength class: Grade C (~10)
  • Fuse type: Clamping
  • Backup function: Conical shape on the top
  • Standard: IFI 100/107
  • Surface: Galvanized

At All-steel lock nuts securing top, the thread at one end of theMotherr deformed by a crushing, so that the nut is still freely rotating at the beginning. They are also known as Stover lock nut or Top Lock Nut designated. At All-steel lock nuts securing top, the clamping is achieved via a conical shape on the top. The strength class Grade C is comparable to the metric strength class 10. The layer thickness after galvanization is between 3 and 5 µm and offers good corrosion protection. These nuts have a metallic bluish color, which is why they are also called zinc blue. The American UNC thread is the industry standard.

Categories

Shipment

We offer the following shipping service providers:



Payment methods

We offer the following payment methods:



imprint

ScrewCorner Fastener Superstore

Owner. Volker Meuer
Mühlweg 1-3
56355 Bettendorf

DE255110209

UNC all-steel lock nut, top locking, 1/4" - 1", IFI 100/107 steel Grade C zinc plated
Produktart Ganzmetall-Sicherungsmuttern
Schraubengröße 1/4 inch - 1 Inch
Kopfform Sechskantkopf
Amerikanische Bezeichnung All Metal Lock Nut | Top Lock Nut | Stover Nut ®
Material Stahl
Maßsystem Zoll
Anzahl pro Packung VPE: 1 - 100 stück
Sicherungsfunktion Konische Form an der Oberseite
Marke Geprüfter Lieferant / Hersteller
Gewindegröße 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1
Modell Zollmutter
Antrieb Sechskantschlüssel
Norm IFI 100/107
Finish Verzinkt
Klasse Grade C (~10)
