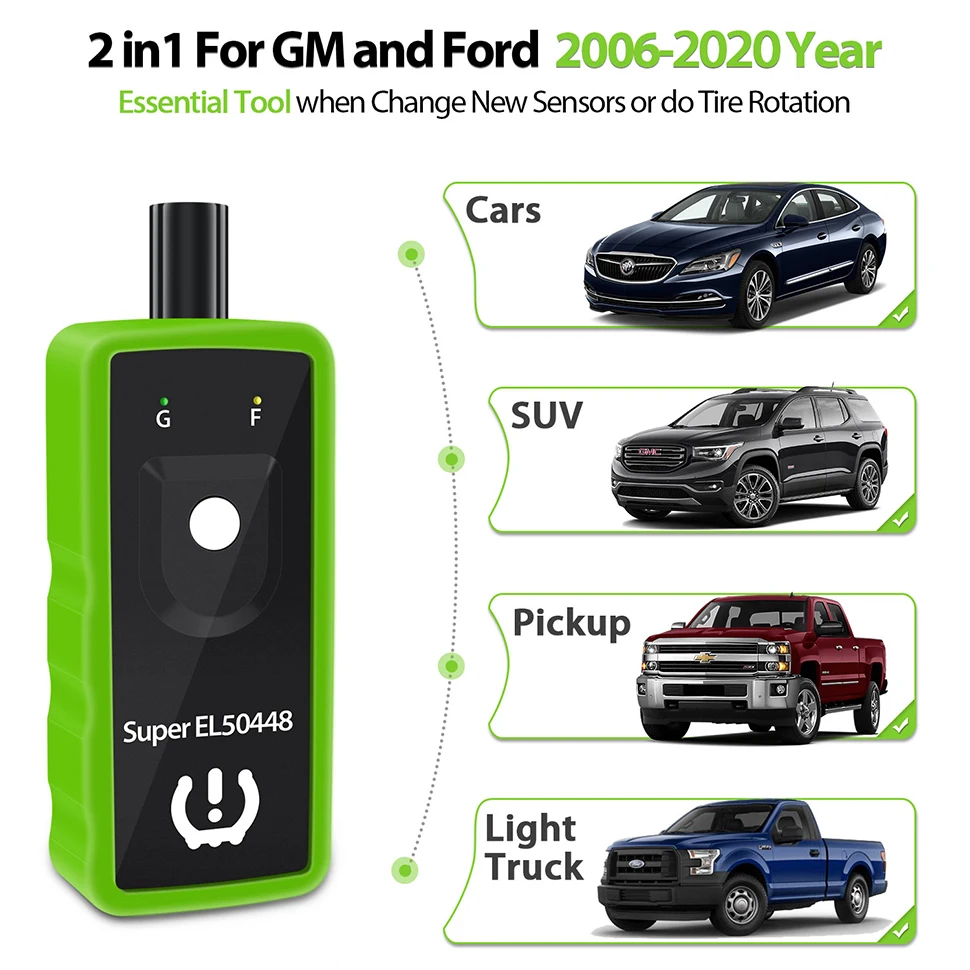

Super EL50448 2 in 1 Tire Pressure Monitor System Sensor Reset For Ford
2 in 1 TPMS Tool: Super EL50448 works as both EL-50448 GM series and TPMS19 tire sensor reset tool.
Equipped with 315 or 433 MHz, need it when change new sensors or do tire rotation.
Warmly Notice
9V battery shold be in good condition: New & fully charged.

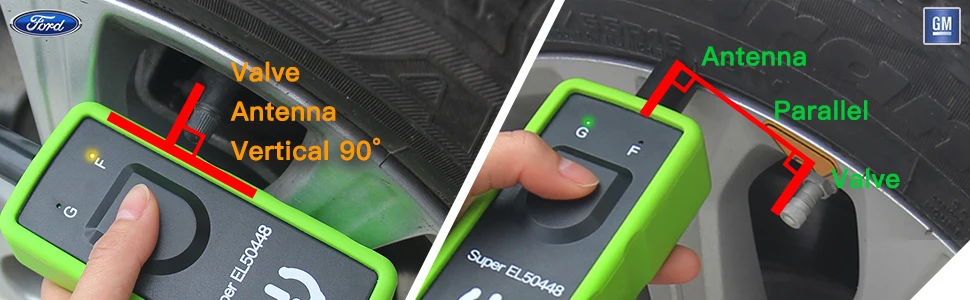

Make sure antenna fits in CORRECT position.
Do tire reset outside instead of in the garage.
Position of tires are also important, front tires have to be straight.
Sensors should be original / OEM sensors which are already well programmed.
Be sure all other sensors are out of range of vehicle antenna (10 ft range min).
Disable all other WIFI/Bluetooth and electronic accessory devices. Includs HID kits, car audio systems, navigation, back-up cameras, if NOT original equipment, these devices may cause RF disruption.
When You Need This Tire Relearn Tool?
1. New TPMS sensors installed, letting air out or adding air in to the tire couldn’t make the system recognize new sensors.
2. Do tire rotation, didn’t have a quick and easy way to let ECU relearn new tire information.
3. When tire pressure indicator light ON, after the maintenance performed, the tire pressure needs to be reset to turn off the TPMS light.
4. Low tire pressure or leakage /replacement or installation of tire pressure monitoring equipment / tire replacement, sensor damage, etc. After those problems solved, TPMS needs to be reset.
5. Exchanging the winter tires or Summer tires.
Applicable Models:
>>2006-2020 compatible with almost all GM Series vehilces: Buick, Cadillac, Chevy, GMC,Opel
>>2006-2010 compatible with Saab, Pontiac,Hummer, Saturn
>>2007-2020 compatible with Ford F-150,Edge; 2008-2015 F-250 F-350 F-450 F-550 Super Duty
>>2006-2020 compatible with Mustang; 2006-2015 Escape; Explorer
>>2008-2020 compatible with Expedition,Flex,Taurus,E-150 E-250 E-350 E-450 Econoline Vans,Fiesta,Focus,Fusion; Lincoln MKZ, MKS,Navigator
>>2008-2011 compatible with Ford Crown Victoria,Lincoln Town Car
>>2011-2020 compatible with Ford Transit Connect
>>2006-2011 compatible with Ford Ranger;Mercury Mariner,Grand Marquis,Milan
>>2007-2020 compatible with Lincoln MKX,MKT;2007-2008 Lincoln Mark LT
>>2006-2010 compatible with Mercury Mountaineer,Monterey

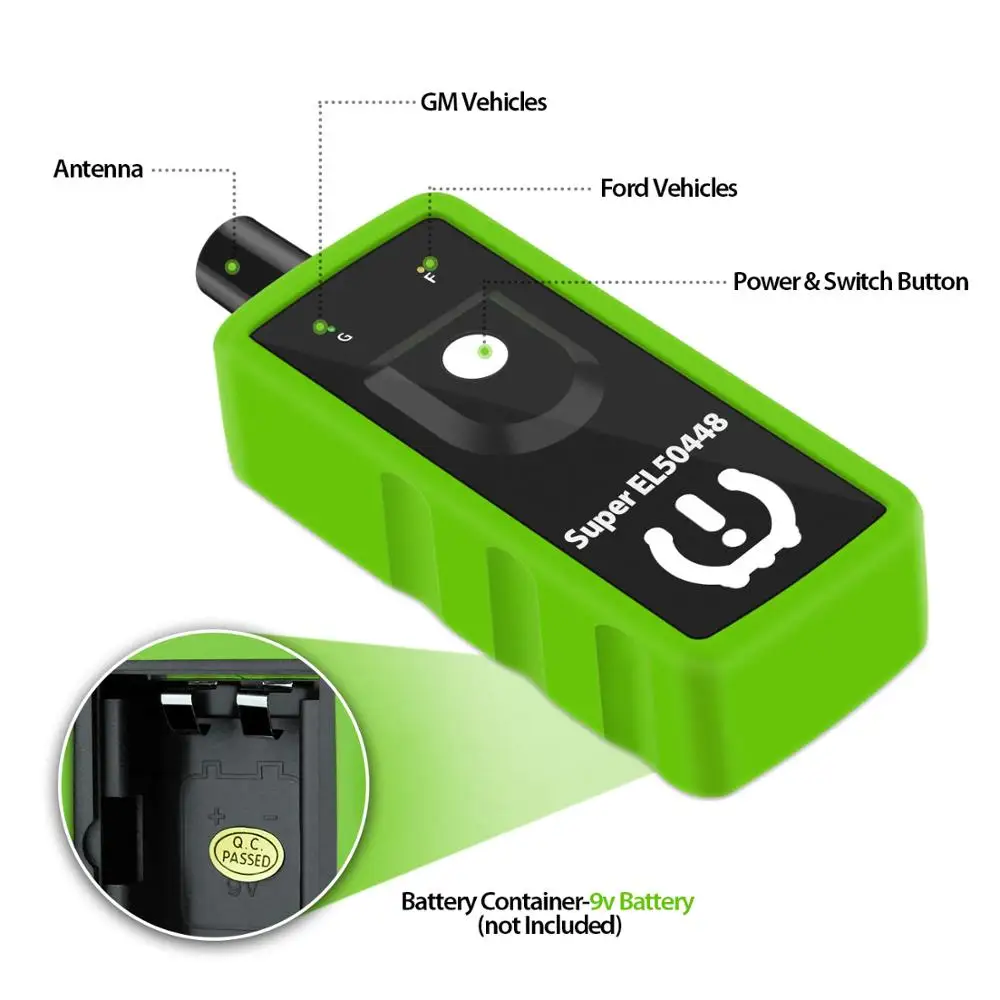

How to switch between GM and Ford brand?
>>Hold power button for 5 seconds and 2 LEDs flashing 2 times, selected brand’s LED flashing 2 times.
How to detect which mode the device in?
>>Press power button, if Green LED flashing means tire reset tool in GM mode, if Yellow LED flashing, means Super EL50448 in Ford mode.
How to use Super EL50448?
Need 1pc 9V battery to work (Not included in this parcel)
1. Set the car in TPMS learning mode. (car horns twice)
2. Starting relearn process from left front tire, point antenna on correct position. Press & release power button. Once the speaker chirped, move to the next tire.
3. Follow this order to rest TPMS sensors: Front left, front right, rear right, rear left. 4. After all sensors reseted, the car horns twice means TPMS re-learn finished.
How to set my car in TPMS re-learn mode?
***For GM series vehicles***
1. Make the gear in P position.
2. Use cruise to choose TPMS re-learn mode in the dashboard settings.
3. Horn will ring twice and the TPMS indicator flashes, then the learning mode has been successfully entered. If equipped, the message center will display the front left (LF) tire
***For Ford series vehicles***
1. Make the gear in P position.
2. With the ignition switch to OFF, press and release the brake pedal
3. Turn the ignition switch from the OFF position to the RUN position 3 times and end at RUN position
4. Depress and release the brake pedal
5. Ignition to OFF position
6. Ignition goes from the OFF position to the RUN position 3 times and ends at RUN position
7. Horn will ring once and the TPMS indicator flashes, then the learning mode has been successfully entered. If equipped, the message center will display the front left (LF) tire
Packing List
1pc * Super EL50448 TPMS Reset Tool
1pc * English User Manual
