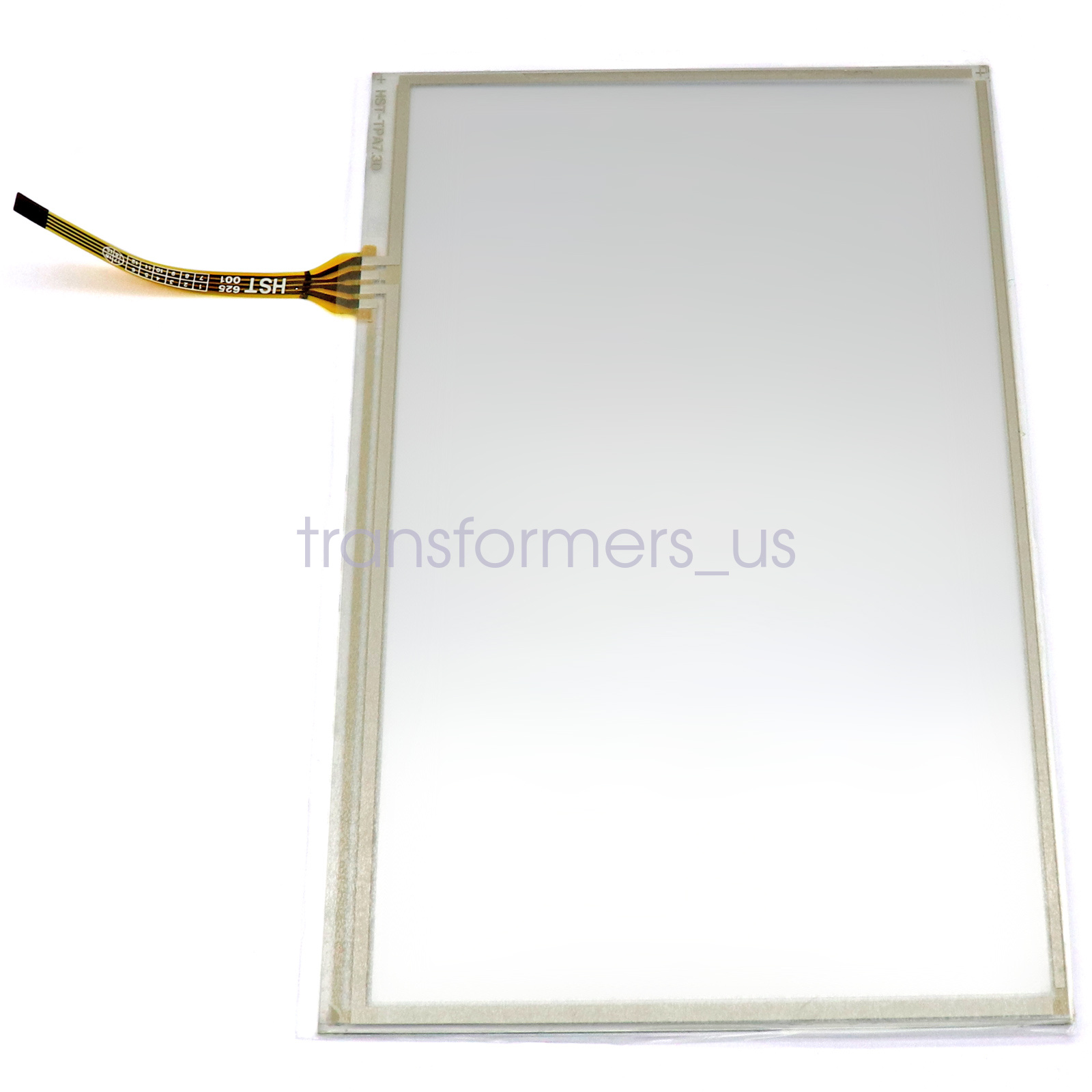

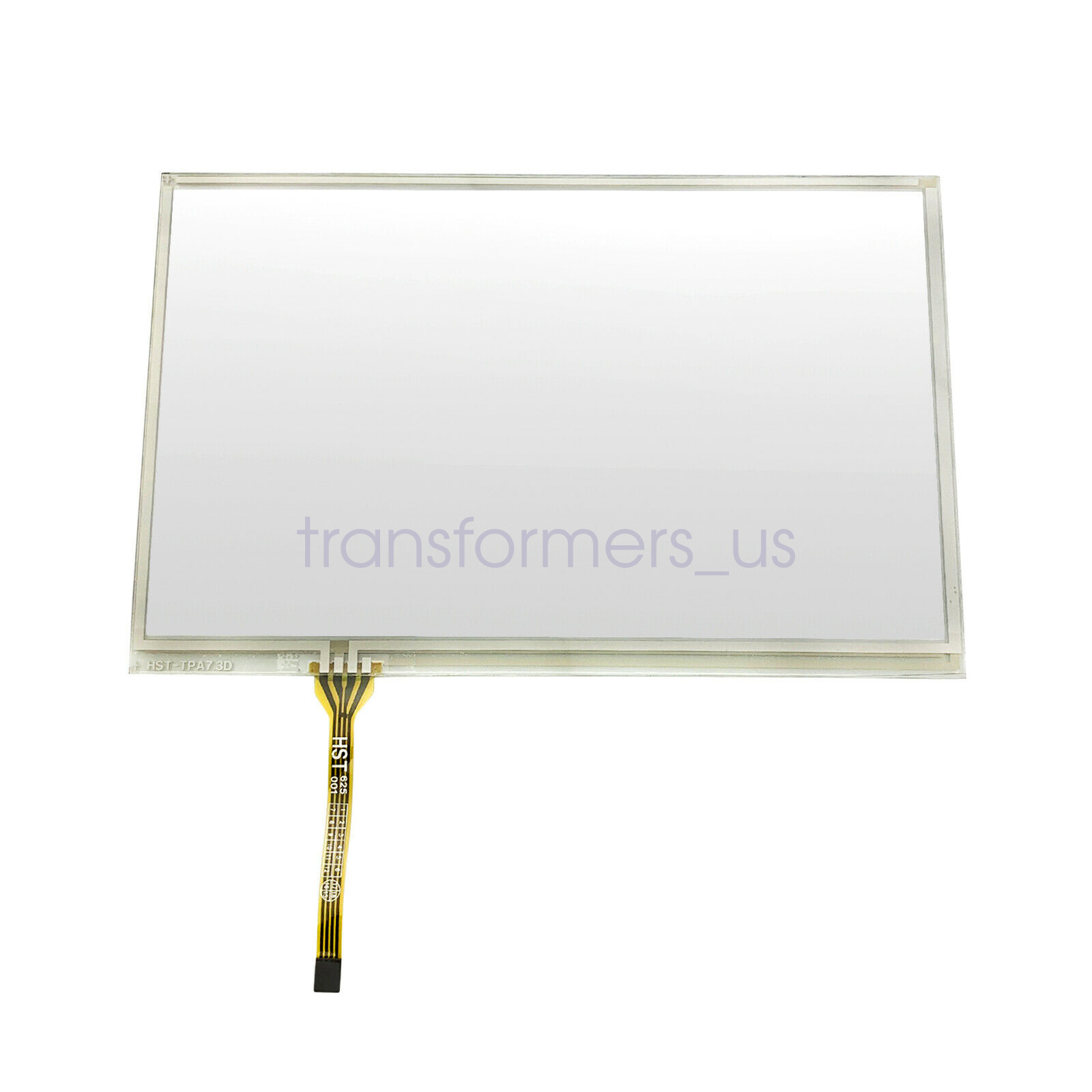

Touch Screen Glass Digitizer For 06-09 Lexus IS250 IS350 GS300 RX Nav GPS Radio
DESCRIPTION:
Feature:
Fast shipping and good operation.
100% Brand New and High Quality.
Repair/Replacing old, broken, cracked, damaged faulty touch screen
The Product Is Posted In A Sealed Box Protected By Bubble Wrap.
Please note that pay attention to the fragile flex cable when installing it.
Pictures are taken by real product.
Please check pictures for more details.
For GPS Navigation Touch Screen Digitizer.

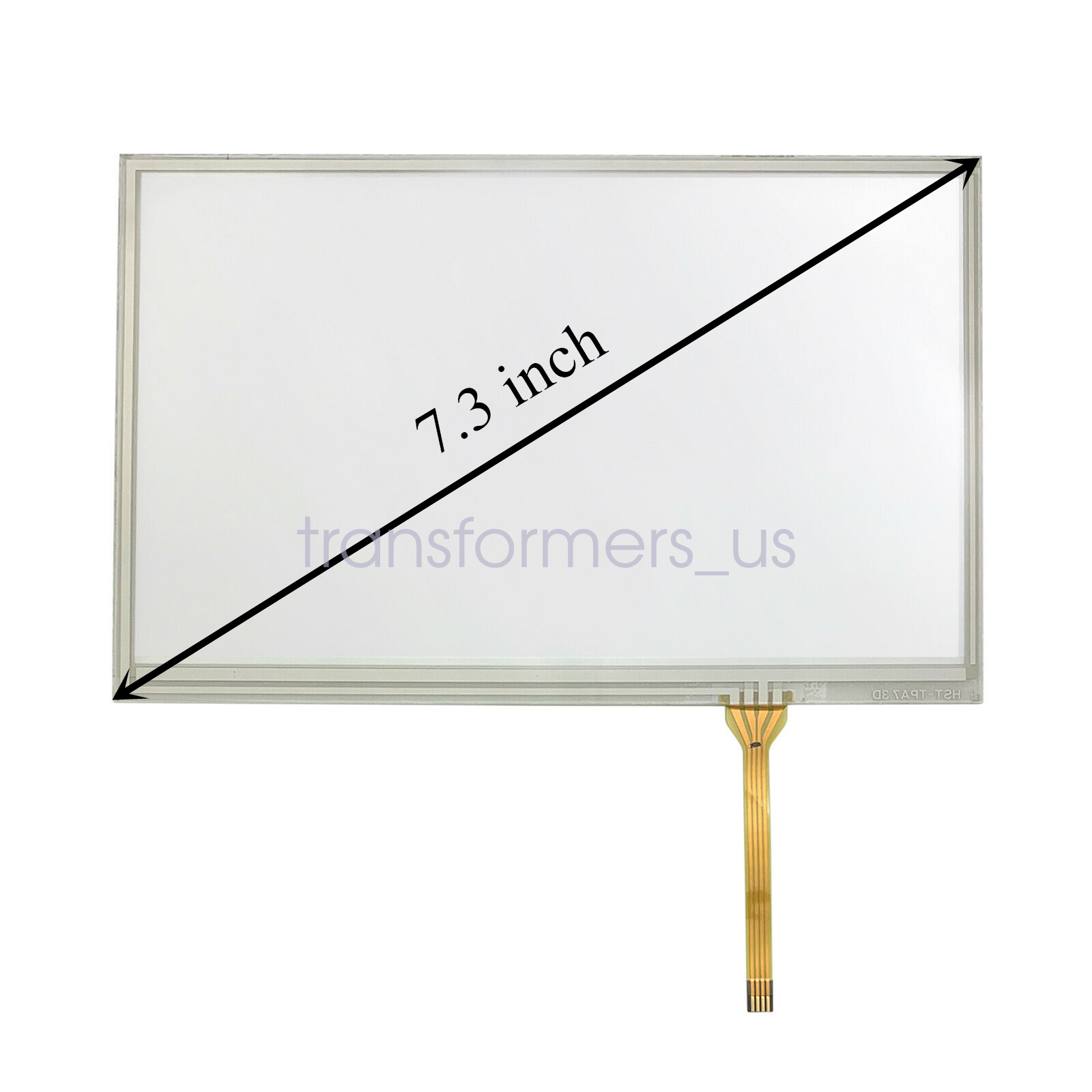

Size: 7.3in (170*107.6mm).
View area: 161.9*96.1mm.
Active area: 159.9*94.1mm.
Thickness: 1.4±0.15mm.
Distance from the left edge of the glass to the center of FPC: 43.9mm.

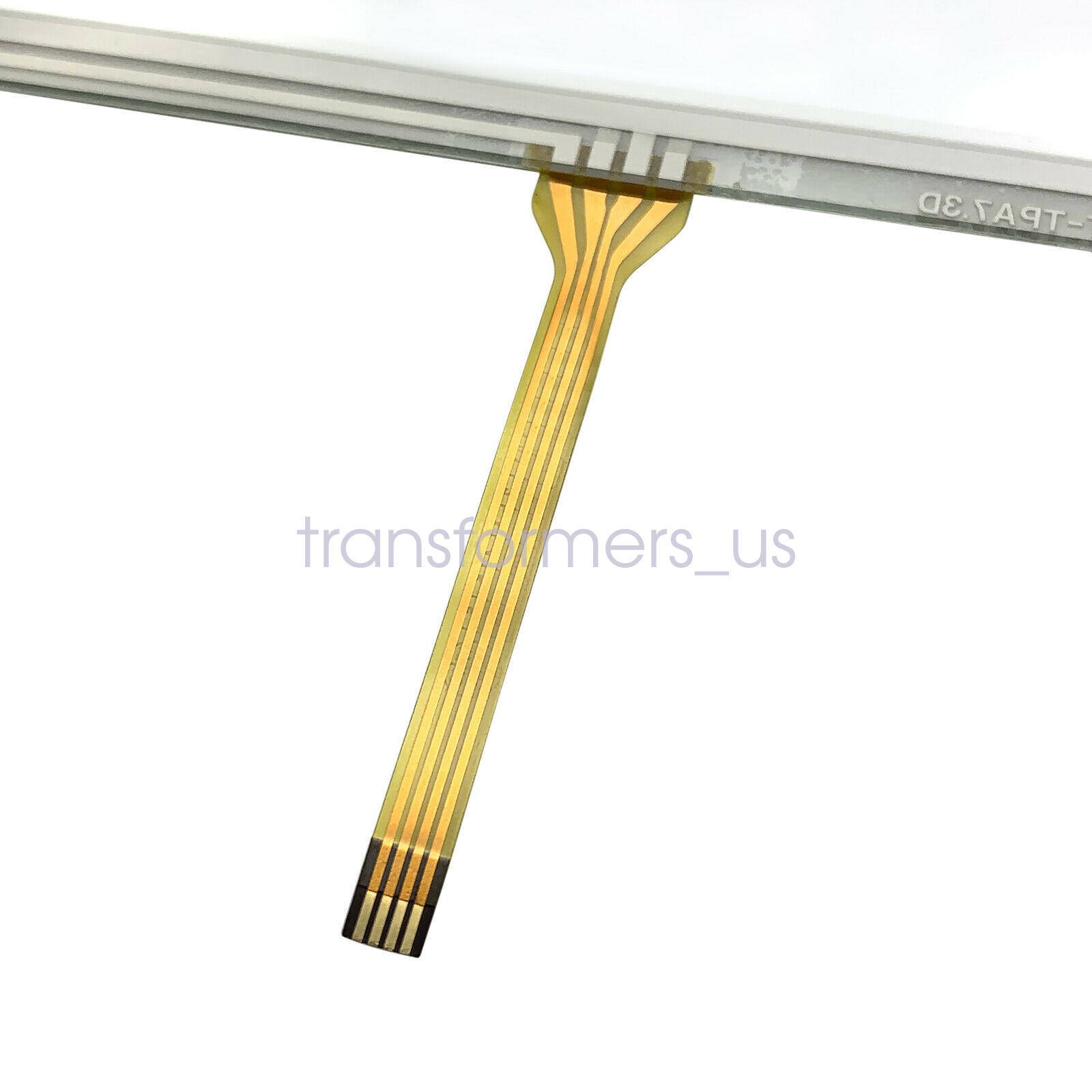

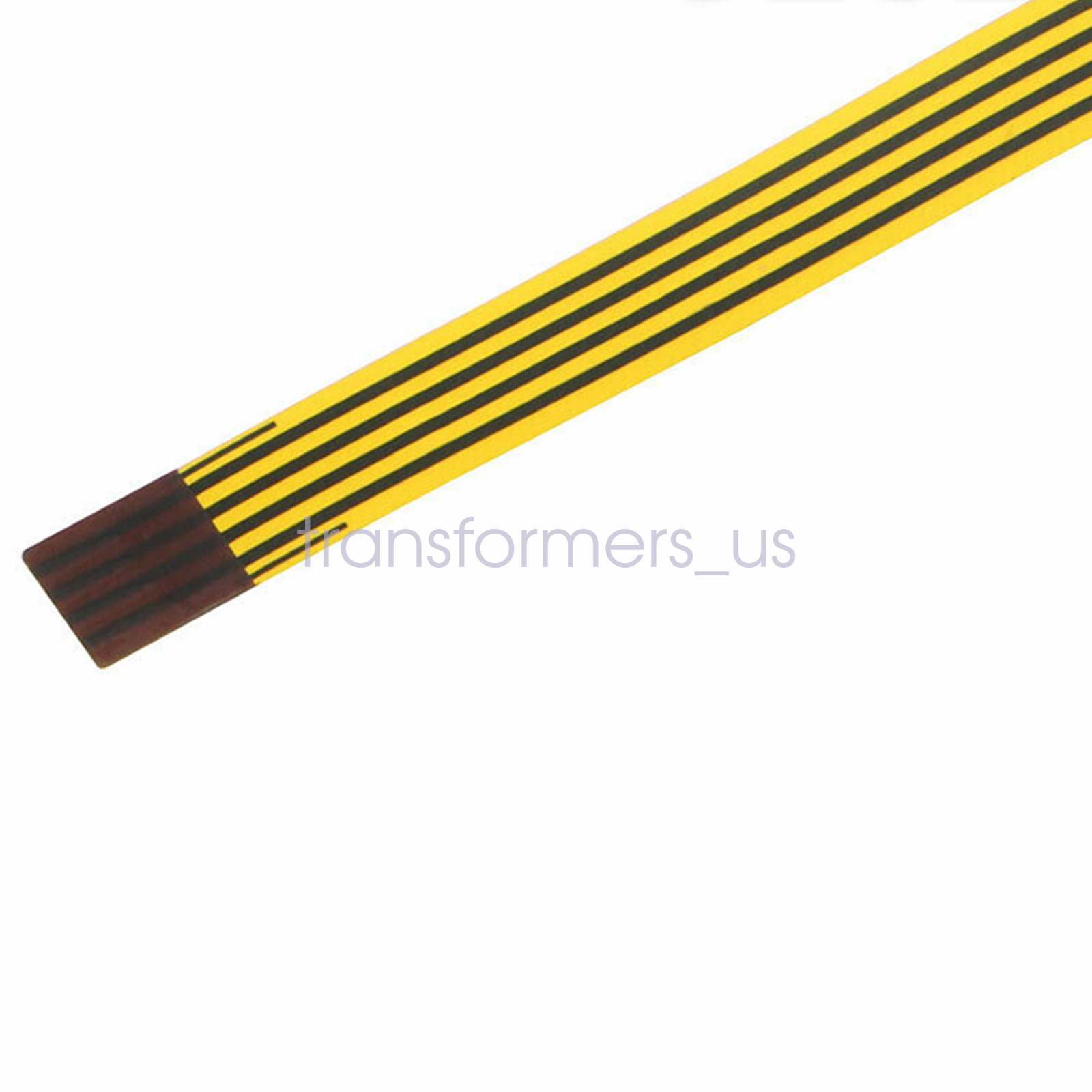

Length of FPC (flexible print circuit): 60.5mm.
Working voltage: 5V.
Circuit class: DC 5V, 1mA.
Interface: 4-pin.
Insulation resistance: ≥20 MΩ (25V DC).
Linear: ≤1.5%.
Light transmittance: ≥80%.
Operating pressure: 10-100g.
Service life time: ≥1,000,000 times.
Working temperature: -10 °C ~ +60 °C, ≤90%RH.
Storage temperature: -20 °C ~ +70 °C, ≤90%RH.
Special feature: Support Can-Bus.
Main material: Glass.
Type: Resistive touch screen.
Attention:
The cable interface of the touch screen is 4-pin.
Installation instructions not included. Tool not included.
It is only a touch panel, not including a LCD display.
Please check the exact dimensions of the touch screen before buying to make sure that it is fit for your device. If there is any question/problem, please feel free to contact us.

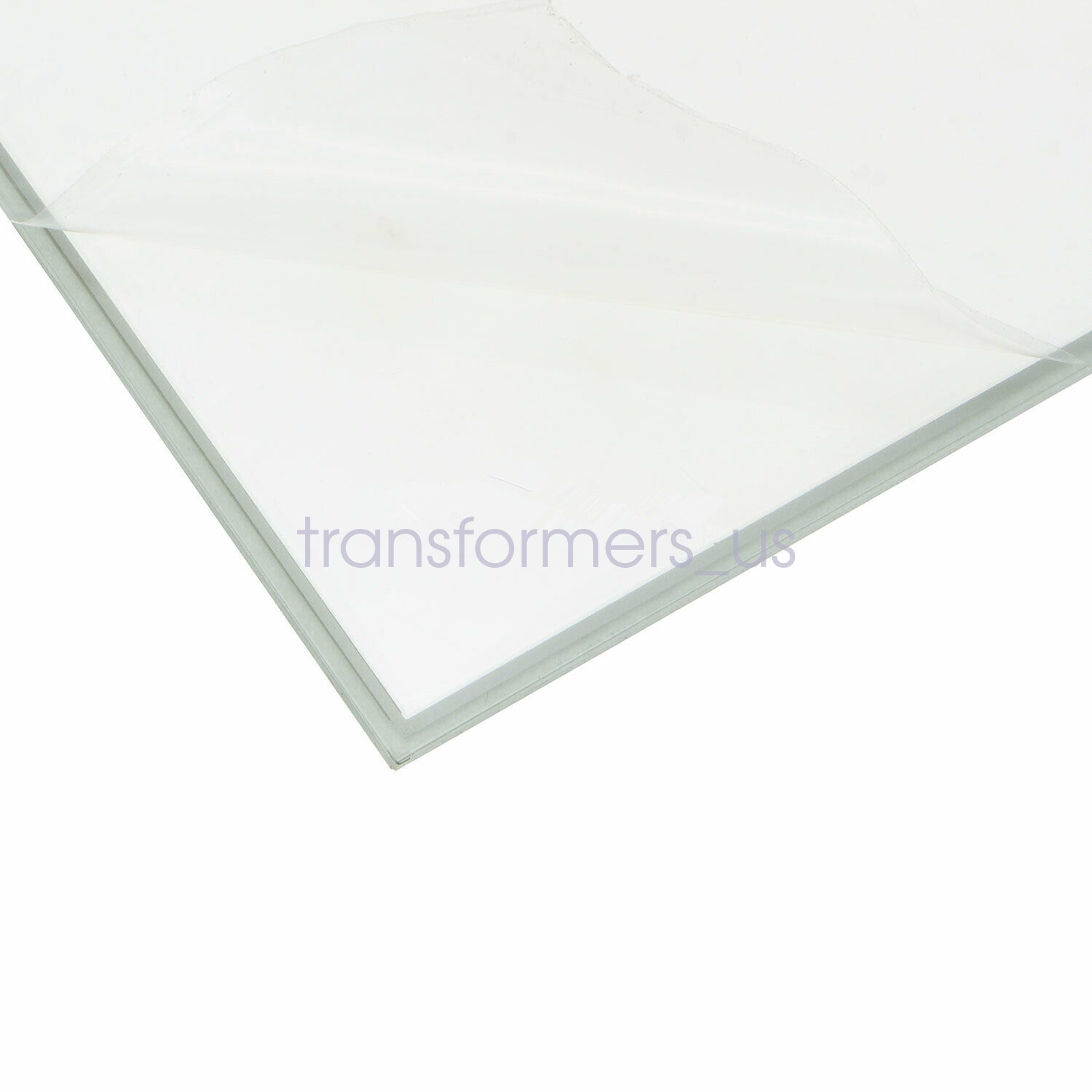

There is a layer of protective film on the surface of the panel. Please remove the protective film before using it.
Compatible with the following vehicles:
2006-2009 Lexus IS250, IS300, IS350,ISF
2005-2007 Lexus GS300, GS350, GS430, GS450H
2005-2009 Lexus GX470 (truck, suv)
2006-2009 TOYOTA PRIUS Hybrid Sedan
Just check the Compatibility
Package Included:
1x Touch screen glass digitizer as picture
NOTE:
Communication is the best way to solve the problem. If you have any problems after purchasing, please contact us in time, before opening return or case.
Feature:
Fast shipping and good operation.
100% Brand New and High Quality.
Repair/Replacing old, broken, cracked, damaged faulty touch screen
The Product Is Posted In A Sealed Box Protected By Bubble Wrap.
Please note that pay attention to the fragile flex cable when installing it.
Pictures are taken by real product.
Please check pictures for more details.
For GPS Navigation Touch Screen Digitizer.
Size: 7.3in (170*107.6mm).
View area: 161.9*96.1mm.
Active area: 159.9*94.1mm.
Thickness: 1.4±0.15mm.
Distance from the left edge of the glass to the center of FPC: 43.9mm.
Length of FPC (flexible print circuit): 60.5mm.
Working voltage: 5V.
Circuit class: DC 5V, 1mA.
Interface: 4-pin.
Insulation resistance: ≥20 MΩ (25V DC).
Linear: ≤1.5%.
Light transmittance: ≥80%.
Operating pressure: 10-100g.
Service life time: ≥1,000,000 times.
Working temperature: -10 °C ~ +60 °C, ≤90%RH.
Storage temperature: -20 °C ~ +70 °C, ≤90%RH.
Special feature: Support Can-Bus.
Main material: Glass.
Type: Resistive touch screen.
Attention:
The cable interface of the touch screen is 4-pin.
Installation instructions not included. Tool not included.
It is only a touch panel, not including a LCD display.
Please check the exact dimensions of the touch screen before buying to make sure that it is fit for your device. If there is any question/problem, please feel free to contact us.
There is a layer of protective film on the surface of the panel. Please remove the protective film before using it.
Compatible with the following vehicles:
2006-2009 Lexus IS250, IS300, IS350,ISF
2005-2007 Lexus GS300, GS350, GS430, GS450H
2005-2009 Lexus GX470 (truck, suv)
2006-2009 TOYOTA PRIUS Hybrid Sedan
Just check the Compatibility
Package Included:
1x Touch screen glass digitizer as picture
NOTE:
Communication is the best way to solve the problem. If you have any problems after purchasing, please contact us in time, before opening return or case.
