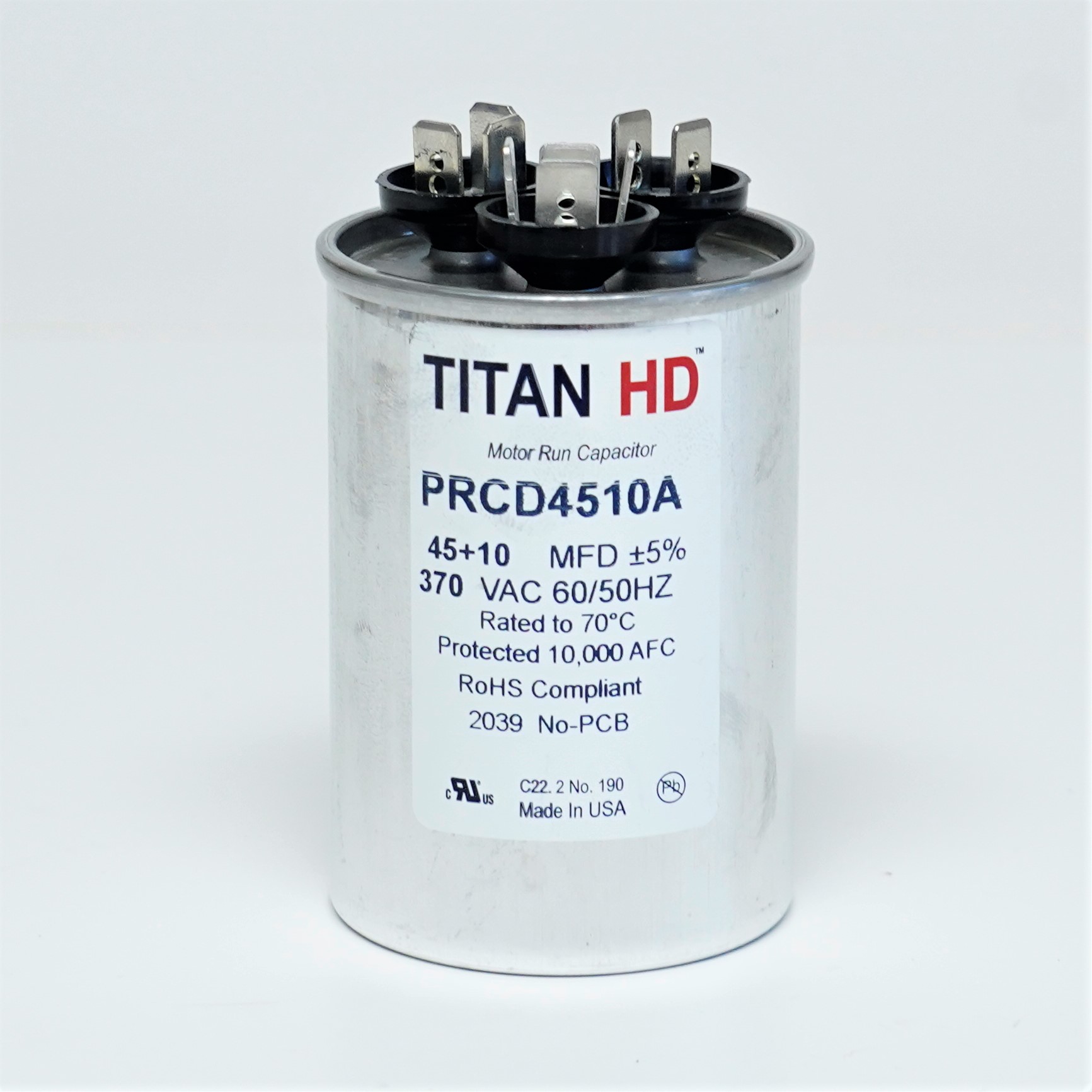

Packard part number PRCD4510A

Titan HD Round Run Capacitor

45 + 10 MFD 370 Volts AC

Features:

• Made in USA


• 60,000 hours operating life


• Meets the rigorous EIA-456-A industry standard for performance and quality


• Contains metalized polypropylene film technology for self-restoration in the event of a breakdown


• Sophisticated UL-approved pressure sensitive interrupter to remove the capacitor from circuit at end of life


• Patented, environmentally-friendly oil prevents corrosion and aids in optimum heat transfer

Specifications:

• Capacitor Voltage: 370


• Run MFD: 45+10


• Capacitor Shape: Round


• Can /Case Size: 6


• Country of Origin: USA


• Diameter (In.): 2


• Hertz: 50/60


• Material: Aluminum Can


• Oil Type: Soybean Based


• Operating Temperature Range: -40 to 70


• Terminals: Standard blade terminals


• Tolerance: +/- 5%


• UPC: 840899102368

Replacement for industry number 12750
