FEATURES:

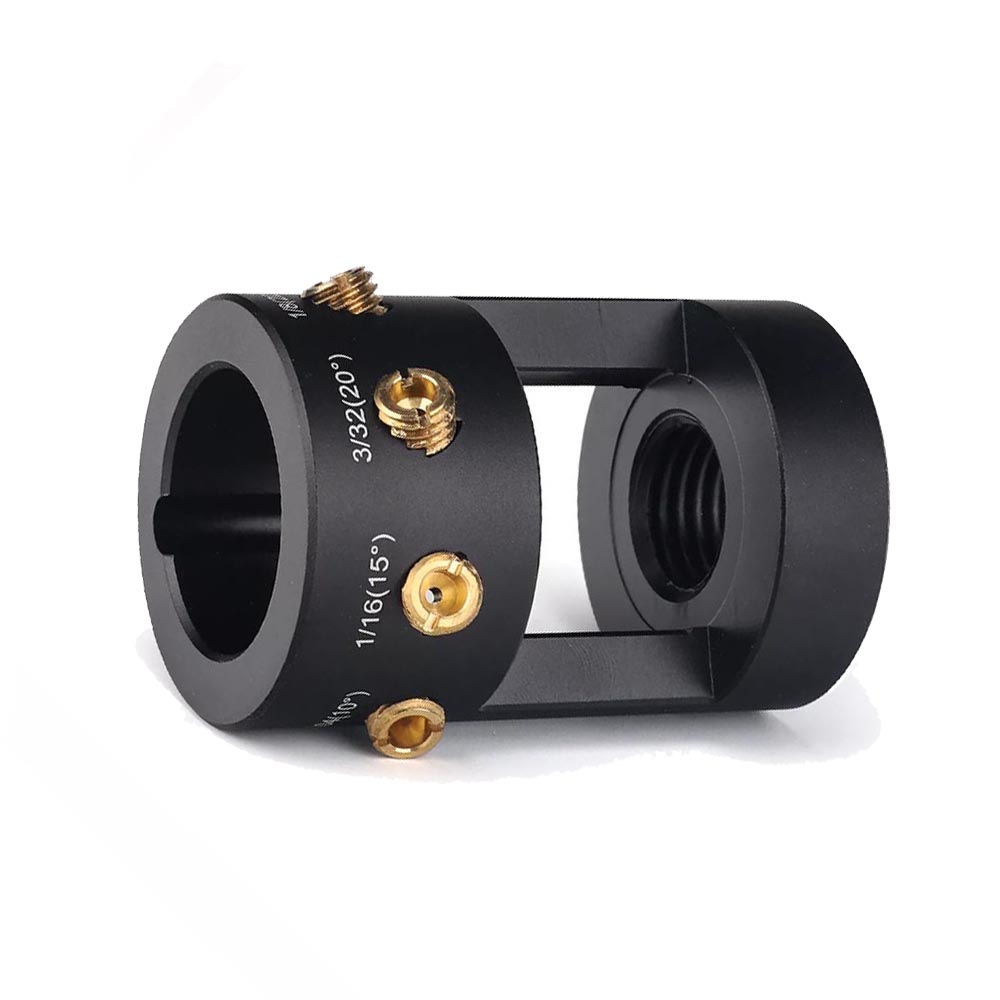

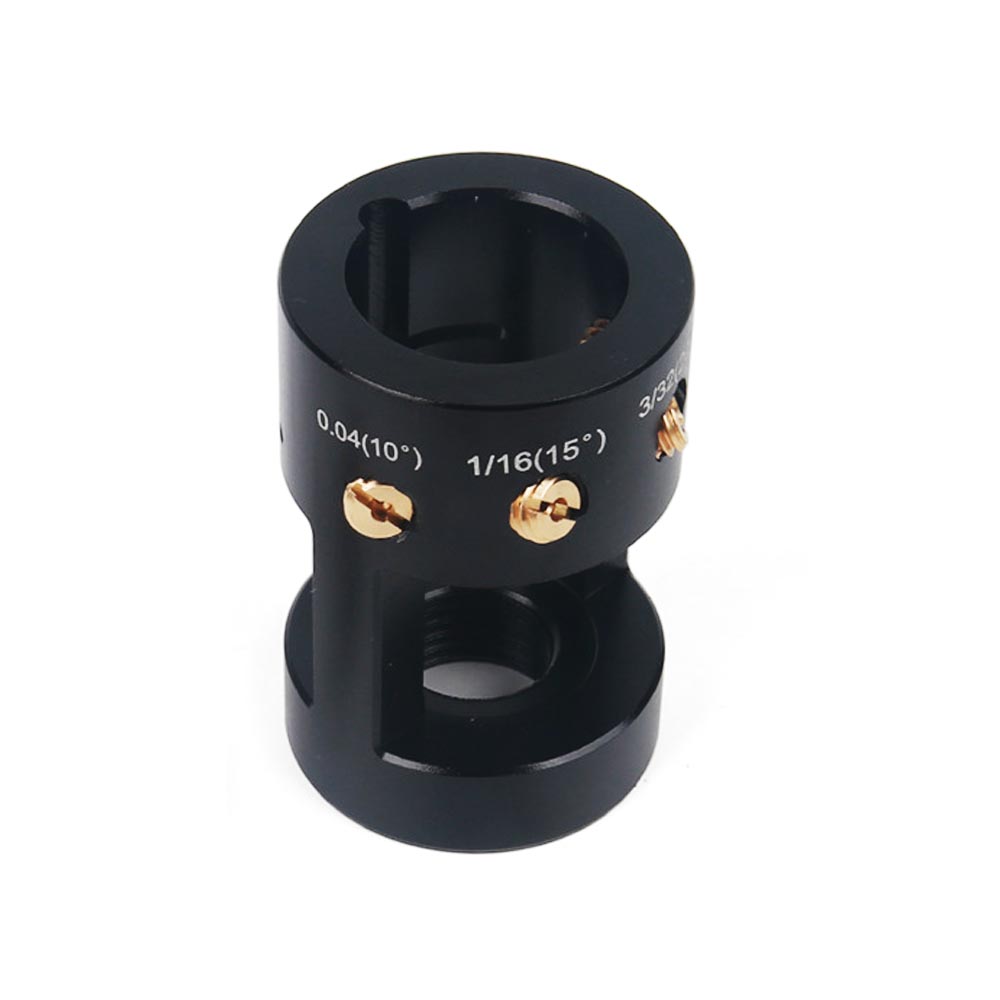

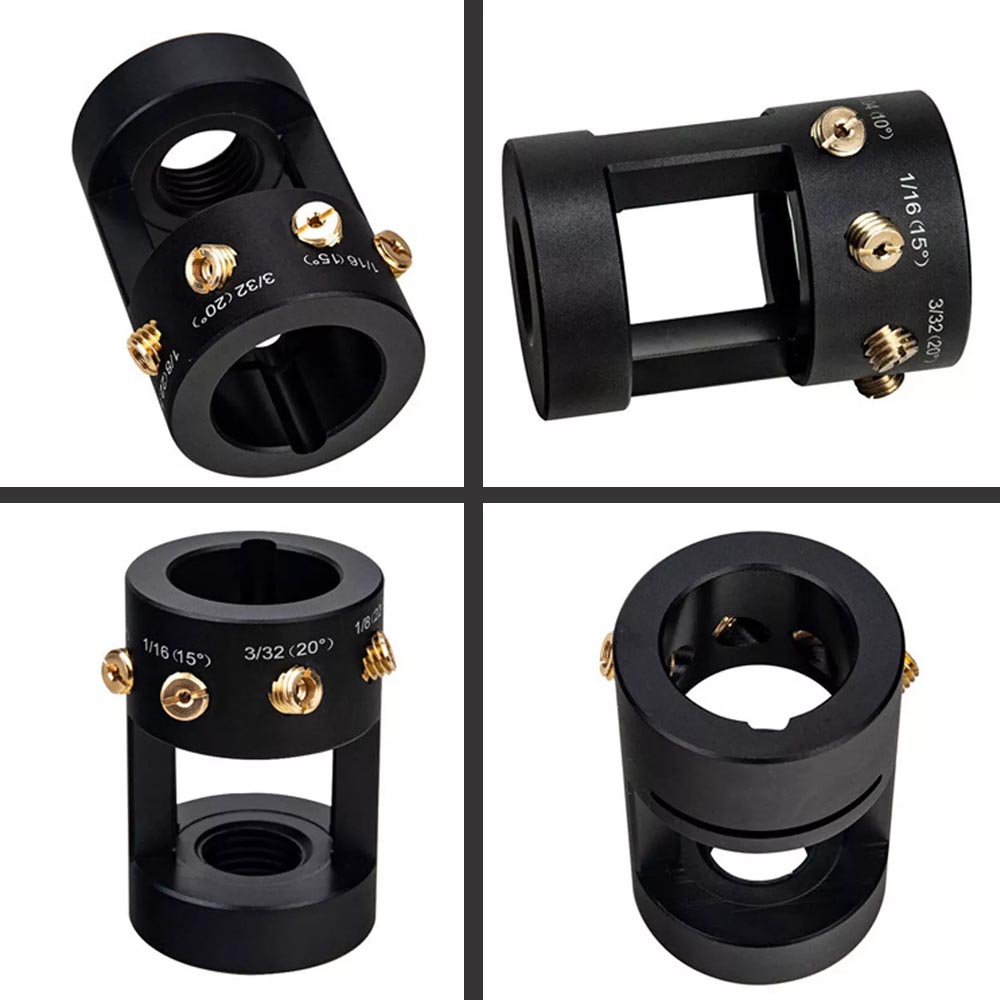

Welding Tungsten Electrode Grinder Sharpener Multi-Angle & Offsets Tool Aluminum Alloy
Each type has 3 holes that will grind different circles on diamond wheels,Precise control makes Upgraded grinding tools grind a more perfect tungsten tip angle.
After the tungsten you are using is worn or contaminated, you can use the cut-off port to cut it so that you can use it again.
This Grinder Head main body is very light and convenient. But very strong and precise.
we can set an offset compensation for each size hole to make sure all tungsten's tip center is on the grinding center point,
this offset can ensure that the lines on the tip of the tungsten electrode are as straight as possible.
Fitment:
Suitable for most rotary tools with 3 / 4-12 thread

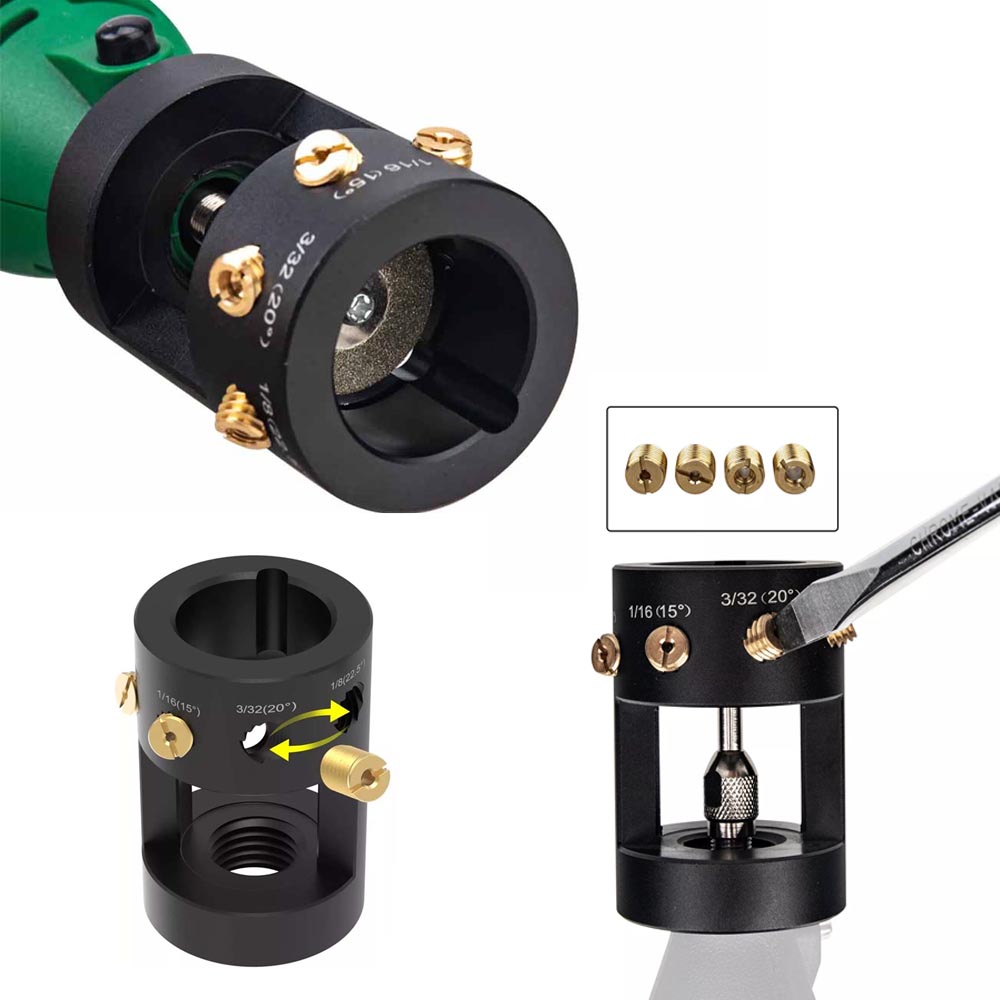

4 *Brass tungsten rails: 040 ", 1/16", 3/32 "and 1/8". (1mm, 1.6mm, 2.4mm, 3.2mm) 4 brass can be interchanged.

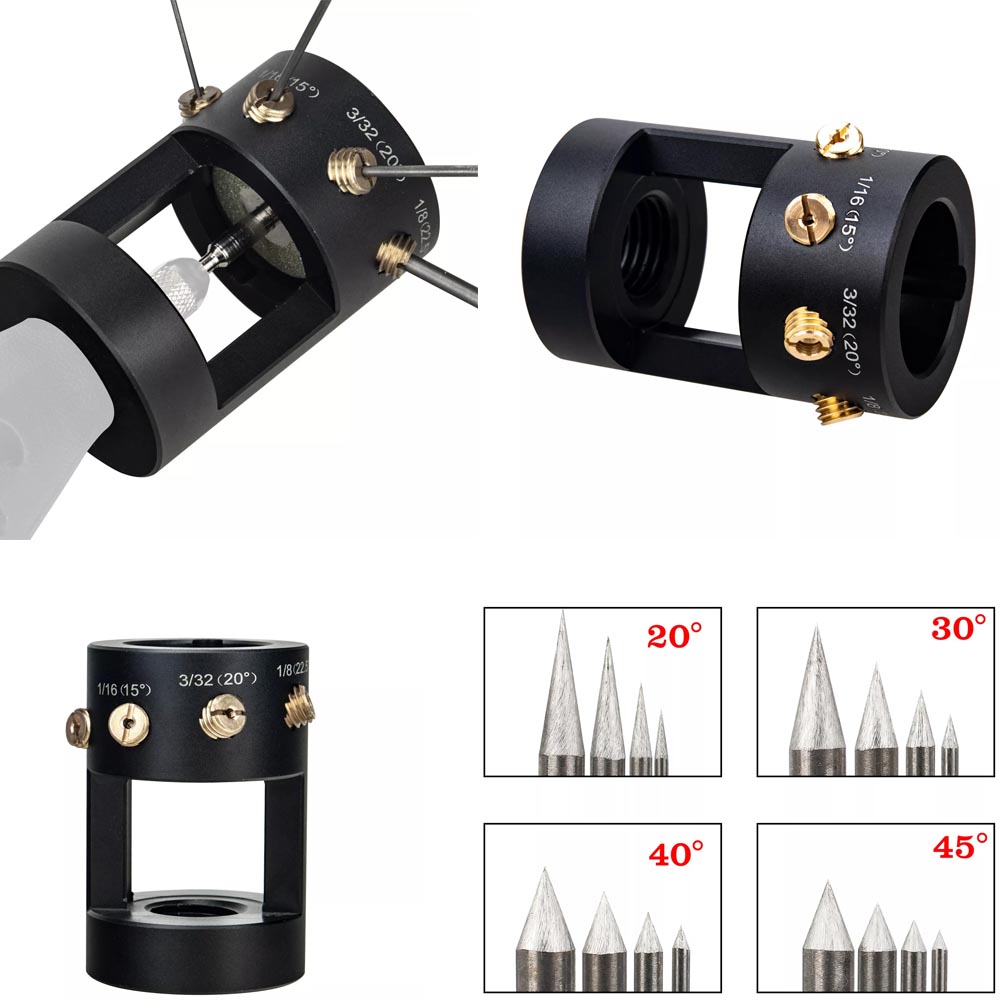

4* Angle offset: 22.5 °, 20 °, 15 ° and 10 ° (45 °, 40 °, 30 °, 20 ° Reflect on tips).

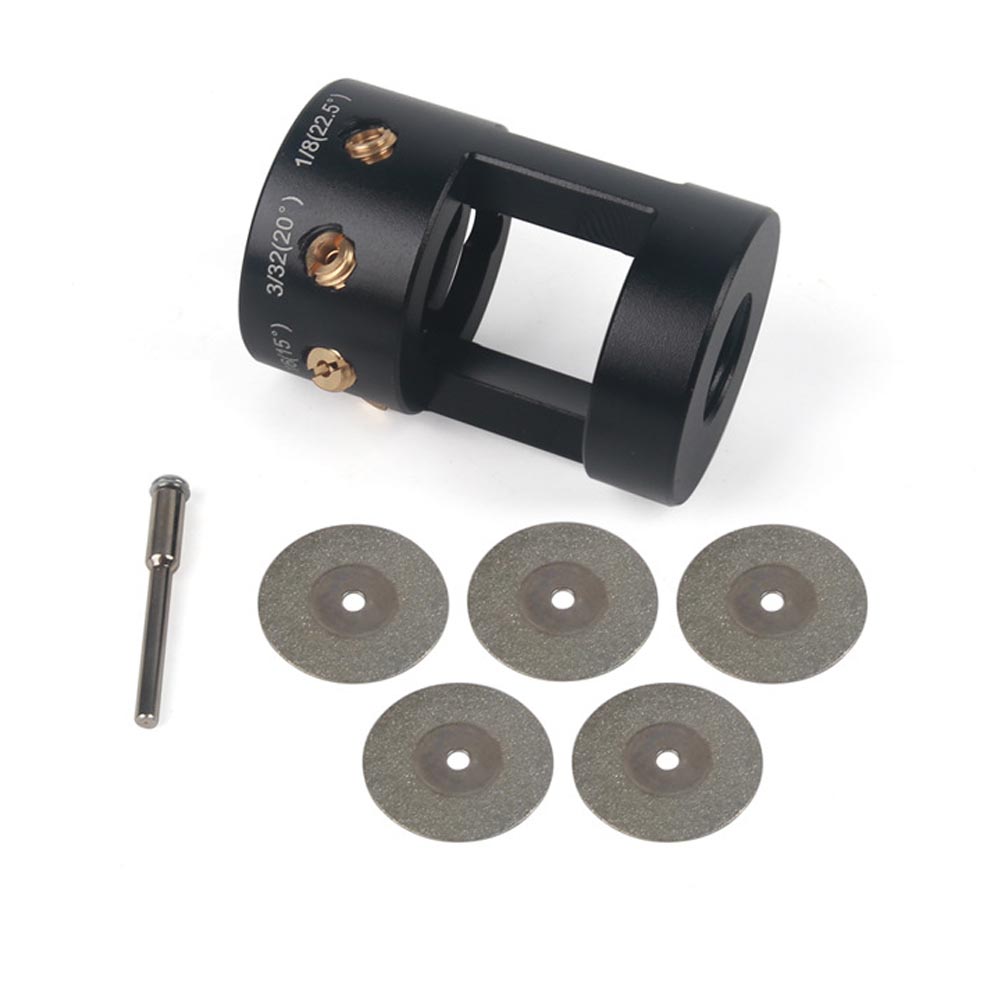

With 5pcs 25mm double-sided diamond wheels and one connecting rod
Specification:
100% BrandNew
Material: Aluminum
Package included:
1X tungsten electrode angle controller
1X Connecting Rod
5X Diamond Wheel
No instruction included, professional installation is highly recommended
