Features:

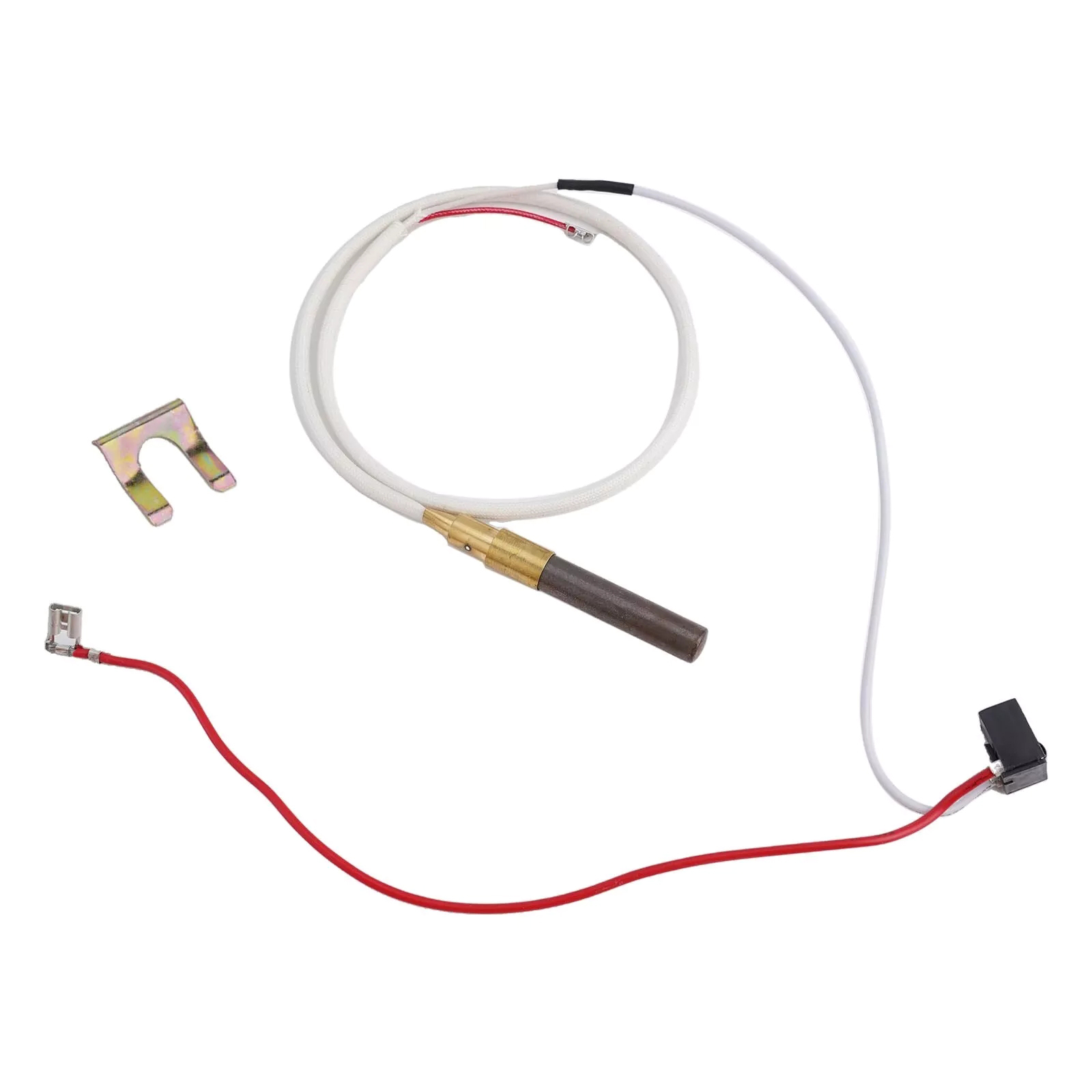

Thermopile replacement part is compatible for Reliance, for Whirlpool, for A.O. Smith, for Kenmore, for State Replaces old for A.O. Smith # 6911197, 9007872005, 100094024.
Thermopile temperature reaches up to 1202°F (650°C) and generates 750mV of power. Heating to 750mV takes approximately 60 seconds (2 minutes), ensuring efficient . Flame should heat to the middle of the head sensor for optimal performance.
Made of high-quality materials, our thermopiles are designed to withstand the rigorous demands of continuous use. With an internal resistance of about 4000mΩ at 25°C, they provide reliable and long-lasting performance.
Thermocouple assembly acts as a temperature sensor, detecting heat and generating a voltage signal to open or close the valve for gas flow. It serves as a direct replacement for old or damaged parts, without requiring any additional modifications or tools. Quick and easy installation.
Specifications:

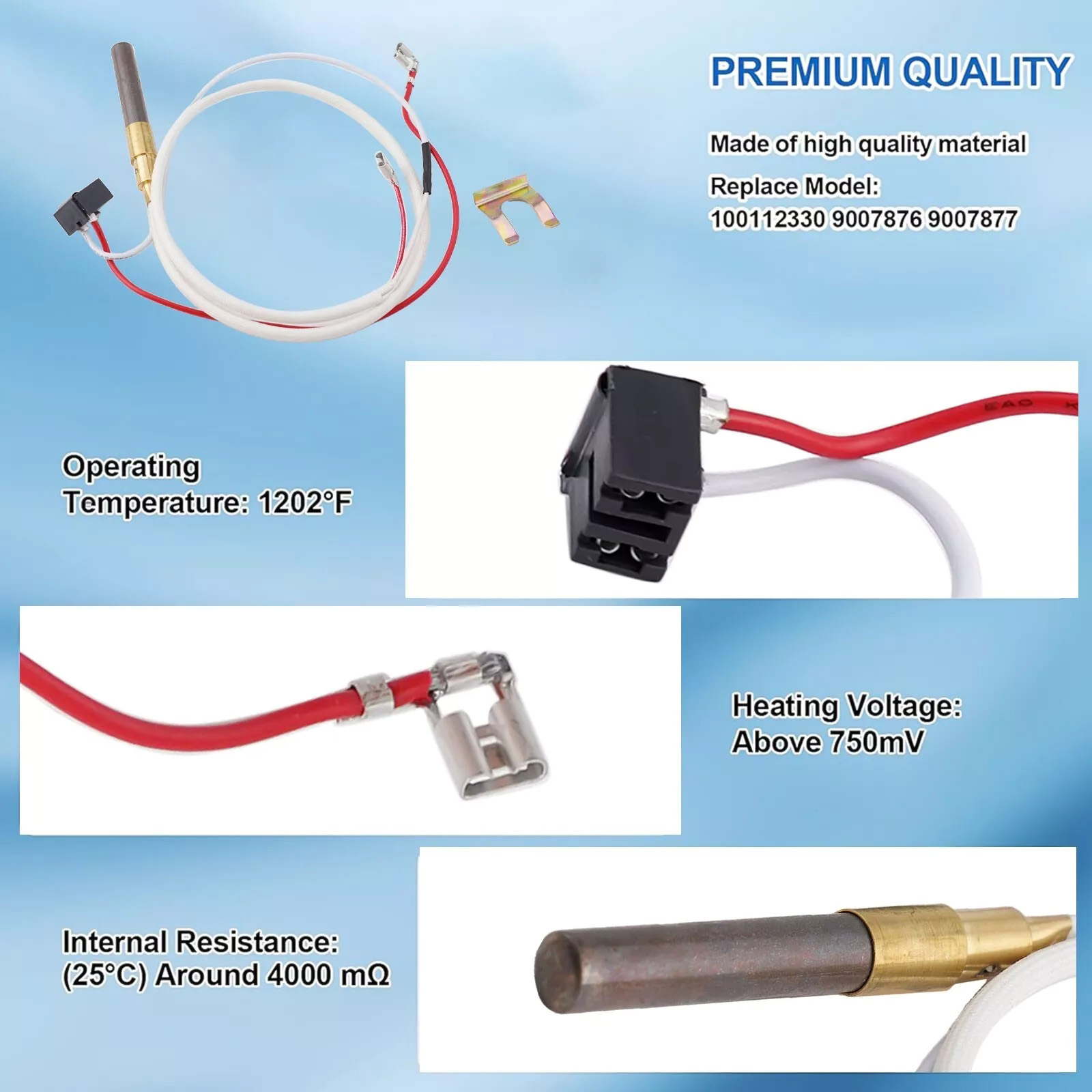

Product Name:Thermopile Replacement Parts
Material:Metal
Color:As shown
Replacement series: 300/ 301
Replacement model: 100112330 9007876 9007877
Internal resistance: (25℃) about 4000mΩ
Heating voltage: above 750mV
Operating temperature: 1202°F
Compatible with for Whirlpool Water Heater Parts:
N30T61-303, N40T61-403, N40T62-403, N50T61-403, N50T62-403, N50T91-403, N40T61-353, N40S61-403, N40T121-403, 40S6-40NG, 40T6-34NG-400, 40T10-40NG-400, 50T6-40NG-400.
Compatible with for American Water Heater Model:
N30S61-303, N30T61-303, N40S61-403, N40T61-343, N40T62-403, N40S91-403, N40T91-403, N40T121-403, N50T61-403, N50T61-504, N50T91-403, N50T122-403, BFG6140T403NO
Compatible with for AO Smith Water Heater Thermopile:
GS6-300, GCV-300, GPX-300, GVK-300, XCZ-300.
Compatible with for Reliance Model: 630 lort/lors 301, 630 loct/locs 401, 640 lort/lors 301, 640 loct/lbcs 401, 650 lort 301, 640gort 300
Compatible with for Kenmore Model:153330230, 153330250, 153330270, 153330290, 153331150, 153331492, 153331592, 153331620, 153331630, 153331640, 153331651, 153331661, 153331670, 153331682, 153331830, 153331840, 153331851, 153331861, 153331882, 153332421, 153336930, 153336931, 153336940, 153336941, 153556300, 153556400, 153556500, 153559400, 153559500, 153572400, 153572500, 153573400, 153576300,153576310,153576320, 153576400, 153576410, 153576420, 153576500,153576510, 153579400, 153579410,153579420, 153579500, 153579510.
Package include:
1 x Thermal stack components
