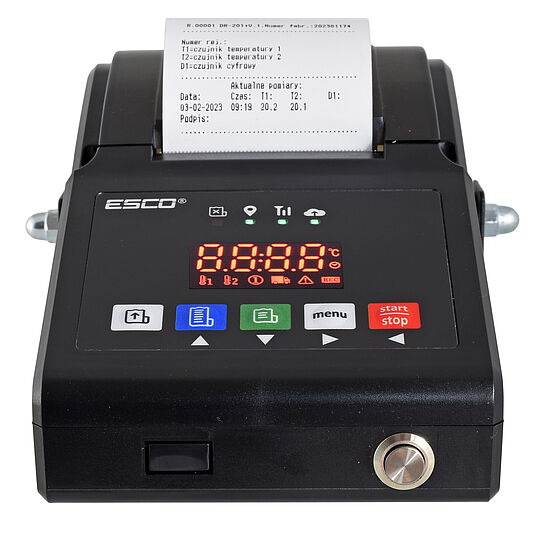

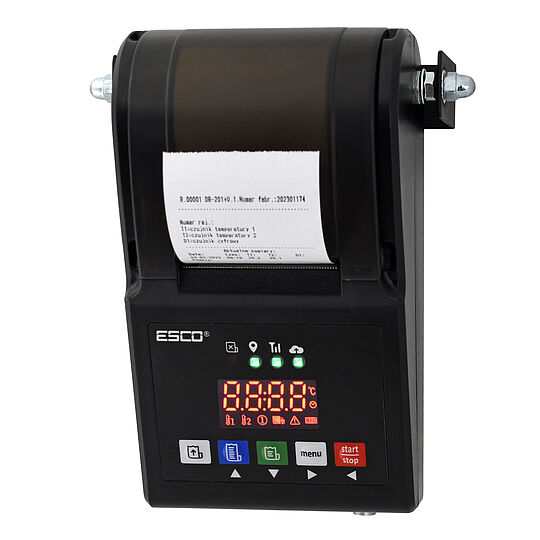

DR-201+

Temperature and humidity datalogger with built-in printer

DR-201+ thermograph is a professional device for recording both temperature and humidity.
It is primarily designed for recording the delivery parameters in road transport.✅
The connection space for the power supply and temperature sensors is located at the rear of the housing. It is also possible to connect a sensor to signal the opening of a door.

We have a local (UK) distributor. Please contact.


➡️Datalogger key features:



  • ✅quick printer, delivery report printouts
  • ✅-40...+120°C measuring range
  • ✅-9,9...+ 9,9°C temperature probe calibration / adjustment
  • ✅62 000 measurements memory
  • ✅Two cable temperature probes (10m and 15 m).
  • ✅power supply cable 12/24 V
  • ✅temperature alarm (sound)
  • ✅roll of thermal paper
  • ✅user manual



The equipment of the recorder can be optionally extended.

➡️You can choose from:

  • third temperature or temperature/humidity sensor
  • USB port for data copying
  • GPRS - online monitoring platform escomonitor.com (requires a SIM card)
  • GPRS+GPS escomonitor.com (requires a SIM card)
If you are interested in the additional device extensions (mentioned above), please contact us in order to confirm device configuration and price.
DR-201+ is the temperature/humidity recorder with built-in printer designed to be installed in the cab, both in heavy lorries and small delivery vans.
Due to small size and compact design it is ideal for daily use. The device is mounted on the dashboard with included fixing clamps.



➡️Basic set includes:

  • Temperature recorder with built-in printer✅
  • Two temperature sensors 10m , 15m✅
  • Power supply cable✅
  • Fixing clamp✅
  • Roll of a thermal paper✅
  • English user manual✅

➡️Characteristics:

DR-201+ is a temperature recorder designed to measure, monitor and analyse temperature/humidity and events which can happen during commercial road transport. The device performs essential function of temperature monitoring in transportation of:
  • medicines, vaccines
  • frozen products
  • food products
  • live animals
DR-201+ temperature/humidity datalogger designed in Poland. Here in Poland it is also produced and packaged. Our product is of the highest quality and reliability.

✅Datalogger is totally independent from refrigeration unit as it has it's own sensors.

✅Device doesn't need ANY conection with refrigeration unit. Thanks to this it can operate with ANY mobile refrigeration unit.

Datalogger can serve as a alternative to the devices of well-known brands.

Unquestionable advantages of the device are:

  • attractive price
  • self-assembly and user-friendly operation
  • convenient and easy mounting in the cab
  • sensors and power supply cable connected with plugs
  • brief reports printing✅
    • delivery report
    • daily report
    • last hour report
    • current measurements
  • full reports printing from any period of time
  • built-in quick thermal printer
  • temperature alarms with sound signalling✅
✅Datalogger has an english/german/polish menu. English user-manual comes in set.

➡️Specifications:

Input:
2 temperature sensors NTC 5kOhm by 25°C
logical input NO or NC (for door opening, etc.)
Measuring range:
NTC: -40...+120°C
Accuracy:
NTC in: -40...+80°C range: +/-0,5°C, in other +/- 1°C
Memory cache:
62 000 measurements, non-volatile memory
Data memorizing frequency:
✅1min...24hours
Display resolution:
0,1°C in whole range
Display:
LED with graphic icons
Printer:
thermal, printing speed 50mm/s, heat-sensitive paper 57mm width, roll diameter 40mm
Protection class:
IP-30
Power supply:
12...24VAC/DC ±20%
Power consumption:
when recording 40mA, when printing - to 3A
Operation and storage
conditions:
operation: -20...50°C; storage: -40...60°C
