TDR Network LCD Cable Tester Cat5 Cat6 Lan Test Network POE Wire Checker

Slide Slide Slide Slide Slide Slide Slide
$52.95
Brand
KOLSOL
MPN
NF-8209
condition
New
Product Description

Please Note:

If you need to return the item for some reasons, please contact us via eBay message at the first time to get the RMA#,and return address instead of sending back directly without permission,thank you!

This item only shipped to United States.

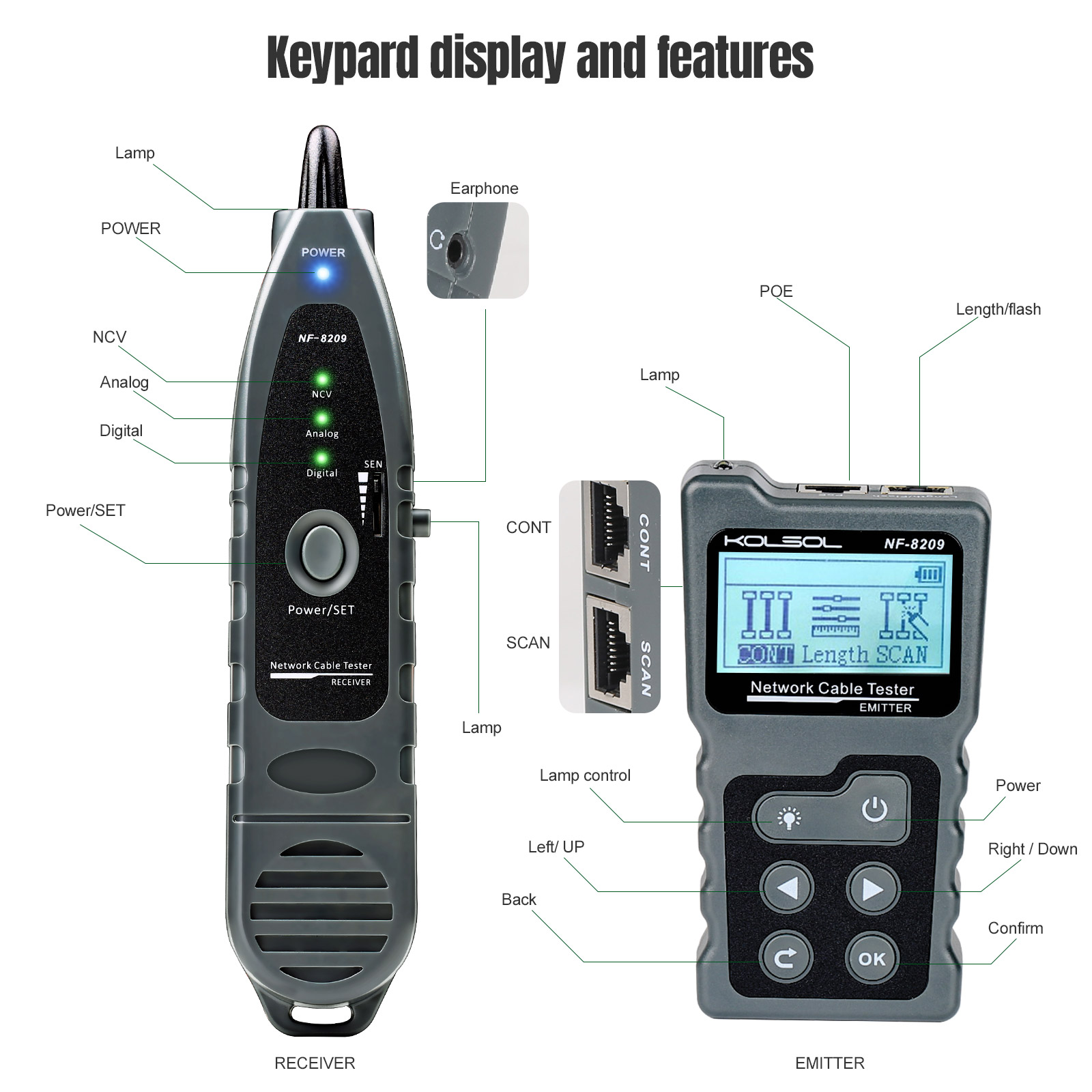

KOLSOL NF-8209 LCD Display Measure Length Lan Cable POE Wire Checker Cat5 Cat6 Lan Test Network Tool Scan Cable Wiremap Tester



NF-8209 is a new generation to offer AC filter and analog signaling all in one network toner and probe. It has three modes for options to track cable like AC filter mode, analog mode and PoE mode. That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement,cable faults testing,PoE testing, hub blink and NCV function,all these makes it a must-tool for cabling engineers.

 NF8209


【Digital cable scanning】NF-8209 is a new generation to offer AC filter and analog signaling all in one network toner and probe. It has three modes for options to track cable like AC filter mode, analog mode and PoE mode.

【Fault distance location】Measure cable length and locate fault distance accurately for lan cable. the range is 200m.That means it's equipped with the most powerful cable location technologies for any work environment.

【Multi Function】It includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers.

【PoE information testing & Hub blink】 identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard).Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M Hub/ switch.

【Cable continuity testing & NCV】Test physical status for STP, UTP lan cable. Detect AC voltage presence (50V-1000V).



Fault distlength measurementance location and length measurement

Digital Cable Scan

PoE Testing

Fault distance location and length measurement


  • Using TDR techonology and 98% accuracy.

  • The range should be 2.5m~120m for high accuracy.


Digital Cable Scan


  • Three scan modes:Digital/Analog/PoE Swtich AC filter to tone trace cable easily


PoE Testing


  • Test the PoE information such as POE voltage, power supply polarity, power supply mode and the type of PSE(af or at standard).

Port Flash

Continuity Testing

NCV Induction Pen

Port Flash


  • Hub blink for locating network port by the flashing port light on a server/switch/hub/router port.Another easy way to locate lan cable by eyes.

  • The device can tell you the connected switch's information, such as its speed (10M/100M/1000M), transmitting modes (FDX: full duplex / HDX: half duplex), Protocol (Auto-Nego / Non-Auto-Nego).


Continuity Testing


  • Test open, short, cross,split pairs.

  • Cable types:Cat5e,Cat6,Cat6a, Cat7.(UTP & STP).


NCV Induction Pen


  • Receiver can also be used as voltage detector.

  • Accurate electricity measurement, Non-contact and safer to use.


Tester


Specification:

Transmitter

Wiremap

Cable type

CAT5e, CAT6, CAT6a (STP & UTP)

Test with switch directly

Yes

Max range

600m

Length

Cable type

CAT5e, CAT6, CAT6a (STP & UTP)

Test range

2.5m~120m

Accuracy

±1.6m

Breakage location

Yes

Scan

Cable type

CAT5e, CAT6, CAT6a (STP & UTP)

Max. signal voltage

8Vp-p

Frequency

130KHz

AC filter

Yes

Max range

600m

POE

Test range

DC 5~60V standard / non-standard PoE switch

Voltage display

Yes

PSE type

IEEE 802.3af/at

LCD display

128*64 Dot-matrix with backlight

Power supply

AAA*3(Not included)

Low battary warning

2.7V

Auto-off time

15min、30min、60min、OFF

Max working current

<150mA

Receiver

Sentivity adjustable

Yes

AC Voltage detecting

Yes

Lamp

Yes

Battary type

9V*1

Low battary warning

6± 0.5V

Max working current

<100mA

Remote

Wiremap Port

RJ45


NF-8209 VS NF-488:


Is_customized: Yes

Brand Name : KOLSOL

Model Number : NF-8209

Place of Origin : Shenzhen.China

Main Function :Detecting PoE voltage, PSE standards Power supply modes, Scan & Test lan cables

Test Type : CAT5e, CAT6, CAT6a (STP & UTP)

Other Function : NCV & Lamp

Warranty : 1 Year

Please note ：Batteries are not included in the package

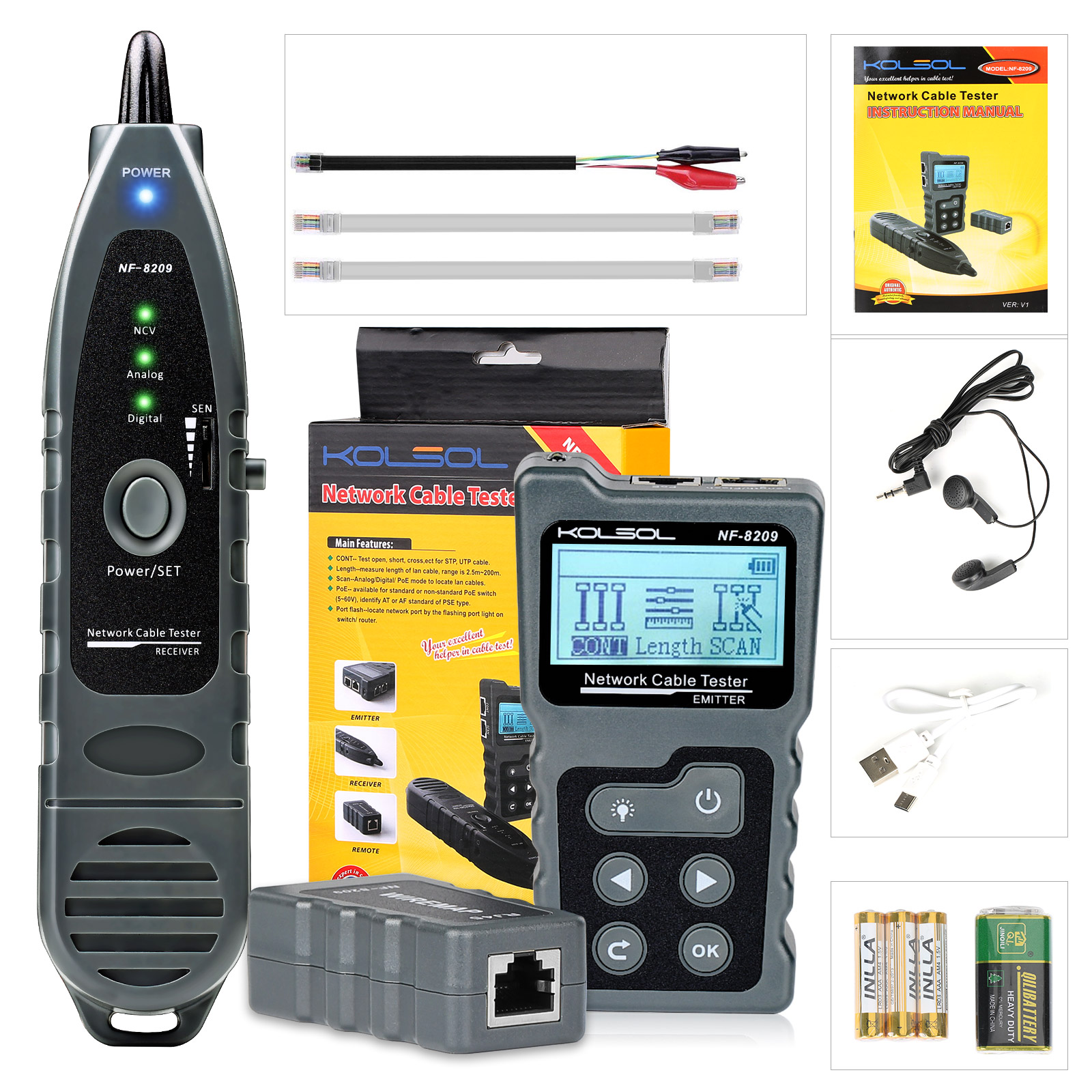

Package includes:

1pc x KOLSOL NF-8209  (Batteries not included)
