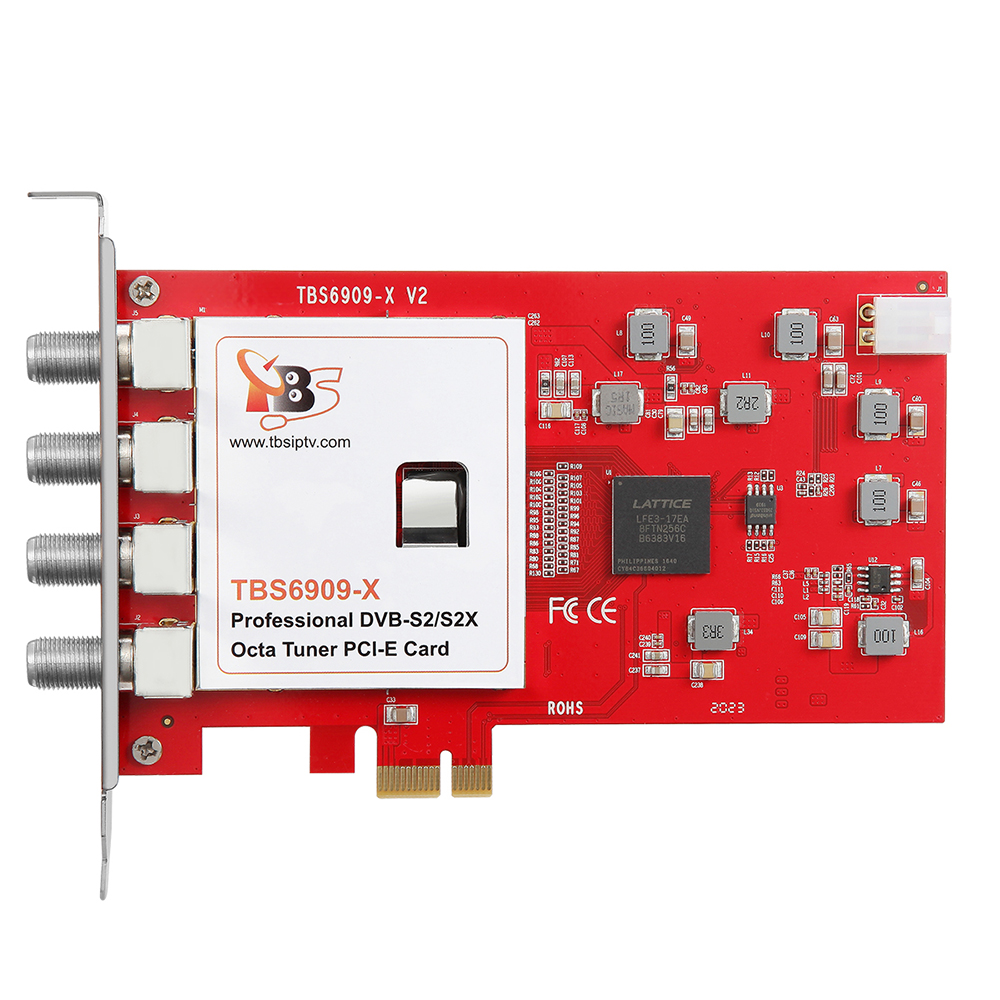

TBS6909-X V2 DVB-S2 Octa Tuner PCIe Card

DESCRIPTION

TBS6909-X V2 is a powerful DVB-S2X/S2 and annex M octa tuner card with PCI Express interface, it not only supports to receive SD/HD digital TV channels from 8 different satellite transponders simultaneously, but also supports CCM, ACM, VCMand Multi Input Stream, which is considered as a professional TV tuner for industrial-level users. When you have limited PCIe slots in your server, TBS6909-X V2 enables you to receive more channels than the usual dual or quad TV tuner, thus itis highly recommended for broadcasting system.

Main Features:

  • Support Octa DVB-S/S2/S2X
  • Fast scanning functionality for all media
  • Supports CCM, ACM, VCM and Multi Input Stream
  • Support wide band

Applications:

  • Data receiving
  • Media monitoring
  • Digital content distribution

TBS6909-X DVB-S2X Octa Tuner Card PCIe

DVB-S2X/S2; Octa tuner; Linux OS; PCI Express;


TBS6909-X Three Signal Input Way

Mode 0

Default mode is multiswitch mode. The signal input can be like this:

Master output
Quattro-LNB/Multiswitch

If you are using quattro LNB, you have 4 cables (V/L,V/H,H/L,H/H), connect the right one to TBS6909-X like the above picture ( input 0- input 3 should be connected to V/L,V/H,H/L,H/H respectively).

Quad-LNB

If you are using quad LNB, you can directly connect the 4 cables to the 4 ports of TBS6909-X.

Single C or Ku Band

If you are using single C or Ku band, then two inputs are enough, you just need to connect the cables to input 0 and input 2 to provide V and H signal.
In some case multiswitch have more than one satellite input, need to choose the satellite first.
Mode 1

LNB

If you want to use DiSEqC with TBS6909-X, you could use this mode.
Mode 2

Unicable LNB

When using with unicable you can connect the signal cable like this.

Specification

ModelTBS6909-X V2
ConnectionPCI-express
4x RF in
DVB-S/S2/S2X
DVB-S/S2QPSK1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK3/4, 4/5, 5/6, 8/9, 9/10
DVB-S2X
FECFRAME (normal) 64800 (bits)
DVB-S2X (Normal) QPSK 1/4,1/3, 2/5 (S2-MODCODs)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
8/9, 9/10 (S2-MODCODs)
13/45
9/20,11/20
8PSK 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
23/36,25/36,13/18
8PSK-L 5/9,26/45
16APSK 2/3, 3/4, 4/5, 5/6, 8/9,9/10 (S2-MODCODs)
26/45,3/5,28/45, 23/36, 25/36,13/18,7/9,77/90
16APSK-L 5/9,8/15,1/2,3/5,2/3
32APSK 3/4 ,4/5,5/6, 8/9, 9/10 (S2-MODCODs) 32/45 ,11/15,7/9
32APSK-L 2/3
64APSK 11/15, 7/9,4/5, 5/6.
64APSK_L 32/45
FECFRAME (short) 16200(bits)
DVB-S2X (short) QPSK 1/4, 1/3, 2/5 (S2-MODCODs)
1/2, 3/5, 2/3,3/4, 4/5, 5/6
8/9, 9/10 (S2-MODCODs)
11/45, 4/15, 14/45,7/15, 8/15, 32/45
8PSK 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 32/45
16APSK 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 3/5, 32/45
32APSK 2/3, 32/45
VCM Yes
ACM Yes
Power consumption
Input/ Power:12V/7 ~ 20W
temperature0° ~ 78°
System RequirementsWindows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Dimension:
TV tuner card size145 * 92 * 1.6mm
Gift Box Size200 * 130 * 30mm
Weight400g
Package Contents1 * TBS6909-X
1 * Power cable

Maximum symbol DVB-S2X/S2 rate limitations (Msymb/s)

Msymb/sDemodLDPC4 simultaneous
demodulators		6 simultaneous
demodulators		8 simultaneous
demodulators
QPSK647206460 45
8PSK647206045 30
16APSK647204530 22.5
32APSK517203624 18
64APSK43720 30 20 15
cables
