SURPASS HOBBY RC Brushless Motor M2430/2435/2440/2838/2845/540/3650/3660 and M35A M45A M60A ESC For 1/10 1/12 1/14 1/16 1/18 RC Car Boat
Motor Features:
1. High hardness aluminum CNC case
2. Waterproof brushless design
3. 4 Pole12 Slot Hi-torque rotor design,stable output power
4. High Purity High temperaturere sistance Copper Windings Max imizes Efficiency.
5. High precisionand high quality ABEC5 large bearing,smooth and wear-resistant.
6. Removable/replaceable explosion-proof high-precision balancing rotor

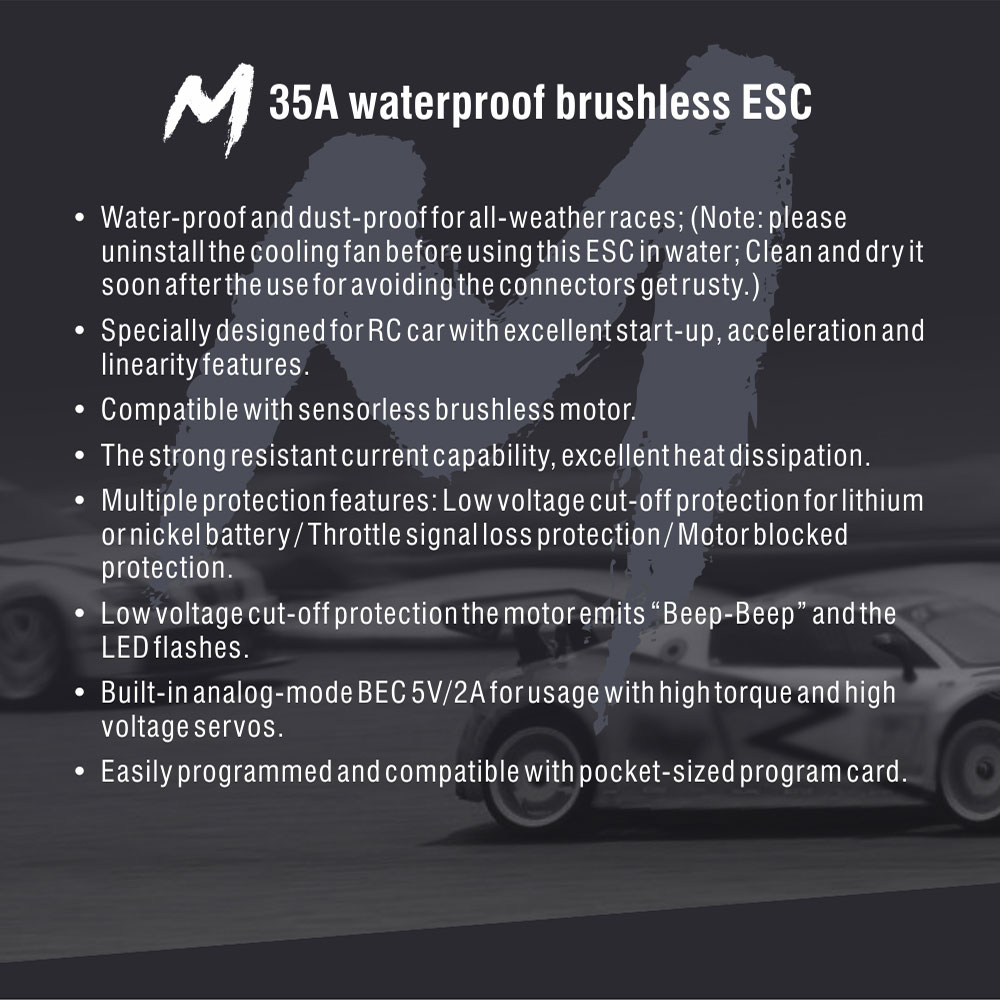

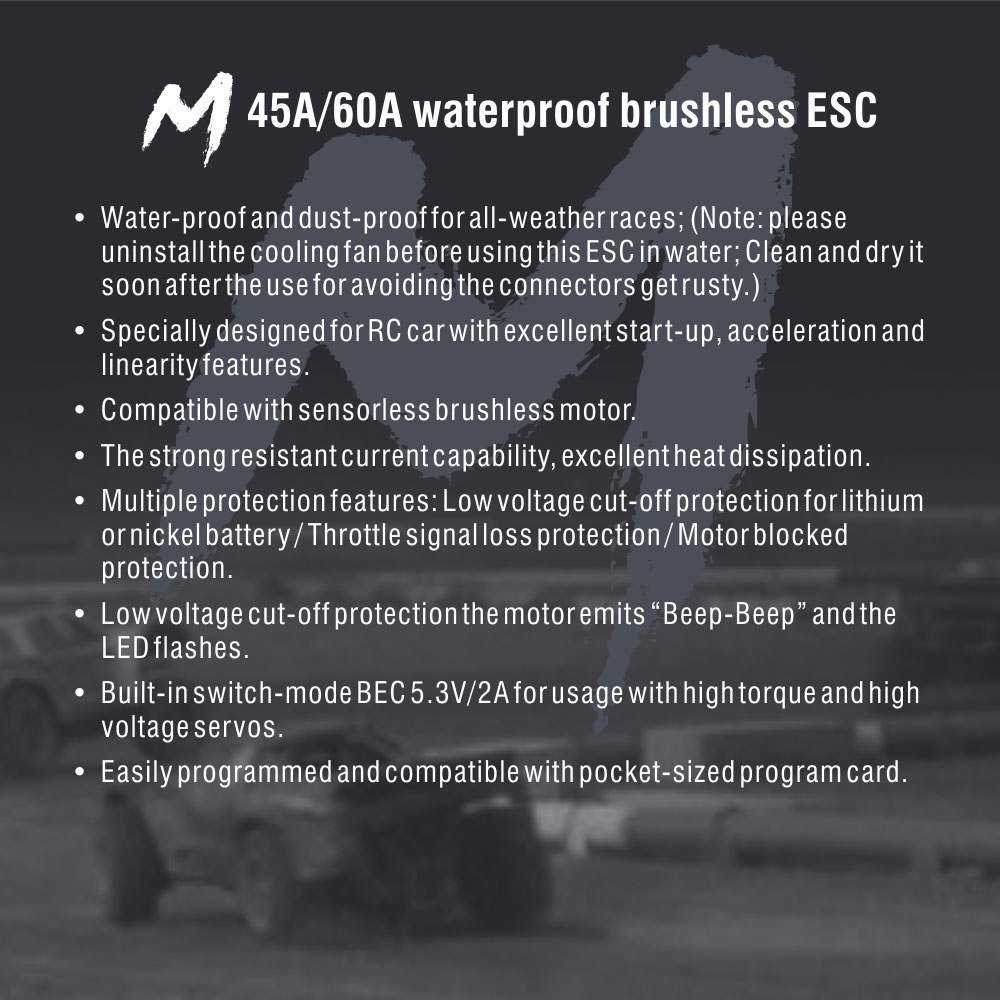

ESC Features:
1. Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water;Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Specially designed for RC car with excellent start-up, acceleration and linearity features.
3.Compatible with sensorless brushless motor.
4. The strong resistant current capability,excellent heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery/Throttle signal loss protection /Motor blocked protection.
6. Low voltage cut-off protection the motor emits"Beep-Beep"and the LED flashes.
7.Built-in switch-mode BEC for usage with high torque and high voltage servos.
8. Easily programmed and compatible with pocket-sized program card.
Description:
SURPASS HOBBY RC waterproof brushless motor 4 pole 12 slot hi-torque rotor design,stable output power,CNC case,It has the advantages of strong power, fast response, and high temperature resistance.M35A M45A M60A Brushless ESC,Compatible with sensorless brushless motor,The strong resistant current capability,excellent heat dissipation,equipped with Low voltage cut-off protection for lithium or nickel battery/Throttle signal loss protection /Motor blocked protection.
Specifications:

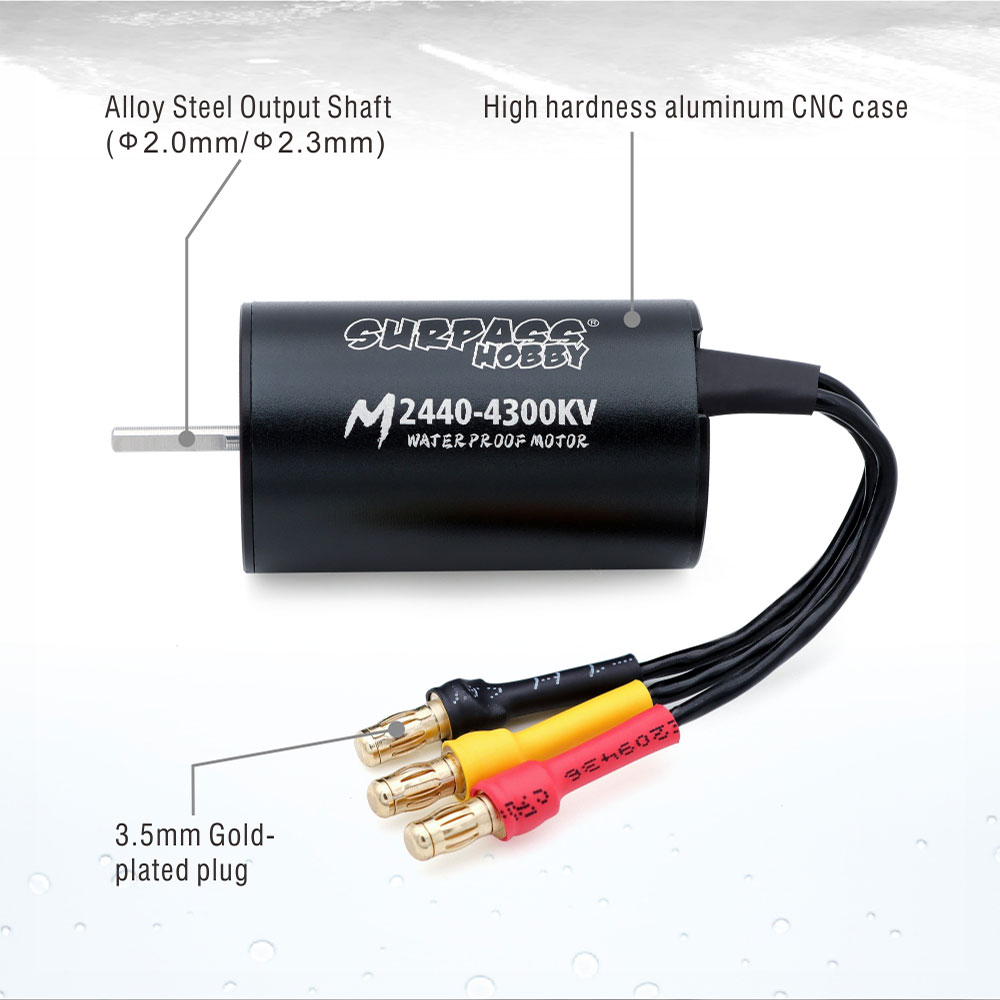

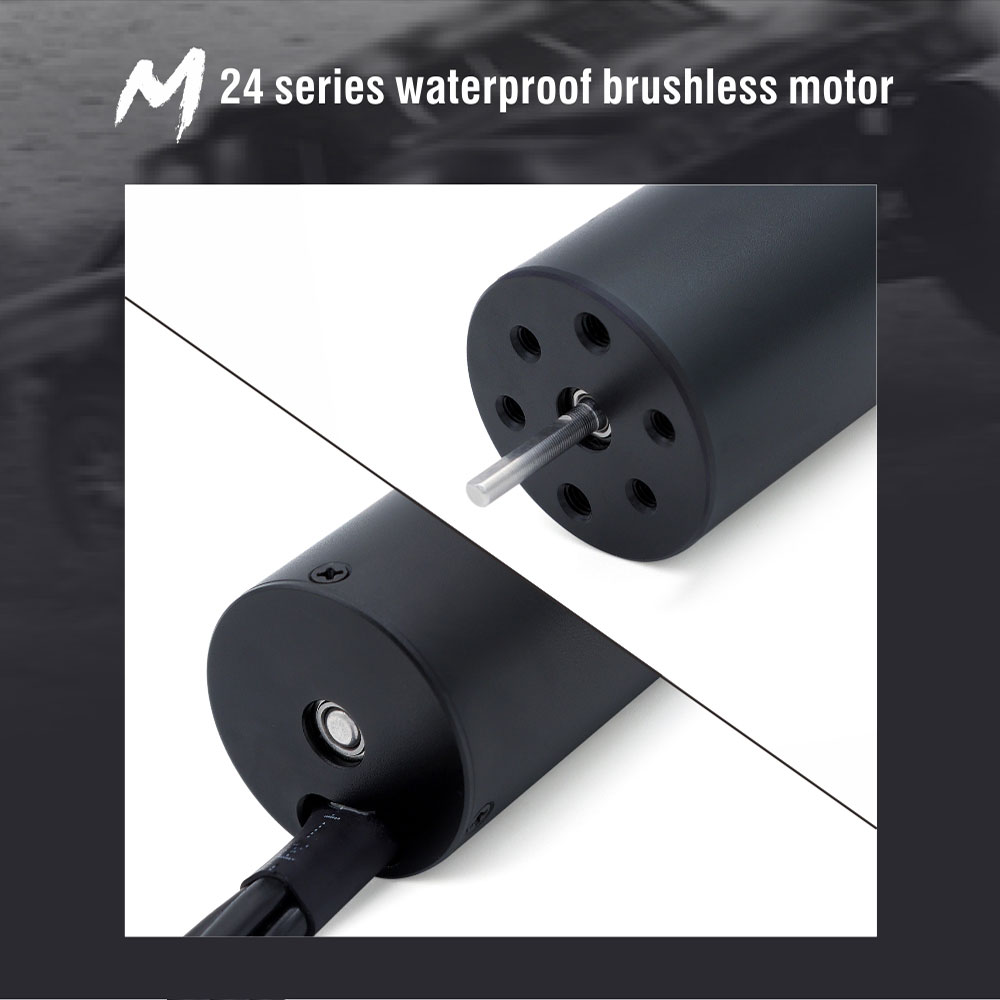

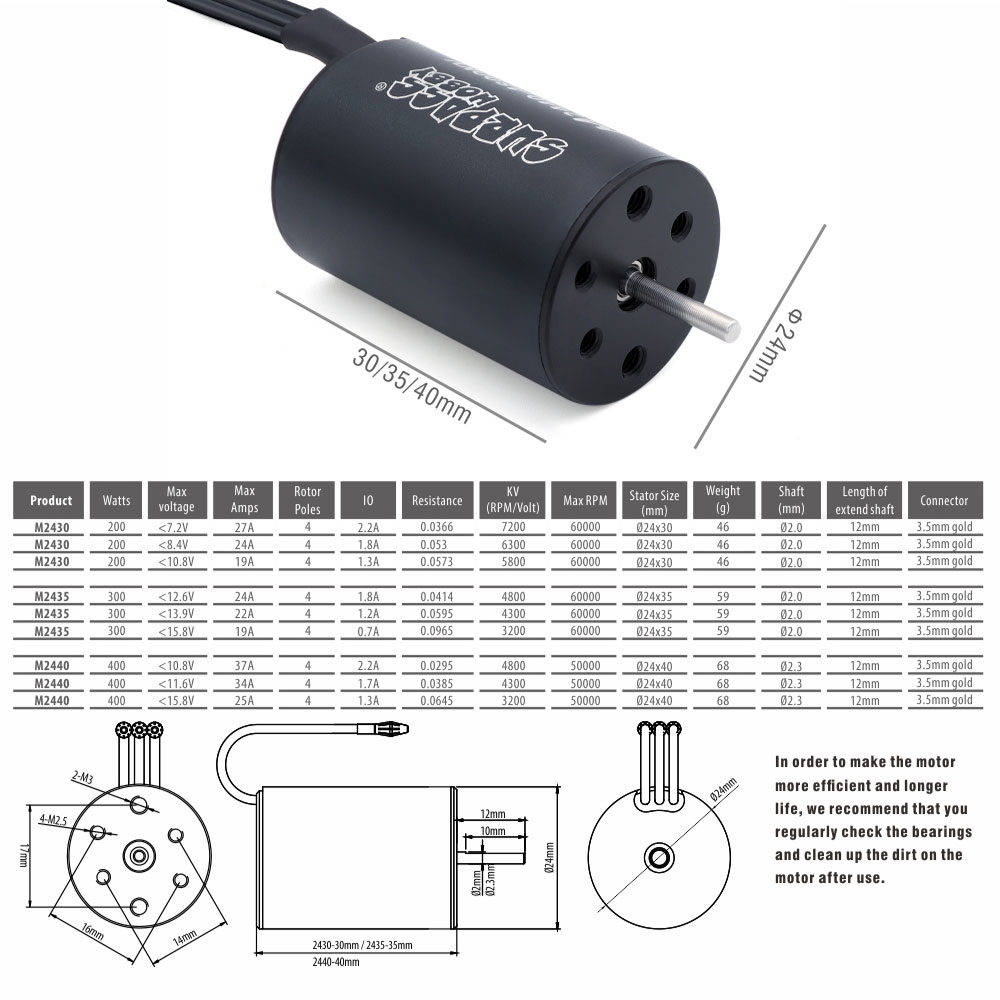

M24 series Specifications:
M2430:5800kv
M2435:4800kv
M2440:4800kv
Brand Name: Surpass Hobby
Material: CNC case
Alloy Steel Output Shaft: 2.0mm/2.3mm
Plug: 3.5mm Gold-plated
Fits all 1/16th or 1/18th scale BL cars,M2.5 or M3 screw mounting holes

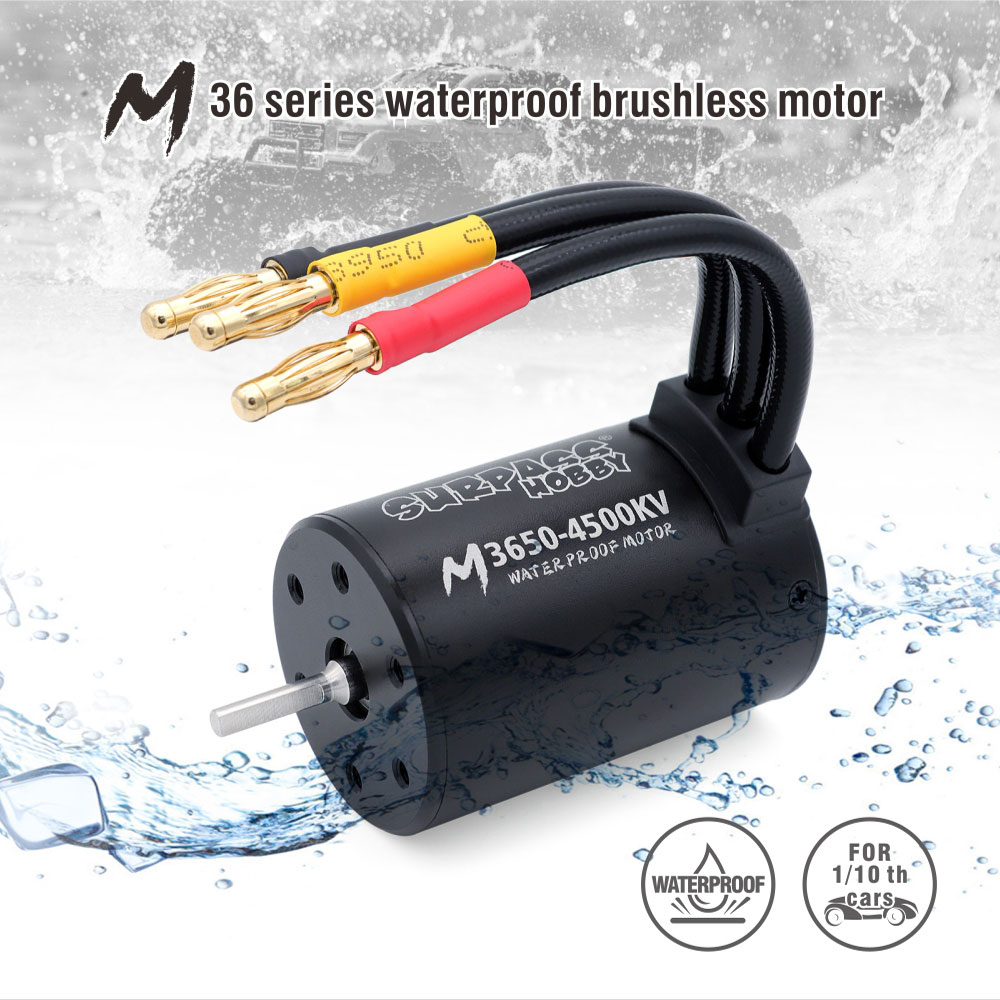

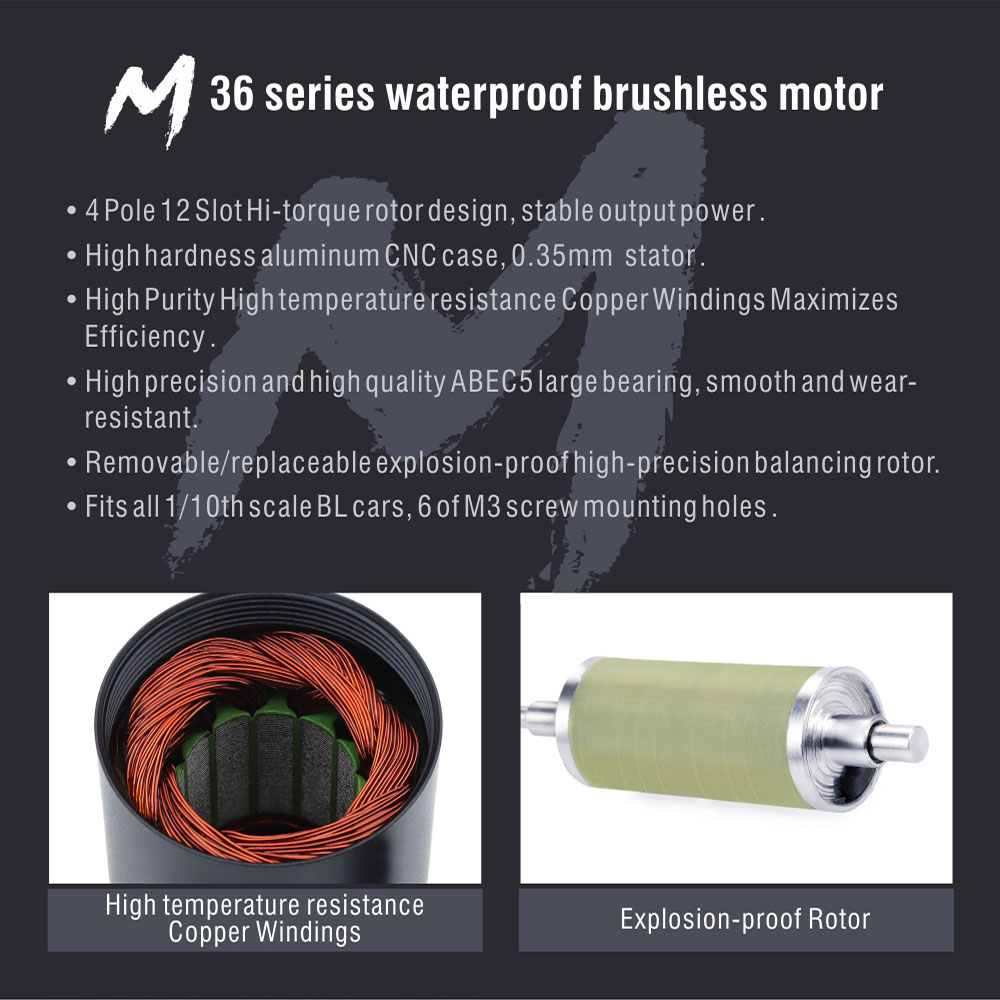

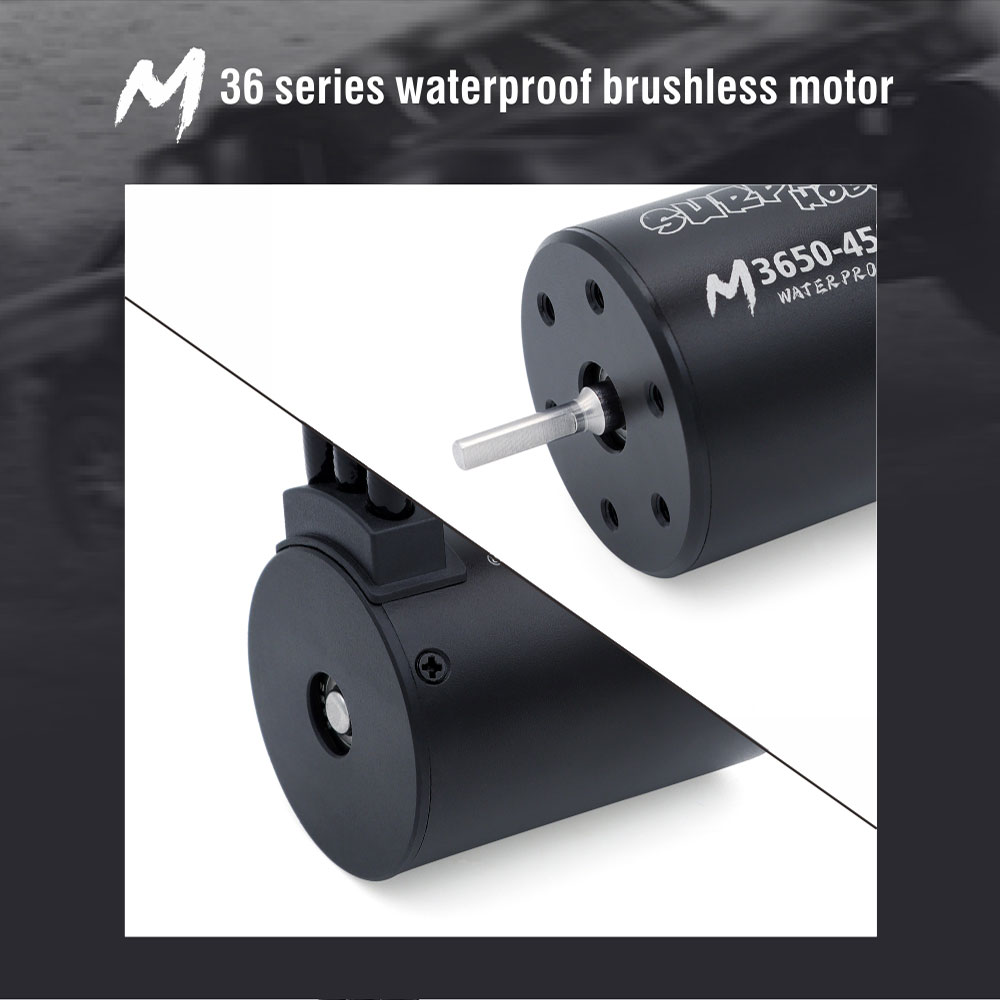

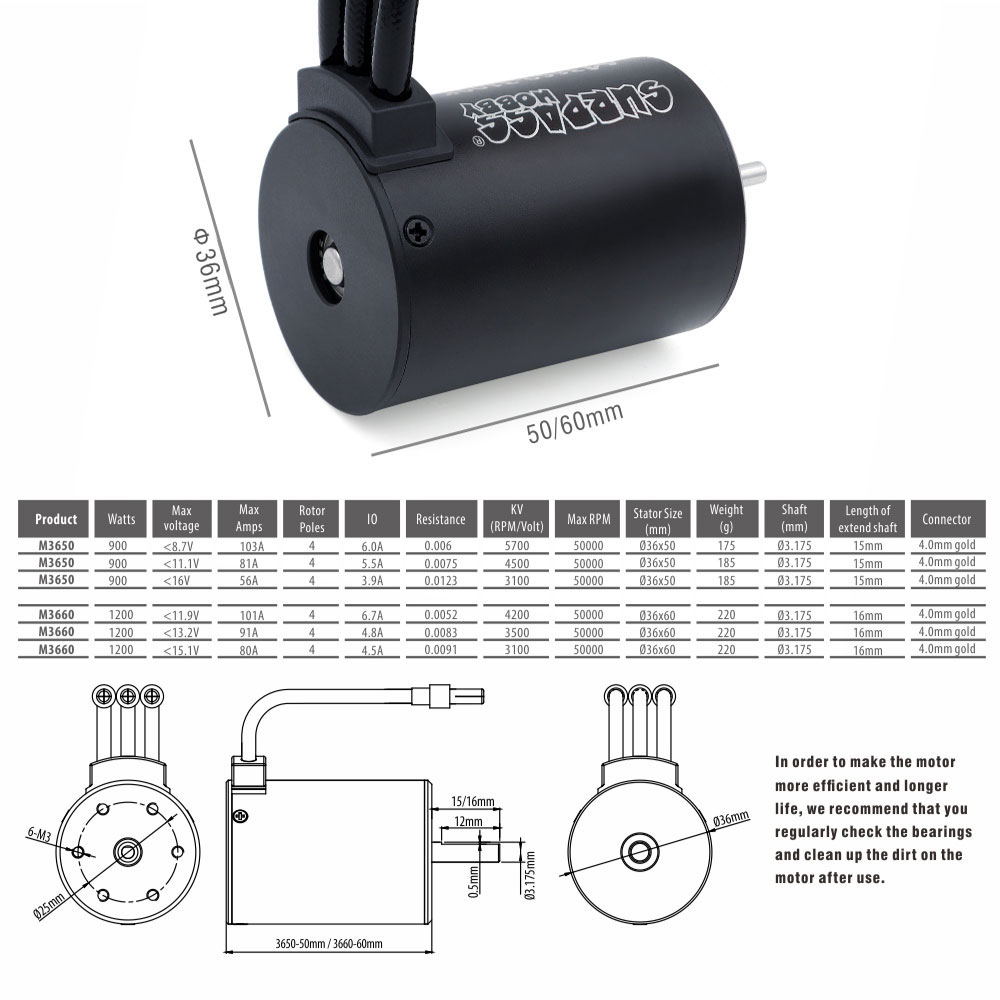

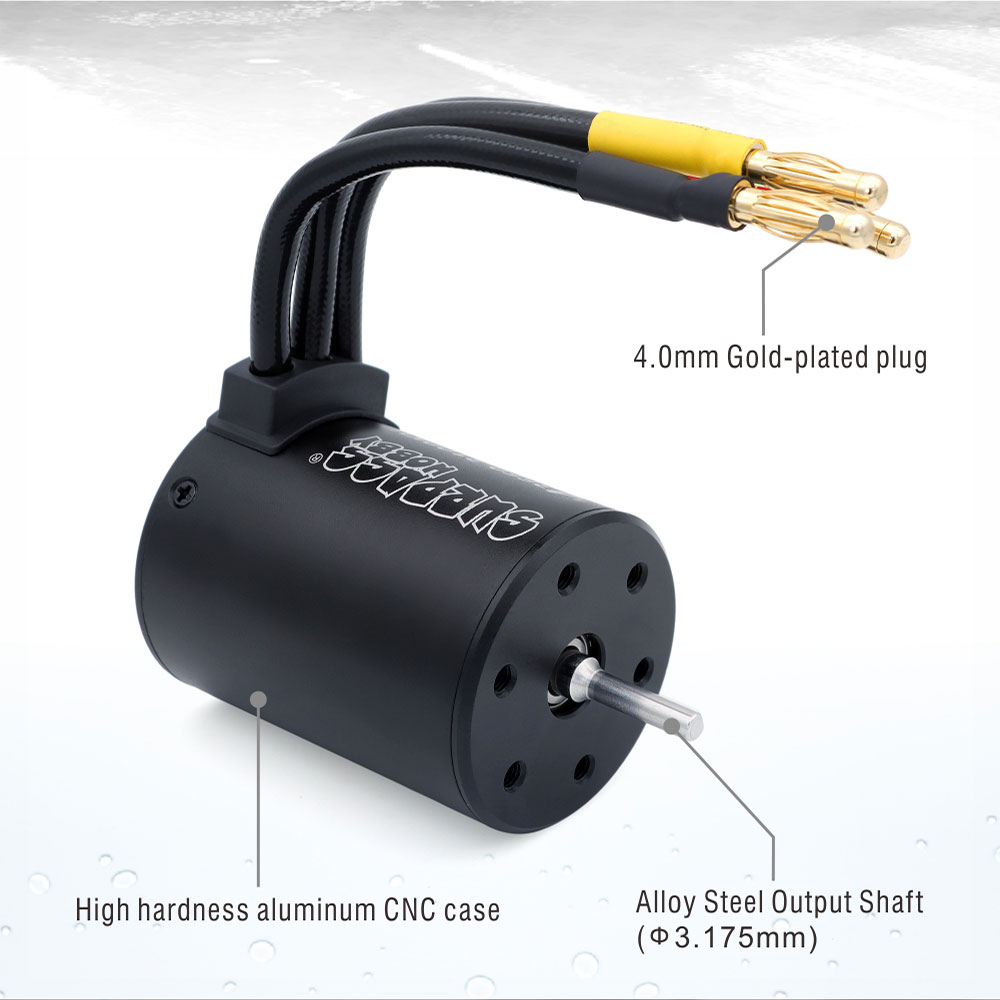

M36 series Specifications:
M3650:4500kv
M3660:3100kv
Material: CNC case
Plug: 4.0mm Gold-plated
Alloy Steel Output Shaft: 3.175mm
Fits all 1/10th scale BL cars,6 of M3 screw mounting holes

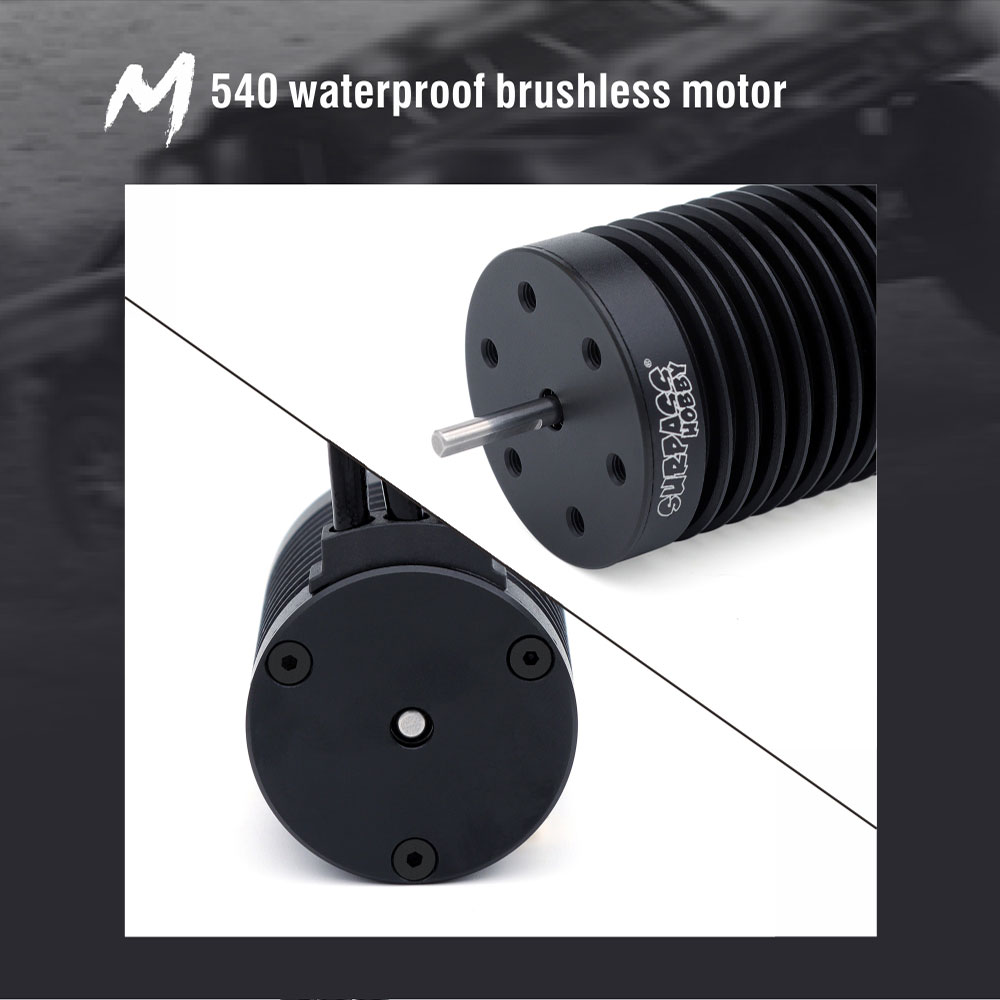

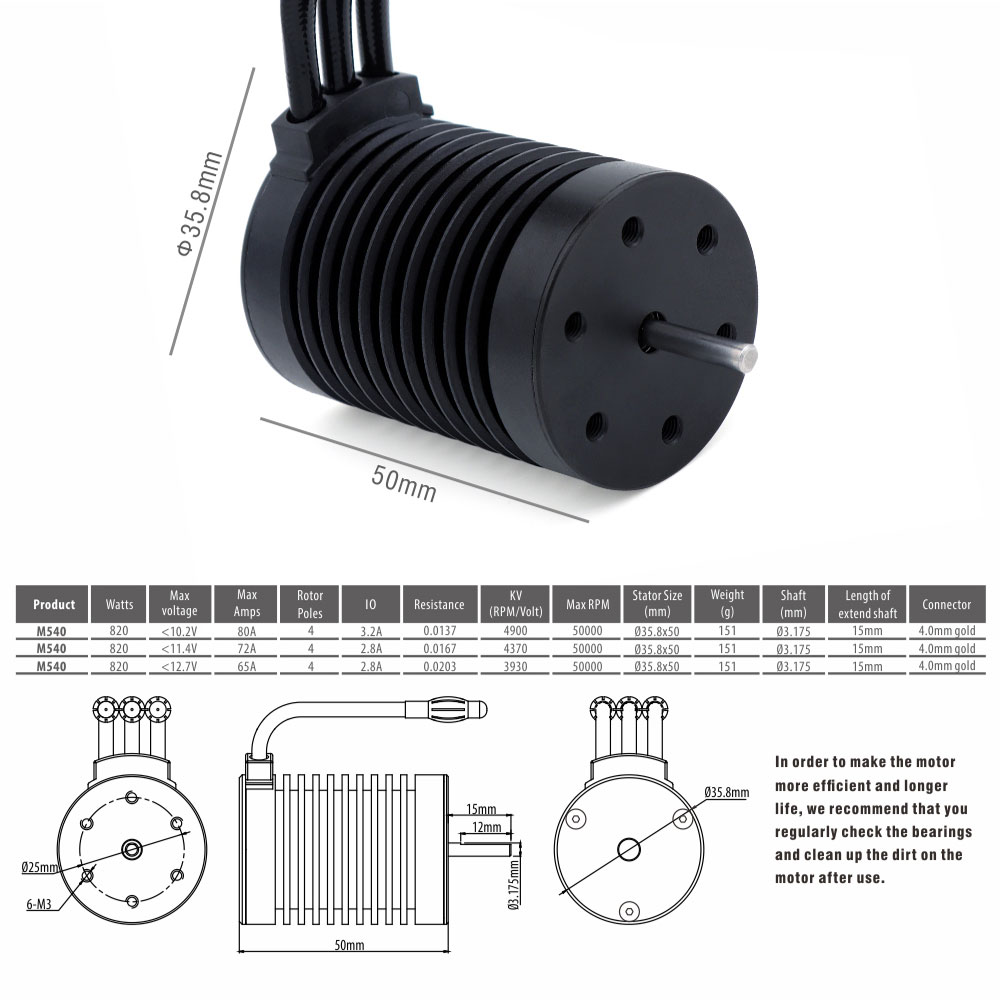

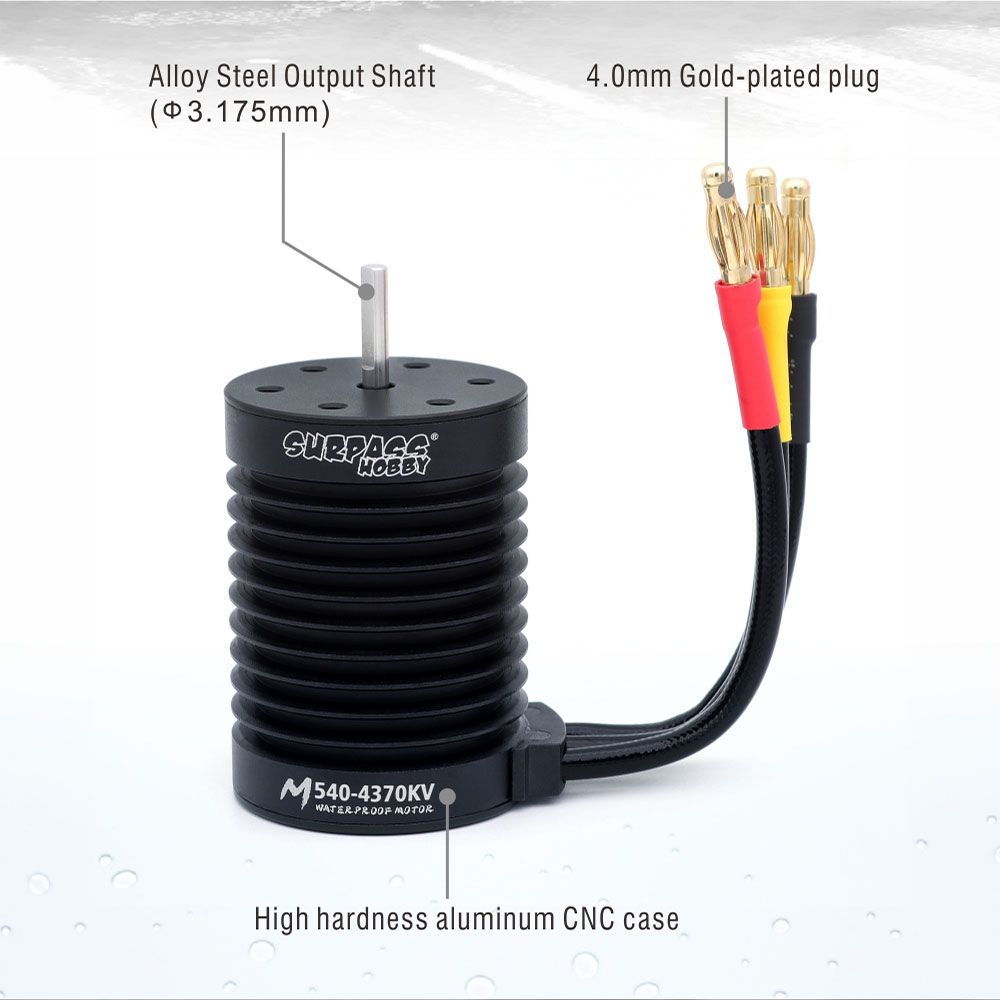

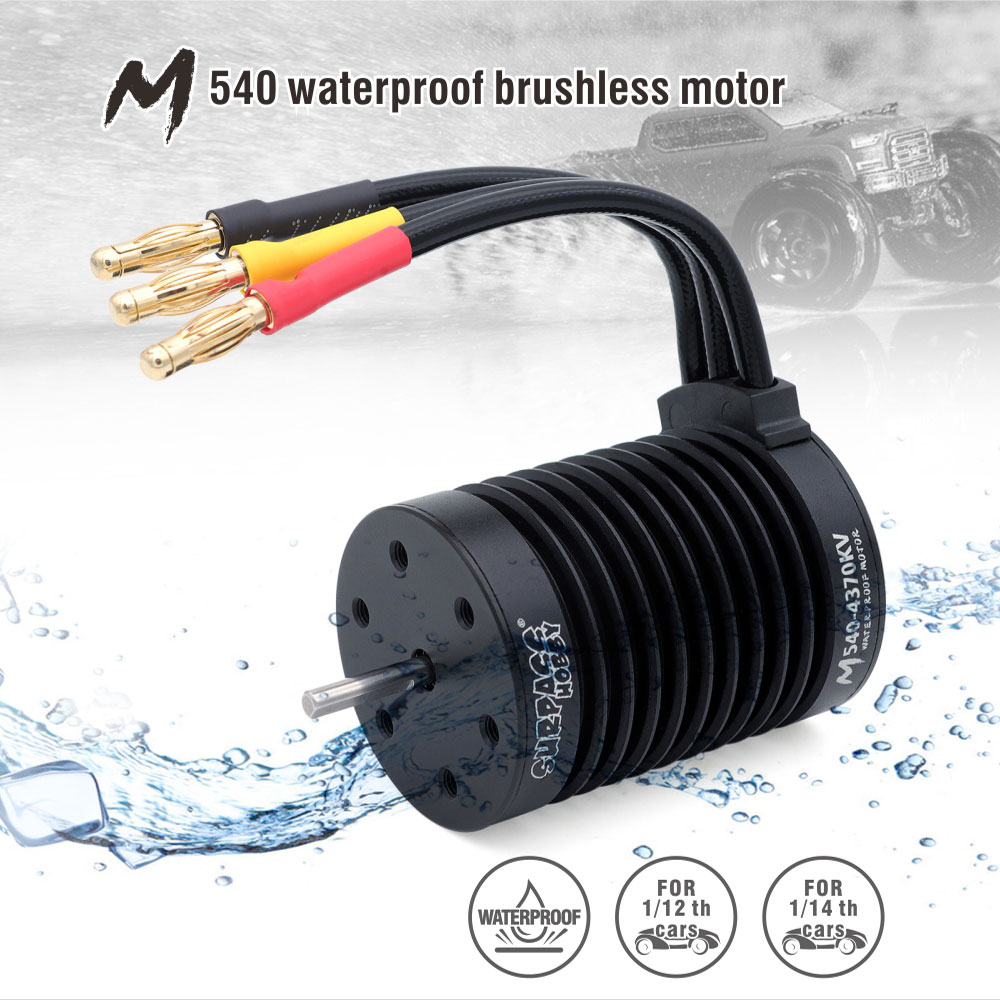

M540 Specifications:
M540:3930kv/4370kv
Material: CNC case
Alloy Steel Output Shaft: 3.175mm
Plug: 4.0mm Gold-plated
Fits all 1/12th or 1/14th scale BL cars,6 of M3 screw mounting holes

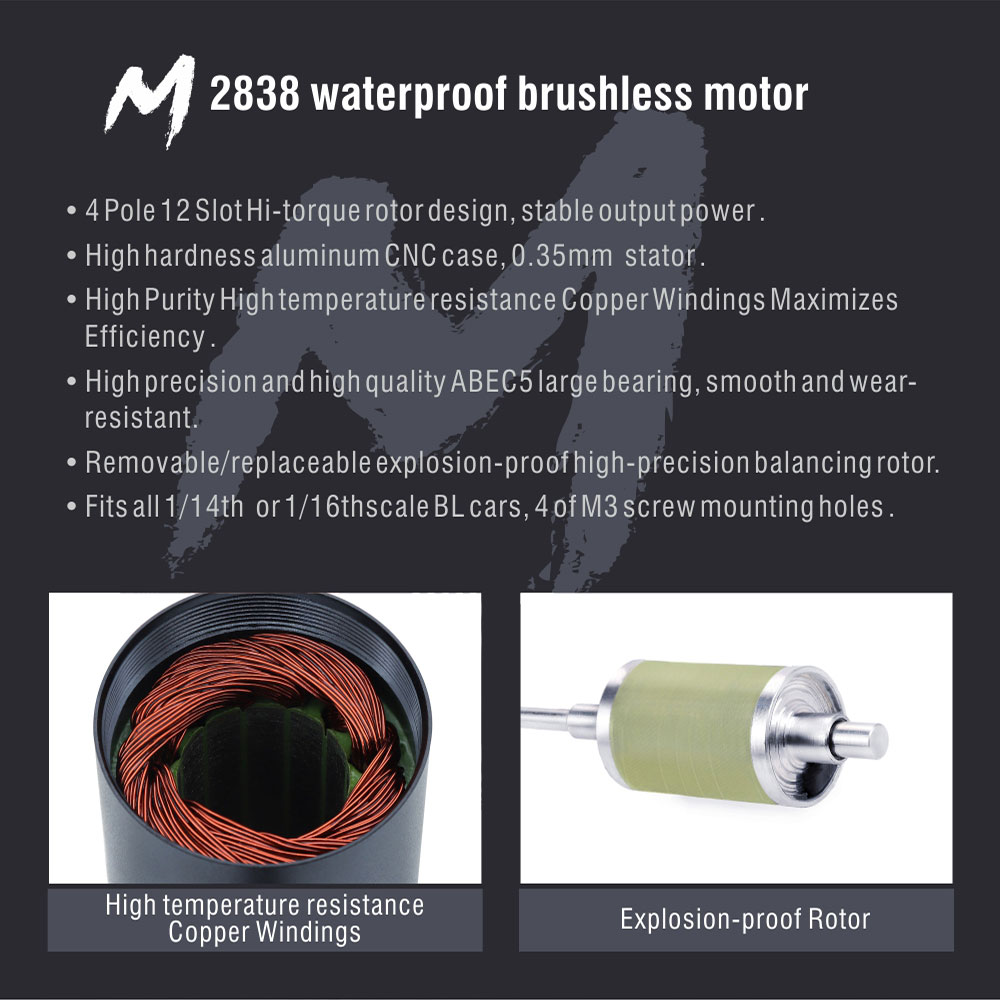

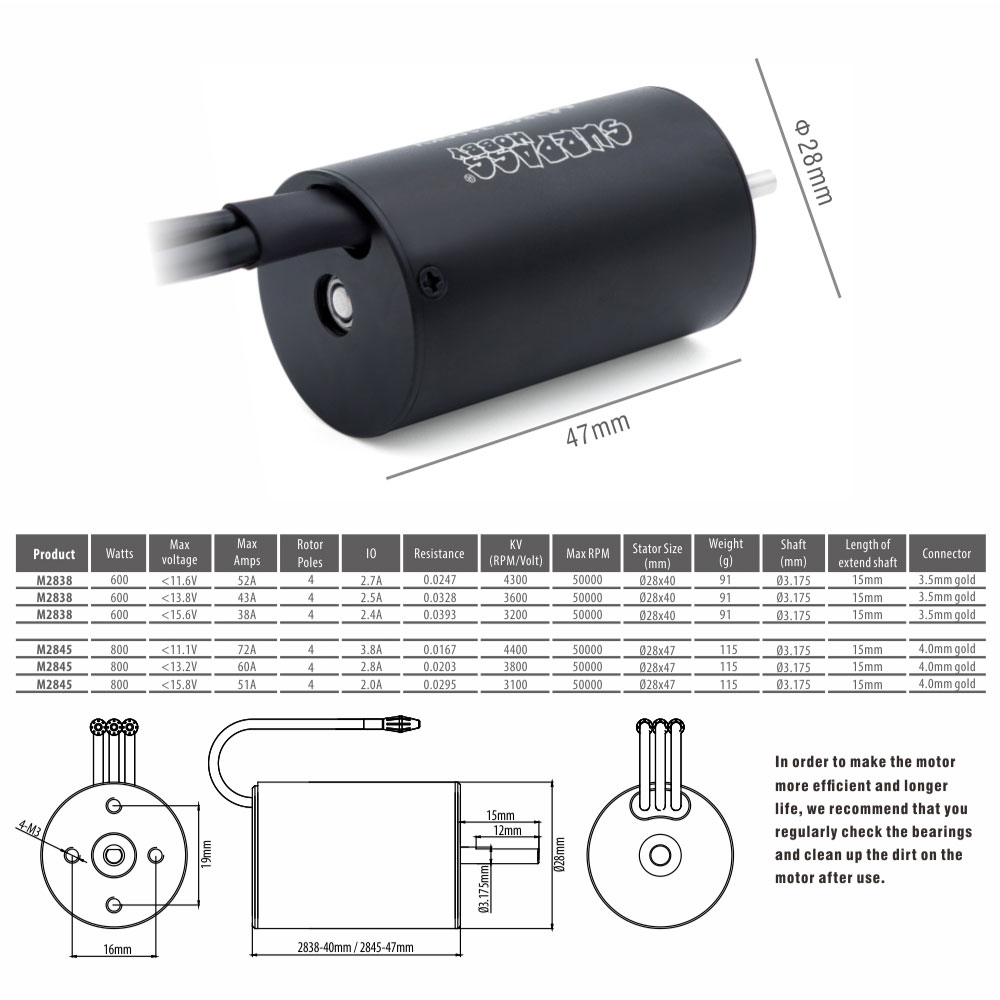

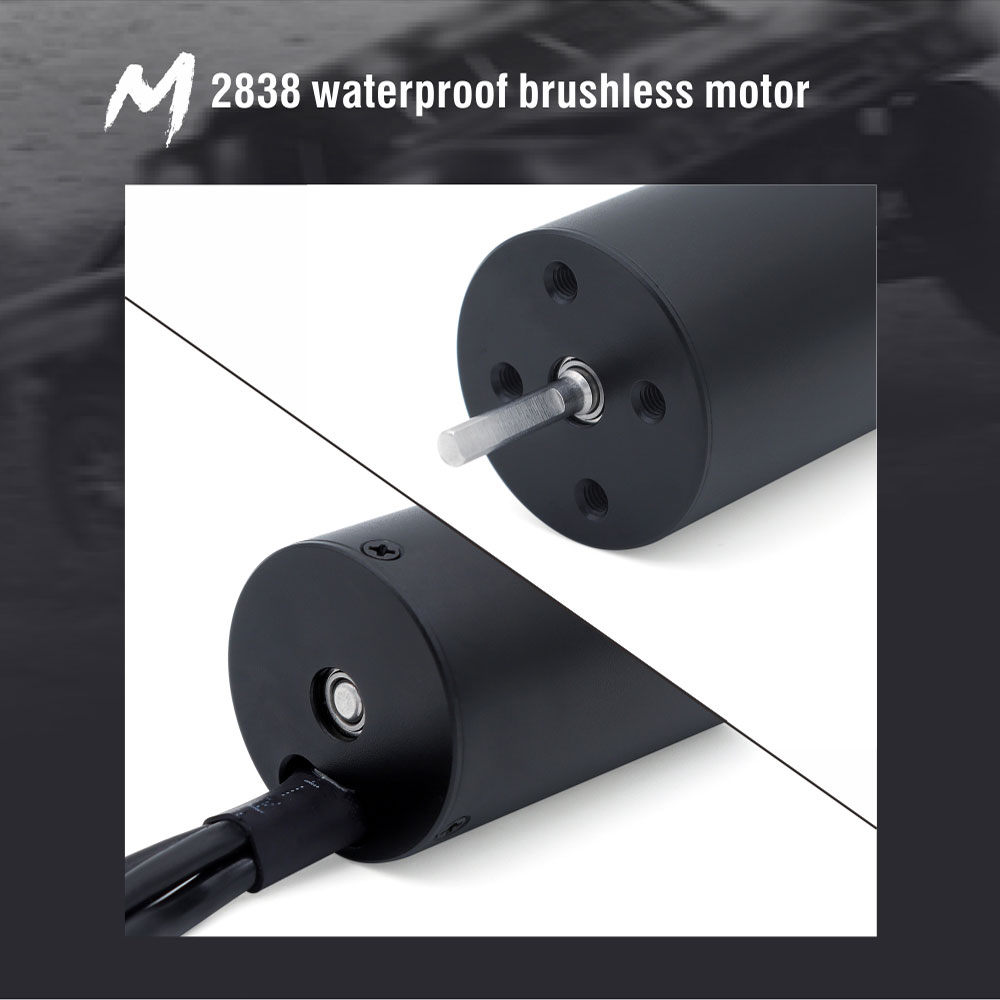

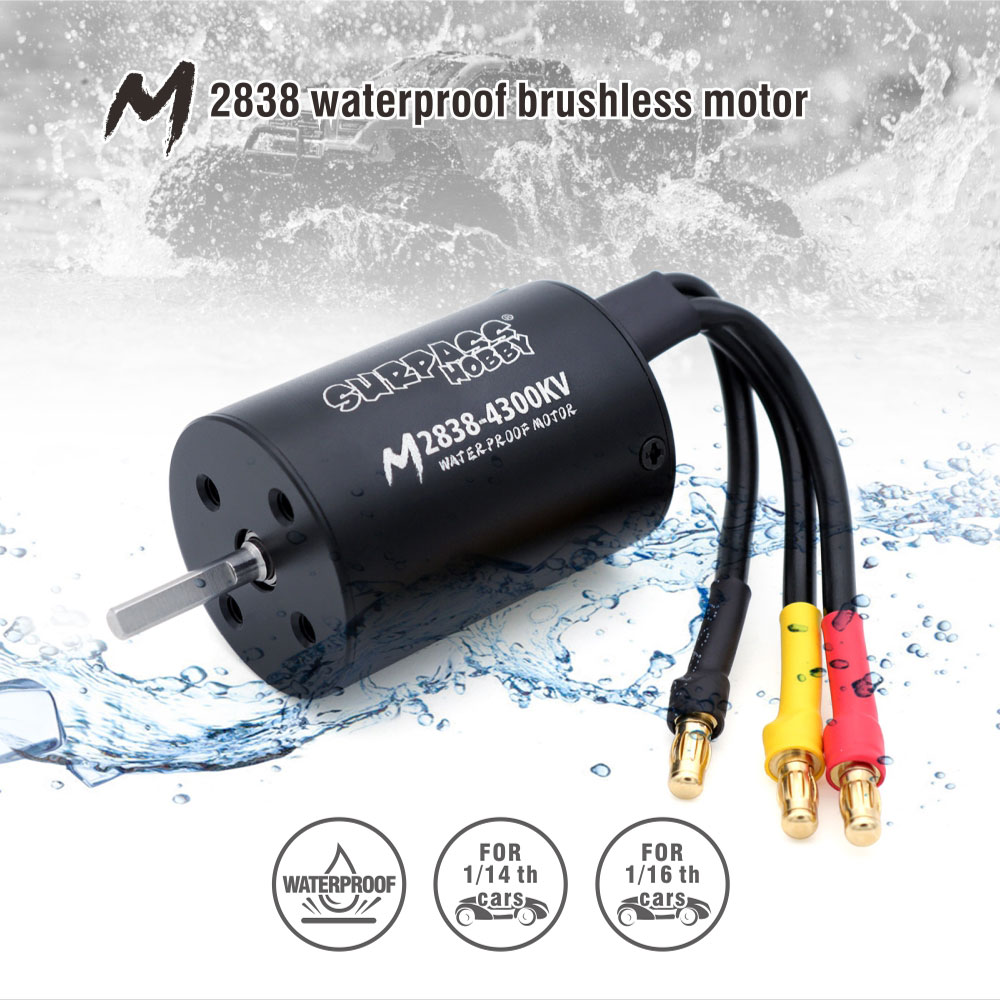

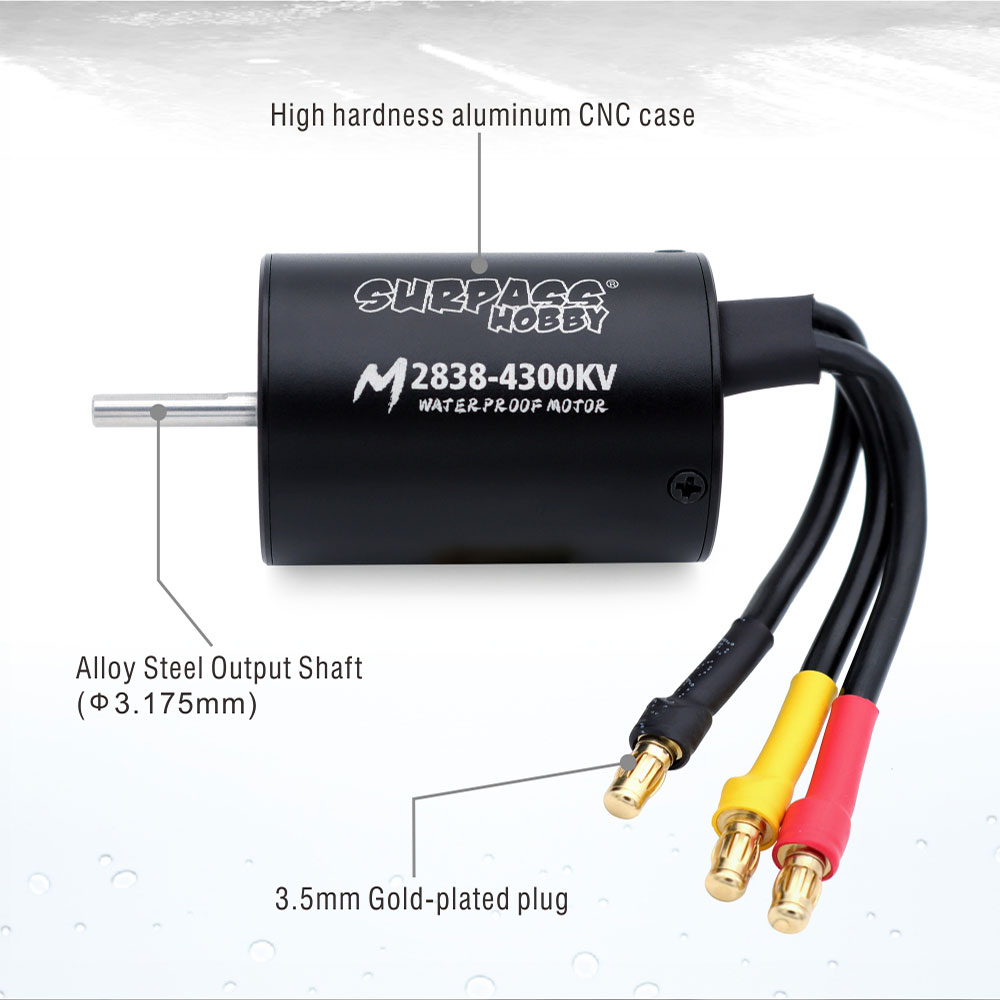

M2838 Specifications:
M3838:3600kv/4300kv
Material: CNC case
Alloy Steel Output Shaft: 3.175mm
Plug: 3.5mm Gold-plated
Fits all 1/14th or 1/16th scale BL cars, 4 of M3 screw mounting holes

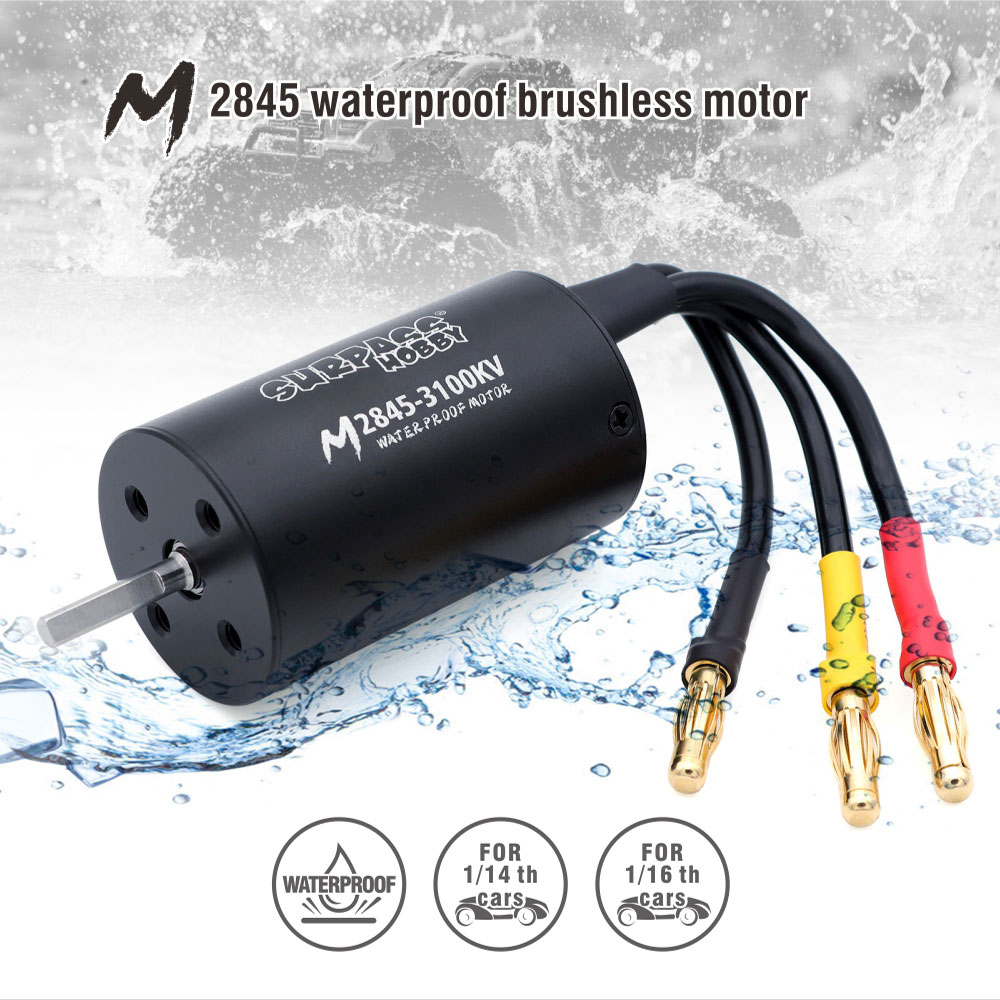

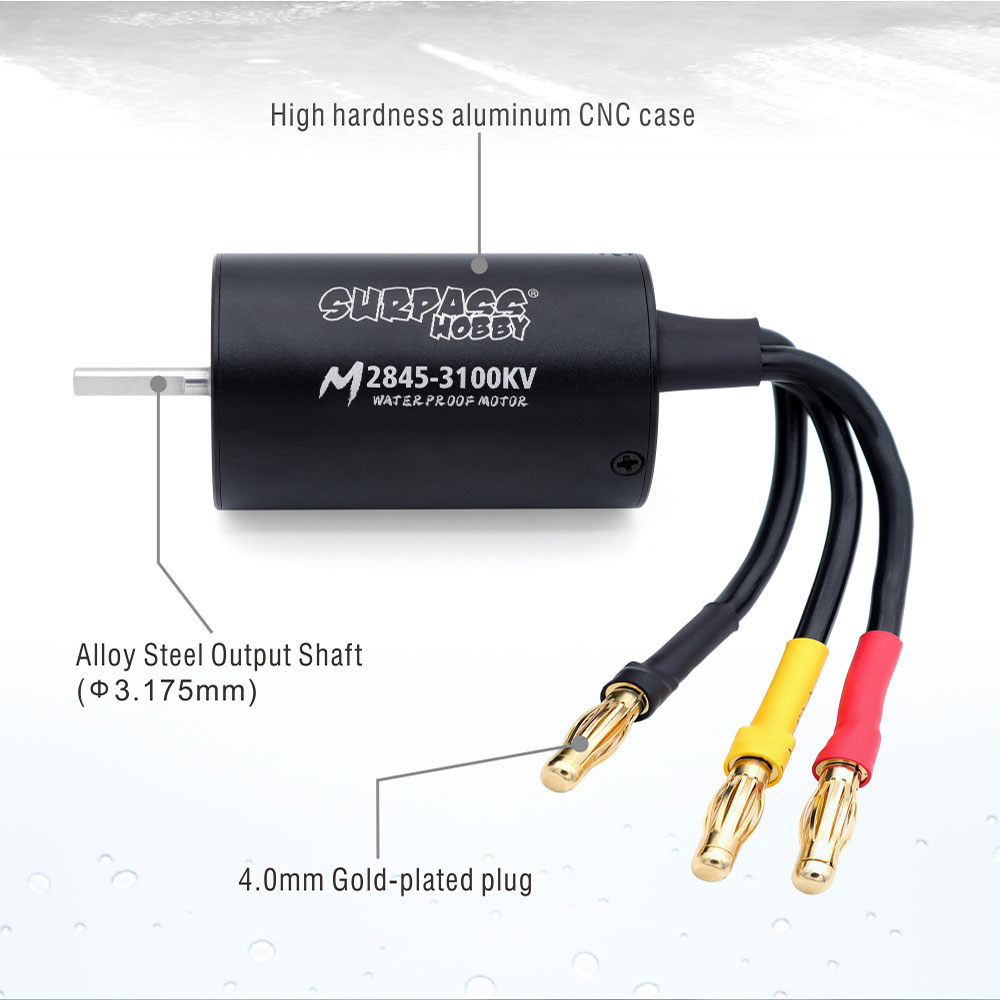

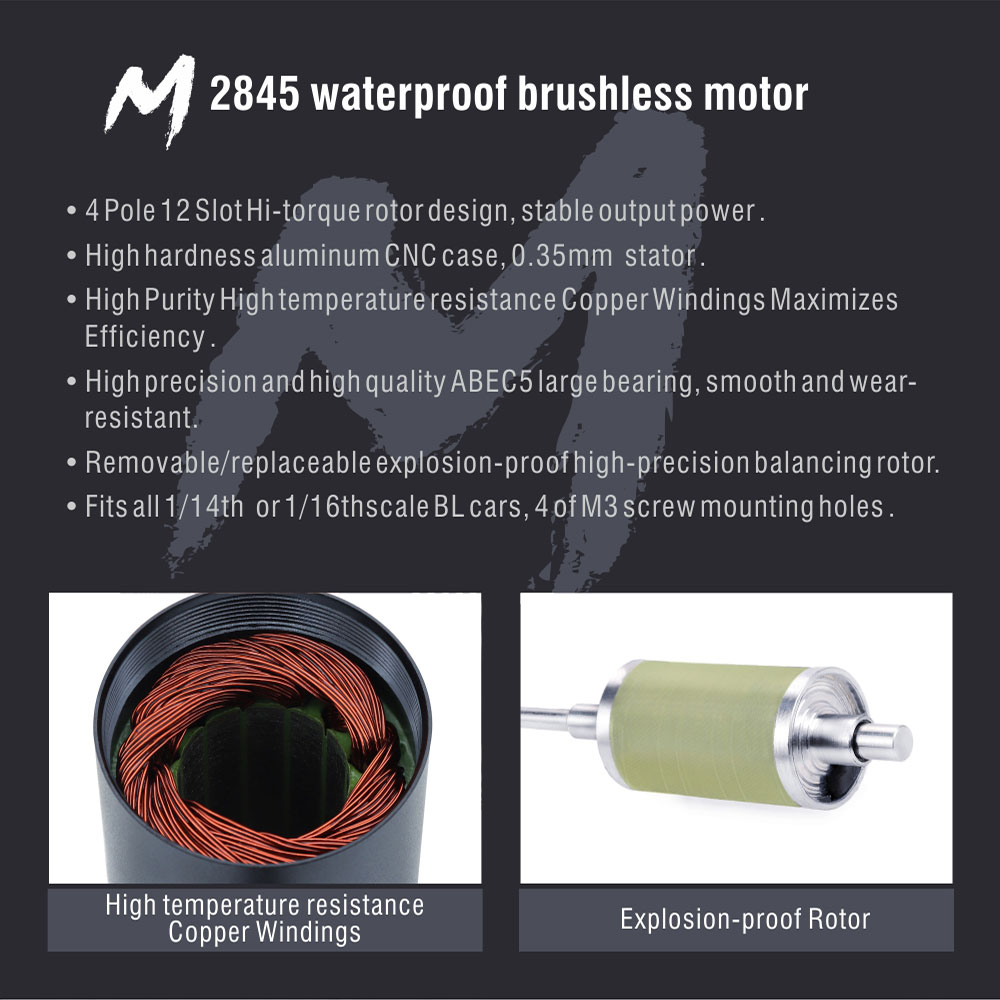

M2845 Specifications:
M3845:3100kv/3800kv
Material: CNC case
Alloy Steel Output Shaft: 3.175mm
Plug: 4.0mm Gold-plated
Fits all 1/14th or 1/16th scale BL cars,4 of M3 screw mounting holes

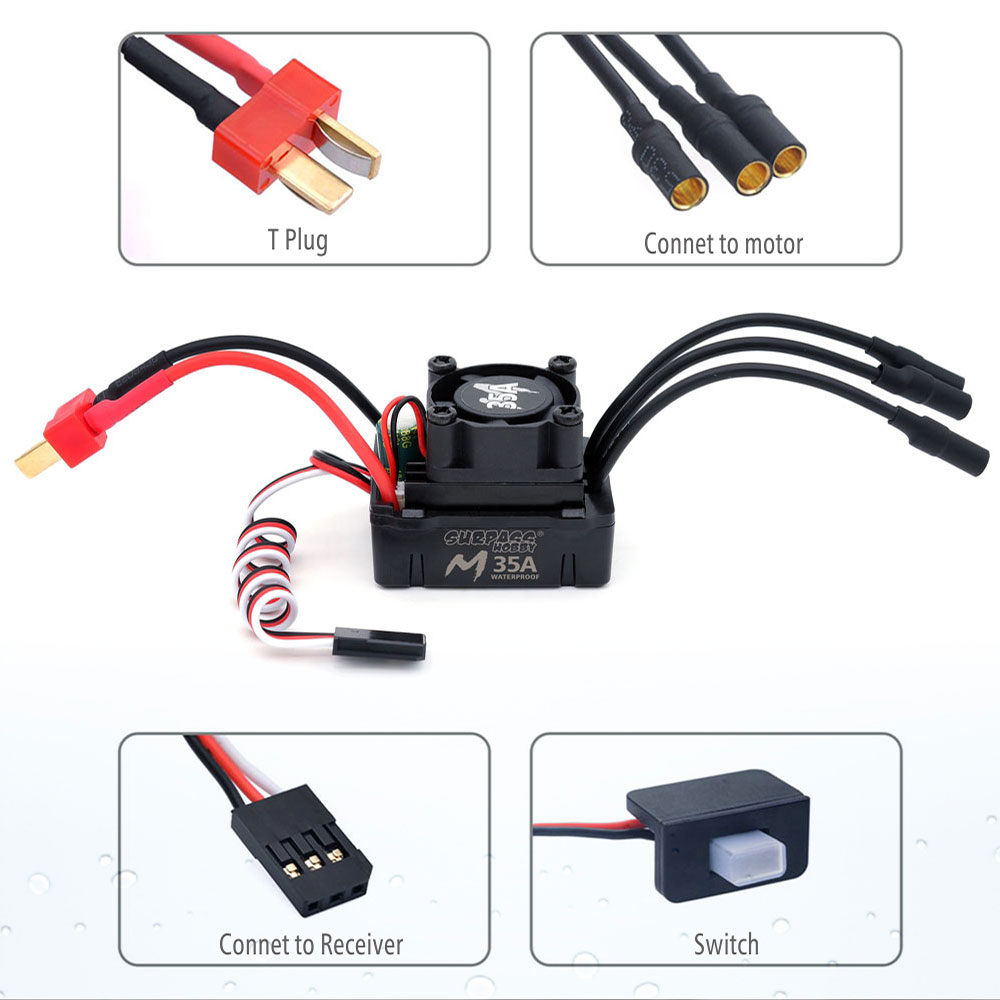

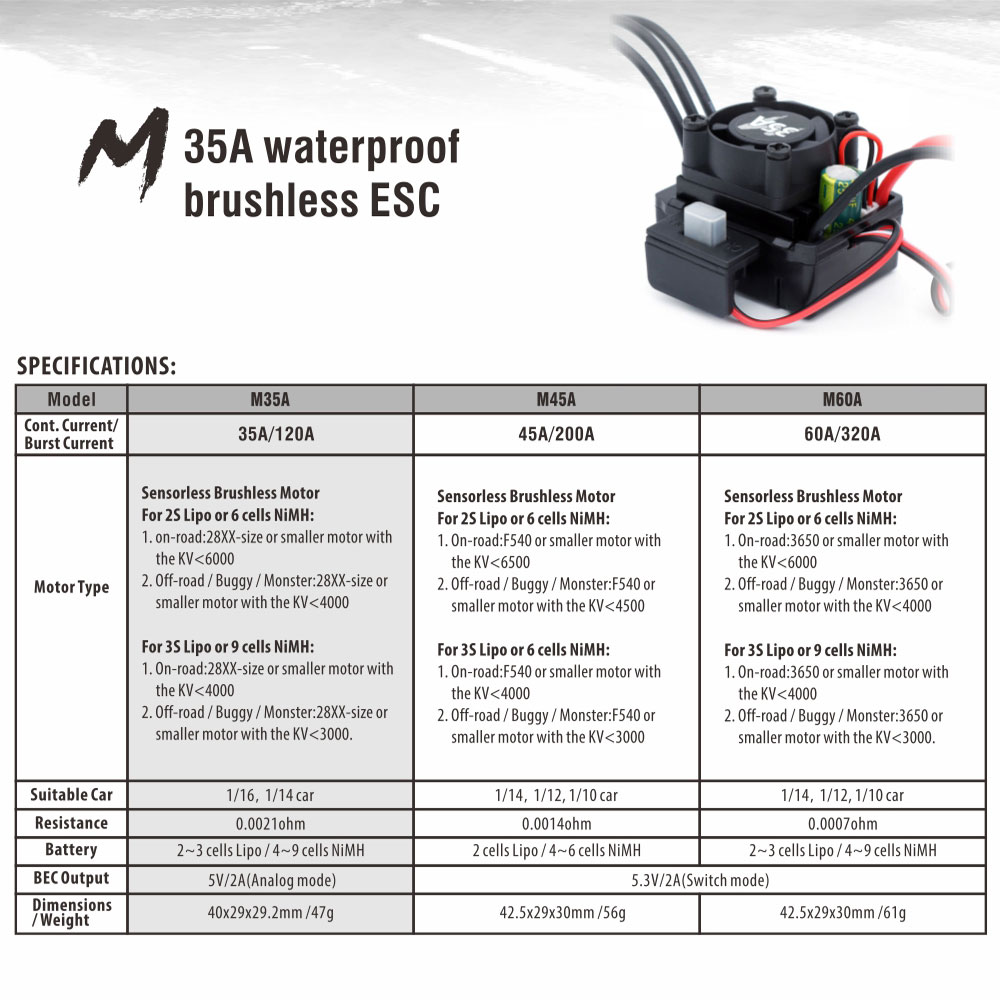

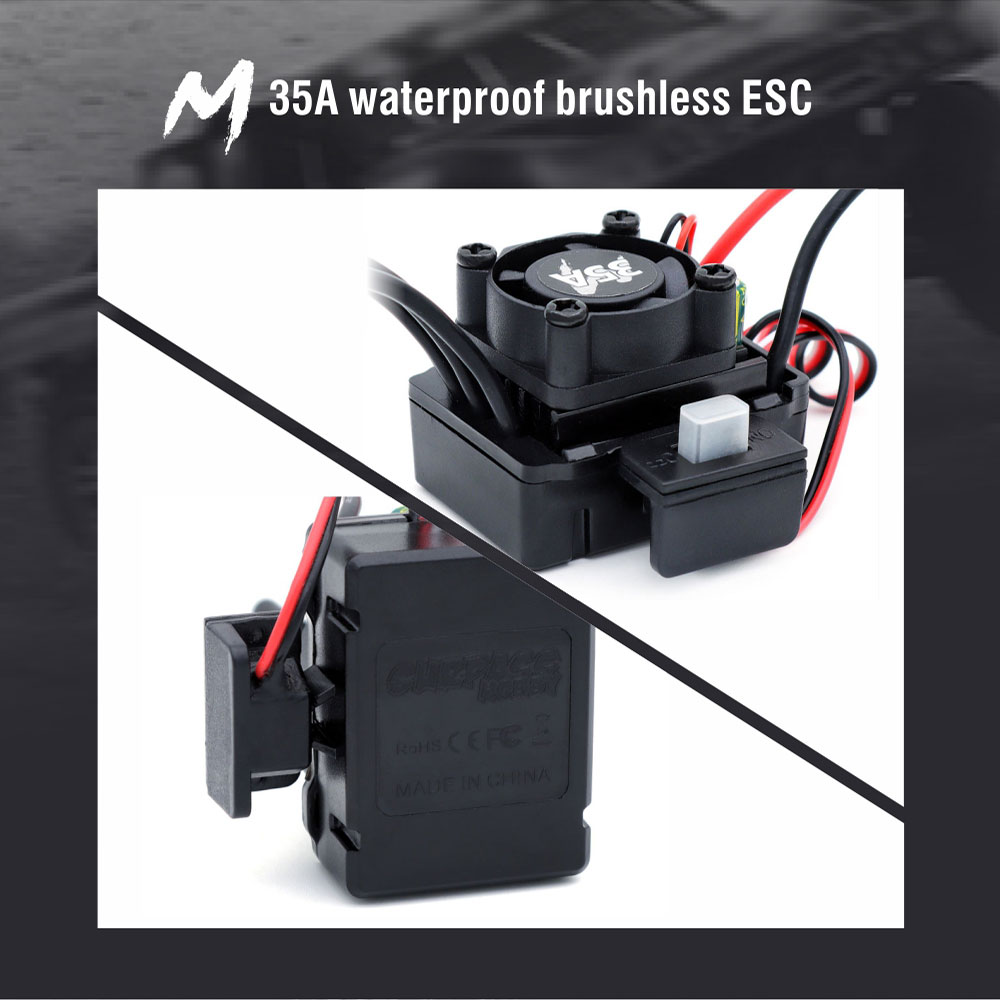

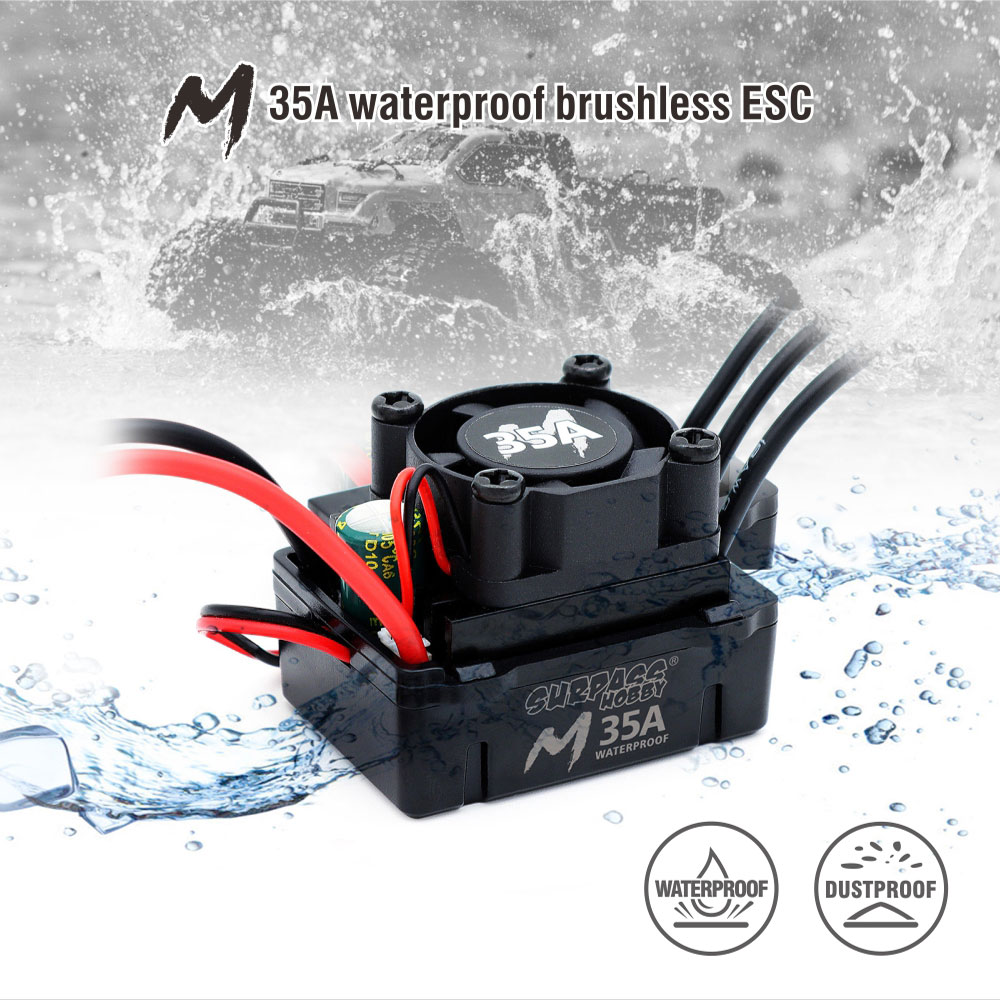

M35A Specifications:
Cont.Current/Burst Current: 35A/120A
Suitable Car: 1/16, 1/14 Car
Resistance: 0.0021ohm
Battery: 2~3 cells Lipo /4~9 cells NiMH
BEC Output: 5V/2A(Analog mode)
Dimensions: 40x29x29.2mm
Weight: 47g

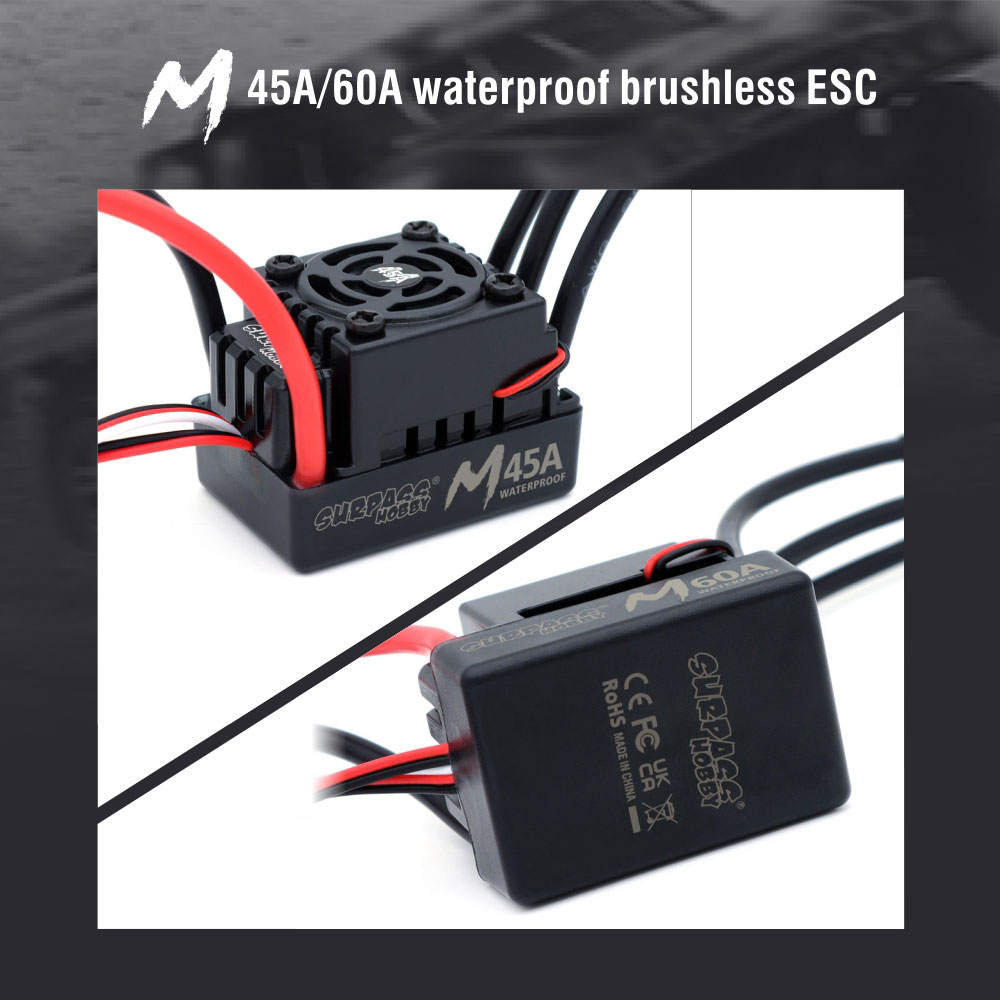

M45A Specifications:
Cont.Current/Burst Current: 45A/200A
Suitable Car: 1/14, 1/12, 1/10 car
Resistance: 0.0014ohm
Battery: 2 cells Lipo /4~6 cells NiMH
BEC Output: 5.3V/2A(Switch mode)
Dimensions: 42.5x29x30mm
Weight: 56g

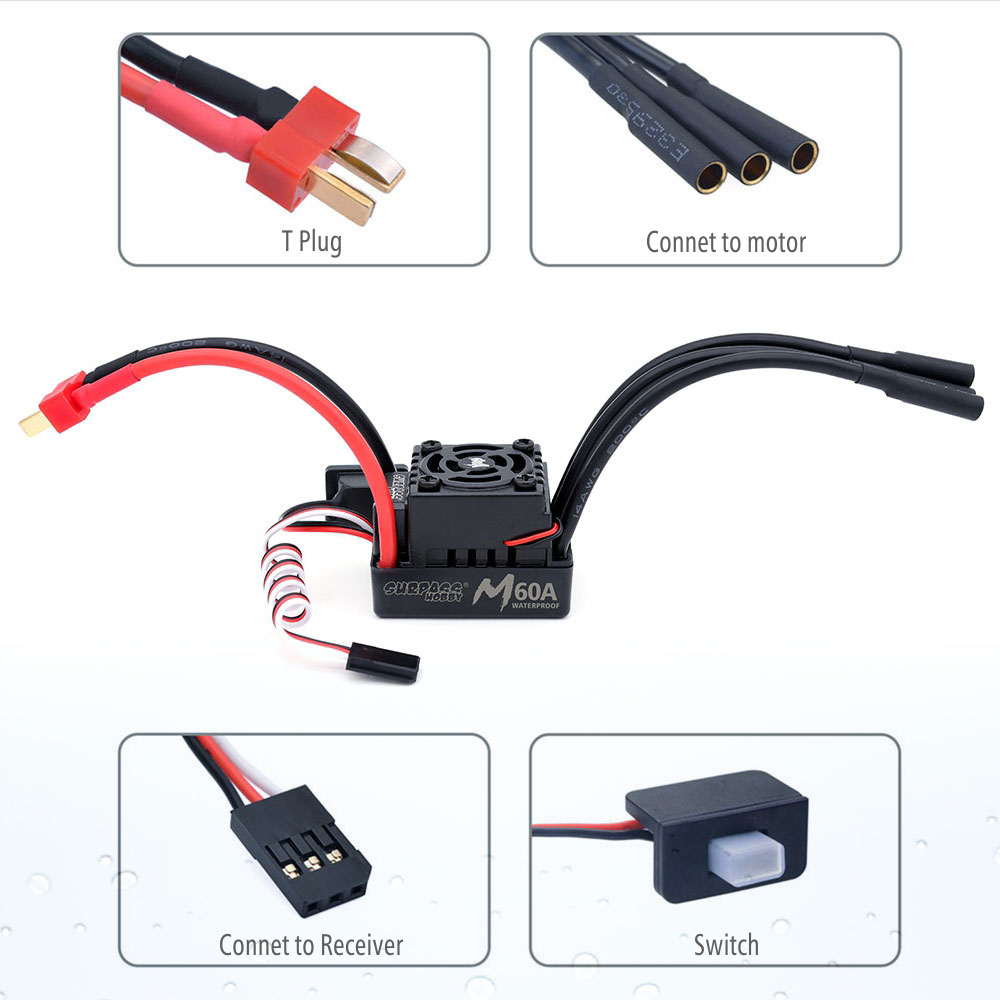

M60A Specifications:
Cont.Current/Burst Current: 60A/320A
Suitable Car: 1/14, 1/12,1/10 car
Resistance: 0.0007ohm
Battery: 2~3 cells Lipo /4~9 cells NiMH
BEC Output: 5.3V/2A(Switch mode)
Dimensions: 42.5x29x30mm
Weight: 61g
Package contents:
As you choose.
Note:
Only the above package content, other products are not included.
