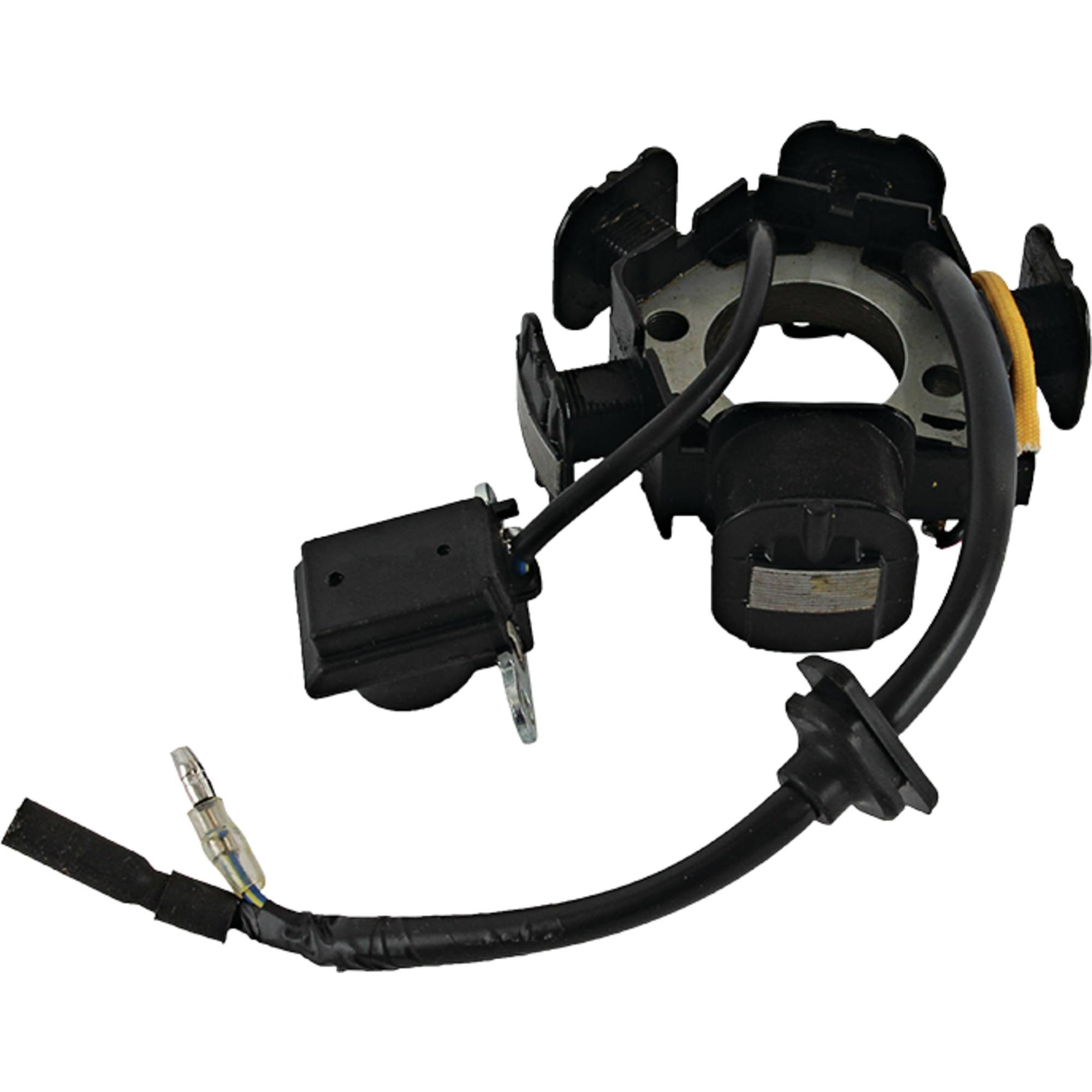

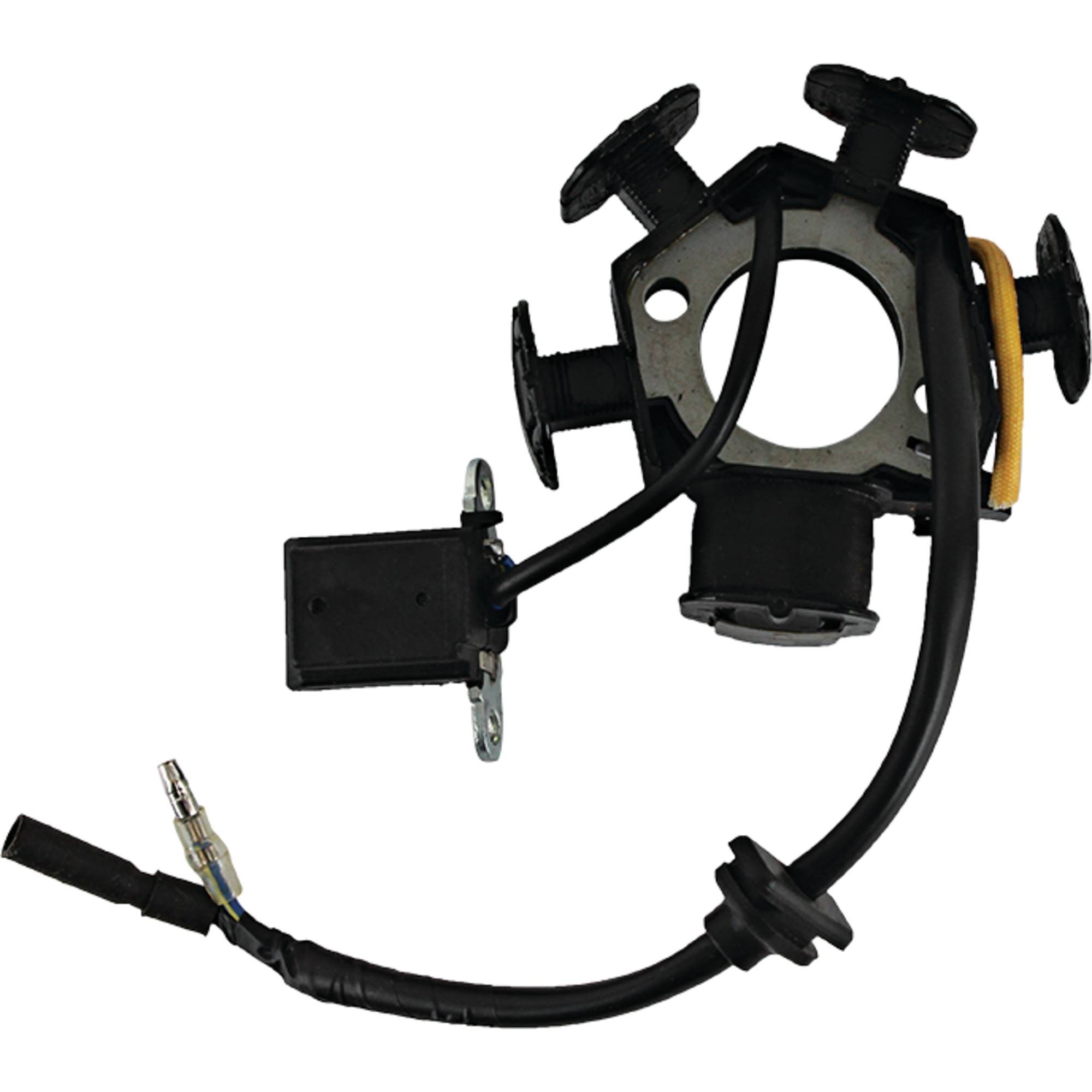

Stator Coil For Honda CRF50F ID 29mm OD 84mm 31120-GW8-671 AHA4052

$37.94
Brand
DB Electrical
Type
STATOR COIL
Manufacturer Part Number
340-58032
Country/Region of Manufacture
China
Voltage
12
California Prop 65 Warning
California Proposition 65 Warning: Cancer and Reproductive Harm
catalogMPN
AHA4052
Country of Origin
China
Internal Primary
Battery
Internal Secondary
Stator Coil
Part
STATOR COIL
PartType
STATOR COIL
UPC
711811735929
condition
New
New Stator Coil for Honda CRF50F ID 29mm, OD 84mm 31120-GW8-671

Stator Coil For Honda CRF50F ID 29mm OD 84mm 31120-GW8-671 AHA4052

  • Part Number: 340-58032
  • MPN: AHA4052,31120-GW8-671,75-1009,AHA4052 340-58032
  • Part Type: STATOR COIL
  • Warranty: 1 Year
STATOR COIL
Product Features

DB Electrical Stator Coils
DB Electrical’s high performance stator coils keep your battery fully charged and ready to power all electrical functions. Precision engineering delivers optimal charging capabilities to maximize generation of electrical power. The stator coil creates alternating current (AC), which goes to the rectifier/regulator for conversion into direct current (DC). A new DB Electrical stator coil will restore effective electrical generation when it’s time to replace an older one due to age.

Quality Craftmanship and Materials Add Up to a Better Stator Coil
At first glance, a stator coil seems like a simple component with an iron core and copper wire, but the quality of craftsmanship and materials do make a difference in both performance and service life. DB Electrical works directly with factories to make sure only premium materials and uncompromising craftsmanship go into every stator coil. Our stator coils feature a quality grade of wire for a good current carrying capacity, which reduces overall temperatures as current flows through the component. The coating on the winding also resists heat to reduce chances of becoming compromised. The wire is wound to the highest standards of fine craftsmanship for better performance.

40 Years of Satisfied Customers
We’ve been in the business of supplying quality electrical components for over 40 years. Our long history has taught us that you only keep customers satisfied by supplying quality products and outstanding service.

The DB Electrical Advantage – 1-Year Warranty
DB Electrical proudly stands behind the quality of our products with our total-confidence 1-year warranty. Yes, you have a full year to make sure your stator coil meets your expectations.

Specifications
Unit TypePart
Part TypeSTATOR COIL
Voltage12

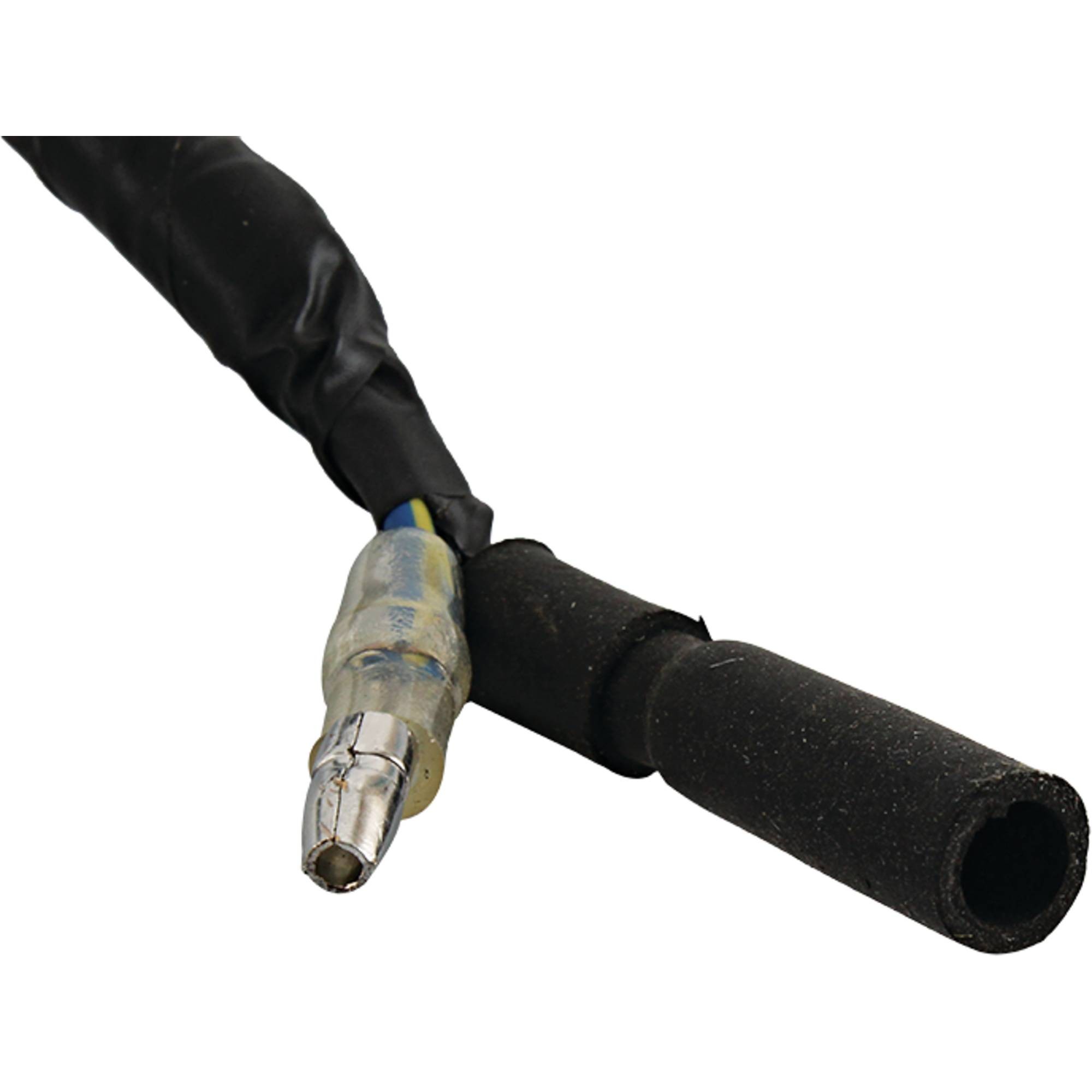

DimensionID 29mm; OD 83mm; Width (OD) 25mm; Width (ID) 8.7mm; # Posts 5; Mounting Holes 2 - 6mm; Cord Length 8 Inches (2 Connectors); Cord Length 2.6 Inches (Pickup Coil);
FitsHonda CRF50 2004-15
Honda CRF70 2004-12
Honda XR50 2000-03
Honda XR70 1997-03
Honda Z50 1988-99
Interchanges
ALL BALLS75-1009
ARROWHEADAHA4052
HONDA31120-GW8-671
Fitment Information
HONDAMotorcycleZ50R Mini Trail198849cc
HONDAMotorcycleZ50R Mini Trail198949cc
HONDAMotorcycleZ50R Mini Trail199049cc
HONDAMotorcycleZ50R Mini Trail199149cc
HONDAMotorcycleZ50R Mini Trail199249cc
HONDAMotorcycleZ50R Mini Trail199349cc
HONDAMotorcycleZ50R Mini Trail199449cc
HONDAMotorcycleZ50R Mini Trail199549cc
HONDAMotorcycleZ50R Mini Trail199649cc
HONDAMotorcycleZ50R Mini Trail199749cc
HONDAMotorcycleZ50R Mini Trail199849cc
HONDAMotorcycleZ50R Mini Trail199949cc
HONDADirt BikeCRF50F200449cc
HONDADirt BikeCRF50F200549cc
HONDADirt BikeCRF50F200649cc
HONDADirt BikeCRF50F200749cc
HONDADirt BikeCRF50F200849cc
HONDADirt BikeCRF50F200949cc
HONDADirt BikeCRF50F201049cc
HONDADirt BikeCRF50F201149cc
HONDADirt BikeCRF50F201249cc
HONDADirt BikeCRF50F201349cc
HONDADirt BikeCRF50F201449cc
HONDADirt BikeCRF50F201549cc
HONDADirt BikeCRF50F201649cc
HONDADirt BikeCRF50F201749cc
HONDADirt BikeCRF50F201849cc
HONDADirt BikeCRF70F200470cc
HONDADirt BikeCRF70F200570cc
HONDADirt BikeCRF70F200670cc
HONDADirt BikeCRF70F200770cc
HONDADirt BikeCRF70F200870cc
HONDADirt BikeCRF70F200970cc
HONDADirt BikeCRF70F201070cc
HONDADirt BikeCRF70F201170cc
HONDADirt BikeCRF70F201270cc
HONDADirt BikeCRF70F201370cc
HONDADirt BikeXR50R200049cc
HONDADirt BikeXR50R200149cc
HONDADirt BikeXR50R200249cc
HONDADirt BikeXR50R200349cc
HONDADirt BikeXR70R199772cc
HONDADirt BikeXR70R199872cc
HONDADirt BikeXR70R199972cc
HONDADirt BikeXR70R200072cc
HONDADirt BikeXR70R200172cc
HONDADirt BikeXR70R200272cc
HONDADirt BikeXR70R200372cc
