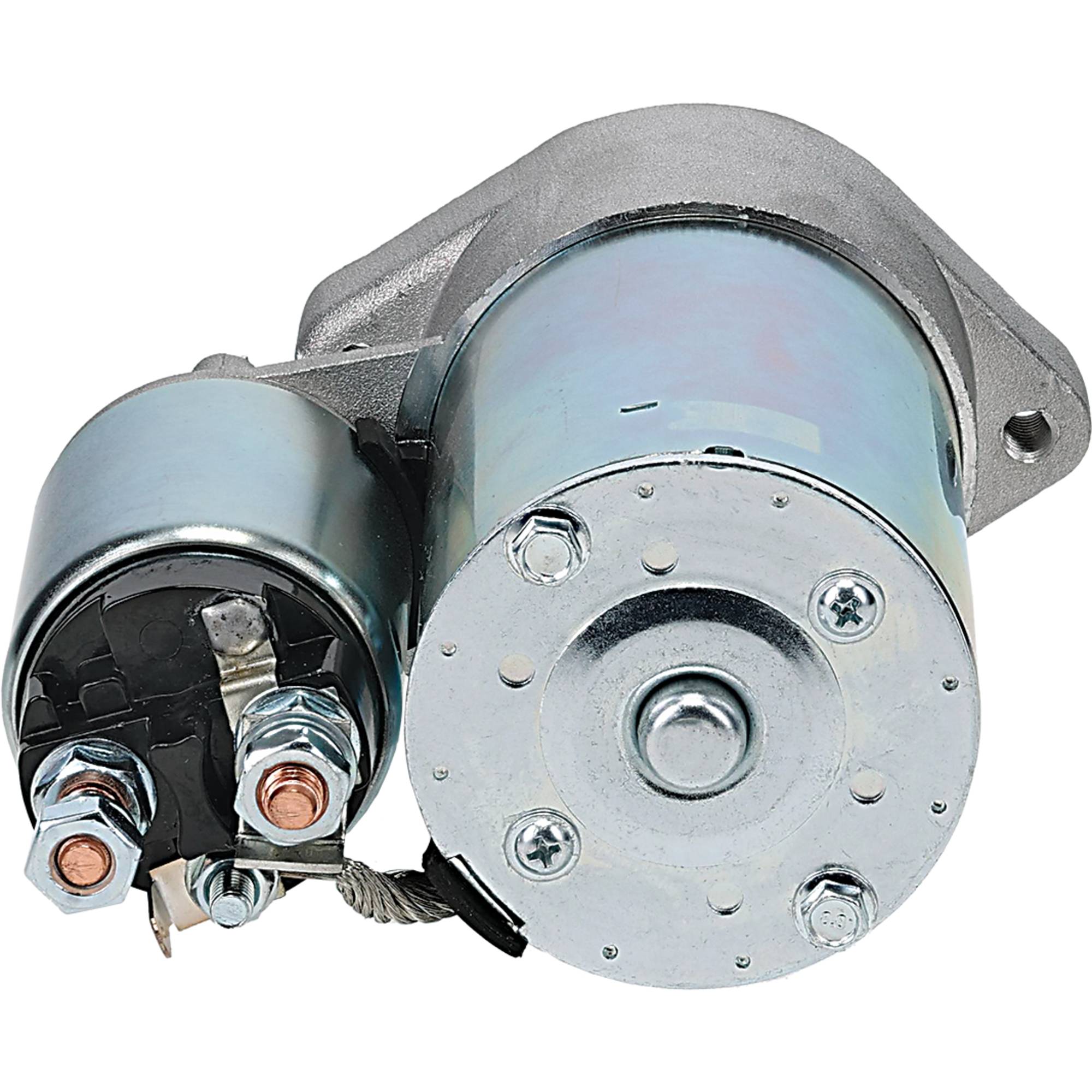

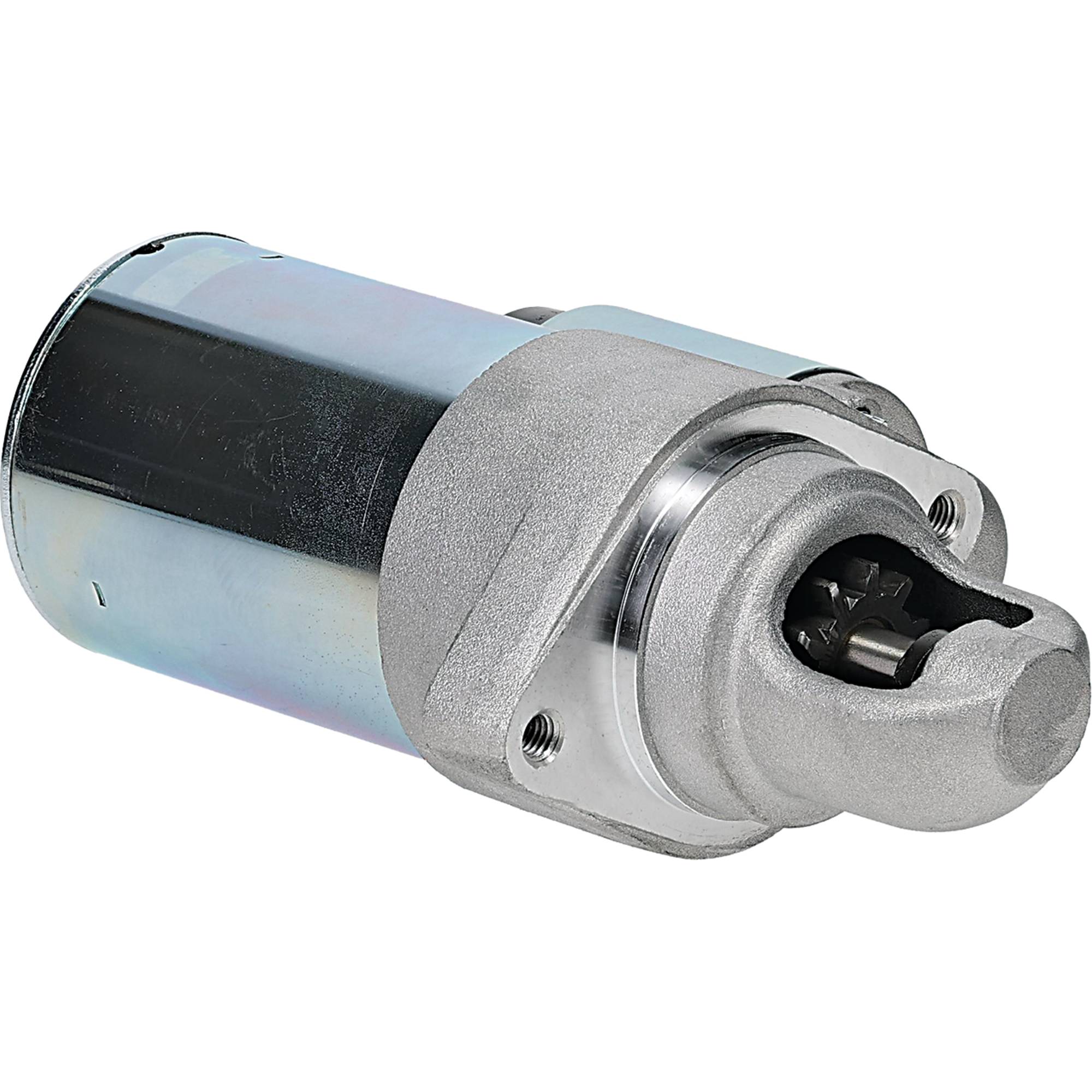

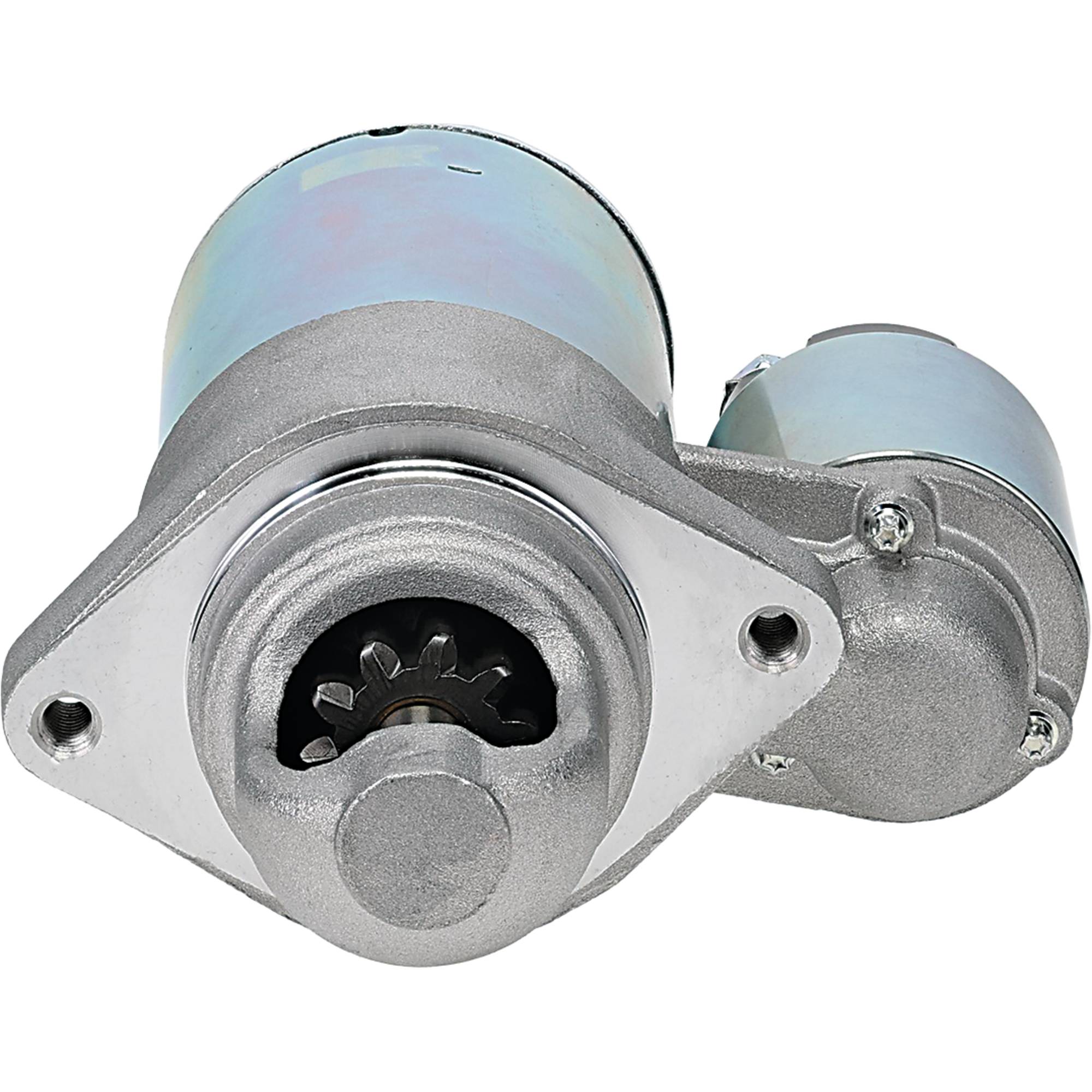

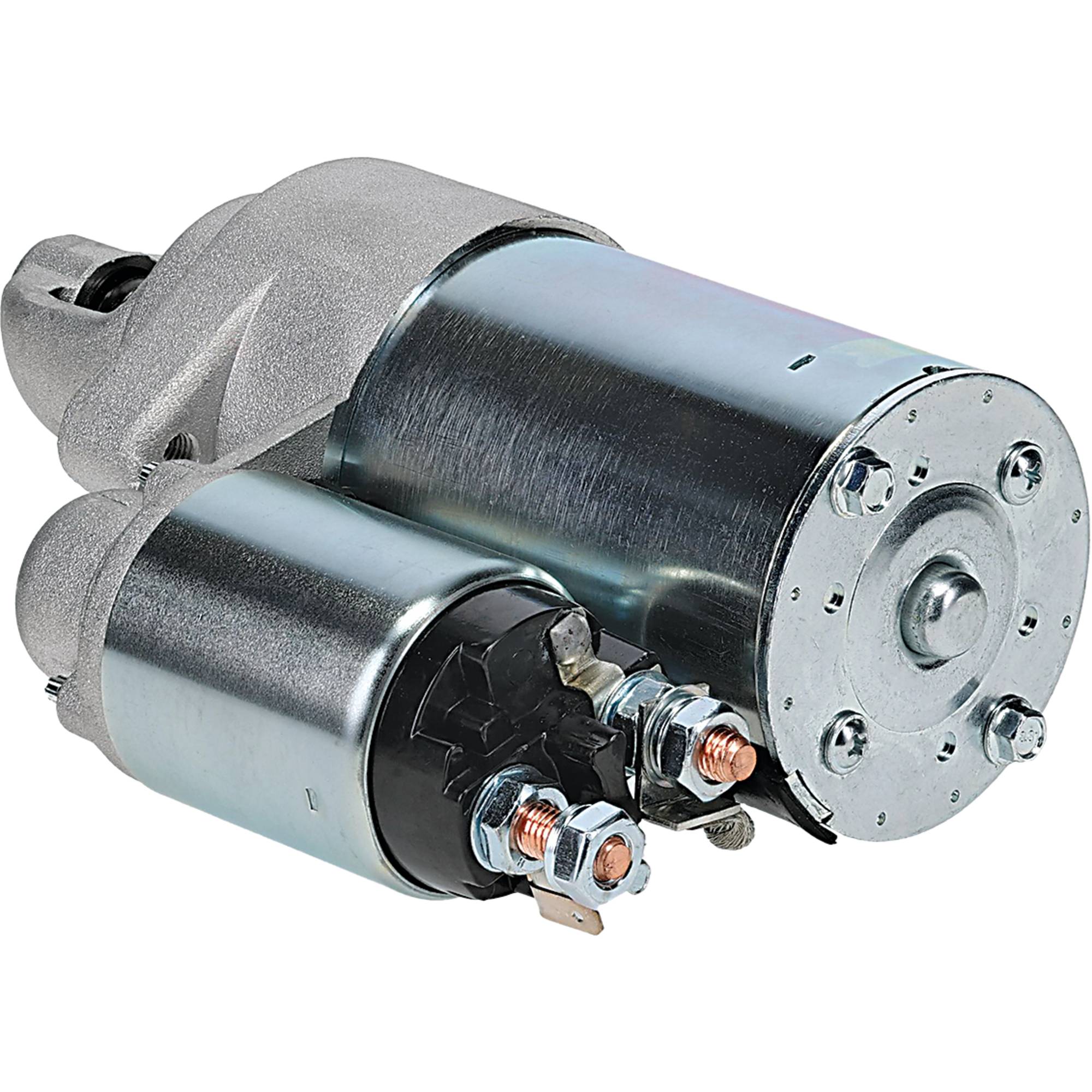

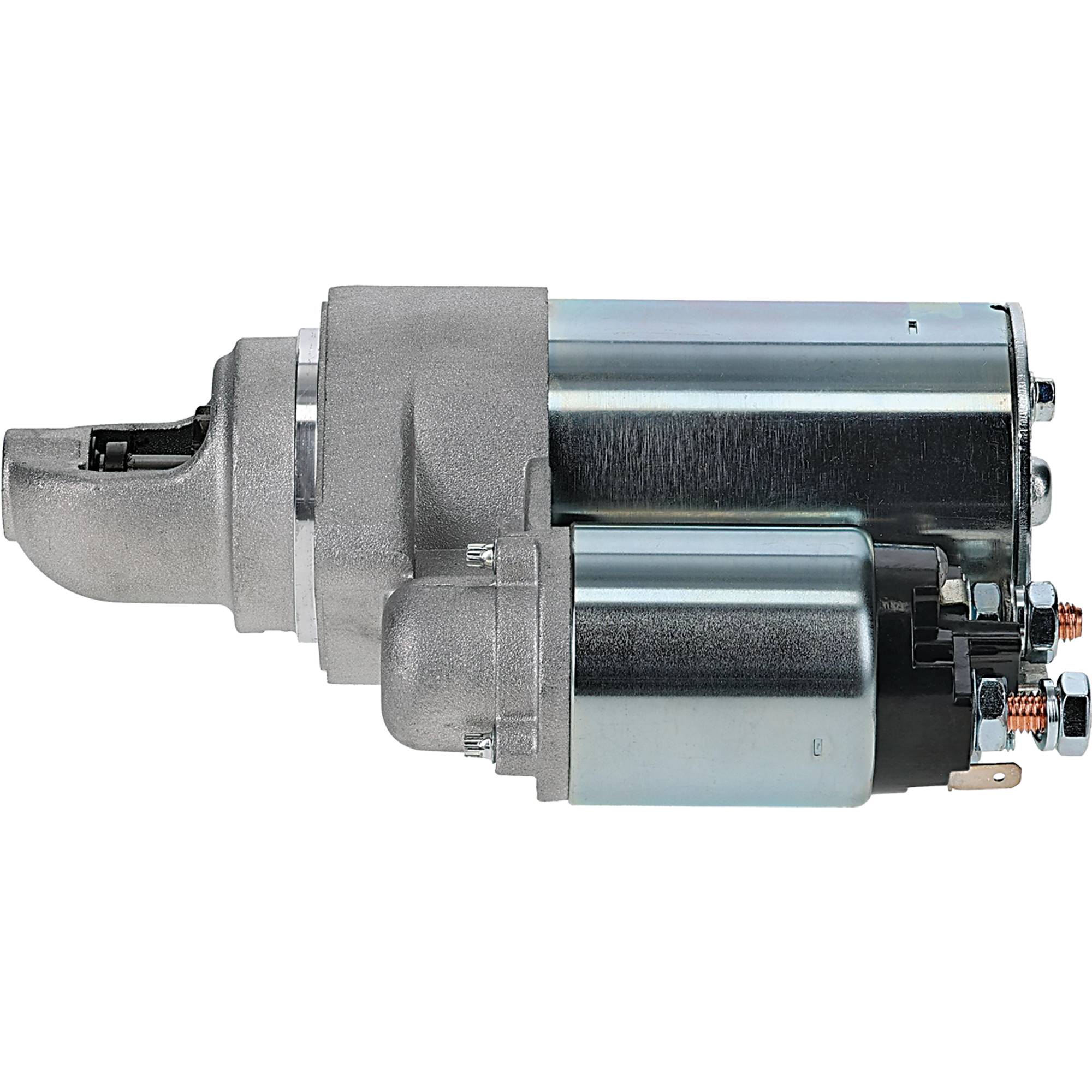

Starter for John Deere Z830A Z860A Z850A Z925A Z930M Z950M AII; 410-12348

Slide Slide Slide Slide Slide Slide
$82.79
Brand
Total Power Parts
Manufacturer Part Number
410-12348
Warranty
1 Year
Country/Region of Manufacture
China
Country of Origin
China
KW
0.8
Model
410-12348
MPN
410-12348
Rotation
CCW
Teeth
10
Unit Type
Starter
Voltage
12
condition
New
STARTER For DELCO NEW HOLLAND TORO MOWER G5030 G5035 Z MASTER G3 410-12348, 410-12348

STARTER For DELCO NEW HOLLAND TORO MOWER G5030 G5035 Z MASTER G3 410-12348

Unit Type Starter
Part Type Starter
Item Condition New
MPN 410-12348
Voltage 12
Rotation CCW
Amperage
Starter Type
Clock
Teeth 10
Pulley Class
Regulator
Fan Type
Color
Gear ID
Gear OD
KW 0.8
Pinion/Splines OD
Warranty

Specifications

Unit TypeStarter
Voltage12
RotationCCW
Teeth10
Starter TypePMGR
FitsKAWASAKI FX751V 27HP ENGINES
KAWASAKI FX850V 31HP ENGINES

Applications

maketypemodelyearengine
CUB CADETMowers - Zero TurnTank L60 KWAllKawasaki 27HP Gas
CUB CADETMowers - Zero TurnTank LZ54 KWAllKawasaki 27HP Gas
CUB CADETMowers - Zero TurnTank LZ60 KWAllKawasaki 27HP Gas
CUB CADETMowers - Zero TurnTank M60-KWAllKawasaki 31HP Gas
CUB CADETMowers - Zero TurnTank M72-KWAllKawasaki 37HP Gas
CUB CADETMowers - Zero TurnTank S6031-KWAllKawasaki 31HP Gas
CUB CADETMowers - Zero TurnTank S7237-KWAllKawasaki 37HP Gas
CUB CADETMowers - Zero TurnTank S7237-KW LPAllKawasaki 37HP LP Gas
CUB CADETMowers - Zero TurnTank SZ-54 KWAllKawasaki 27HP Gas
CUB CADETMowers - Zero TurnTank SZ-60 KWAllKawasaki 27HP Gas
JOHN DEEREMowers - Z-TrakZ830AAllKawasaki 27HP
JOHN DEEREMowers - Z-TrakZ850AAllKawasaki 31HP
JOHN DEEREMowers - Z-TrakZ860AAllKawasaki 34HP
JOHN DEEREMowers - Z-TrakZ925AAllKawasaki 24.5HP
JOHN DEEREMowers - Z-TrakZ930AAllKawasaki 25.5HP
JOHN DEEREMowers - Z-TrakZ930MAllKawasaki 25.5HP
JOHN DEEREMowers - Z-TrakZ930RAllKawasaki 25.5HP
JOHN DEEREMowers - Z-TrakZ950AAllKawasaki 27HP
JOHN DEEREMowers - Z-TrakZ950MAllKawasaki 27HP
JOHN DEEREMowers - Z-TrakZ950RAllKawasaki 27HP
JOHN DEEREMowers - Z-TrakZ960AAllKawasaki 31HP
JOHN DEEREMowers - Z-TrakZ960MAllKawasaki 31HP
JOHN DEEREMowers - Z-TrakZ960RAllKawasaki 31HP
JOHN DEEREMowers - Z-TrakZ970AAllKawasaki 35HP
JOHN DEEREMowers - Z-TrakZ970RAllKawasaki 35HP
NEW HOLLANDMowers - Zero TurnG5030AllKawasaki 27HP
NEW HOLLANDMowers - Zero TurnG5035AllKawasaki 31HP
TOROMowers - Zero TurnZ Master G32009Kawasaki 29HP Gas
TOROMowers - Zero TurnZ Master G32009Kawasaki 34HP Gas

interchanges

ARROWHEADSDR0312, 410-12348
ARROWHEAD (OEM)ND428000-6610
ATLANTIC1400-0161
DELCO8000153
DENSO428000-6610
J & N410-12348
JOHN DEEREMIA11257
KAWASAKI21163-7021, 21163-7025
LESTER6765
PIC140-6063, 190-6475
WAI6765N
WILSON71-01-6765
WeRe Riders TooSuperior PartsEasy Returns

Total Power Parts Starters
Total Power Parts keeps vehicles of every shape and size moving forward – from mowers, motorcycles and ATVs to automobiles, tractors, pickups and large commercial trucks. We work directly with factories to ensure each component is manufactured to our exacting quality control standards. But because there is no middleman, we can offer these exceptional-quality electrical components at low factory direct prices.

With Total Power Parts starters, you’ll get …

  • Superior Quality Every Time – Our aftermarket starters deliver performance that’s equivalent to the original.
  • Direct-Fit OEM Replacement Parts – Total Power Parts aftermarket starters are designed for perfect fitment to replace the ones that originally came with your vehicle.
  • Engineer-Tested Excellence – Our starters go through a rigorous testing program to ensure optimal performance.

Reasons to choose Total Power Parts for your next starter:

  • Fast engine starts – High quality magnets or field coils deliver more torque for fast and efficient engine starts.
  • Seals out residue – Sealed housings and bearings keep the internal workings cleaner and drier.
  • Premium materials – Copper and silver contacts instead of cheaper aluminum or steel ones.
  • Long-term reliability – Quality brushes and bushings for a long service life and better efficiency.
  • Brand new starter – Never settle for a secondhand refurbished one.

The Total Power Parts Advantage – 1-Year Warranty
Total Power Parts delivers exceptional value for products that we stand behind with our total-confidence 1-year warranty. Yes, you have a full year to make sure your starter meets your expectations.
