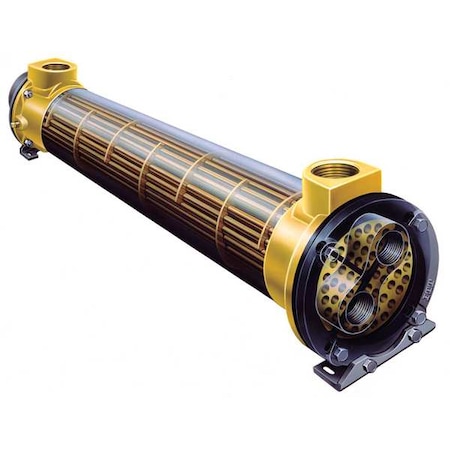

Standard Xchange Sn503003024005 Heat Exchanger,Shell And Tube,330K Btu

Slide
$1453.99
Brand
STANDARD XCHANGE
Type
Heat Exchanger
MPN
SN503003024005
Model
SN503003024005
Item Width
6.700
Features
Heat Exchanger, Heat Dissipation Capacity for Water 330, 000 BtuH, Heat Dissipation Capacity for Oil 56, Total Surface Area 7.4 sq ft, Shell Outside Diameter 3 1/8 in, Tube Length 27 1/8 in, Shell Material Brass, Tube Material Copper, Number of Passes 4, Shell Maximum Pressure Rating 300 psig, Shell Maximum Operating Temperature 300 Degrees F, Tube Maximum Pressure Rating 150 psig, Tube Maximum Operating Temperature 300 Degrees F, Fluid Compatibility Glycol, Oil, Steam, Water
Country/Region of Manufacture
US
Custom Bundle
No
Item Depth
6.700
Item Height
7.600
Bundle Description
No
Manufacturer Warranty
1 year
NumberOfItems
1
Restricted States
[]
Style
Heat Exchanger
Item
Heat Exchanger
Length (In.)
27.125
Weight
19.0000
Length
30.000
Width
6.700
Depth
6.700
Height (In.)
4.8
Width (In.)
4.5
Connection
Shell 1" NPT, Tube 3/4" NPT
Battery Included
No
Capacity (GPM)
Shell 24, Tube 12
Construction Material
Brass
Temp. (F)
300
Weight (Lbs.)
17
Pressure
Shell 300 psig, Tube 150 psig
condition
New

STANDARD XCHANGE SN503003024005 Heat Exchanger,Shell And Tube,330K BTU

STANDARD XCHANGE SN503003024005 Heat Exchanger,Shell And Tube,330K BTU
Item Description
Heat Exchanger, Heat Dissipation Capacity for Water 330,000 BtuH, Heat Dissipation Capacity for Oil 56,000 BtuH, Total Surface Area 7.4 sq ft, Shell Outside Diameter 3 1/8 in, Tube Length 27 1/8 in, Shell Material Brass, Tube Material Copper, Number of Passes 4, Shell Maximum Pressure Rating 300 psig, Shell Maximum Operating Temperature 300 Degrees F, Tube Maximum Pressure Rating 150 psig, Tube Maximum Operating Temperature 300 Degrees F, Fluid Compatibility Glycol, Oil, Steam, Water

Details






BRAND:



STANDARD XCHANGE








MPN:



SN503003024005








SKU:



G3357821








ITEM:



Heat Exchanger








COLOR:












MATERIAL:
