The LR60 Machine Control Receiver is Spectra's top tier laser receiver designed to be used on grading and excavating equipment. It features 9 display channels, ACE mode, five accuracy settings from setup to final grade, and includes the blade tilt and plumb indicator for increased productivity.
Where does the LR60W shine in the LR series?
The LR60 is the king of the dirt. It offers every feature possible in LR series including ACE mode, tilt indication, and plumb indication. These are very handy features for operators to check grade without having to reset the bucket every time. This saves them time and money!
What is the difference between the LR60 and the LR60W?
The difference between the two is the LR60W is wireless compared to the LR60.
Can I use a remote display?

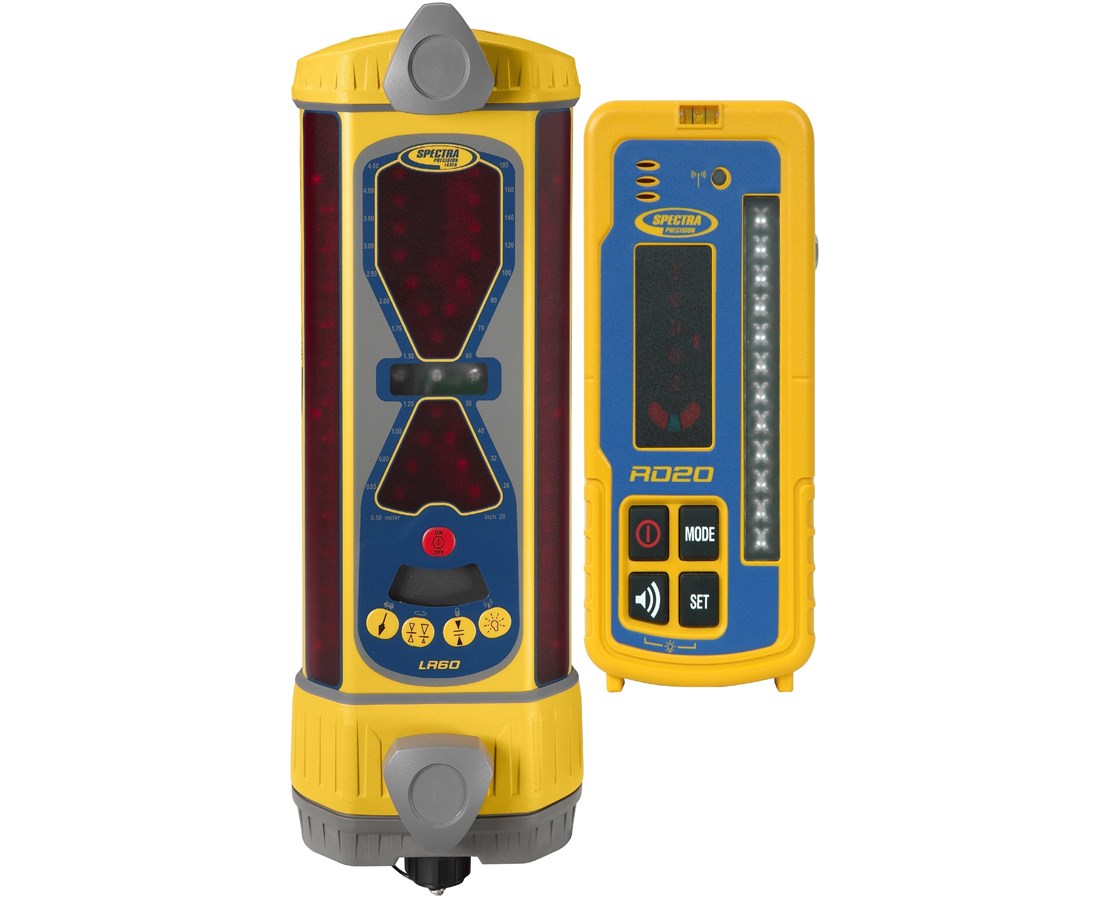

Yes, the LR60W can be paired with Spectra Precision's RD20 In-Cab Wireless Remote Display. This makes the operators’ job easier and more efficient by seeing the grade in their cabin. Note, only the wireless model (LR60W) will work with remote display!
Specifications
- Display Channels: 9
- Beam Reception Range: 360 degrees
- Operating Range: Over 460m (1500 ft) radius, depending on laser
- Laser RPM: Minimum - 105; Maximum - 1200
- Automatic Shut Off: 75 minutes with no laser beam
- Remote Display Option: Yes
- Dimensions (L x W x D): 15.50" x 5.58" x 5.88" (394mm x 142mm x 149mm)
In The Box
LR60 - Rechargeable Batteries
- LR60 Receiver with Holding clamps
- 4 x C-Cell NiMH Batteries
- Charger & Adapter
- Measuring tape for setup
- Case
LR60 w/ Excavator Mount
- LR60 Receiver with Holding clamps
- Magnetic Mount MM-1
- 4 x C-Cell NiMH Batteries
- Charger & Adapter
- Measuring tape for setup
- Case
LR60W w/ RD20 In-Cab Display (Wireless)
- LR60 Receiver with Holding clamps
- RD20 Wireless remote Display
- Charger & Adapter
- Charger 220 V AC & Adapter
- Measuring tape for setup
- Case
Brochures and Manuals
