Solar Panel Y Branch Cable Connection Waterproof Adapter Connector Extension USA

Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide
$6.99
Type
Extension Cable
Application
Home/Garden
Features
Flexible, All Daylight Conditions, Foldable, Portable, Smart Module
Country/Region of Manufacture
China
Power Source
Solar
Color
red and black
Recommended Environment
Indoor/Outdoor
Power
Y branch solar connectors
Brand
PowMr
Voltage
Waterproof cable connector
Water Source
IP67
Resistance Properties
Dustproof, Corrosion Resistant
Current Type
AC/DC
MPN
2345206861325
Material
UV-Resistant Nylon
System Configuration
Off-Grid
Rated Curent
20A
Rated Voltage
1000VDC
condition
New



Solar Panel Y Branch Cable Connection Waterproof Adapter Connector Extension USA
This connector is approved by CE, TUV, is specifically designed forconnecting photovoltaic solar systems
PowMr Cable Connectors are made from high quality PPO materials toensure the long term durability,PPO materials have advantages that sturdy,corrosion-resistant,impact with a high igniztion point Ensure service life and safetyperformance.

  •  Branch Connectors Conductor pin is tinned Copper: made of PPO + PA material. It makes a rock solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load, anti-aging and resistance to ultraviolet radiation.
  •  UL certification y branch connector Rated Current: 20A; Rated voltage: TUV 1000V DC / UL 600V DC; These connectors Hard plastic IP67 Waterproof and resist dust build up. Widely Operating Temperature range: -40℉ until 185℉, fireproof and Lower contact resistance .

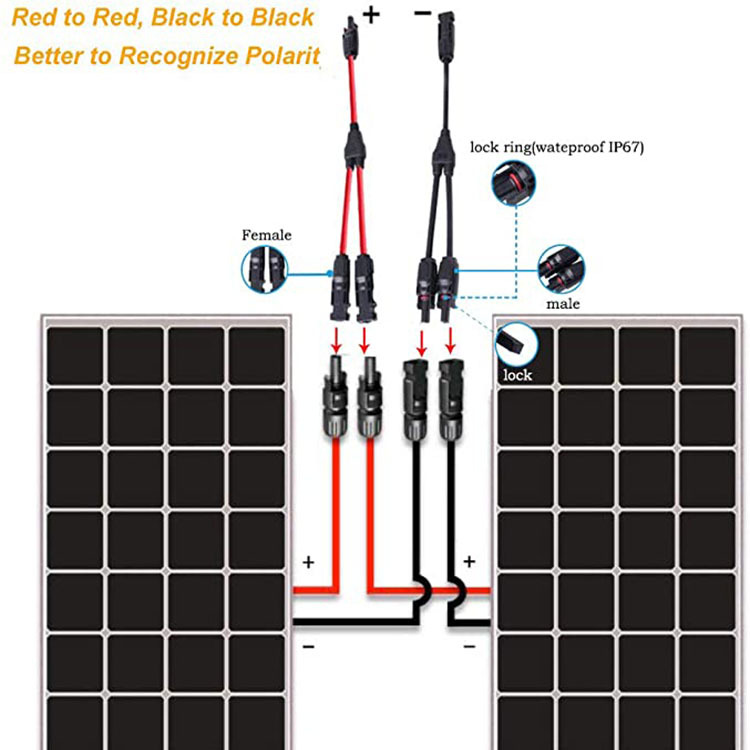

  •  This Y solar connectors are designed to complete a solar panel (PV) array, typically in parallel applications. Red to red, black to black, Better to recognize polarity.It could be used as solar panel wiring for connecting two solar panels in parallel and for solar combiner box.
  •  UL certification fastness of male and female points with stable self-locking system which is easy to lock and open. Quick Connect & Disconnect Connector Design.
  •  Package:1 pairs of solar Y-branch connectors, If you have any product quality problems, you can contact us at any time, and we will solve your problem by refund or exchange.

Specification

main cable specification：2.5~6mm2 / 14AWG ~ 10AWG

Branch cable specification：4mm2(AWG12)

Rated Current: 20A~30A

Rated voltage: TUV 1000VDC/UL 600VDC

Withstanding Voltage : TUV 6000VAC(1min) /UL 2200VDC(1min)

Contact resistance: ≤5mmΩ

Waterproof degree：IP68

Flame class: UL94VO

Safety Class: Ⅱ

Withdrawal force: ≥50N

Insertion force: ≤50N

Insulation material: PPO

Terminal Material : Copper,Silver plated

Connecting system: crimping connection

Temperature range: 40 ℃ ~ +85 ℃

Length ： 50 cm
Model: 2 to 1
Rated current: 20A(4mm²)30A(6mm²)
Rated voltage: 1000V DC
Contact resistance: <2mΩ
Insulation resistance ： >500mΩ
Suitable single core cable section: 2.5mm2, 4mm2, 6mm2
Cable outer diameter: Φ5mm ～Φ 7mm
Connector insulation material: PPO
Degree of protection: IP67
Safety: II
Operating temperature range: -40 ~ +105 ℃

Y3-5
Package include
1 pair Y 1 to 2 branch connector
