Features:
1. Y Branch parallel Connectors - 1 male to 3 female(M/FFFF) and 1 female to 3 male(F/MMMM) or 1 male to 2 female.
2. Double seal rings for better dust-proof waterproof effect.
3. The solar panel connectors are compatible with PV cables with different insulation diameters (10-14 AWG).
4. It can be used in harsh environments, such as rain, high force winds, and snow.
5. Excellent aging resistance and UV endurance.
6. Load capability with big current and high voltage.
7. Extra high & low temperature and fireproof resistance.
2. Double seal rings for better dust-proof waterproof effect.
3. The solar panel connectors are compatible with PV cables with different insulation diameters (10-14 AWG).
4. It can be used in harsh environments, such as rain, high force winds, and snow.
5. Excellent aging resistance and UV endurance.
6. Load capability with big current and high voltage.
7. Extra high & low temperature and fireproof resistance.

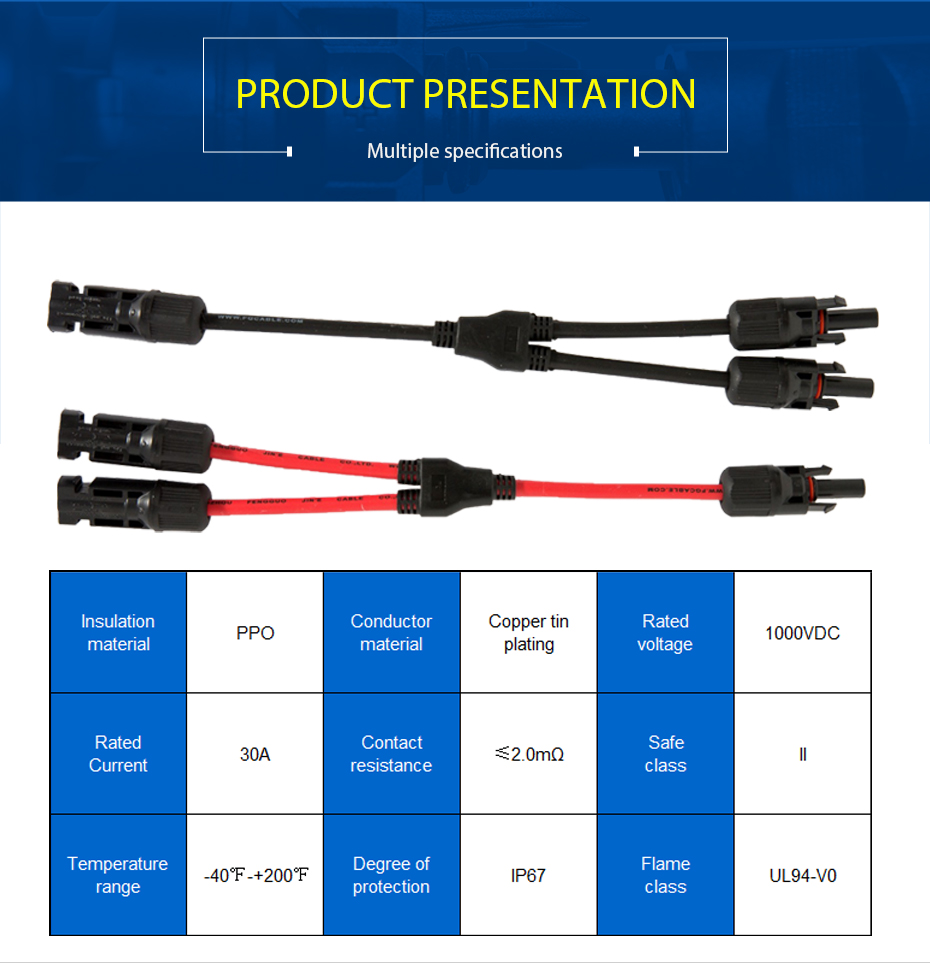

Specification:
main cable specification:6mm2(10AWG)
Branch cable specification：4mm2(12AWG)
Rated Current：30A
Rated voltage：1000VDC
Waterproof degree：IP67
Flame class：UL94-VO
Insulation material：PPO + PA
Connecting system：crimping connection
Temperature range：-40 - +90 C
Package Included:
2 Pair of solar panel 1 to 2 Connector cable
