Name: Small Belt Conveyor Optical Fiber Intelligent Control Used with Filling Machine
Brand: INTSUPERMAI®
SKU: 197031607798
Price: 313.02 USD
Availability: InStock
Rating: 5.0 (99 reviews)

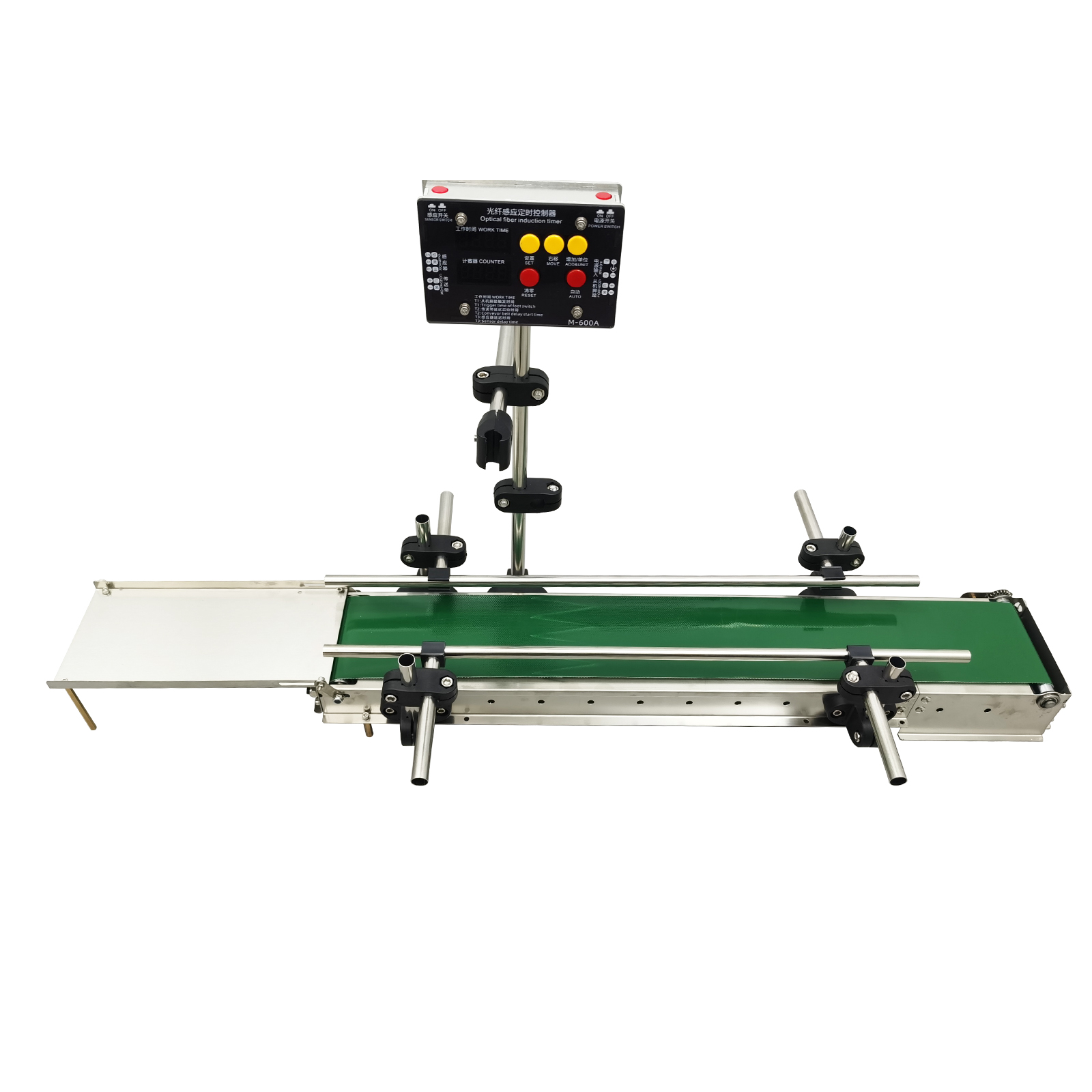

AC100-240V Optical Fiber Intelligent Induction Control Small Belt Conveyor with Double Guardrail (60cm)

INTSUPERMAI®

	ITEM DESCRIPTION
	Our product has two major features: I.High-precision optical fiber sensor; II.Automatic conveyor belt with adjustable running speed.
	The application range of this equipment is not only applying filling, but also vibrating tray, granule dispenser, marking machine, cap screwing machine and so on.
	Simple operation, precise control, DC power supply, safety and efficiency, improve work efficiency, save worry and effort.

ITEM PARAMETERS

Voltage:	AC100-240V

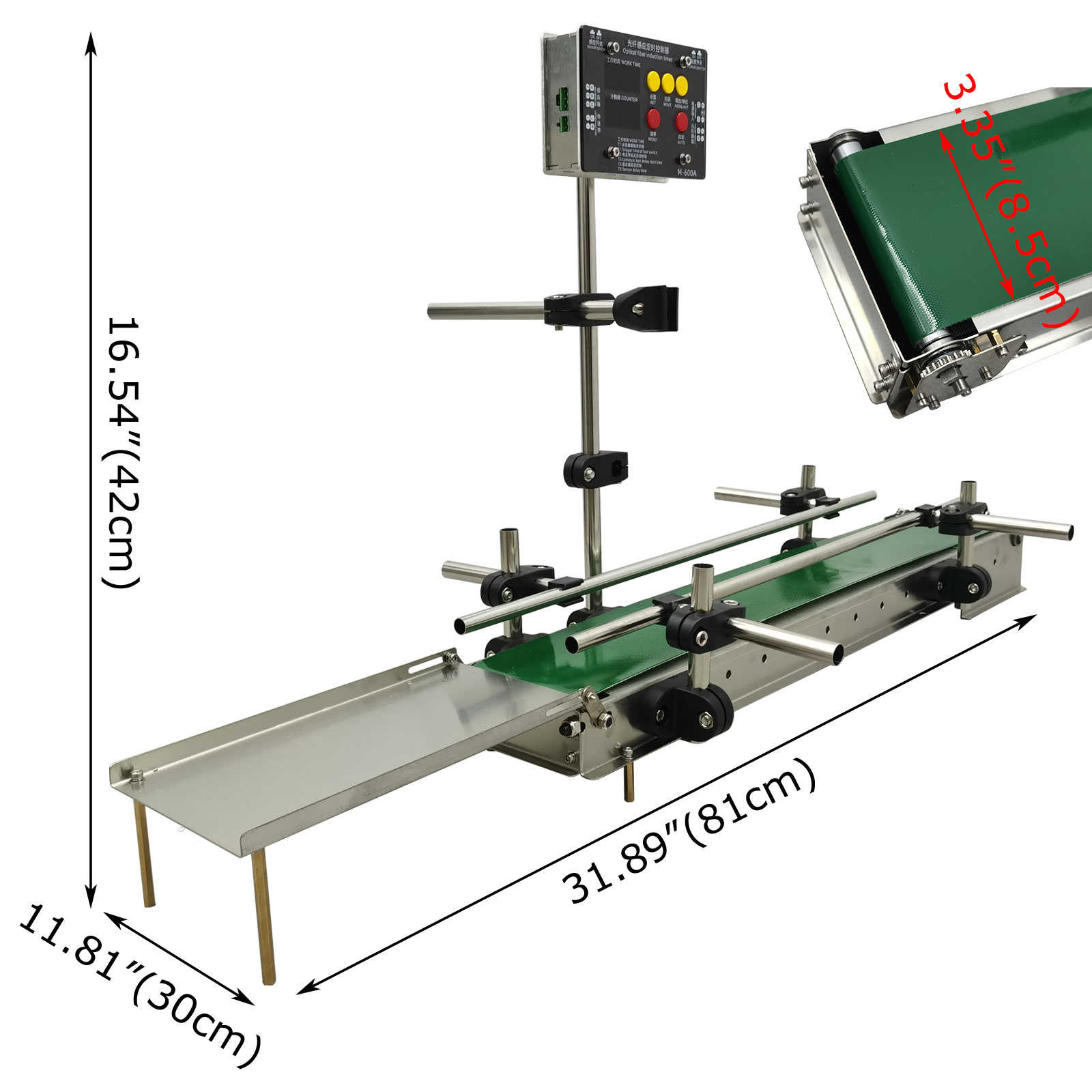

Conveyor belt length:	23.62" (60cm)
Receiving tray:	7.87"3.93"(20cm10cm)
Height of filling stand:	15.75"(40cm) (height-adjustable)
Controller size:	4.53"3.03"1.18"(11.5cm7.7cm3cm)
Conveyor belt:	Green, waterproof
Conveyor speed:	10 cm/s(adjustable)
Conveyor belt tension:	13.2Lbs(6kg)
Main material of conveyor belt:	304 stainless steel
Sensor type:	NPN type three-wire fiber optic sensor
Applicable bottle diameter:	3.54"(9cm)
Package size:	26.38"6.69"7.09"(67cm17cm18cm)
Net weight/Gross weight:	6.86lbs(3.11kg)/8.53lbs(3.87kg)

ITEM DETAILS

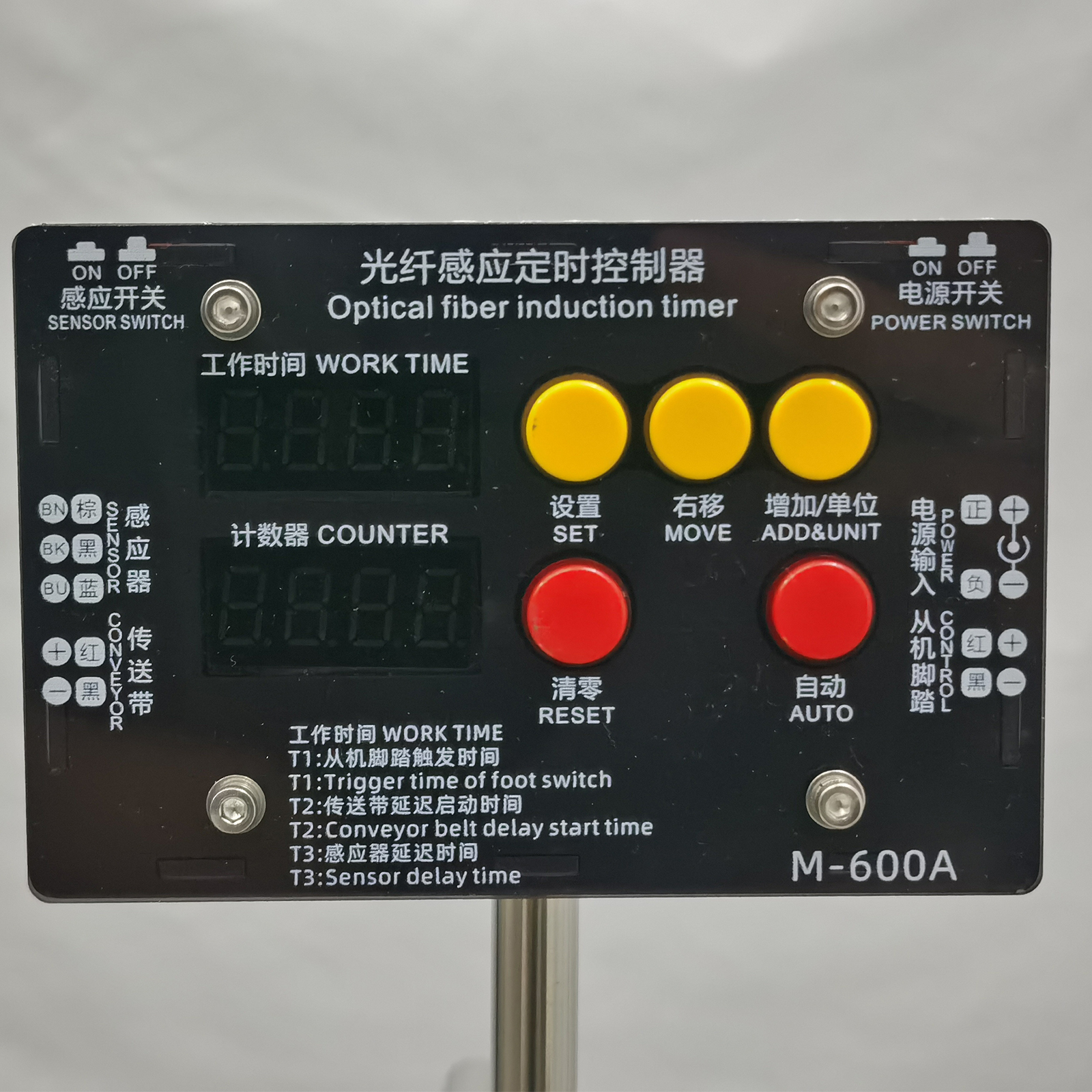

	SET: Press once to enter the work time setting, then press save and exit MOVE: After entering the working time setting, press once to switch the time to be set ADD&UNIT: During the work time setting, this button is used to adjust the value. In standby mode, this button switches the decimal point unit.(Work time: The sensor senses the object and transmits the stop running time, which is generally recommended to be the same as the filling time) COUNTER: Number of runs SENSOR SWITCH: Press the sensor to work, turn off to stop working POWER SWITCH: Press and turn on the controller SENSOR: Support three-wire NPN sensor. Brown: positive electrode Black: signal Blue: negative electrode　 CONVEYOR: Support 12V power supply conveyor belt POWER: 12-15V DC power input CONTROL: Connection of third-party filling machines with footswitch interface

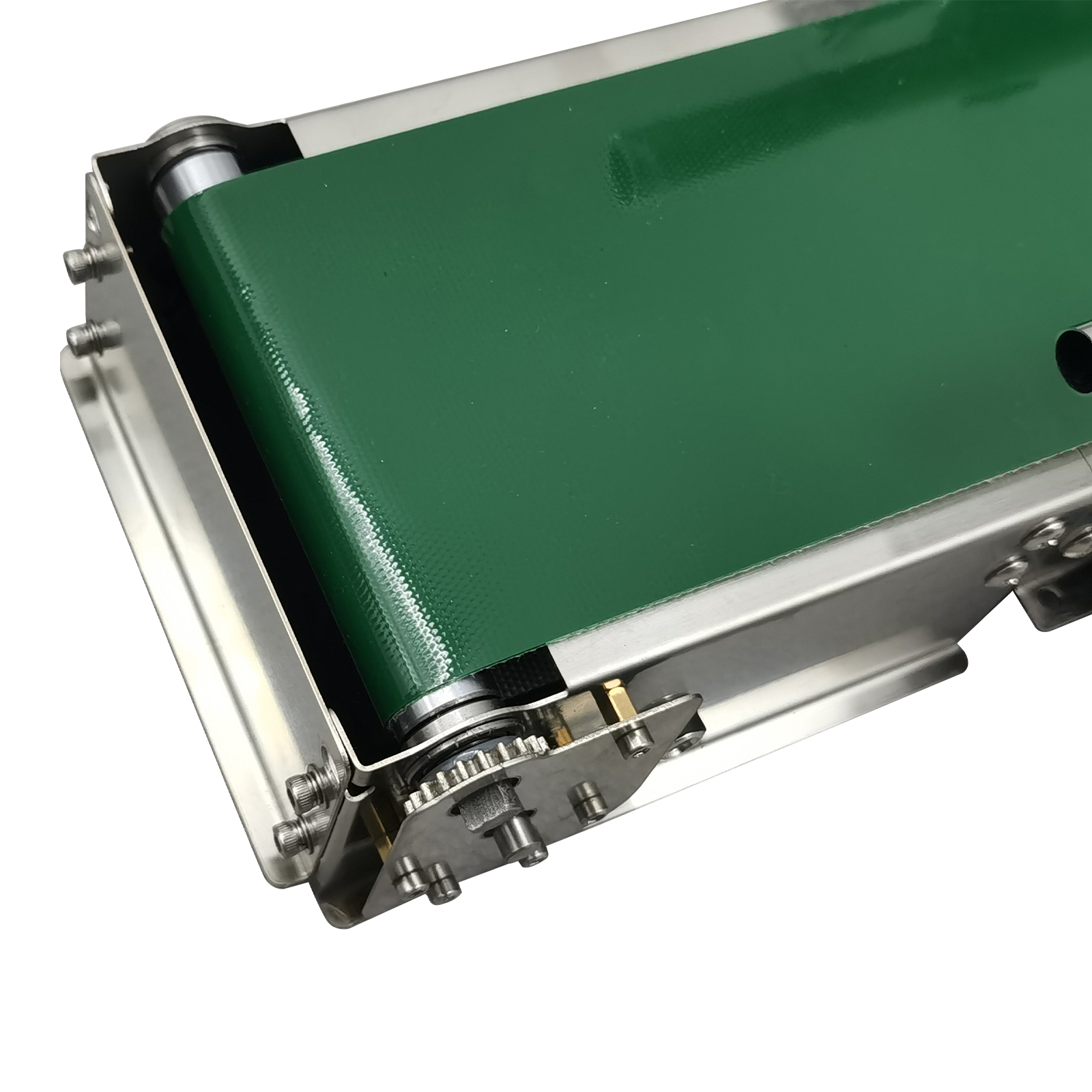

Stainless Steel Body: Water-proof Flat Cost-saving PVC Conveyor Belt: Durable Corrosion-resistant Easy to clean

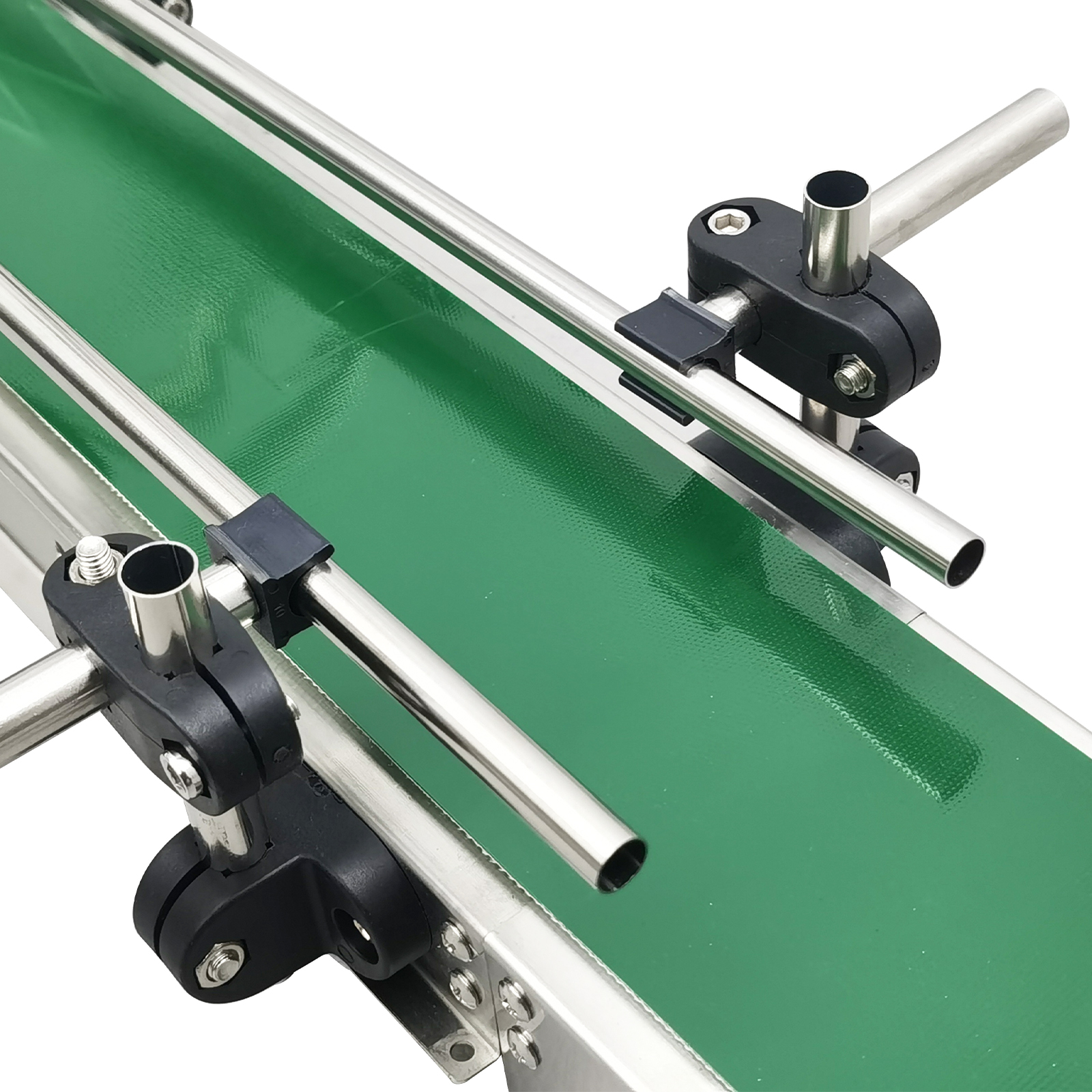

Double Guardrail	Optical fiber sensor
The double guardrail on both sides of the conveyor belt can play a role in stabilizing the material, avoiding the material slip and deviation, and ensuring that the material can be stably transported to the destination. At the same time, it effectively prevents workers from putting their hands into the equipment accidentally, which may cause injuries.	Equipped with optical fiber probe, with filling liquid positioning function, simple operation, precise control, DC power supply, safe and efficient.
Suitable for the following types
DC low voltage control mode,It is generally used in filling machines with universal controllers. This foot switch has the following two conditions: a. Step down do not loosen, filling machine only fill once, b. step down do not loosen, filling machine continuous filling. AC high pressure control mode, generally used in pneumatic piston filling machine, which requires an additional DC controlled AC contactor to complete compatibility. Pneumatic control mode, generally used in pneumatic filling machine This kind of foot switch is to control the pressure valve to make the filling machine work, and another pneumatic solenoid valve is needed to replace the foot switch control.
This controller slave foot pedal can provide three signals. A. The relay is continuously closed during working hours When the foot switch is pressed, the filling machine is only filled once. 　 B. During the working time, the relay is closed for about 0.5 seconds and disconnected It is suitable for the filling machine that does not loosen the continuous filling when the foot switch is stepped on. 　 C. During the work time, the output DC voltage is 12V and disconnected for about 0.5 seconds Suitable for pneumatic filling machine, AC foot switch requires a 12V DC AC contactor (self-provided) Pneumatic foot switch needs to add a 12V DC pneumatic solenoid valve (self-provided)
Control system features
Supports linkage with devices with foot switches Foot switchgear that supports wiring Pedal switchgear to support the pipe (need to add a DC12V pneumatic solenoid valve) The sensor delay time effectively solves the problem of multiple induction filling in the same bottle Counter function, cumulative number of work Support filling machine, particle separator, laser engraving machine, capping machine, etc Support pneumatic lifting control Support DC12V conveyor belt linkage Support induction filling Support automatic mode Support automatic feed mode Support automatic counting function, to the specified number, the conveyor belt stop intermittently Support automatic cycle operation mode

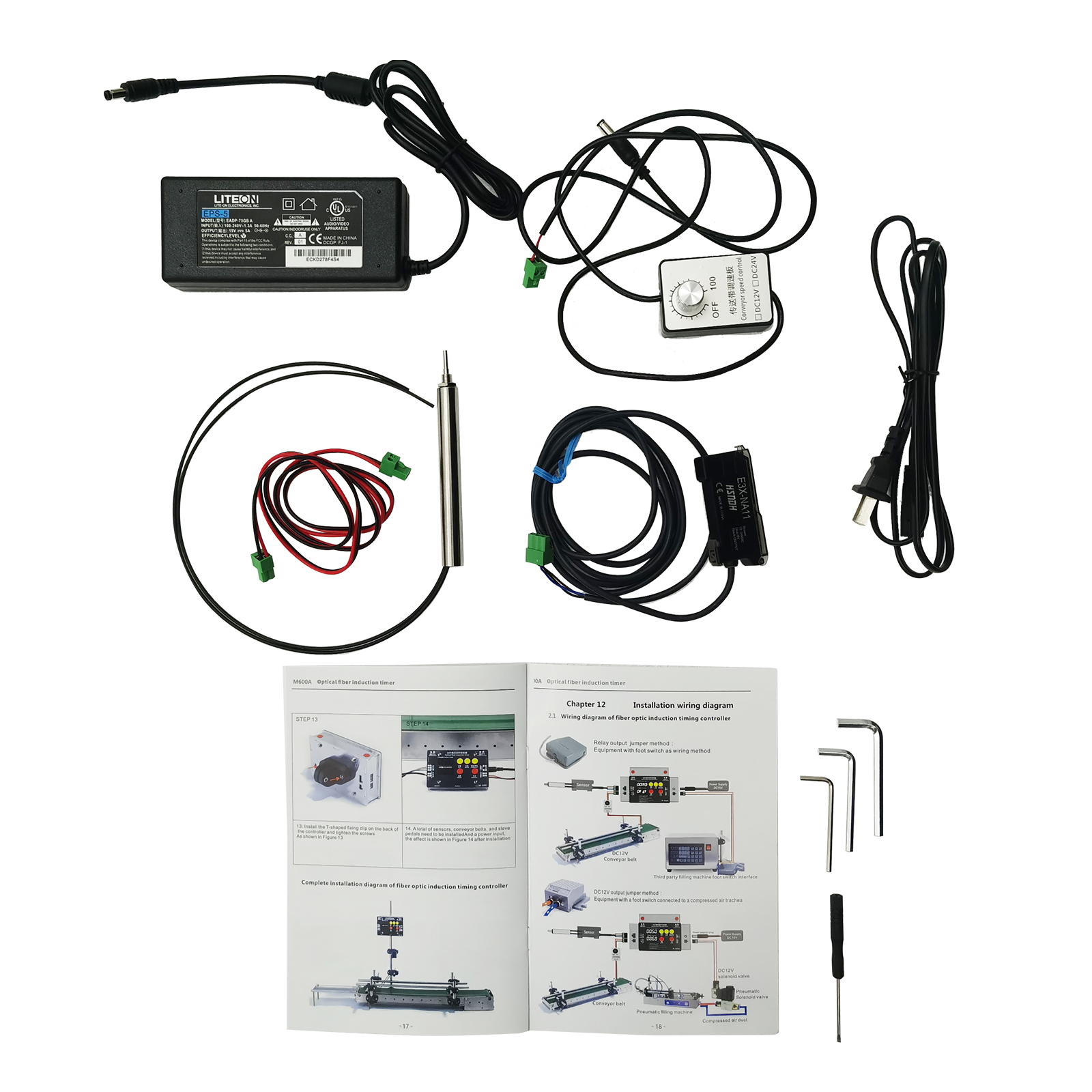

ITEM INCLUDED(056856)

Small Belt Conveyor *1

Accessories package *1

English manual *1
