Smad Drawer Fridge Compact Refrigerator for Bedroom Dorm Office No Noise

Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide
$399.0
Capacity
1.5 cu ft
Door Style
Single Door
MPN
DSX-50B2U-D
Energy Comsumption(kWh/24h)
0.64
Energy Consumption per Year
234 kWh
Energy Star
Compliant
Manufacturer Warranty
1 Year
Item Height
16.5 in
Number of Doors
1
Temperature range
39.2℉~55.4℉(4-13℃)
Features
Absorption Cooling, Adjustable Thermostat, LED Lighting, Quiet
Number of Freezer Compartments
0
Item Width
21.7 in
Installation
Freestanding
Voltage/Frequency/Current(A)/Power(W)
115V 50/60Hz 50W
Control system
Mechanical
Color
Black
Material
Steel + Coating
Item Depth
20 in
Direct cooling
yes
Brand
Smad
Type
Compact Fridge
Defrost Method
Frost-Free/Automatic Defrost
Model
DSX-50B2U-D
DC Voltage / Current(A)/Power(W)
12V 50W
Power
50W
Operating Sound Rating
Less Than 25 dB
Refrigerant,Amount(g)
R717,72g
condition
New
Smad AC/DC Drawer Fridge Compact Refrigerator with LED for RV No Noise Black

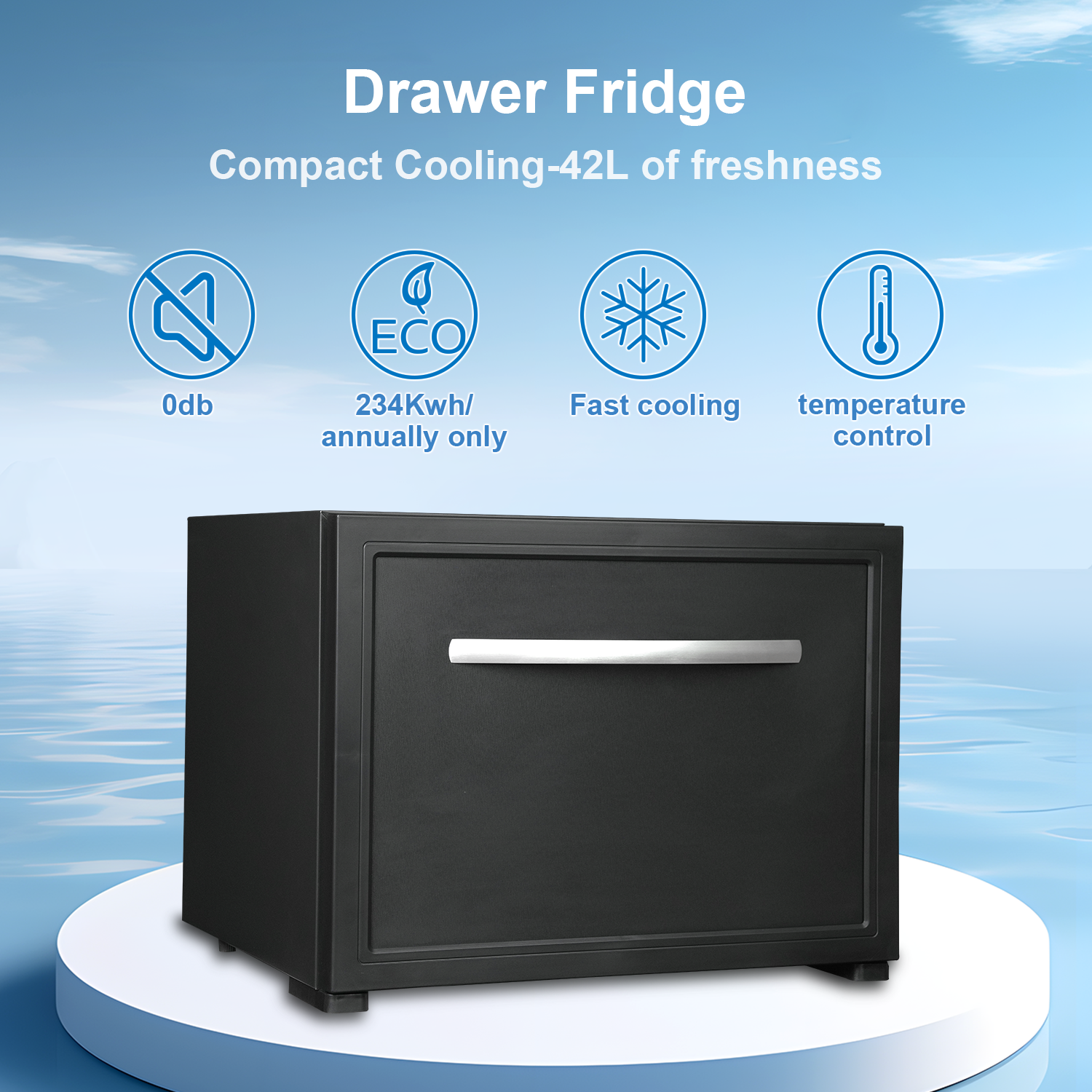

This unit is designed to improve your living and entertaining comfort. The absorption system refrigerator is a compact, totally silent refrigerator that uses no compressors or fans. Originally developed for commercial use or similar use. With its silent operation and attractive design, you will enjoy the convenience and comfort for years to come.





MODEL:  DSX-50B2U-D

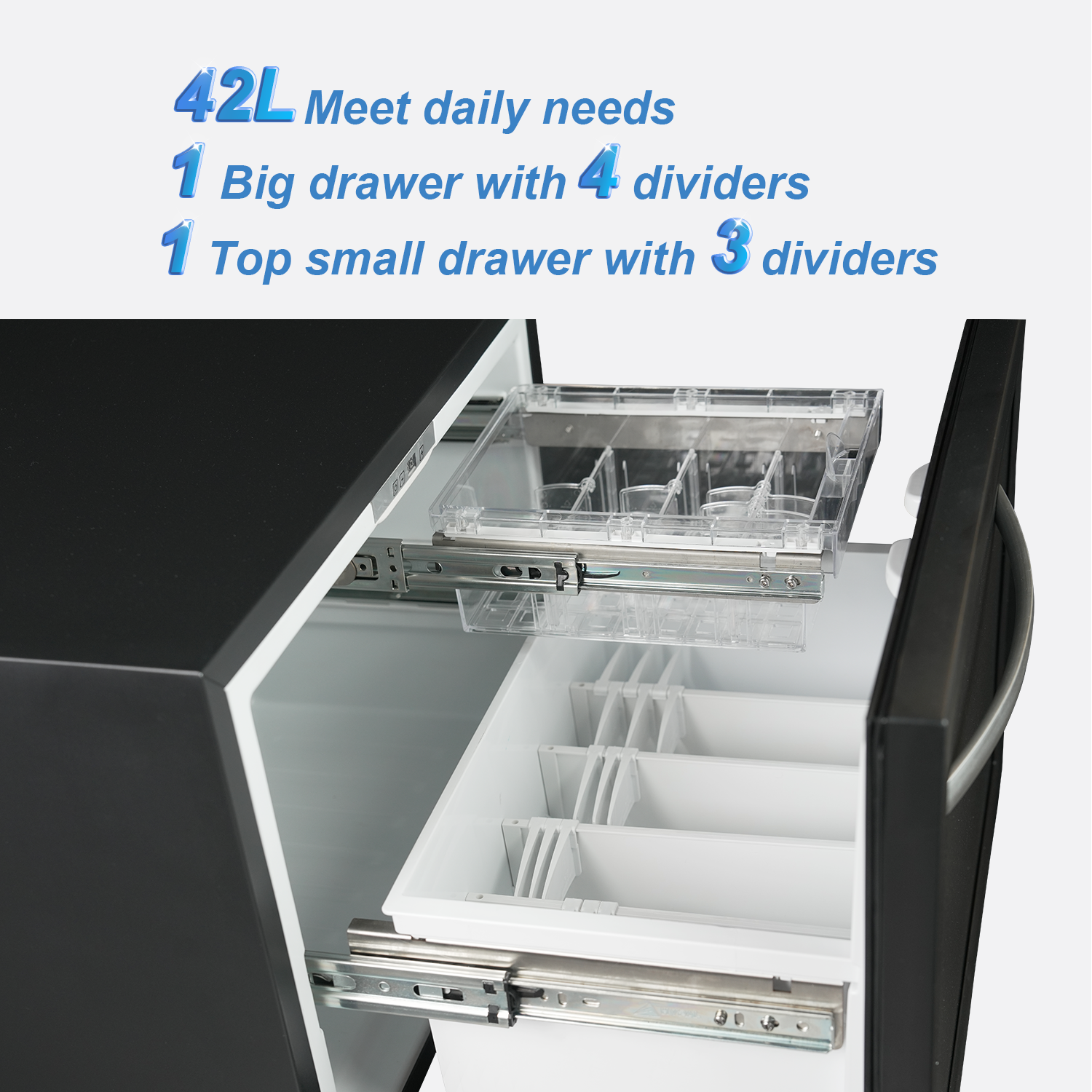

Capacity:  1.5 CU FT  / 42L

Defrost Method:  Automatic, by time

Dimensions（W*D*H）:  21.7*20.0*16.6 inches

Input power:  50W

Voltage:  AC 115V & DC12V

Rated current:  AC 0.23A DC 5.4A

Energy consumption:  0.64kWh/24h

Temperature range:  39.2℉~55.4℉(4-13℃)

Absorption Cooling:  Silent Running

Weight:  21kg / 45 pounds

Certification:  CSA/U

Refrigerant,Amount:  R717,72g

Product details display

  • Key Features:

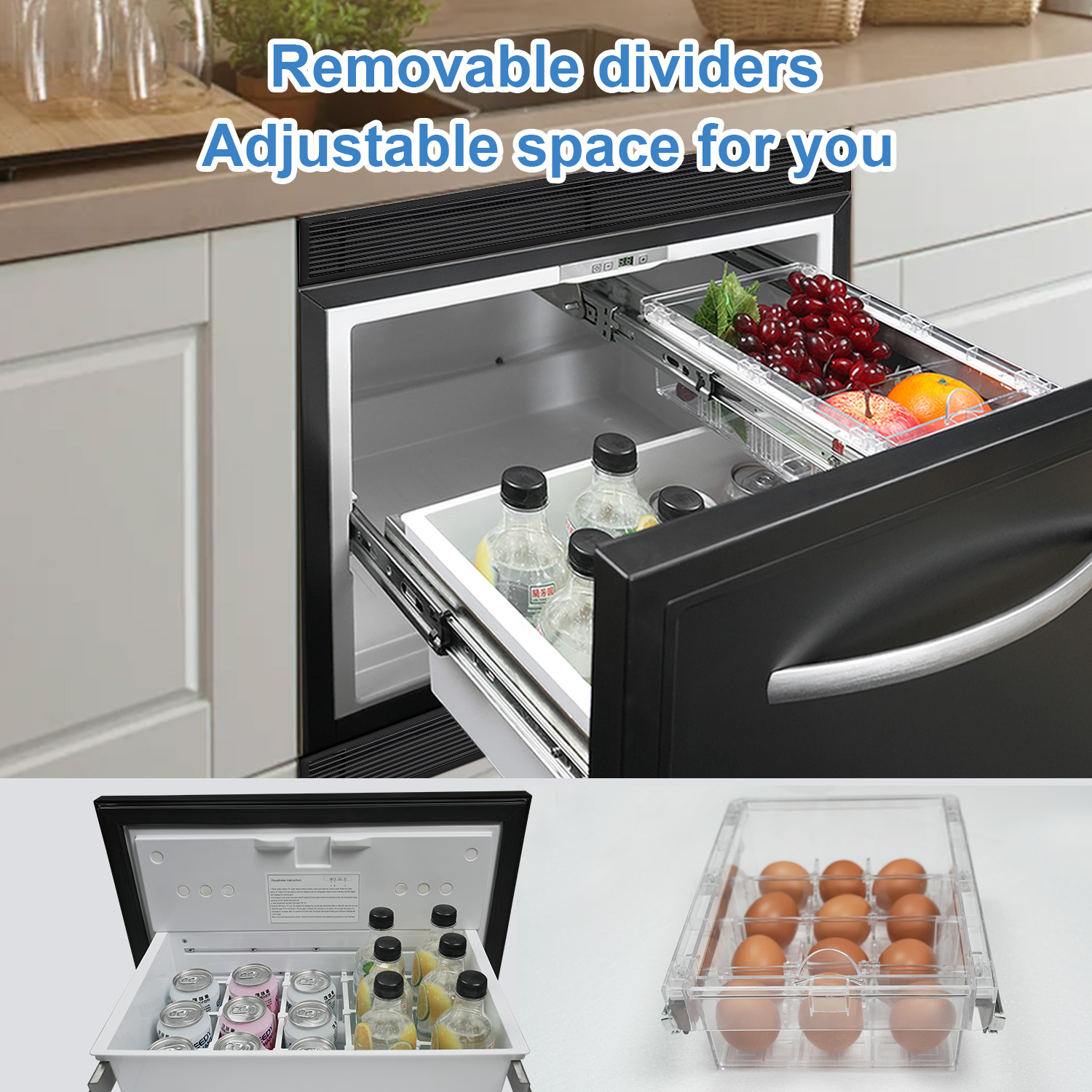

    • Smooth Close Drawers: Provides effortless, soft-closing drawers for easy access and a quiet operation.
    • Max Cool Option: Quickly lowers the temperature to maintain optimal freshness of food and drinks.
    • LED Lighting: Bright, energy-efficient lighting illuminates the interior for easy access to contents.
    • Single Temperature Zone: Ideal for storing a variety of items at the perfect temperature.

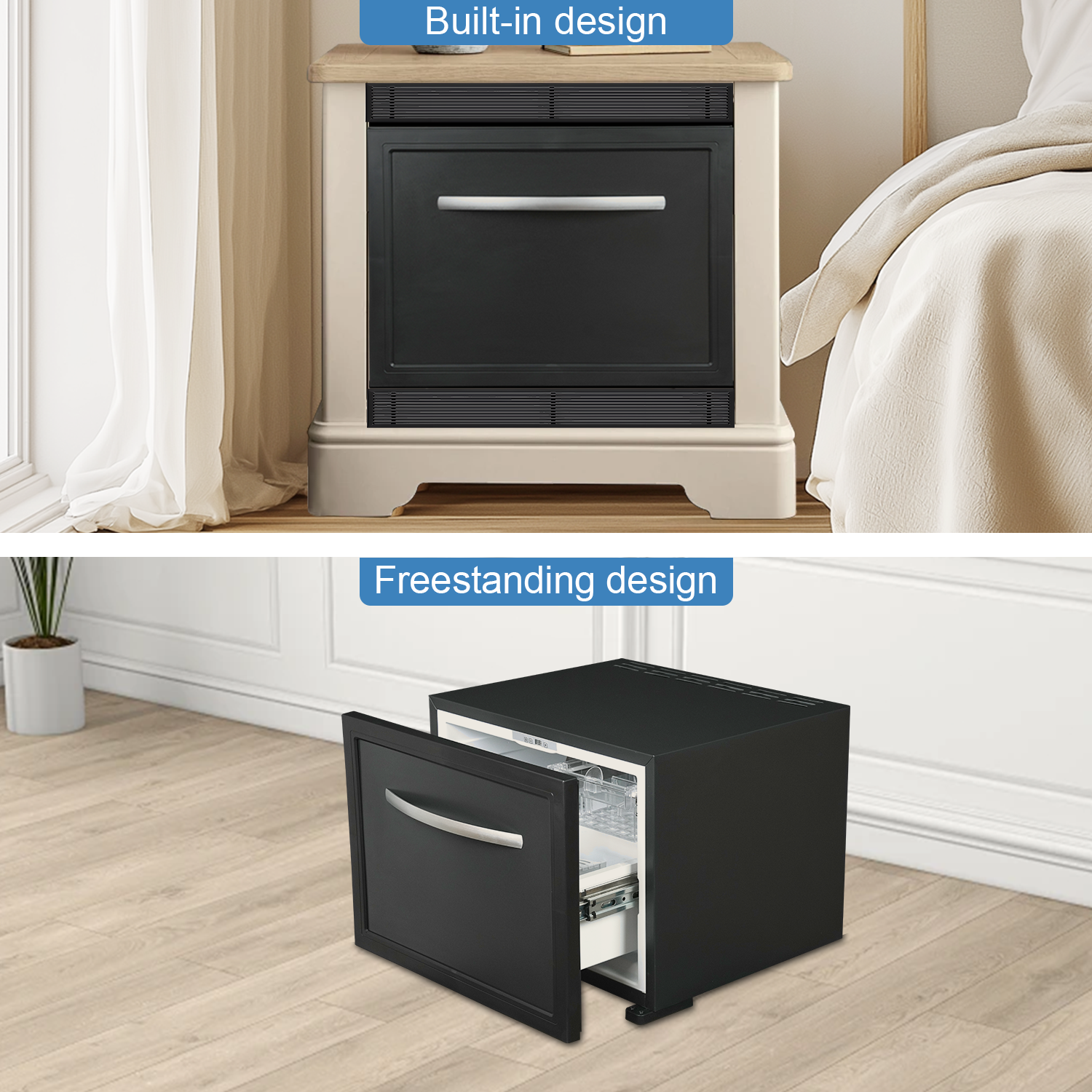

    • Flush or Freestanding Installation: Designed to fit flush with cabinetry for a clean, modern look.
Instruction For Use
I.Before Use:

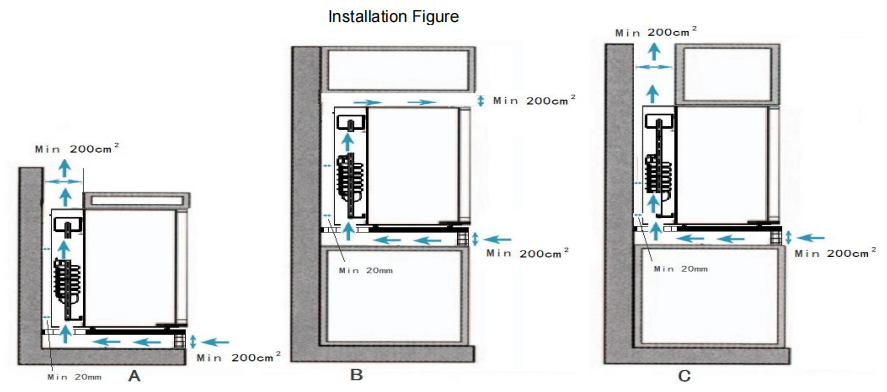

1. Under no circumstances should the top grid be covered by any object. It will preclude the warm air from

circulating.

2. Please insert the power plug into the proper socket with ground pin. Once powered on, the minibar starts to work. It takes about 3-5 hours for the minibar to reach the setting temperature for the first time, depending on the number of drinks stored and the ambient temperature.



II.For Electricity:

1.Please don't use 110V and 12V at the same time.

2.The 12V cords included for the car cigarette lighter. No positive and negative poles difference. As a secondary function, the consumption of the 12 V working is more than 110 V working.

3.Please don't use house batteries or solar batteries when using DC 12V, it is recommended to use on a car cigarette lighter.

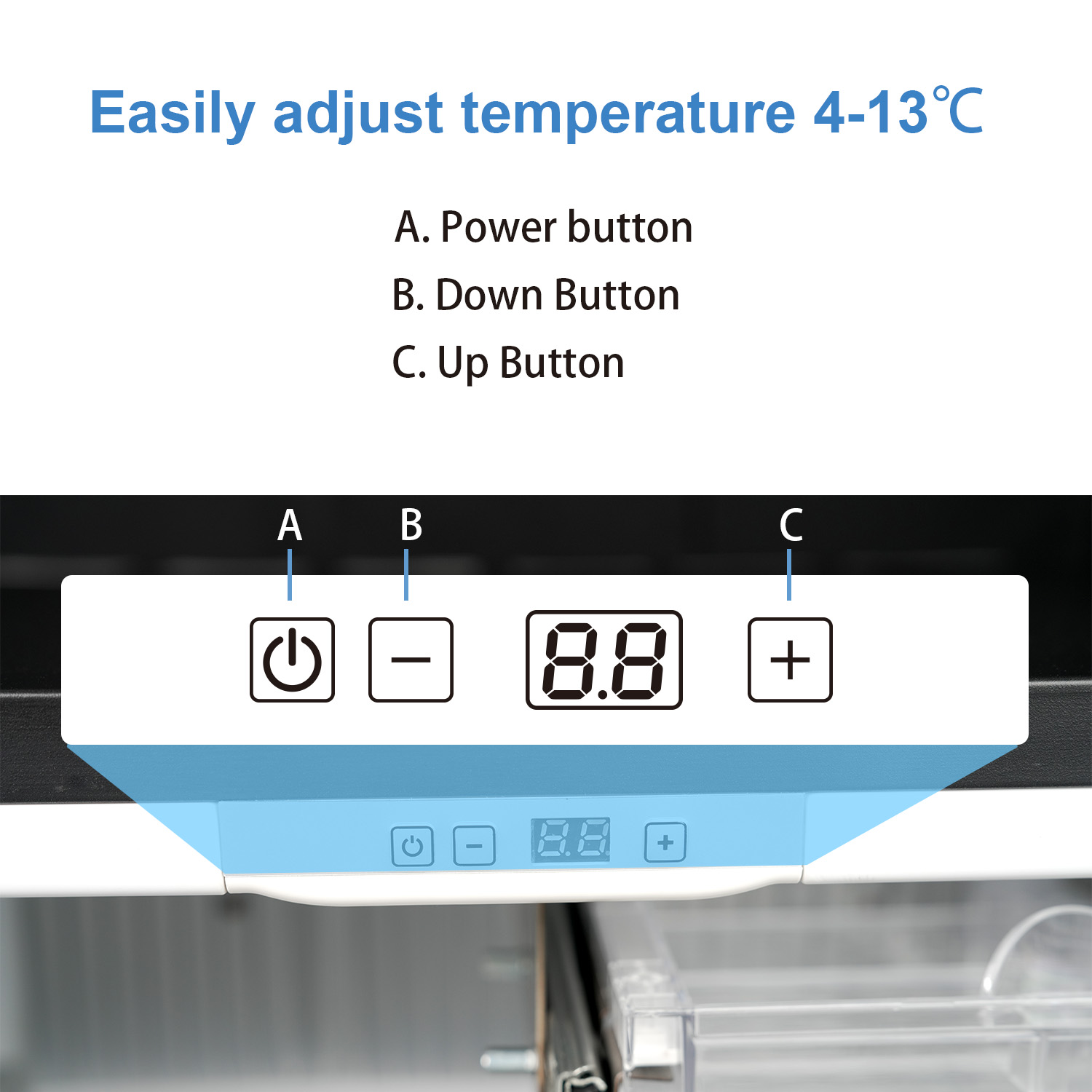

4.Temperature can be controlled on 12 V(upgraded function). The light will come on on 12V, but it might flicker or become dim when you open the door, which is normal(In parallel with the heater).

III.Cautions:

1.Please adjust the foot to make sure the fridge top(bottom) surface is horizontal before use. When the slant angle ＞ 5°, the cooling unit may be blocked and stop cooling.

2.Trouble Shooting: (1)Heater failure, solution: Replace heater. (2)Cooling unit blocked solution: Step 1: Put it upside down for 8 hours. Step 2: Put it upright for 8 hours. Step 3: Plug it up. (Or just knock the cooling unit gently with a small hammer).

3.This is a noiseless absorption refrigerator. No sounds heard don't mean it's not working.

Use scenario display
