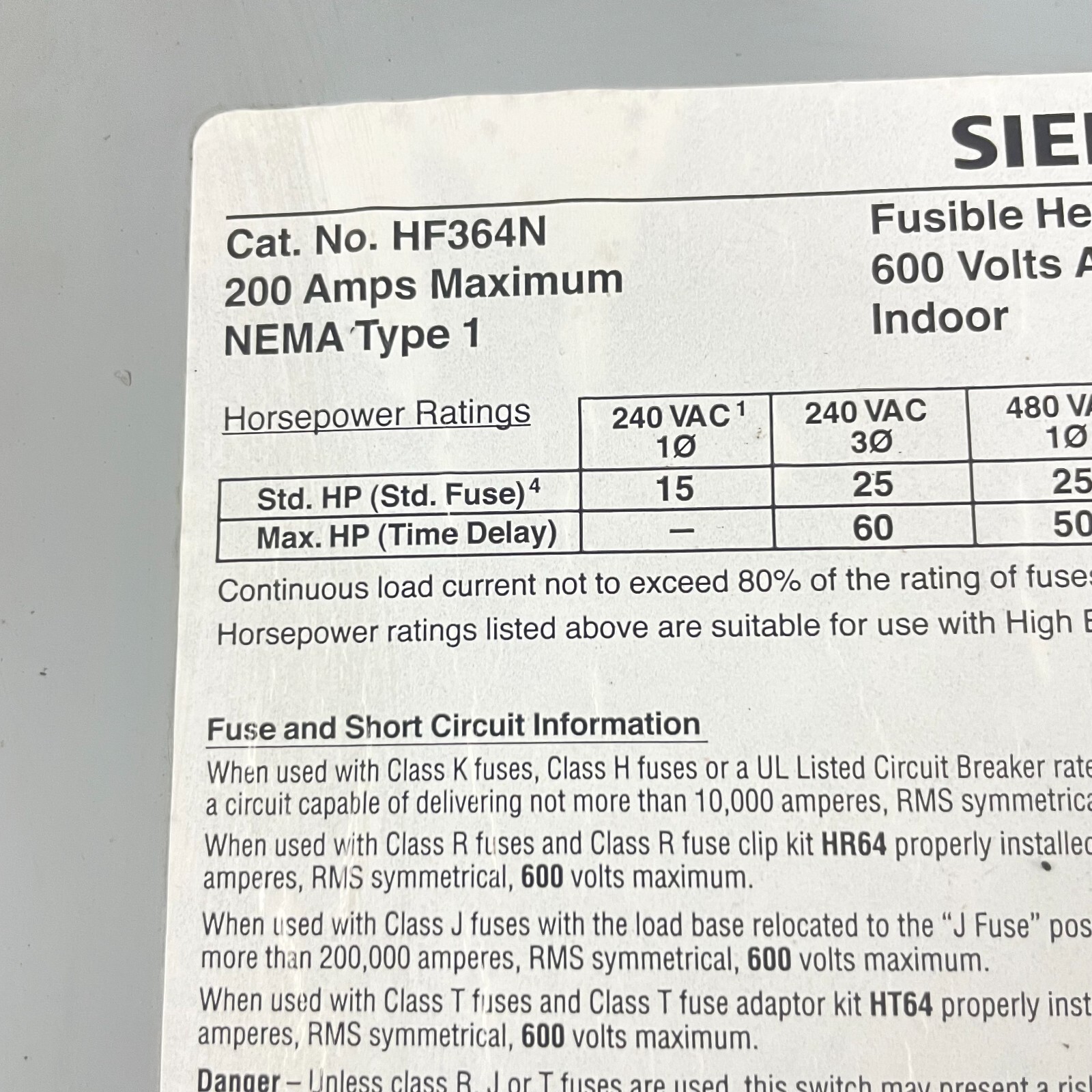

| Attribute | Value |
| Manufacturer | Siemens |
| Model Number | HF364N |
| Type | Fusible Heavy Duty Safety Disconnect Switch |
| Number of Poles | 3-Pole (3-Fuse, 4-Wire with solid neutral) |
| Current Rating | 200 Amp |
| Voltage Rating | 600V AC / 250V DC |
| Enclosure Type | NEMA 1 (Indoor) |
| Fuse Class | Accepts Class H, K, J, or R fuses |
| Short Circuit Rating | Up to 200 kAIC |
| Horsepower Rating (240V 3PH) | 50 HP (Standard Fuse) |
| Horsepower Rating (480V 3PH) | 100 HP (Standard Fuse), 125 HP (Time Delay Fuse) |
| Horsepower Rating (600V 3PH) | 100 HP (Standard Fuse), 150 HP (Time Delay Fuse) |
| Mounting Type | Surface Mount |
SIEMENS HF364N Fusible Safety Disconnect Switch 3P 200A 600V 150HP
$449.99
Mounting Style
Wall
Number of Throws
1
Maximum Amperage
200 A
Color
Gray
Current Rating
151-200 A
Material
Metal
MPN
HF364N
Orientation
Vertical
Suitable For
Interior
Brand
Siemens
Operation Method
On/Off
Type
Disconnect Switch
Current Type
AC
Control Style
Analog/Mechanical
Voltage
551-600 V
Model
HF-364-N
Number of Poles
3
Application
Commercial, Electrical Wiring, Industrial
condition
Used
