SDT50 12V Car Smoke Leak Detector EVAP Leakage Gas Leakage Machine Locator

$178.54
Ships From
CHINA
Power supply
DC 12V battery
Year Manufactured
2024
Notice
there has no any test oil in box
Test fluid
baby oil,olive oil or mineral oil
Key words 4
pipeline detector
Key words 2
Car Smoke Machine
Rated Output flow
<5L/min
Origin
Mainland China
Usage for
Car Oil Pipe Diagnostic Tool,Vehicle/motorcycle fuel pipe leakage
Air pressure output
Built-in air pump
Product size
23*21*25cm
Item Type
Car Smoke Leakage Detector
Working theory
Low oxygen combustion
Product weight
1.5kg
Product Model
SDT50
Key words 3
smoke machine leak detector
Key words 1
Car Leak Detector
Brand
Unbranded
Rated power
50W
Type
Car Smoke Leakage Detector
Gross weight
2.5kg
Function
EVAP Leakage detector
Rated Output pressure
<10psi
condition
New

SDT50 Car Smoke Leak Detector is a professional auto pipe leak detect tool.It will help us position cars motorcycles leakage on pipe system quickly and exactly ,such as : Vacuum Leaks Test,Intake System Test,Exhaust Systems Test,Fuel Tank System Test,Turbo Test,Cooling System,EGR System,Crankcase System.

How to do leakage test ?
1. Fill 10ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.
2. Disconnect the pipe that needs to be connected with detector.
3. Connect detector with DC12V battery, turn on the power switch, and the detector starts to work.
4. In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.

AUTOOL SDT50 Car Smoke Leak Detector Features :

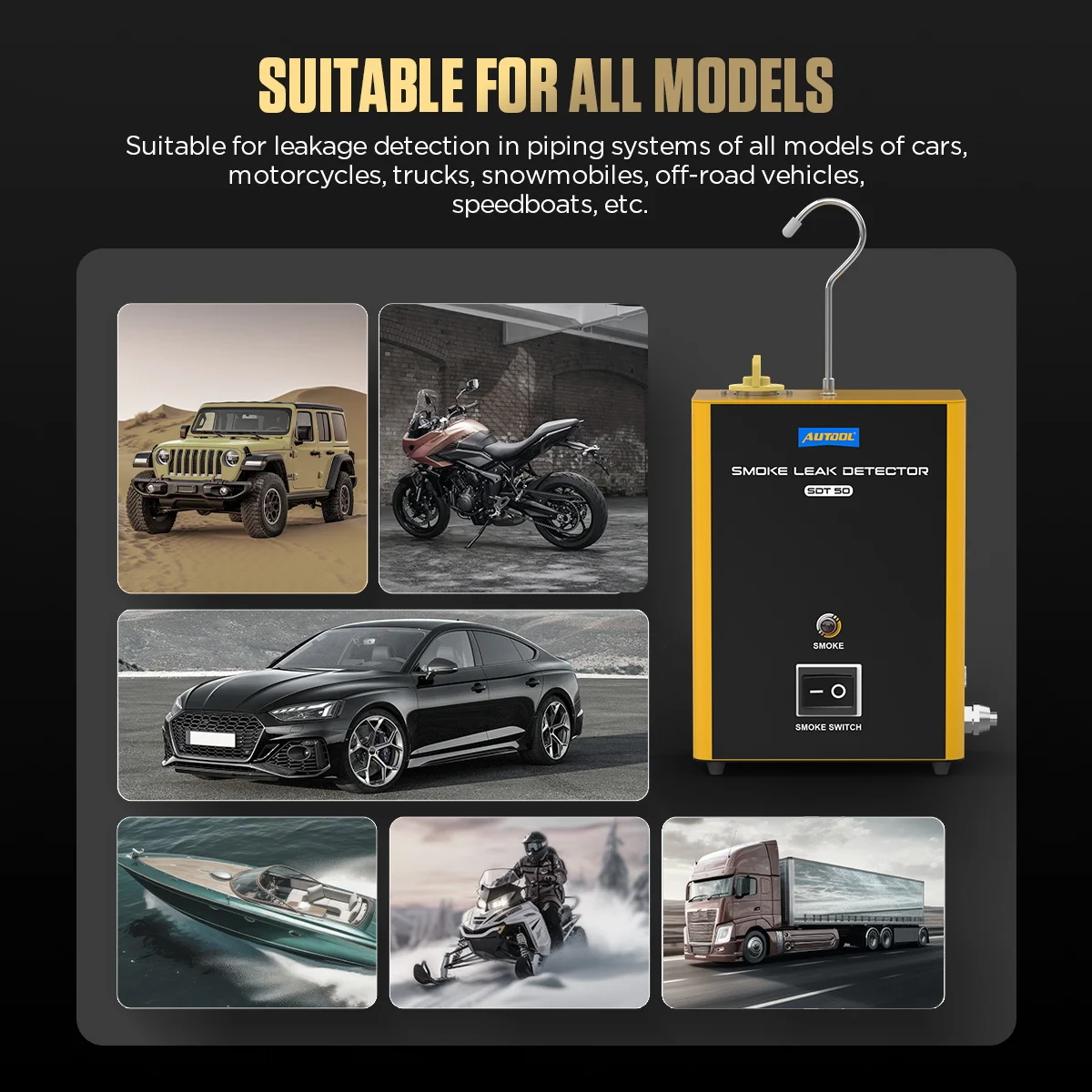

1. [Wide range of applications] For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats.Works on all car makes and models.


2. [BUILT-IN AIR PUMP] The AUTO SDT50 No need to connect other gas supply equipment, convenient to complete the test work at anylocation. convenient to complete the test work at anylocation.Connect the detector with DC 12V battery,It can be outputs lots of Smoke within 30 seconds after turning on.Equipped with AUTOOL's latest smoke generator and 1/2 PSI high pressure unit, which ensures continuous output of a large amount of smoke. The dense smoke output detects even the smallest leaks and helps you diagnose faults quickly and accurately. Significantly improves the efficiency of diagnosis.


3. [Advanced technology] It works on the EVAP system (we also have another version that specifically designed for the EVAP system)

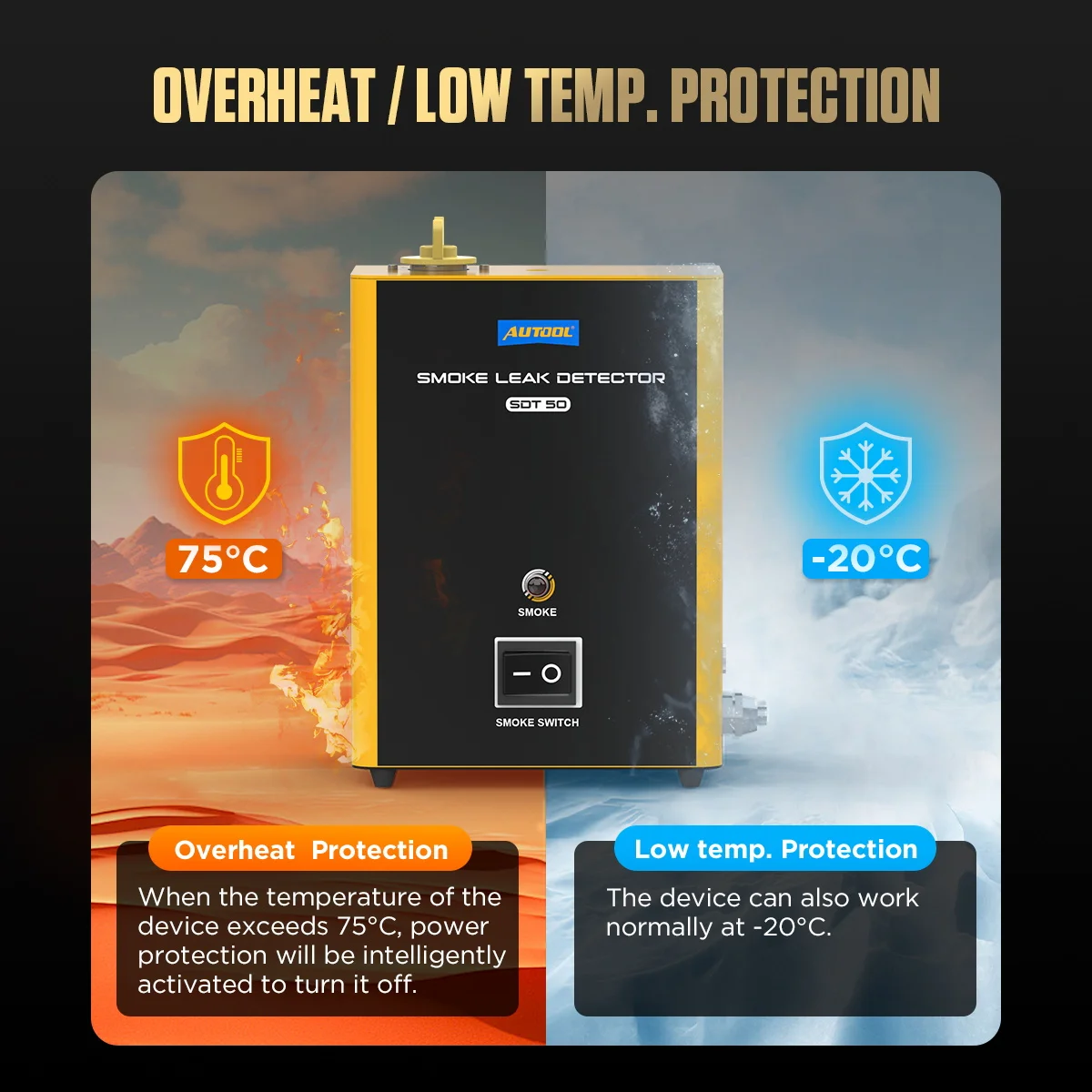

4. [Overheat&Anti frost protection] The detector has a smart protector If it exceeds the working limit for e.g. over 75 ℃ It will power off automatically.


5. [3 years warranty] For damage caused by non-human factors, we promise to resend parts for free within 3 years.


Caution:

1. When you use this AUTOOL SDT50 Car Smoke Leak Detector for the first time, fill with 10ml oil . Please be careful NOT to beyond this range.

2. The testing liquid: both liquid paraffin and baby oil are OK

3. Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.

4. Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.

During the process of leak detection, please keep away from smoke-sensitive parts.

6. Do Not run the detector over 8 minutes continuously It needs interval rest.

7. The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.

8. The round part of this detector has temperature, please be careful to avoid burns.

9. If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.

Packing List :

1pc * AUTOOL SDT50 Car Smoke Leak Detector Main Unit

1pc * EVAP Special Connector

1pc * Standard cone adapter

1pc * Power Cord Clamp

1 pc * Test Oil Refull Bottom (oil not included)

1pc * Hook

1pc * Smoke Jose

1pc * User Manual
Note:Doesn’t encourage their use for illegal purposes.
