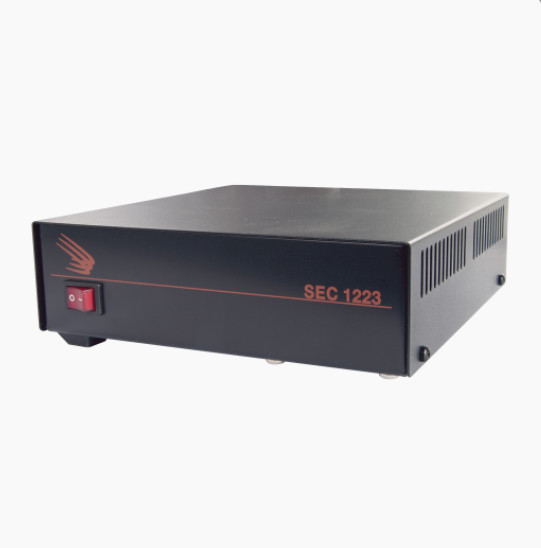

Samlex SEC-1223 Switching Power Supply, Maximum Current of 23 A.

Slide
$167.36
Compatible Brand
Universal
Brand
Samlex
Type
Power Supply
Unit Type
Unit
Model
SEC-1223
Features
Compact and Lightweight Design, On/Off Switch
MPN
SEC-1223
Country/Region of Manufacture
Taiwan
Unit Quantity
1
To Fit
Air Band Radio, CB Radio, Ham Radio Receiver, Ham Radio Transceiver, Two-Way Base Radio
condition
New
Sec-1212/Sec-1223 are switched-mode power supplies that convert 120 Vac, 60 Hz to regulated 13.8 Vdc based on pulse width modulation  ( PWM ) control.

Features
• Based on switched-mode technology and PWM control
• Compact and lightweight
• High efficiency and less heat dissipation
• Protected against short circuit, over current and over voltage (through PWM controller)
• Sec-1212 is convection cooled. Sec1223 has forced air cooling and over-temperature shut down
• UL listed & approved
• Complies with fcc part 15(b) for radiated & conducted
• Noises for class-b digital devices
• Power supply:  110 -130 Vac.
• Power consumption: 13.8 Vdc
• Peak output:  23 A
• Continuous Flow: 20 A
