Rotary-Tiller PTO Shaft with Friction Clutch replacement King Kutter 147122
Rotary-Tiller PTO Shaft with Friction Clutch replacement King Kutter 147122
"
This PTO shaft is designed for use with a wide range of agricultural equipment and machinery. It has a universal joint design that allows it to rotate at a variety of speeds with a horsepower of 35hp-53hp, making it ideal for use with a variety of applications. The PTO shaft features an extendable length of 32.68”-41.45” and has a male and female end, both of which are made from high-quality materials that are designed to withstand the rigors of heavy use. It consists of a 1-3/8-6 spline tractor end and a 1-3/8” smooth implement end, ensuring a secure and efficient connection to your equipment. Replacement for King Kutter finish mower shaft code 147122, and fits 5’, 5-1/2’ and 6’ King Kutter finish mowers. Please note this shaft does not fit the XB series Tillers as they require a 6” diameter slip clutch.
SPECIFICATIONS
- Series: 4
-
Horsepower: 35HP(540 rmp) - 53HP(1000 rmp)
-

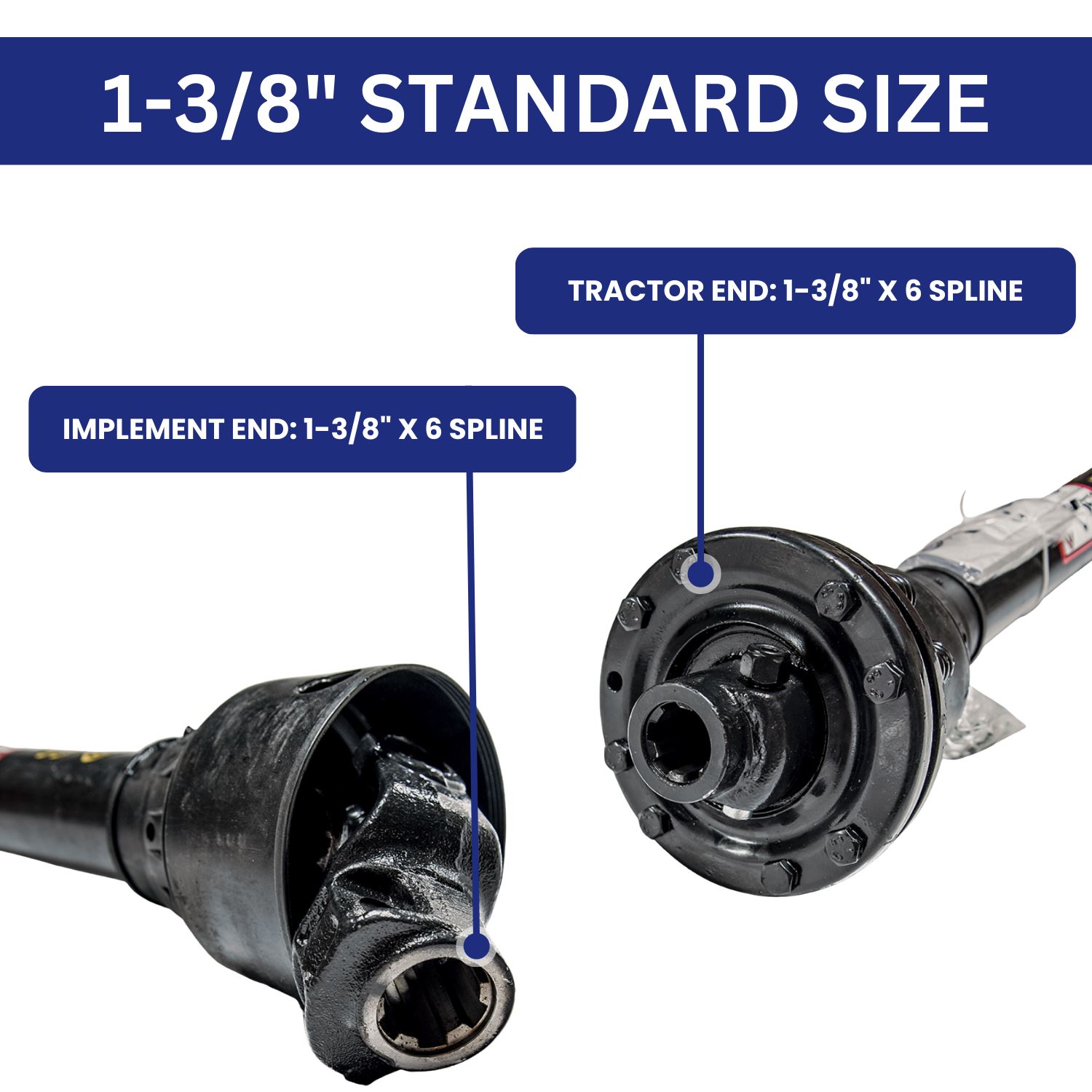

Implement end: 1-3/8” with 6 Spline; Tractor end: 1-3/8” with 6 Splines and quick disconnect
-
Tractor end: 1-3/8” with 6 Splines
-

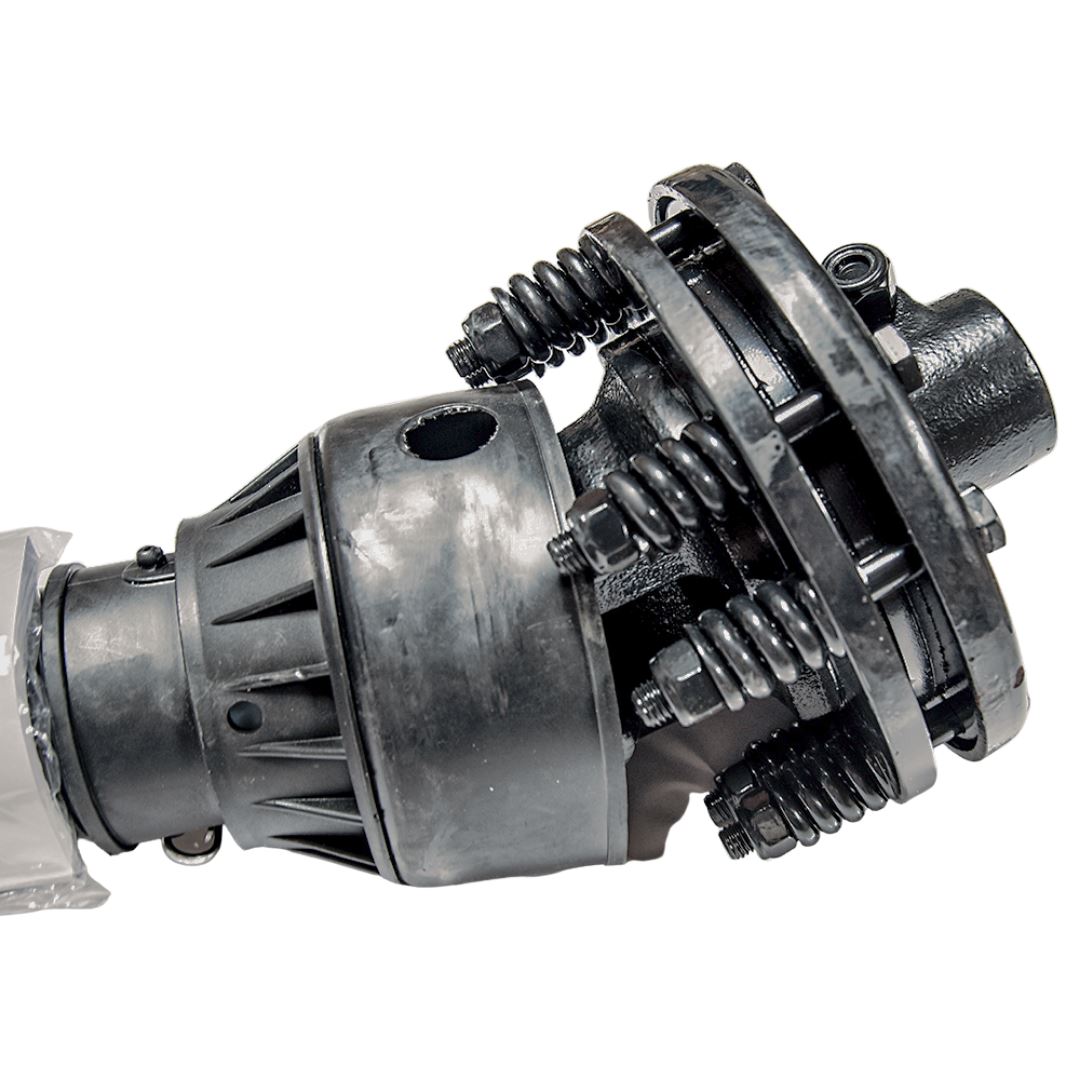

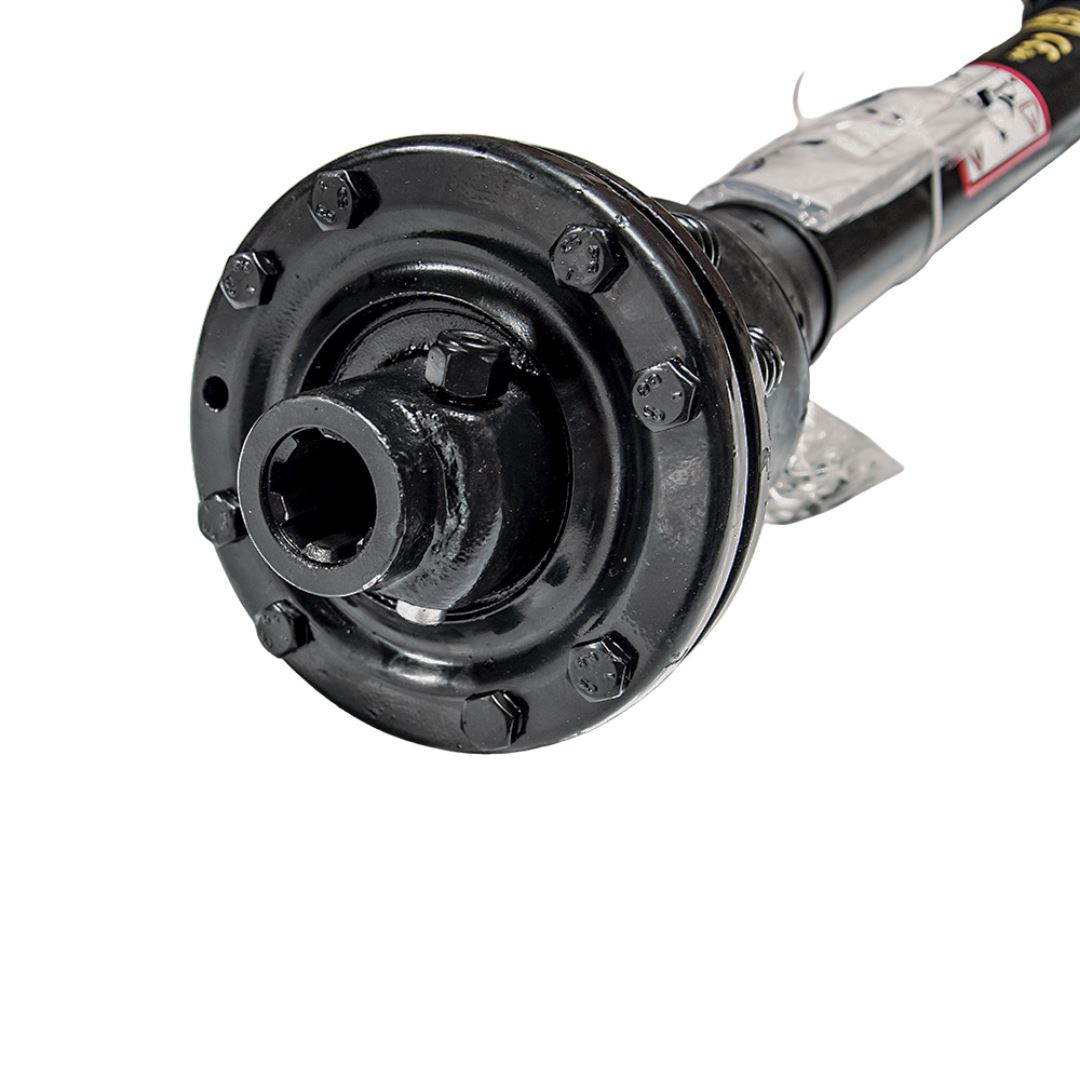

2 Friction disc slip clutch mounting
-

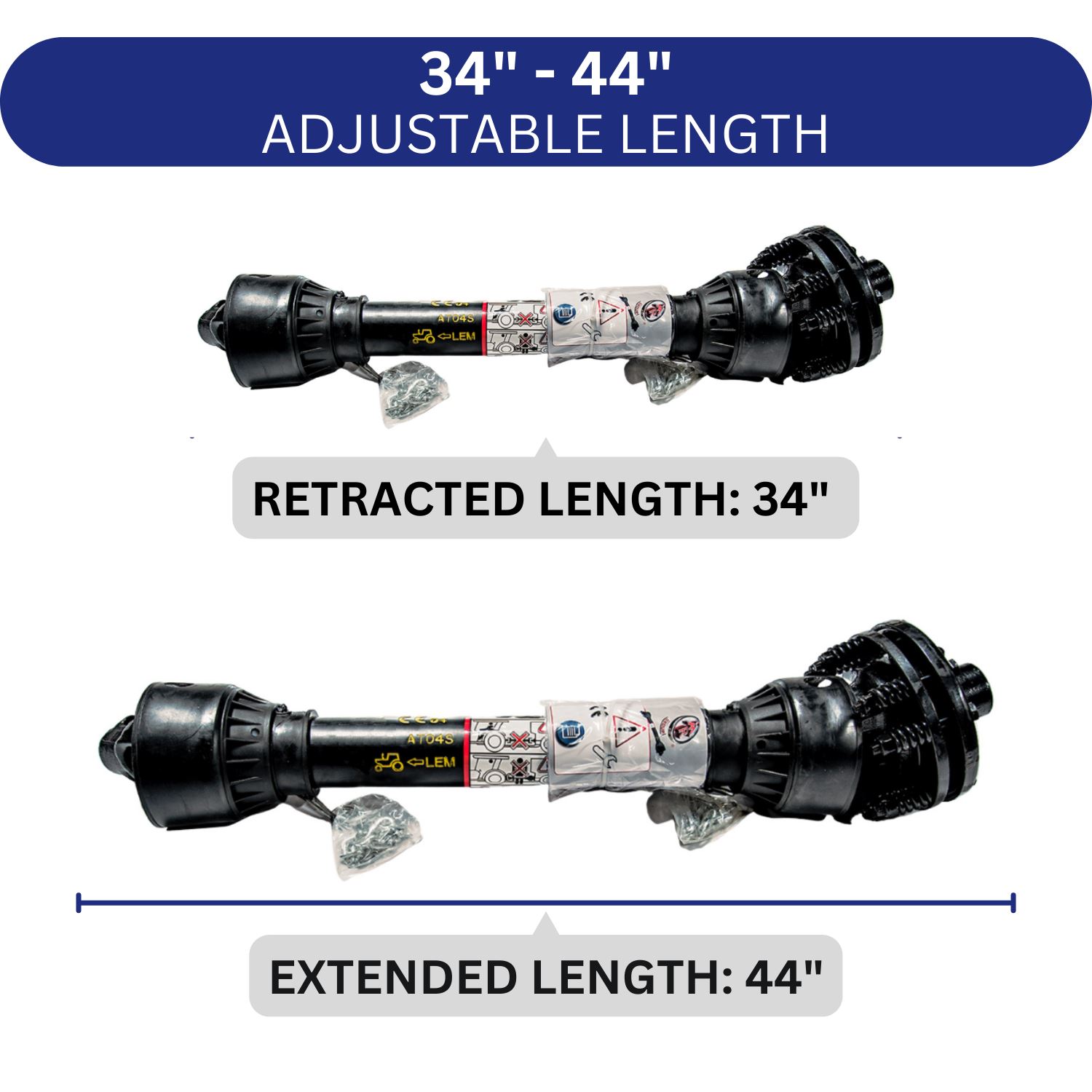

Retracted Length:34”
-
Extended Length: 44”
-
Fits: 5’,5-1/2’ and 6’ King Kutter Finish Mowers
-
Can trim to 29.375”
Installation
All maintenance, repair and installation operations must be performed with suitable safety equipment.
- Identify the slip clutch: Before installation, ensure that you have the right slip clutch that matches your equipment. The slip clutch should have the same dimensions, rotational speed, and number of splines as the equipment.
- Attach the slip clutch to the female end of the PTO shaft: Slide the female end of the slip clutch onto the male end of the PTO shaft and secure it.
- Attach the male end of the PTO shaft to the equipment: Slide the male end of the PTO shaft with the slip clutch attached into the female PTO input shaft of the equipment and secure it.
- Adjust the slip clutch: Generally, this involves adjusting the torque setting on the slip clutch to match the torque requirements of the equipment.
- Test the slip clutch: Start the equipment and test the slip clutch by engaging the PTO switch. Observe the operation of the slip clutch to ensure it is functioning correctly and slipping when necessary to protect the equipment from damage.
For detailed operations please reference the instruction manual.
How to shorten the PTO shaft
In order to shorten the tubes, follow this procedure.
1. Remove the protection
2. Shorten the transmission tubes to the required length. The telescopic tubes must overlap by at least half of their length in normal working conditions and must overlap by at least one third of their length in any working condition. Even when the transmission is not in rotation, the telescopic tubes must maintain overlap that is sufficient to prevent jamming.
3. Carefully deburr the ends of the tubes with a file and clean the tubes of chips
4. Cut protection tubes one at a time to the same length removed from the transmission tubes
5. Grease the inner transmission tube and re-install the protection
6. Check the length of the transmission in the conditions and maximum elongation of the machine

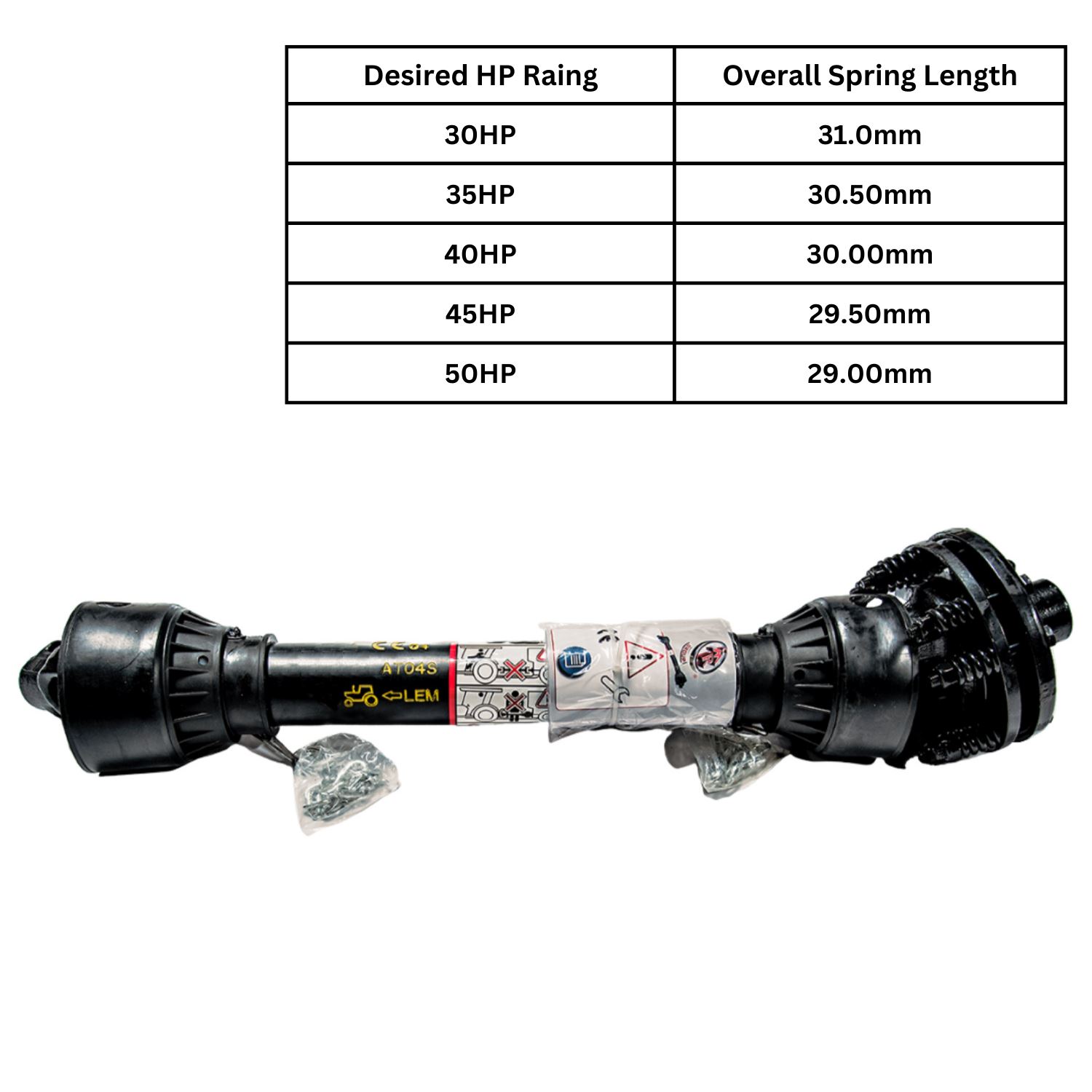

Desired Horse Power Rating / Overall Clutch Spring Length Adjustment:
• 30hp - 31.0mm
• 35hp - 30.50mm
• 40hp - 30.00mm
• 45hp - 29.50mm
• 50hp - 29.00mm
"
