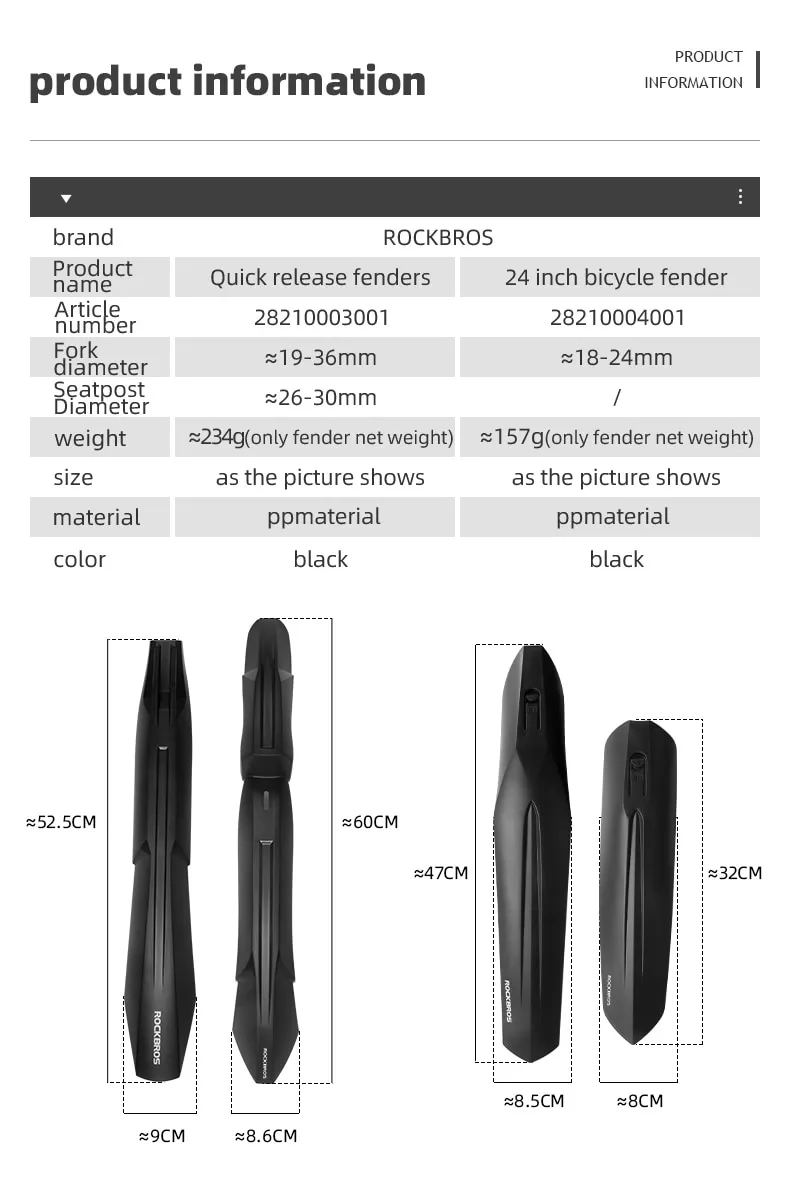

Product detail

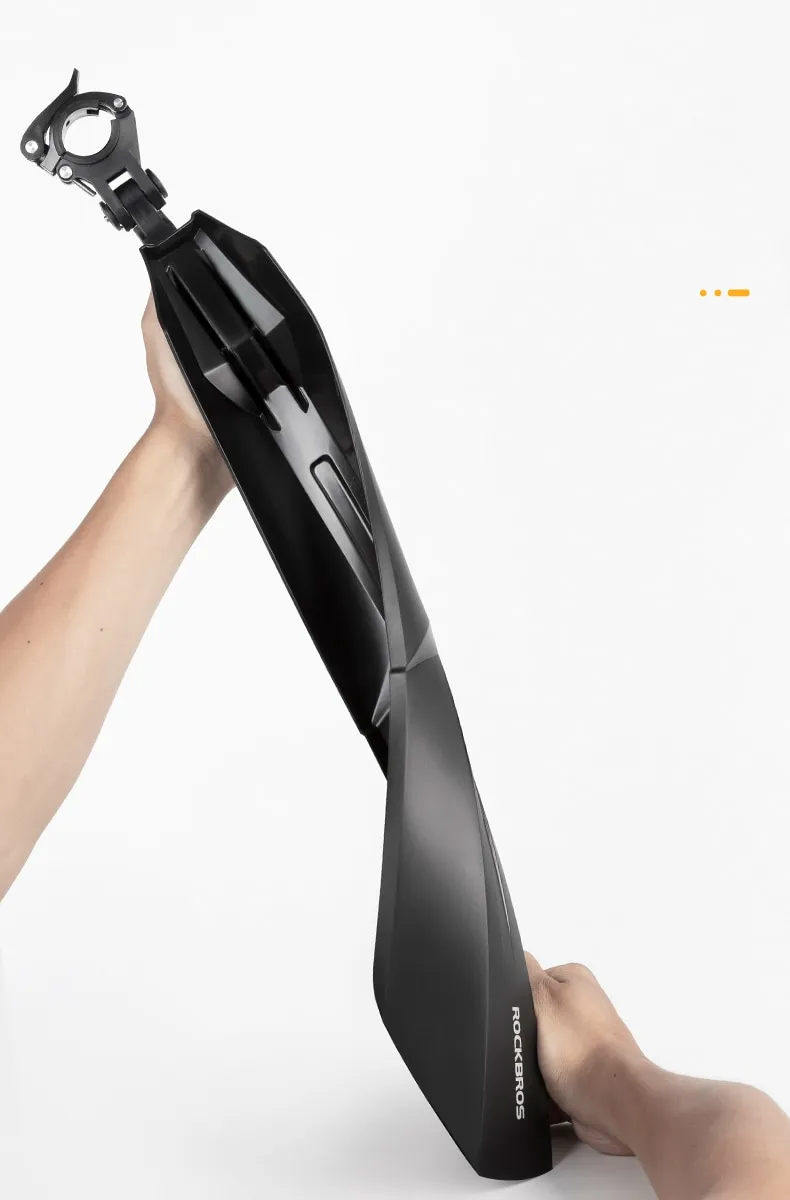

Type 1: Quick Release Fenders
Front fork diameter: about 19-36mm
Seatpost diameter: about 26-30mm
Weight: about 234g (only the weight of the fender)
Material: PP
Type 2: Bicycle Fender 24 Inch
Front fork diameter: about 18-24mm
Weight: about 157g (only the weight of the fender)
Material: PP

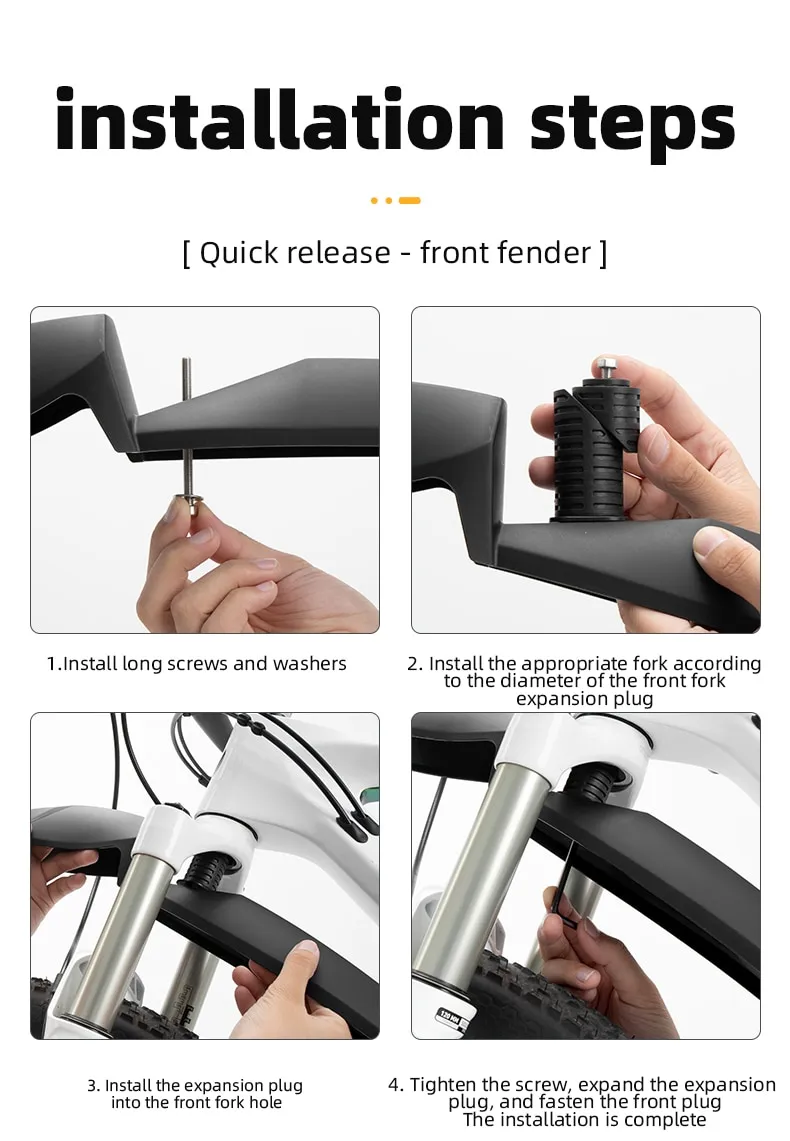

Quick Release - Front Fender Installation Steps
1. Install long screws and washers

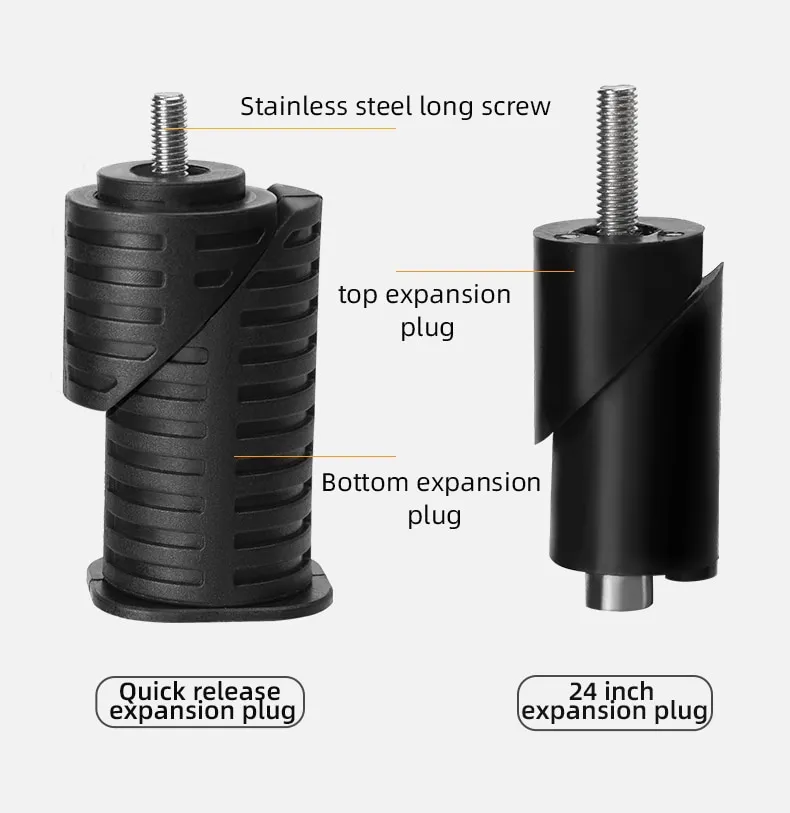

2. Install a suitable expansion plug according to the diameter of the front fork
3. Install the expansion plug into the front fork hole
4. Tighten the screws, expand the expansion plug, clamp the front plug, and the installation is complete

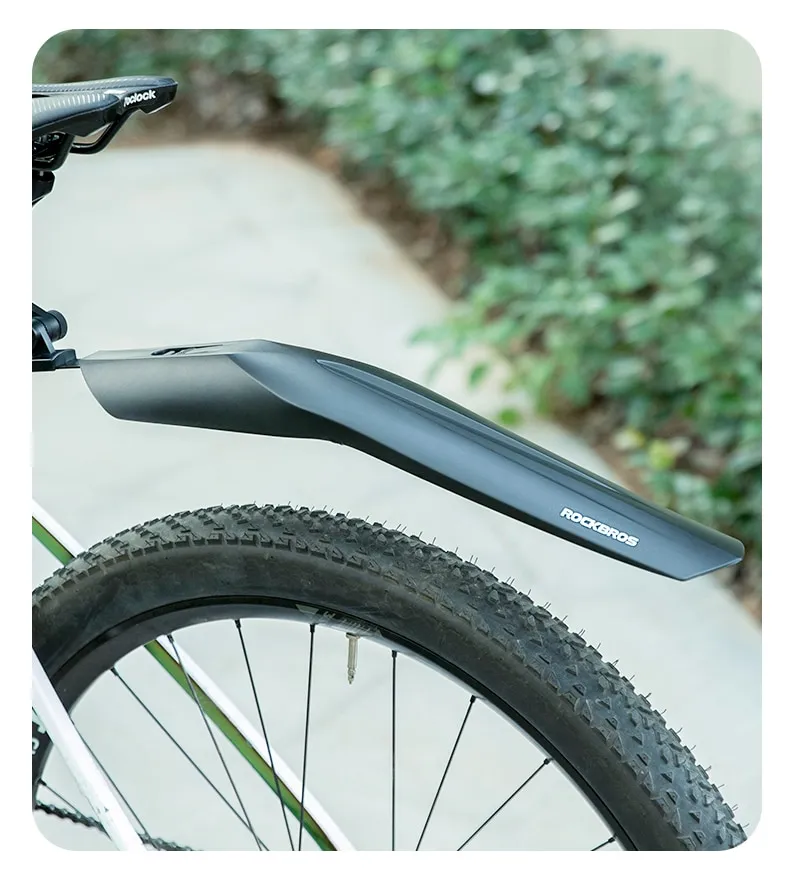

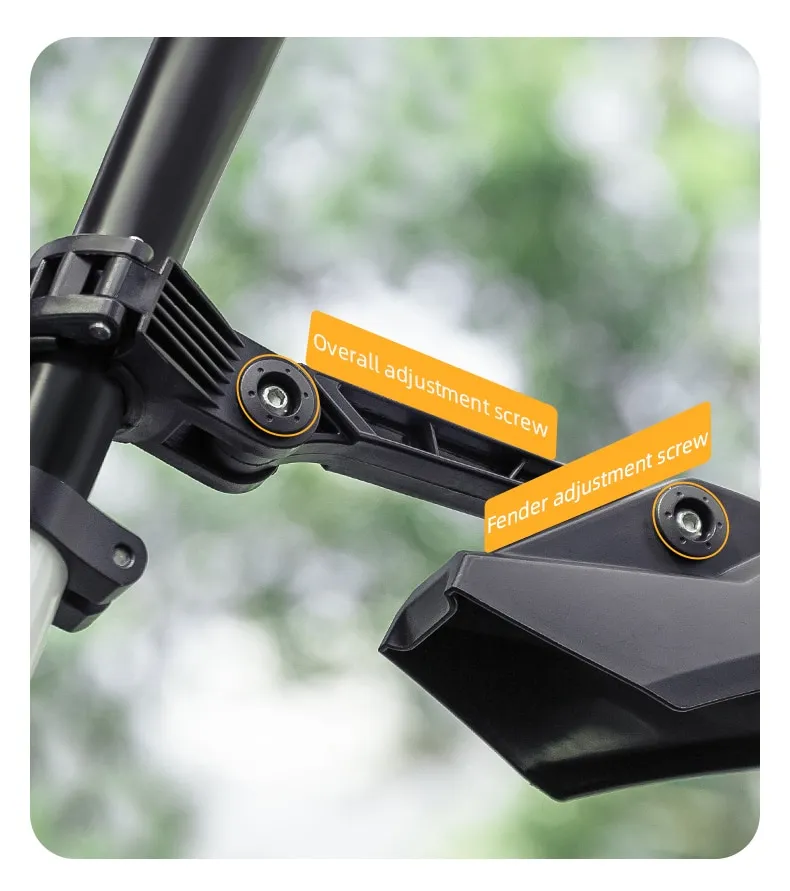

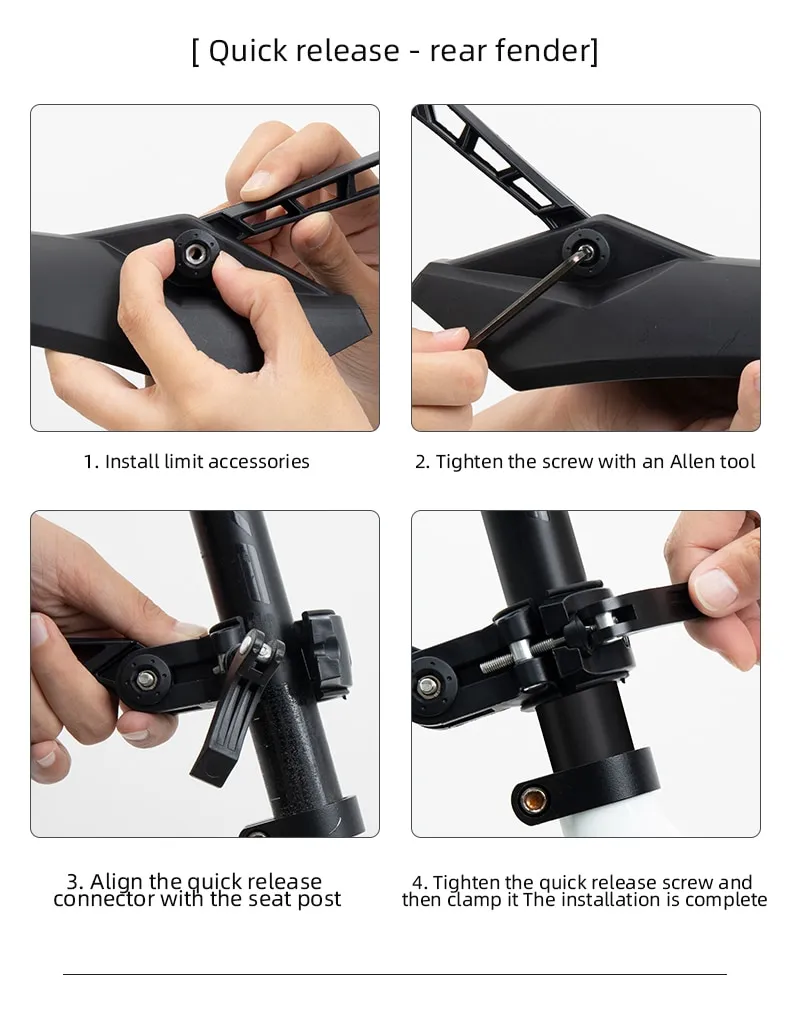

Quick Release - Rear Fender Installation Steps
1. Install the limit accessories
2. Tighten the screw with an Allen tool

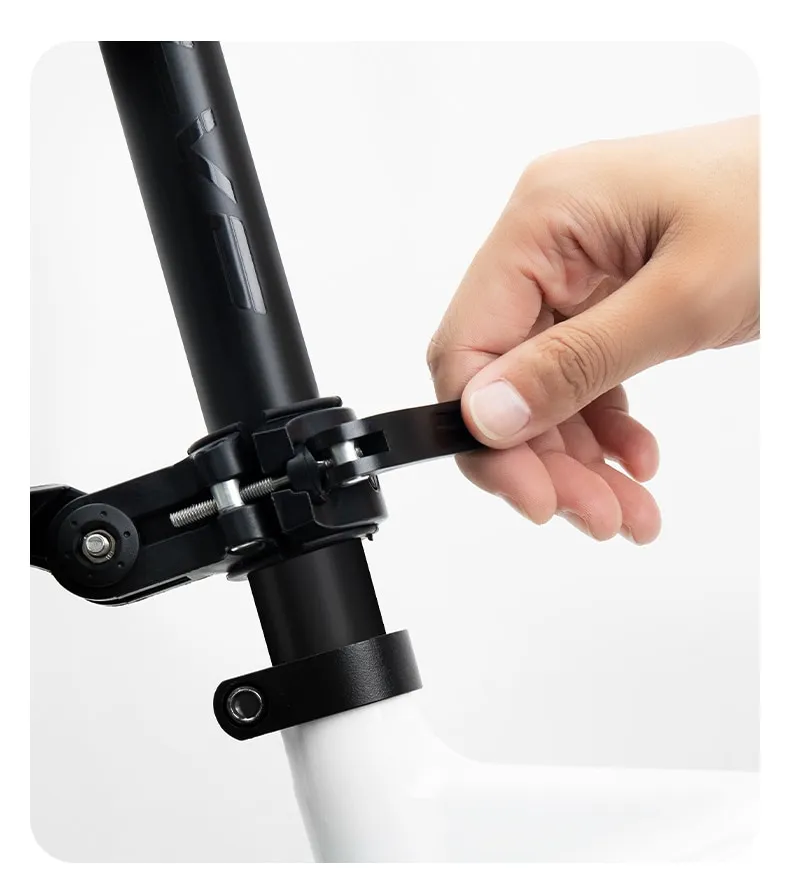

3. Align the quick release connector with the seat post
4. After tightening the quick release screws, the clamping installation is completed

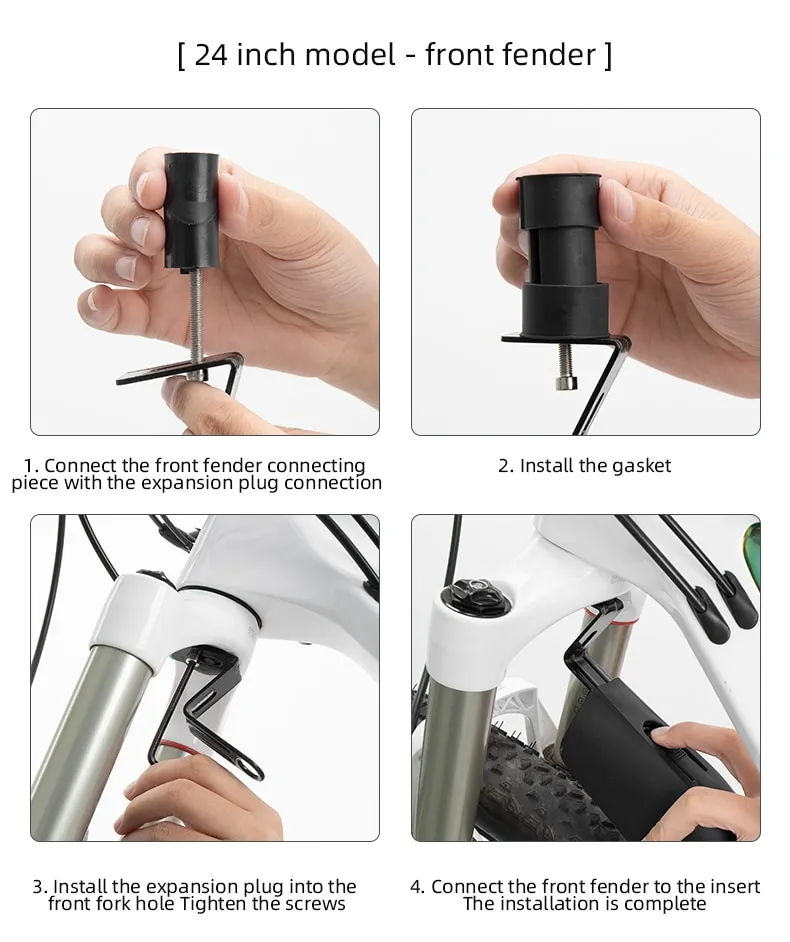

24 inch model - front fender installation steps
1. Link the front fender connecting piece with the expansion plug
2. Install the gasket
3. Install the expansion plug into the front fork hole and tighten the screw
4. Connect the front fender and the insert to complete the installation

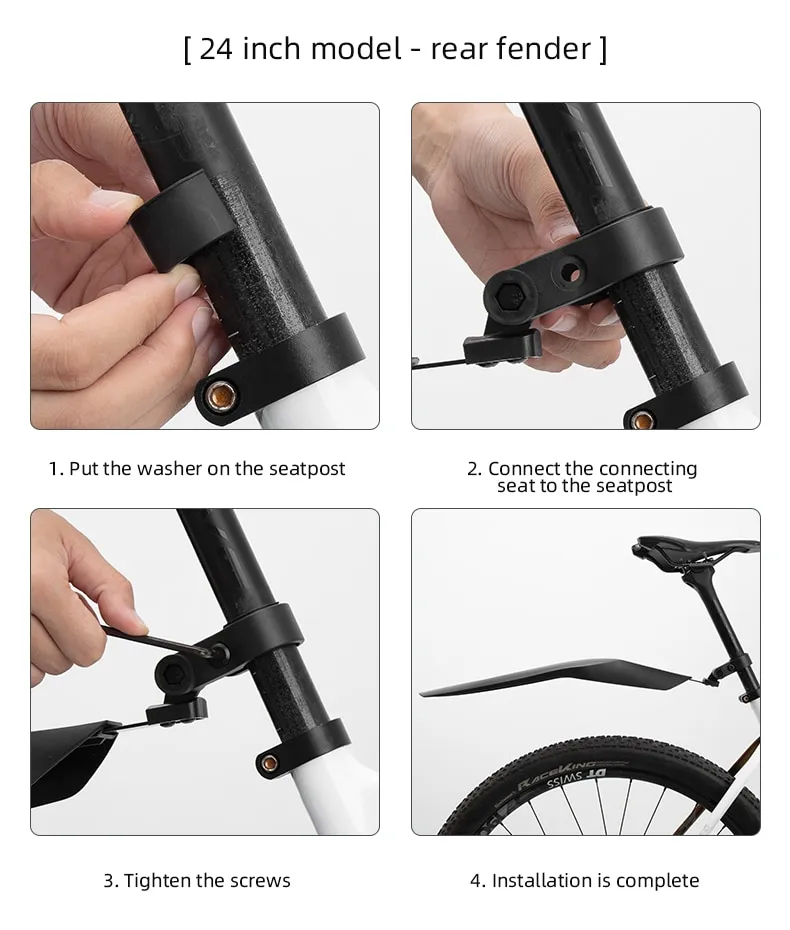

24 inch model - rear fender installation steps
1. Put the washer on the seatpost
2. Connect the connecting seat to the seat post
3. Tighten the screws
4. Installation is complete
