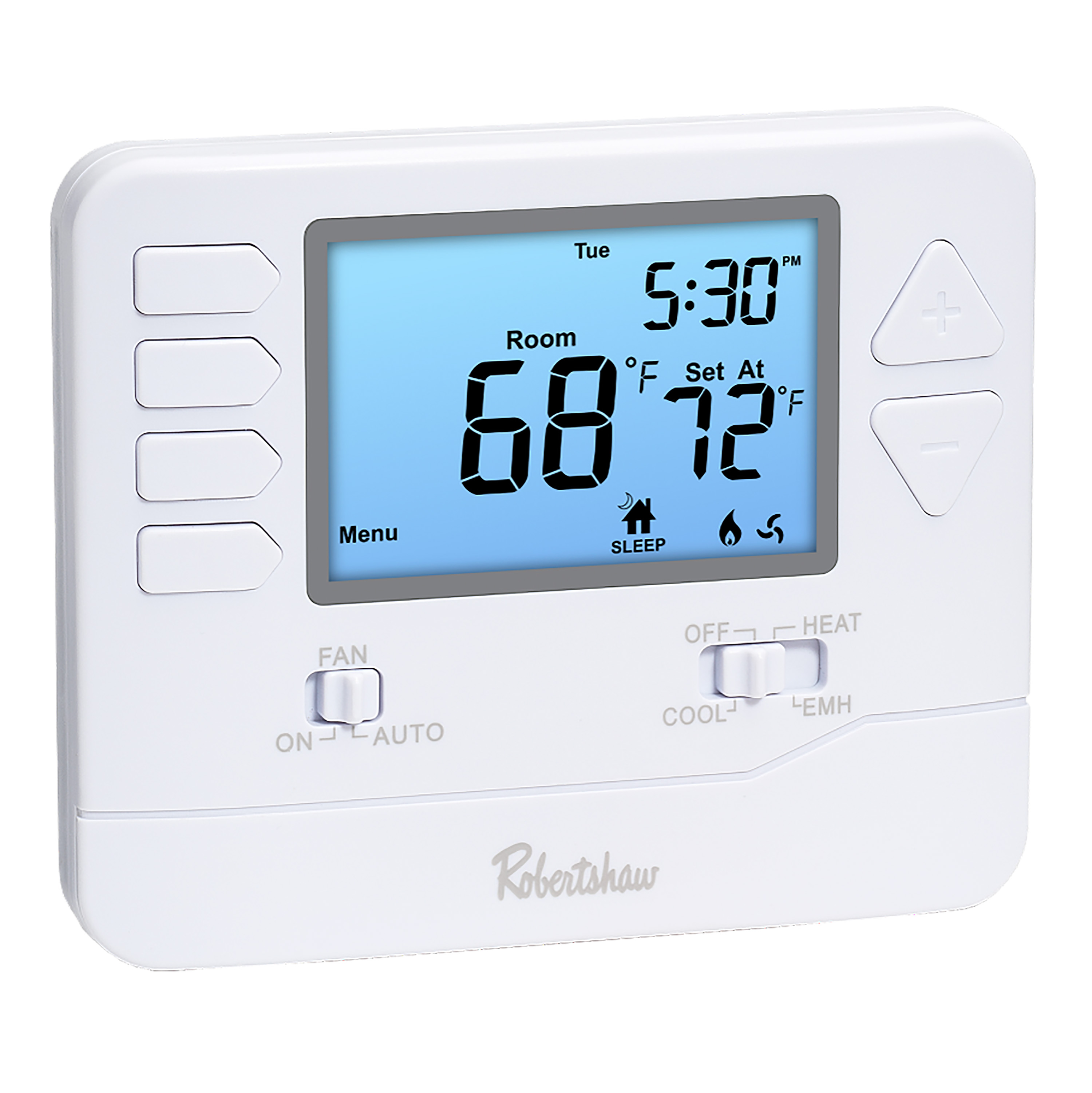

Robershaw part number RS8210.

Non-Programmable Wall Thermostat.

Multi-Stage - 2 Heat / 1 Cool.

The RS8210 non-programmable wall thermostat offers a easy, yet powerful and reliable two-stage heating and one-stage cooling control in a simple, modern design.

• Large terminal blocks for easy installation
• Universal sub-base
• Quick access menu button
• Contractor/technician setup menu Simple, yet powerful control.
• Large, easy-to-read 4.6-square-inch blue backlit display
• 24V AC Powered  OR Battery Operation (Included)
• 6 Year Limited Warranty
• Easy-access front-load battery compartment
• Adjustable temperature differential (swing) for energy optimization and maximum system life
• Adjustable room temperature calibration
• Adjustable setpoint limits
• Filter change reminder
• Five-minute selectable on/off compressor delay protection for short-cycling prevention
• Separate O and B terminals

Specifications

• Dimensions (W x H x D): 4.7 x 3.8 x 1 in. (119.6 x 97.6 x 26 mm)
• Mounting: Wall or junction box
• System compatibility: Two-stage heating, one-stage cooling
• System fuel source: Gas, electric or oil
• Heat pump compatibility: Systems with auxiliary or emergency heat
• Millivolt application compatibility: Yes
• Temperature range: 41 to 95 degrees F (5 to 35 C)
• Control temperature range: 44 to 90 degrees F (7 to 32 C)
• Display accuracy: +/- 1 degree C (at 20 C) / +/- 1 degree F (at 68 F)
• Power sources: 24V AC (18 to 30V AC), 50/60 Hz for hardwire (common wire required) or 2 AAA 1.5V alkaline batteries (included)
• Terminals: R, C, Y, W2, W/E, G, O, B

Replacement Information

• Pro1: T721
• Honeywell: TH5220D1029, TH1110D2009, TH1210DH1001, TH1210DV1007, TH3210D1004
• Braeburn: 1220NC, 1200NC, 3020
• Emerson White-Rodgers: 1F83H-21NP
• Aprilaire: 8446, 8448
