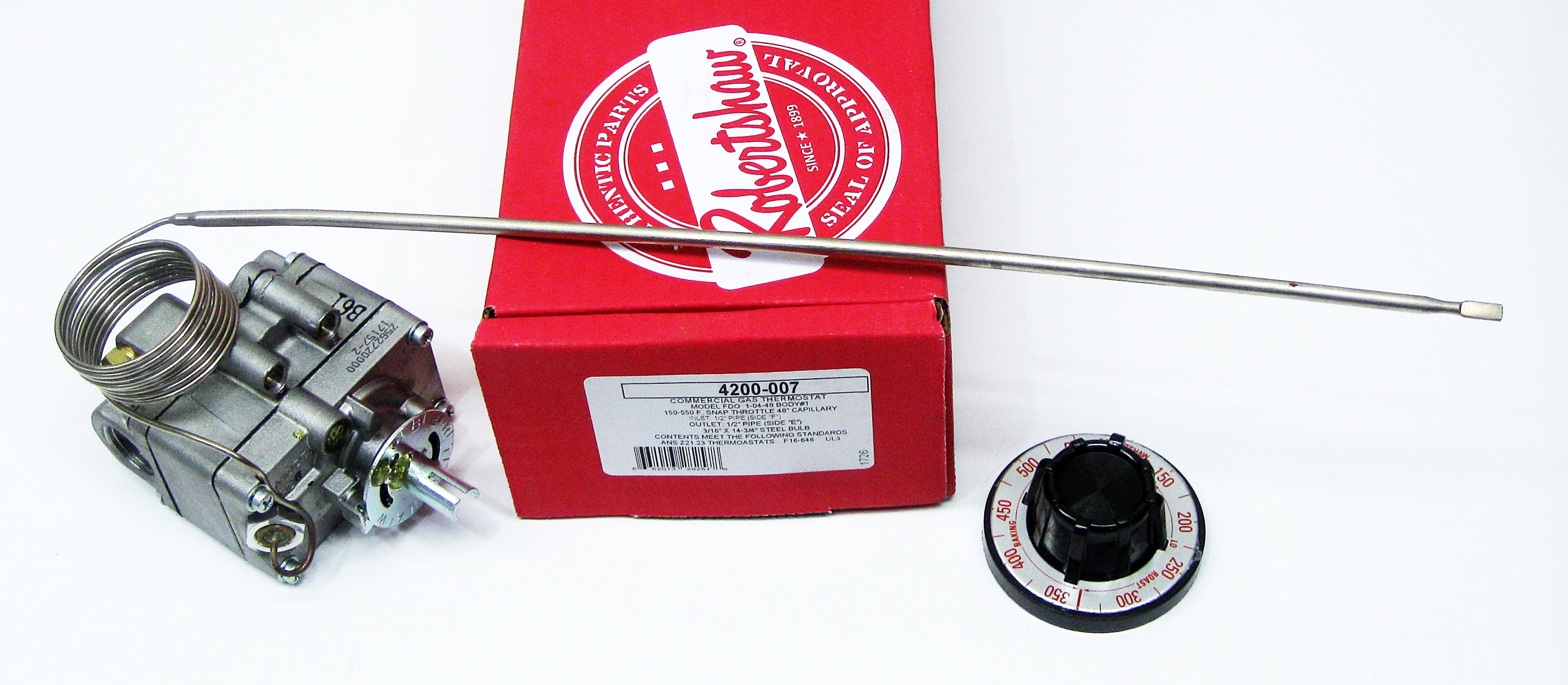

Robertshaw Gas Oven Thermostat part number 4200-007.

Factory Number FDO-1-04-48 .

Series Application FDO Gas Thermostat, Body Type #1

Temperature Range 150F to 550F (66C to 288C)

Capillary Length 48"

Bulb Size 1/4" x 8-7/16" Nickel

Inlet Rear "H" NA

Inlet Side "F" 1/2" Pipe

Mounting Position 4-Way

Outlet Rear "G" NA

Outlet Side "E" 1/2" Pipe

Pilot Outlet Side

Replacement for Numbers: 503-000-03, 503-000-05, FDH-1-08-48, FDO-1-02-24, FDO-1-08-36, FDO-1-08-48, FDO-1-14-48, FDO-1-16-24, Z597300036, Z597300048, Z802480024, Z881940048, Z881950048, South Bend Range, 1010300, 1010301, 1010398, 1010399, 1010401, 1170193, FDO-1-16-48, FDTS-1-02-24, Z750570024, Z802480048, Garland, 1017500, 1017591, FDO-1-03-30, Z881710030, 1017591, G01920-01, 1017500, 1017514, 1017599, 1019400, Franklin Chef, 146517, Uni-Line, 28257, 4200-033, 4200-C004, 4200-C006, 4202-007, FDO-1-10-30, Z597620030, 146517, 142970, 144720, Hobart Corp, 348568-00001, 348568-1, 348568-1, 00-335553-00001, 335553-1, Jade Range Inc., Z597370048, 41615300100, 460-153-A00, FDO-1-04-48, FDO-1-15-48, Wolf Range, 722620, Johnstone Supply, F16-646, PMI, FDO-1-02-48, Bakers Pride, FDO-1-09-36, M1038A, Z597420036, Consolidated Comm.co, G-105, Peerless, RS004713, Robertshaw, Z881150048, Z881150048, Z88115-48, Z88126-48, Z88152-48, Southbend, 1170193, 1010302, 1010396, 1010397, 1010398, 1010399, AllPoints, 46-1047
