Renogy PUH 3000W Inverter with UPS Transfer Switch and Built-in Bluetooth

Slide Slide Slide Slide Slide Slide Slide Slide Slide
$569.99
System Configuration
Off-Grid
Power Source
Solar
Wattage
3000W
MPN
RIV1230PU-126-US
Current Type
AC/DC
Inverter Technology
Battery-Based
Brand
Renogy
Type
Charger/Inverter
Application
Back-up Power, Camping/Hiking, Electronics, Home/Garden, Recreational Vehicle (RV), Shed
condition
New
Renogy Pure Sine Wave Power Inverter
The Renogy pure sine wave inverter efficiently converts DC power from batteries into AC power, perfect for powering a wide range of electronic devices. With automatic switching between on-grid and off-grid, your devices will continue running smoothly, even during power outages.
Transforming Power with Safety, Efficiency, and Adaptability

Inductive Trips
Overload Trips
Cooling Fans
Safety Protection

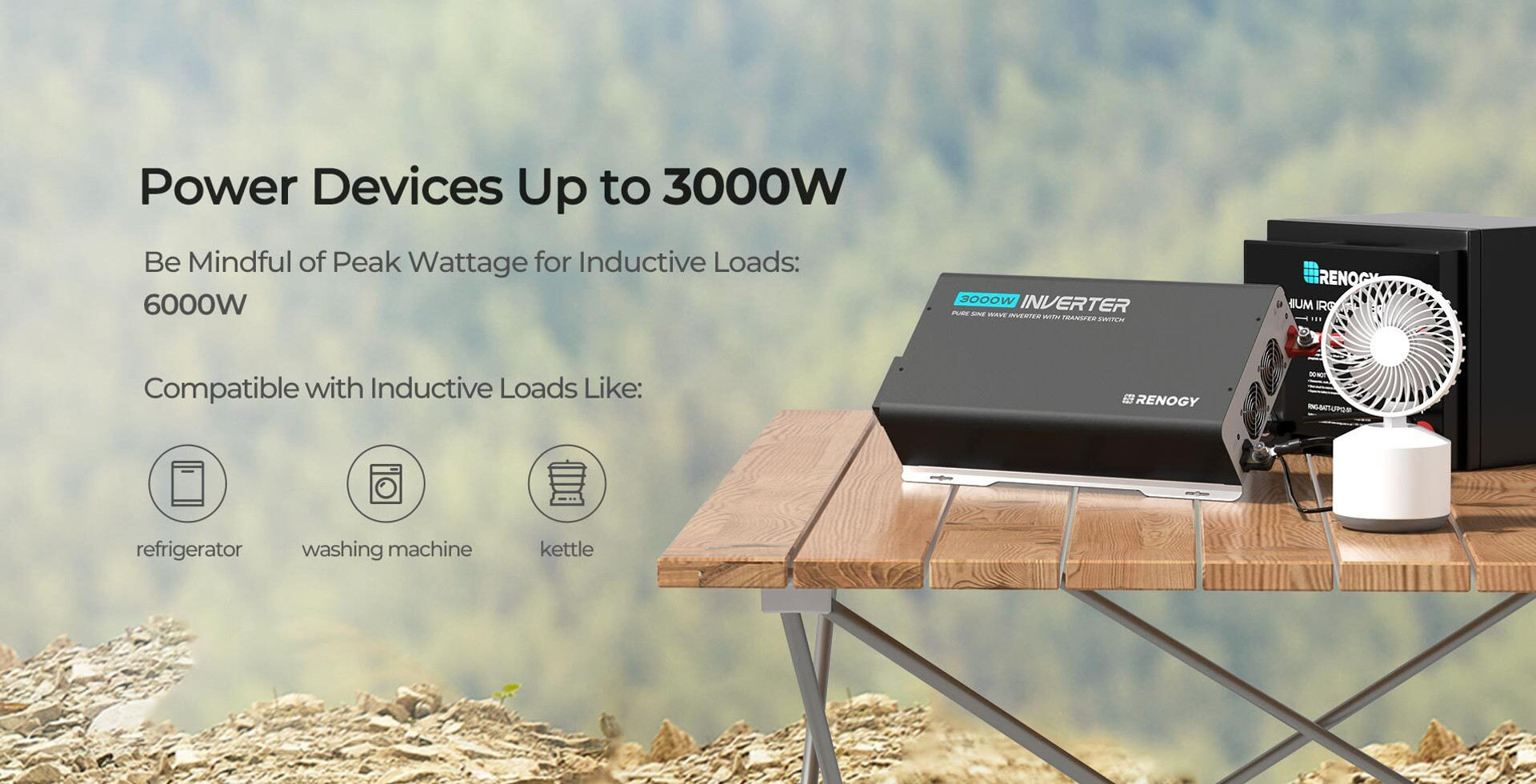

Tripping Issues Caused by Inductive Loads
Inductive appliances, such as air conditioners and refrigerators, can cause trips due to high peak current and voltage demands. To prevent these issues, ensure your electrical system can handle the surge from these loads. Common inductive appliances include humidifiers, vacuum cleaners, treadmills, microwave ovens, range hoods, audio equipment, and electric fans.

Inductive Trips
Overload Trips
Cooling Fans
Safety Protection
Tripping Issues Caused by Overloaded Appliances
Overloading occurs when multiple high-power appliances run simultaneously. To prevent this, check the capacity of your electrical panel and ensure the wattage of all appliances does not exceed 3000W.

Inductive Trips
Overload Trips
Cooling Fans
Safety Protection
Cooling Temperature Management for Optimal Electrical System Performance
Cooling fans in Renogy inverters provide airflow to dissipate heat, ensuring the inverter remains within its optimal operating temperature range. The fans draw in air, which passes over heat sinks or radiators, removing heat before exhausting it through the vents.

Inductive Trips
Overload Trips
Cooling Fans
Safety Protection

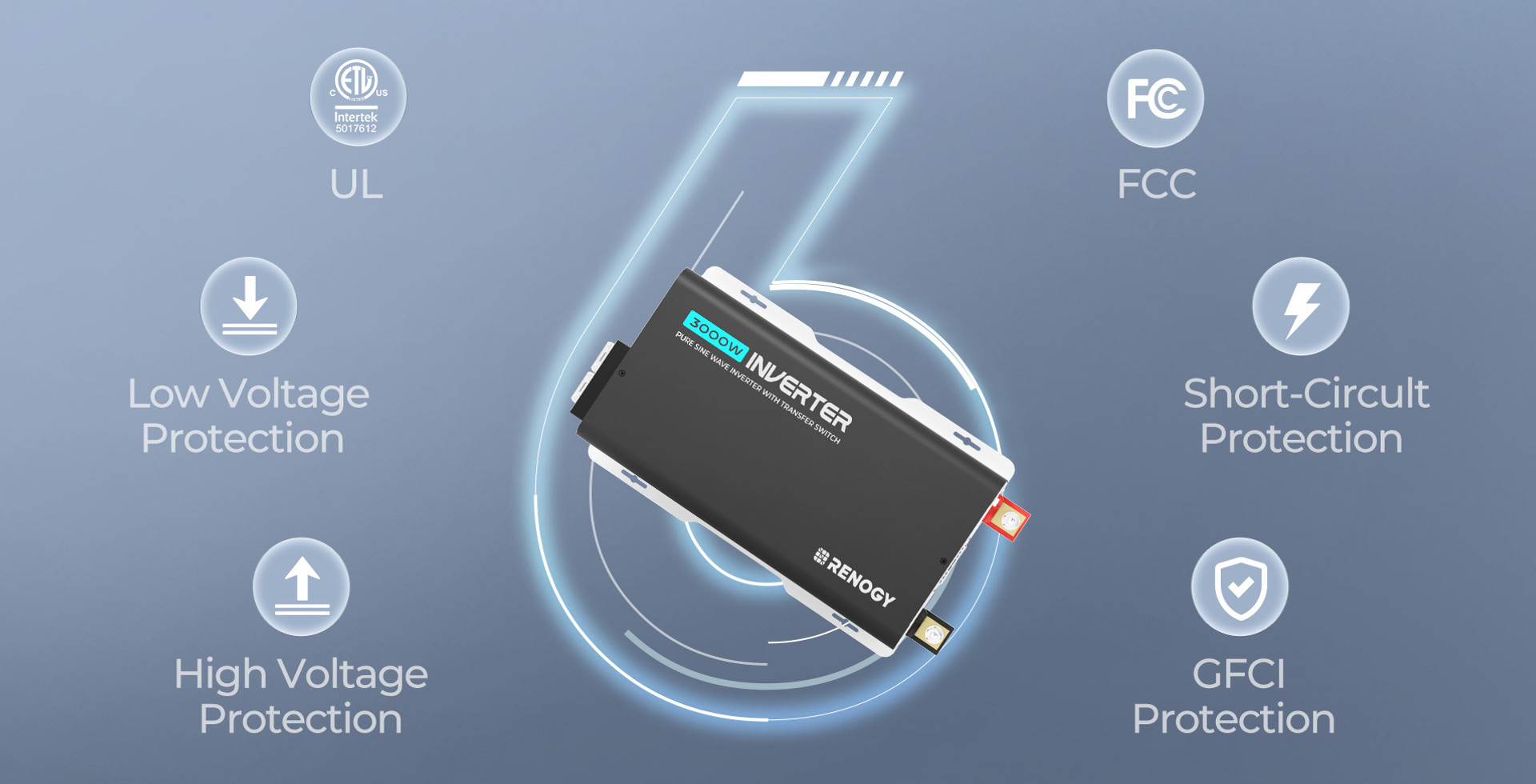

Electrical Safety Guarantee for Peace of Mind
Renogy inverters feature over-voltage, over-current, and short-circuit protection to ensure safe and reliable operation, safeguarding your inverter and extending its lifespan.


Build in Bluetooth
Remote Control
Instant Device Monitoring
Real-time monitoring via the DC Home app ensures the safe and efficient operation of your system.


Build in Bluetooth
Remote Control
Instant Device Monitoring
Real-time monitoring via the DC Home app ensures the safe and efficient operation of your system.

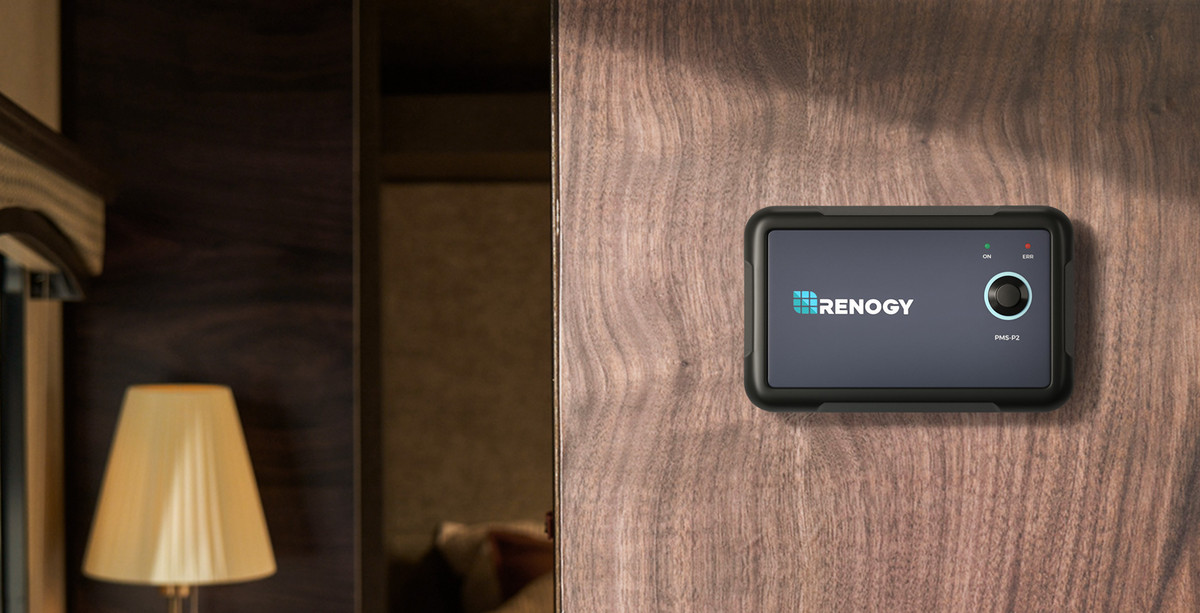

Easy to Use Remote Control
Control your inverter from the comfort of your chair with a user-friendly remote.

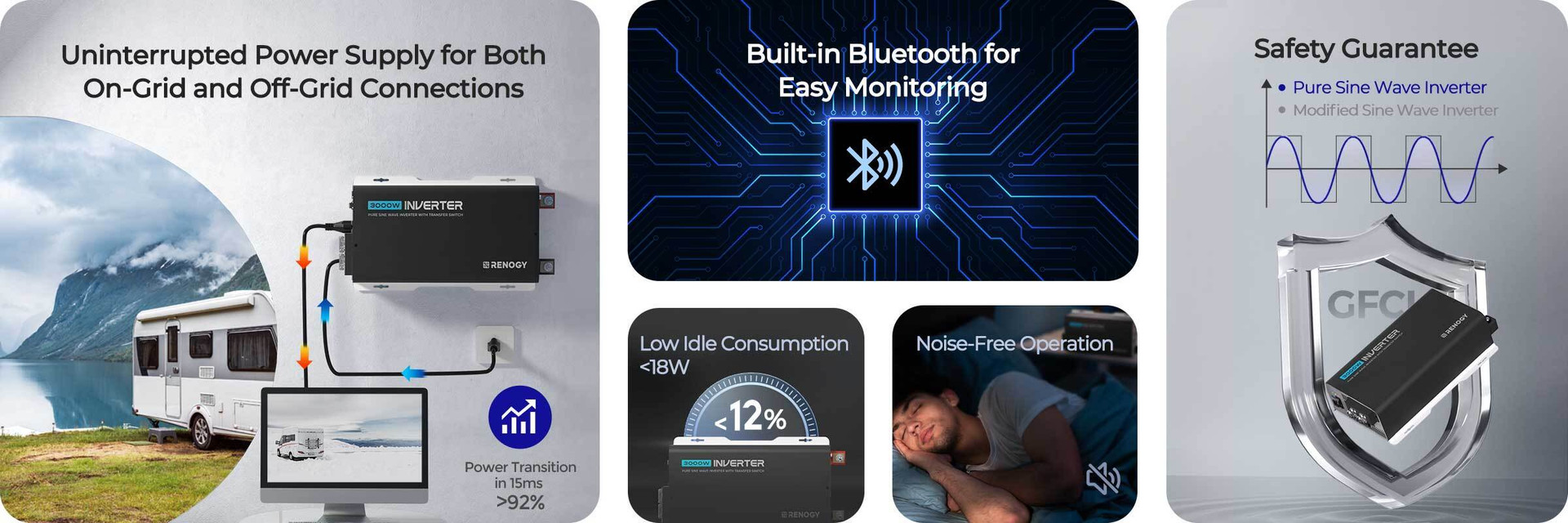

UPS Powering Seamless Backup Solutions
The inverter’s connection to shore power ensures an uninterrupted supply of electricity, even when no stable power source is available. It guarantees seamless backup power both on and off the grid, ideal for RVs, marine environments, semi-trucks, or during temporary power outages.

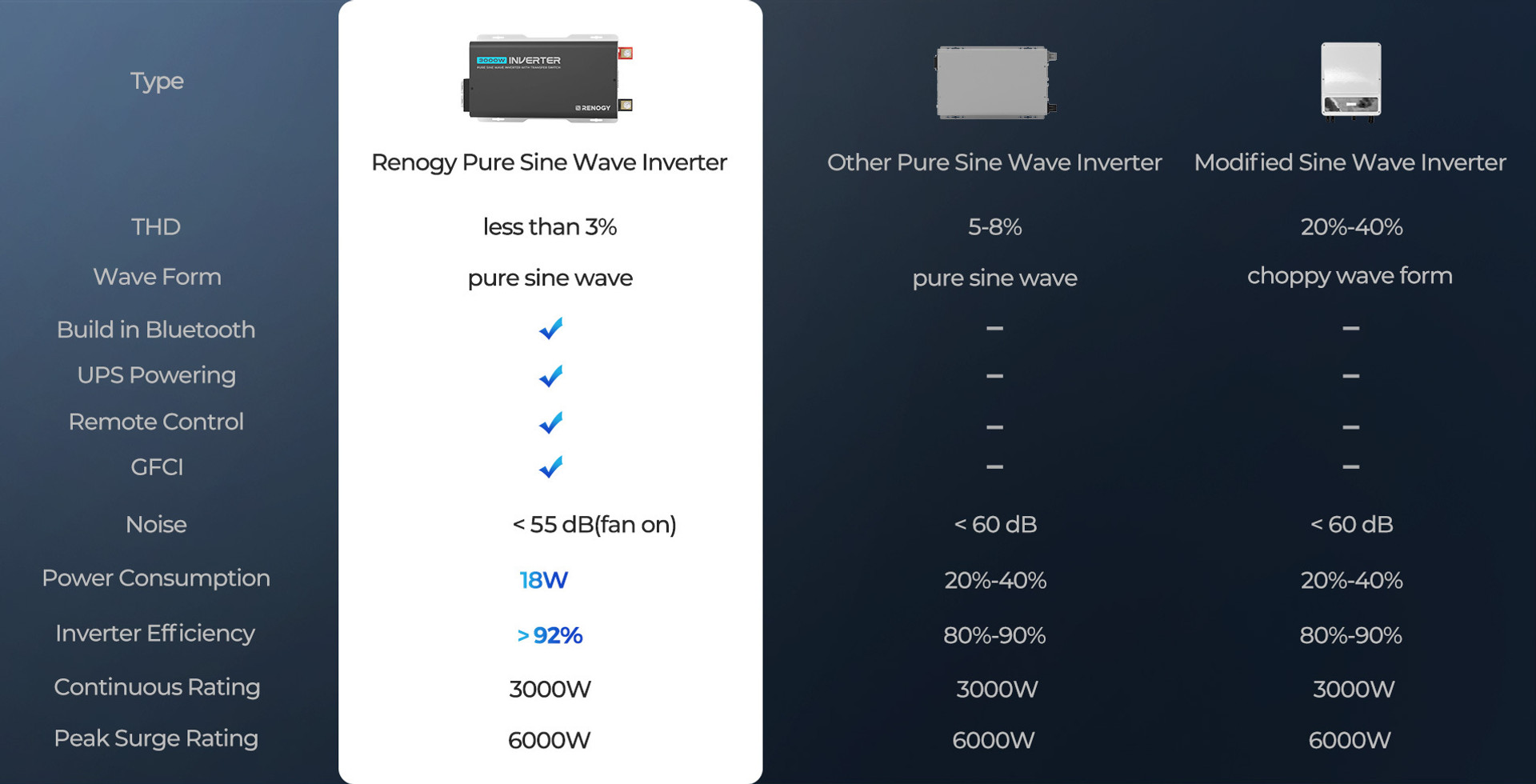

Performance Advantages
Renogy inverters outperform competitors with advanced features and reliable performance.

RENOGY 3000W 12V PURE SINE WAVE INVERTER WITH BUILT-IN BLUETOOTH
GENERAL INFORMATION

AC Terminals: 3 x AC Sockets + Terminal Block

DC Terminals: M8-25

Operating Temperature: -4°F ~ 113°F / -20℃ ~ 45℃

Storage Temperature: -40°F ~ 158°F / ﹣40℃～70℃

Humidity: Max 95%, Non-condensing

Cooling: Thermally Controlled Fans

Enclosure Rating: IP20

Dimensions (LxWxH): 19.2 ×10.4× 3.8 in / 488.8 × 263.4 × 95.3 mm

Weight: 6.7kg/14.8lb

Regulatory and Safety Specifications: UL458,FCC Prat15 ClassB

ELECTRICAL INFORMATION

Continuous Output Power: 3000W

Continuous Output Current: 25A AC

Total Harmonic Distortion (THD): ≤3%

Power Factor: 1.5A

Surge Rating: 6000W (@ 2s)

Output Voltage: 120V AC±3%

Output Frequency: 50/60Hz

Rated Battery Input Voltage: 12VDC

Battery Input Voltage Range: 11-15.5VDC

Maximum Continuous Battery Output Current: 310A

Inverter Efficiency: >92%

Full Load Efficiency: >87%

Power Consumption: <18W

Battery Overoltage Shutdown: 16.0VDC±0.3VDC

Battery Low Voltage Alarm: 11.0VDC±0.3VDC

Battery Low Voltage Shutdown: 10.5VDC±0.3VDC

Transfer Switch Rating: 30A

opc:

WIRED REMOTE INFORMATION

Front Plate Dimensions: 4.3x2.6x1.3 in /108x67x32mm

Wired Length: 16.40ft
