REED Instruments R2330 Infrared (IR) Thermometer 50:1, 2282°F (1250°C)

Slide Slide Slide Slide Slide Slide Slide
$269.0
Brand
REED
MPN
R2330
UPC
800837004536
condition
New
Untitled Document
Global Test Supply - 1-8
Brand | Model | Name

REED Instruments R2330 Infrared (IR) Thermometer 50:1, 2282°F (1250°C)

Model: R2330 | Order No:R2330

Dual lasers assist with target area identification and allow for precise temperature measurements to meet the needs of industrial, electrical and HVAC/R professionals.
Brand: REED
Model: R2330
Order No: R2330
Condition: NEW
Description

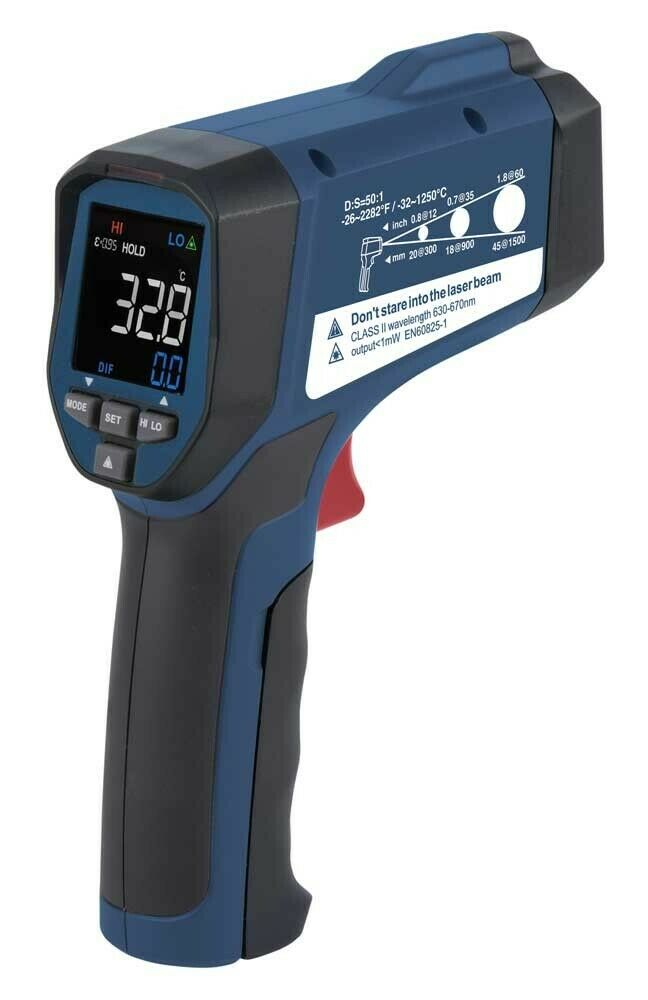

REED Instruments R2330 Infrared (IR) Thermometer 50:1, 2282°F (1250°C)

This infrared thermometer features a 50:1 distance to spot ratio that allows users to accurately measure smaller areas from a greater distance. The R2330 has the ability to track maximum, minimum, average and differential readings and includes a bright color display for ease of use in both sunlight and dimly lit environments. Tri-color LEDs quickly indicate when temperatures are within set parameters (green), above (red) or below (blue).

Features

  • Built-in laser pointer identifies target area
  • User selectable °F or °C
  • 50:1 Distance to Spot size ratio
  • Bright color display (EBTN)
  • Digitally adjustable emissivity
  • Max, Min, Average and Differential readings
  • Audible (beep) and visual (tri-color LED) user adjustable alarms
  • Internal memory stores up to 5 pre-set high & low alarms and 5emissivity settings
  • Trigger lock and tripod mount for continuous monitoring
  • Low battery indication and auto shut off

Included
  • Infrared Thermometer
  • Carrying Case
  • Battery
Specifications
Temperature Range-26 to 2282°F (-32 to 1250°C)
AccuracyBasic: ±1.8% of reading or 3.6°F (1.8°C)
Detailed: ≥0°C: ±1.8°C or ±1.8% of reading,
whichever is greater
<0°C: ±(1.8°C+0.1°C/°C)
≥32°F: ±3.6°F or ±1.8% of reading,
whichever is greater, <32°F: ±(3.6°F+0.1°F/°F)
Resolution0.1°F (0.1°C)
Optical Resolution (D:S)50:1
Laser Optimization Distance5.2' (1.6m)
Repeatability0.8°C or 0.8%, whichever is greater
(1.8°F or 0.8%, whichever is greater)
Dual LaserYes
Spectral Response8 to 14μm
Emissivity0.1 to 1.0 (Adjustable)
Response Time250ms
Backlit DisplayYes (Color EBTN)
Display HoldYes
High/Low AlarmsYes (audible and visual)
Alarm IndicatorsLED (High: Red, Low: Blue)
Max/MinYes
Average and DifferentialYes
F/C SwitchableYes
Trigger LockYes
Internal MemoryYes
Tripod MountableYes
Laser ClassClass II
Low Battery IndicatorYes
Power Supply9V Battery
Battery LifeApprox. 10 hours (with continuous use, backlight on)
Product CertificationsCE, RoHS
Operating Temperature32 to 122°F (0 to 50°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Operating Humidity Range10 to 90%
Maximum Operating Altitude6561' (2000m)
Maximum Storage Altitude39370' (12000m)
Dimensions7 x 4.98 x 2" (179 x 126.5 x 53mm)
Weight10.95oz (310g)
