Optimized for 36V Trolling Motors – Up to 120lbs of Thrust
Built specifically for 36V trolling motors with 100-120 lbs of thrust, the Redodo 36V Lithium Trolling Motor Battery delivers a consistent 50A discharge, a boost of 60A for up to 30 minutes, and a peak surge of 250A to tackle even the most demanding conditions.
Upgrade to Lighter, Stronger Power
Weighing just 32.8 lbs, our 36V Trolling Motor Battery is 63% lighter than using three 12V lead-acid batteries, while delivering twice the power. Its compact Group 31 size makes it an easy, drop-in replacement for traditional lead-acid batteries.
Low-Temperature Cutoff Protection
With a built-in 50A BMS, this 36V 50Ah lithium battery is protected from overcharging, over-discharging, short circuits, and overheating. In cold conditions, it stops charging below 32°F and kicks back on above 41°F. It also stops discharging if it gets colder than -4°F, so you can safely use it in freezing weather.

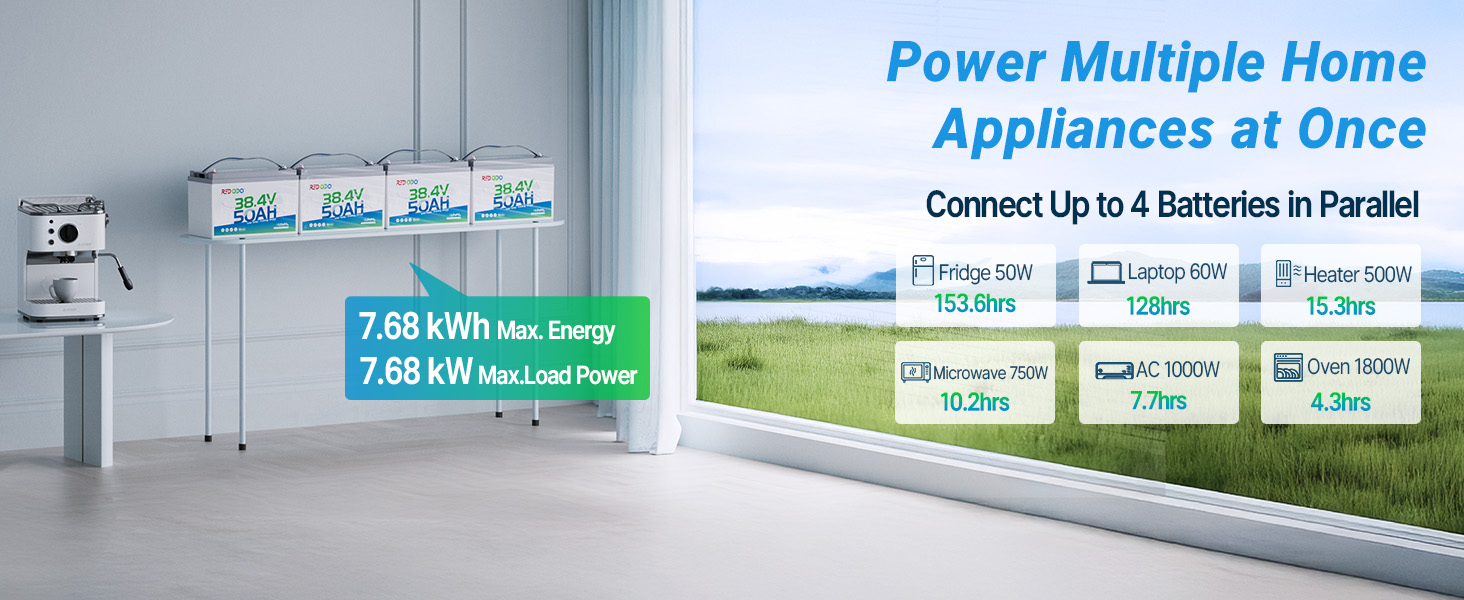

Power Your Setup, Your Way
You can connect up to 4 of these batteries in parallel, giving you a powerful 36V (38.4V) 200Ah setup with a total capacity of 7.68 kWh. It’s perfect for powering trolling motors, camping gear, home energy storage, or even solar systems.

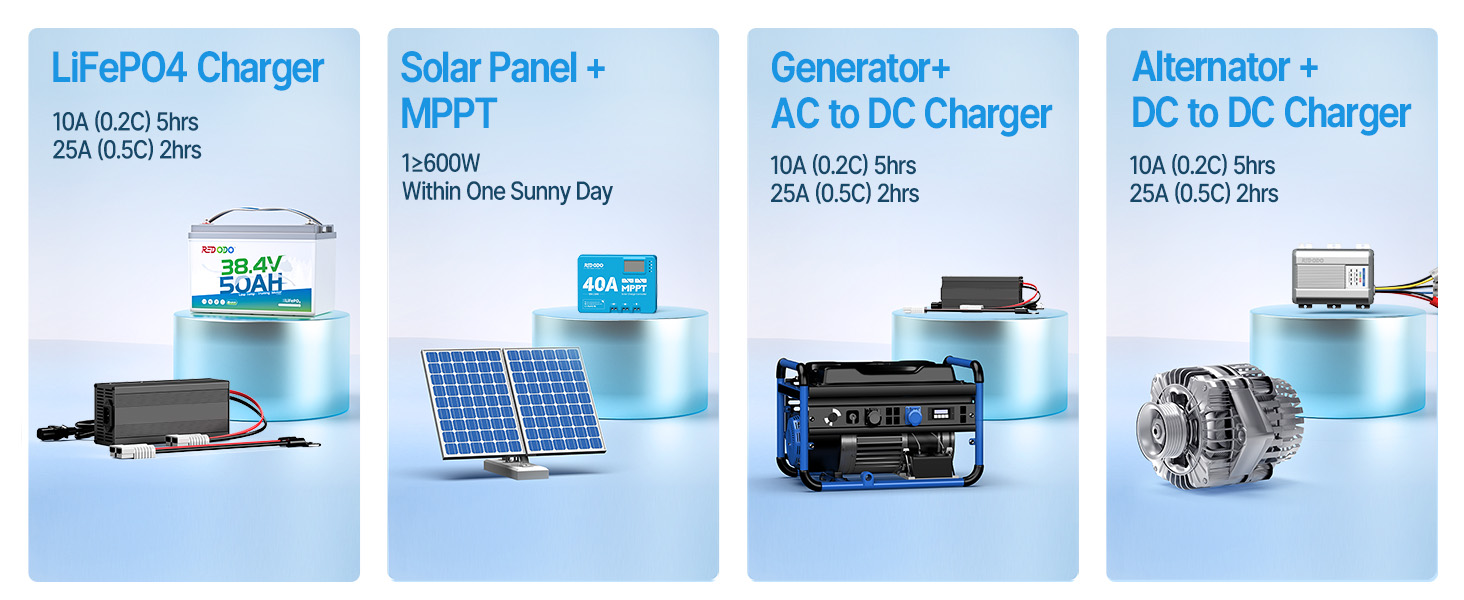

Quick & Easy Recharging
SPECS
Cell Type：LiFePO4 Prismatic
Warranty：5 years
Cycle Life：4000 times (25°C,0.2C,100% DOD)
Nominal Voltage：38.4V
Rated Capacity：50Ah
Energy：1920Wh
Max. Expansion (Parallel & Series)：4P1S
Internal Resistance：<40mΩ
Certifications：UL1973，CE, FCC, RoHS, UN38.3
BMS
BMS：50A
Max. Continuous Output Power：1920W
Max. Continuous Charge Current：50A
Max. Continuous Discharge Current：50A , 60A@30mins
Surge Discharge Current：250A@1 second
CHARGE
Charge Method：CC/CV
Charge Voltage：43.2V±0.6V
Recommend Charge Current：10A(0.2C)
TEMPERATURE
Charge Temperature：0°C to 50°C / 32°F to 122°F
Discharge Temperature：-20°C to 60°C / -4°F to 140°F
Storage Temperature：-10°C to 50°C / 14°F to 122°F
Low-Temperature Protection：Yes
Low-Temperature Charging Protection Auto Recovery：
5°C/41°F(Battery Temperature)
OTHERS
Terminals：M8
Weight Approx.：32.8lbs
Size：L13*W6.77*H8.5 inch
Housing Material：ABS
Protection Class：IP65
