Feature:
- 2-channel video input: AV1 is connected to VCD/DVD, and AV2 is connected to the rear view camera (the reverse image can be automatically displayed when parking)
- Function: The display screen is foldable and convenient to carry; Low power consumption; Easy to install; It is simple in design, small in size, and will not attract any attention
- TV system: PAL/NTSC automatic switching; Support NTSC/PAL video system
- Housing material: The car display screen is made of high-quality and durable ABS. It helps to avoid accidents and accidents absorption well
- Working environment: The working temperature is 0 to 80 ℃, and the storage temperature is - 10 to 80 ℃
Product description
- Color: black

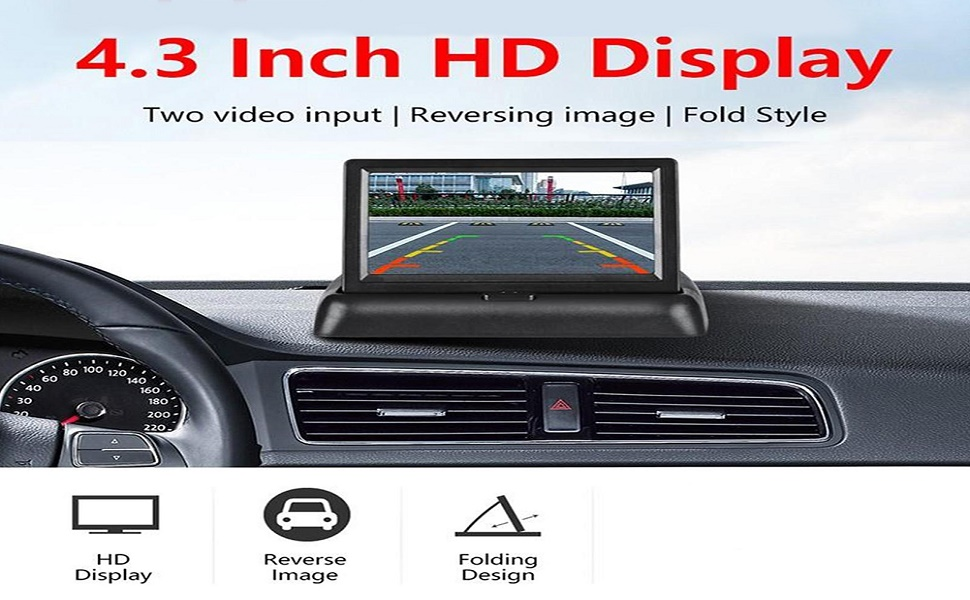

- Screen size: 4.3" TFT (16:9)
- Resolution: 480(H) x RGB x 272(V)
- Dimension: Approx. 15.5x13.5x5cm
- Power: 3W (MAX.)
- Working voltage: DC 9-24V
- Storage temperature: -30°C ~ +70°C
- Operating temperature: -10°C ~ +50°C
- Field of view: 96x54mm
- Video frenquency: PAL/NYSC (Automatic throw-over)
- 2 AV cameras as front, rear and side mirrors
- 2-channel video input: V1/V2 auto switching (V1 display first)
- Display black screen on no signal
- Note: Please Connect the Rearview camera's power cable with Reversing lamp,and connect camera's video cable with LCD's yellow cable(Video V1),then the LCD will show Camera's video when you are reversing, and stop playing movie(auto switching)
Product Includes
-
1 x 4.3in Digital TFT LCD Monitor1 x Power Cable for Monitor1 x Video Cable1 x Power Cable for Camera1 x User Manual
