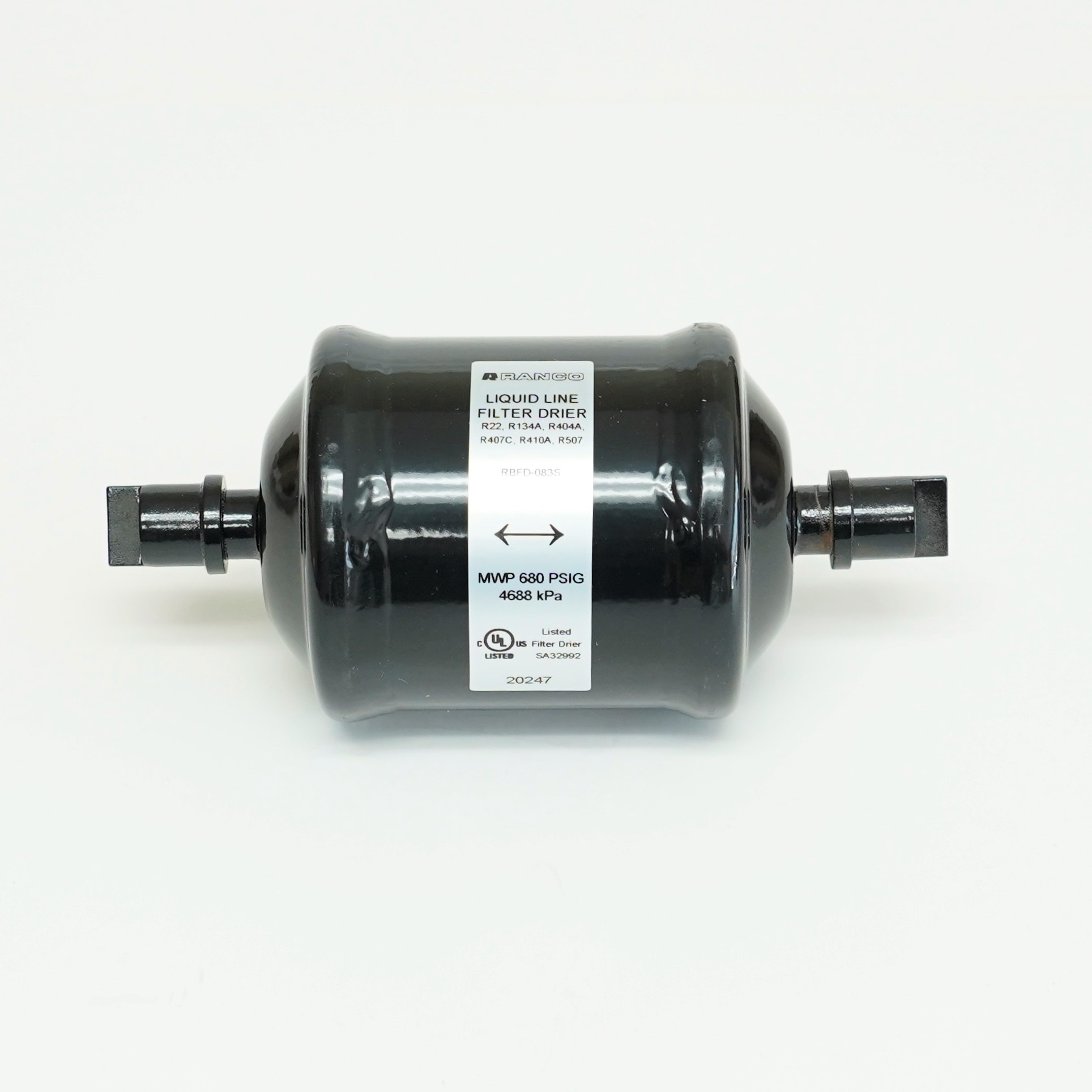

Robertshaw Ranco part number RBFD-083S

Bi-Flow Heat Pump Filter Drier - 8 cu in Capacity 3/8 in ODF Sweat Fittings

Ranco Filter Driers are designed to stop contaminants and remove moisture from refrigerants to protect those sensitive system parts. The driers are compatible with R22, R134A, R404A, R407C, R410A, R502, R507 and R290 refrigerants, rated for 1-50 Tons. A filter pad removes particles down to an industry leading 20 micro-m, and top quality, desiccant induces and sustains a state of dryness.

Features and Benefits

• Premium filter materials allow for 40% more filtration, ensuring greater reliability
• Top-quality desiccant for excellent absorption and long-lasting durability
• Solder or mechanical fittings facilitate ease of installation
• Mesh/fiberglass filter pad designed to prevent contaminants passing into or being released back into the system, ensuring superior protection. Removes particles down to 20 micro-m
• Leak free welds


Specifications

• Capacity: 8 cubic inches
• Operating Pressure: 0 to 680 PSI (0 to 47 bar/4.7 MPa)
• Temperature Range: -40 to 158 degrees F (-40 to 70 C)
• Compatible Fluids: R22, R134A, R404A, R407C, R410A, R502, R507, R290
• Fitting Type: ODF
• Fitting Size: 3/8 in
• Desiccant Type: Solid core (80% desiccant, 20% activated alumina)


Dimensions

• Total Length: 5.04 in
• Length Between Fittings: 3.78 in
• Outer Diameter: 52.5 in
• Canister Length: 3.54 in


Applications

• Permanent liquid line
• Removable suction line
• Commercial


Replacement for Emerson BFK-083S, Parker Hannifin BF083S, Danfoss DCB 083S and Sanhua FDBI-083-S
