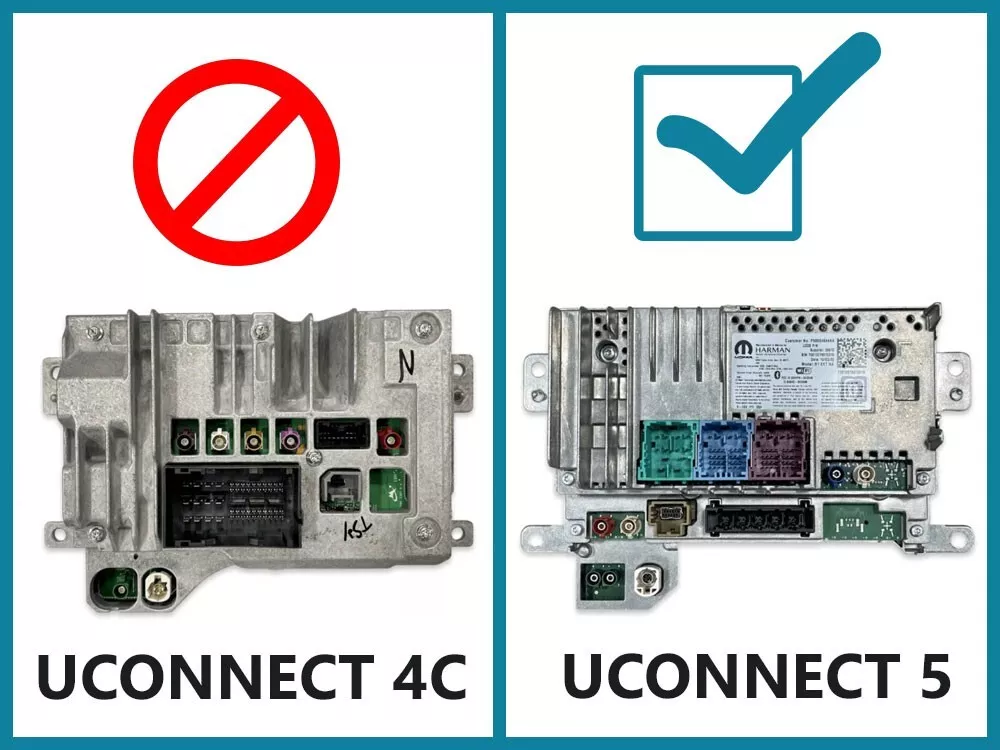

2018, 2019, 2020, 2021, 2022, 2023 RAM, UCONNECT 5 RADIO / DISPLAY INTEGRATION AUTOMATIC PROGRAMMER + SECURITY GETAWAY BYPASS CABLE.

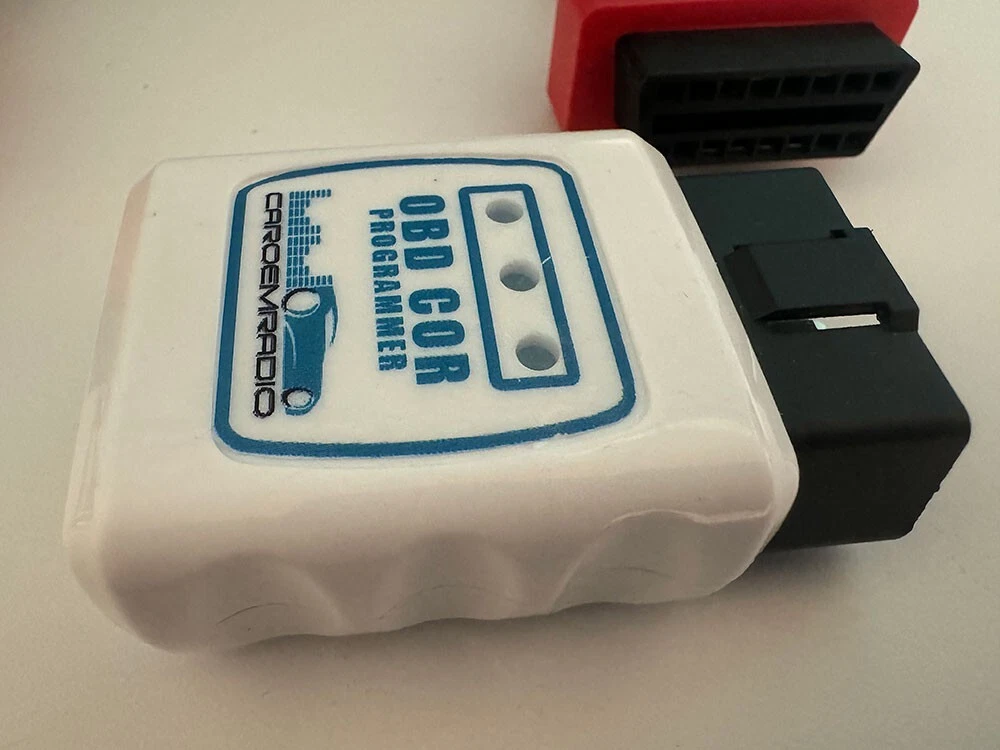

This is not an OBD scanner interface, this device does not require any software to operate, this device automatically programs the BCM when you connect it to the vehicle's OBD 2 port.
Once the programmer is used on a vehicle, it will become locked to that vehicle's VIN and will not work on any other vehicle.
INSTALLATION

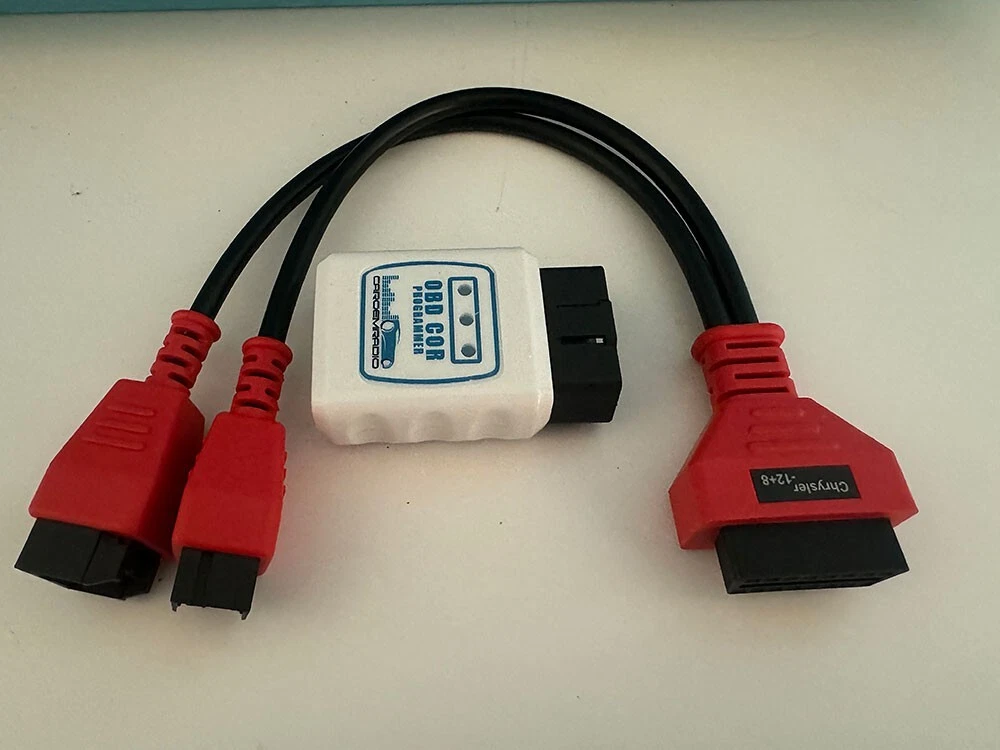

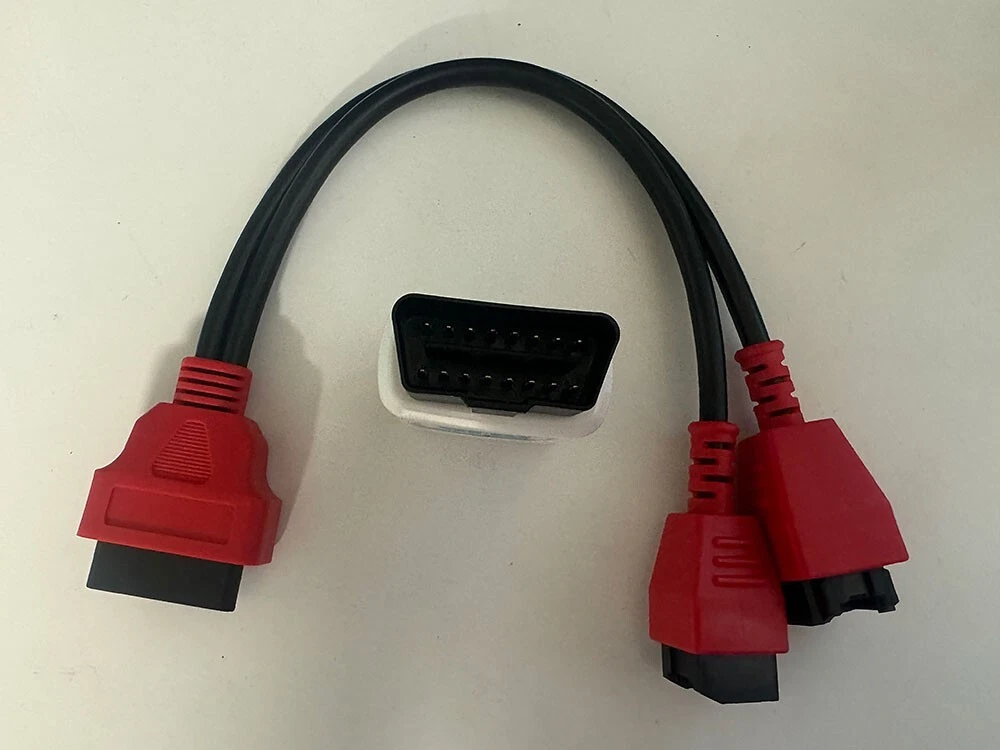

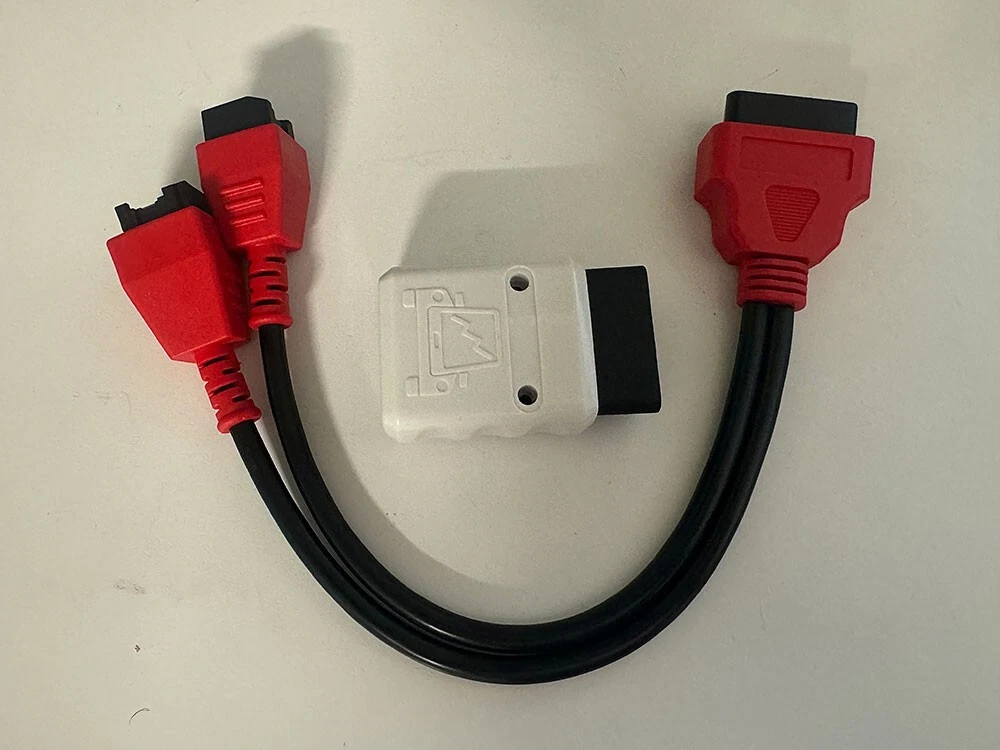

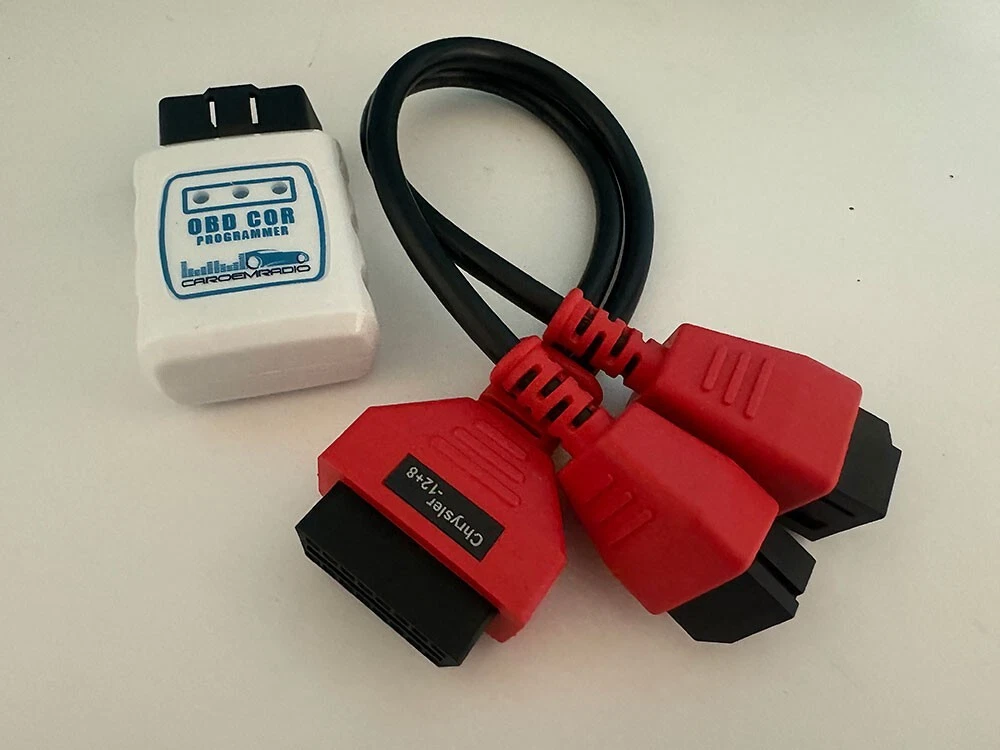

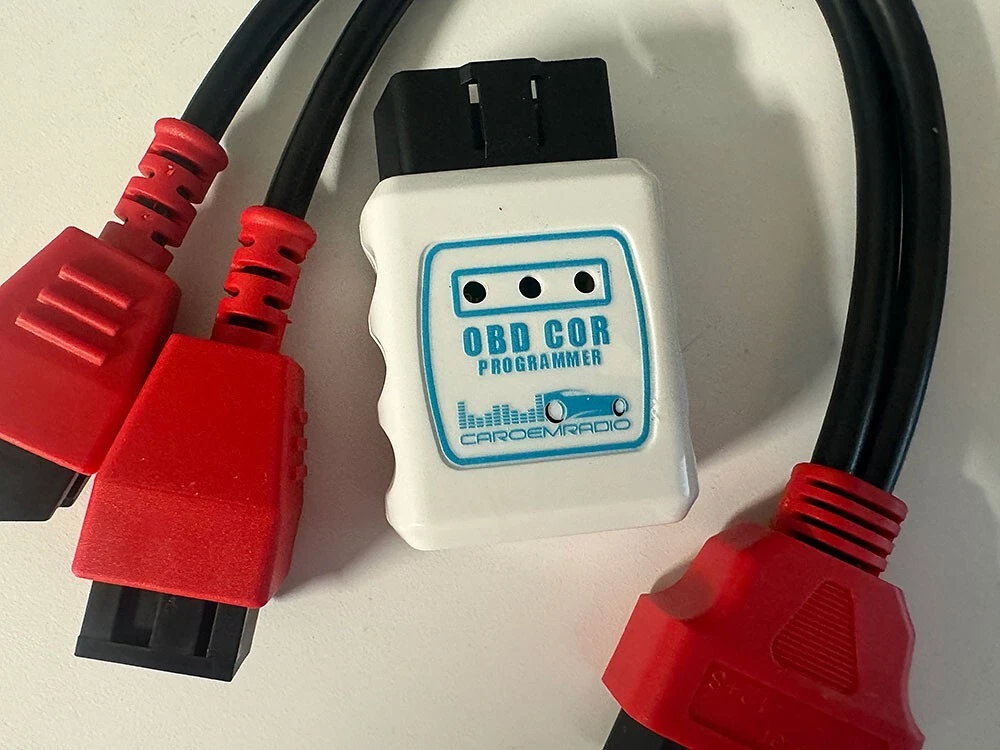

For 2018+ model year vehicles, you will need to use the security bypass cable.

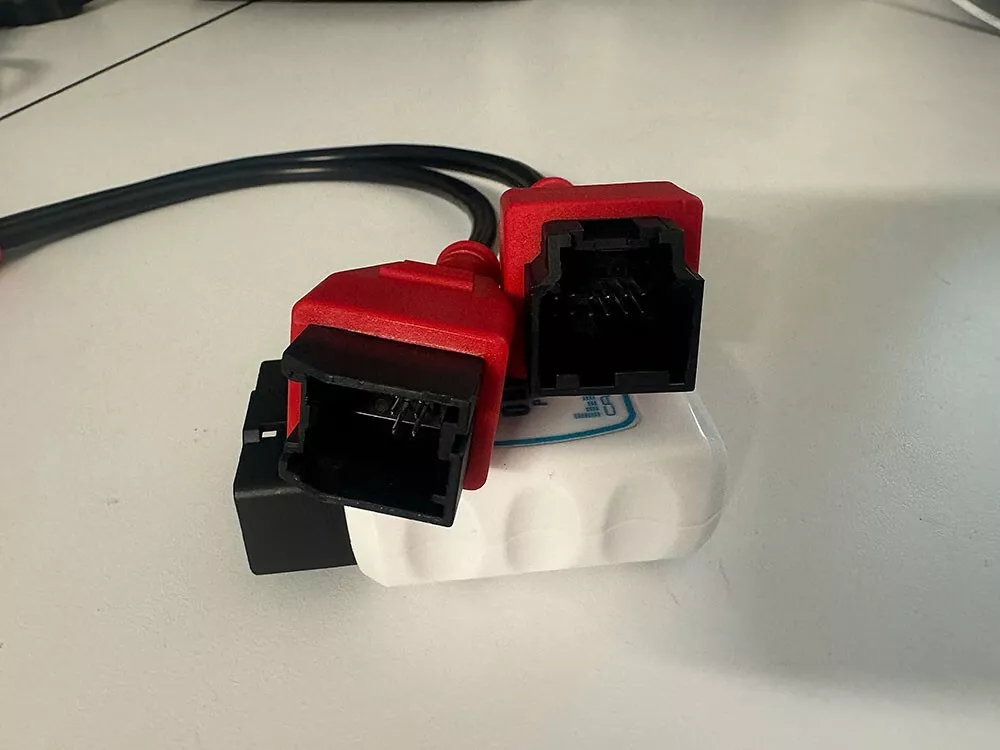

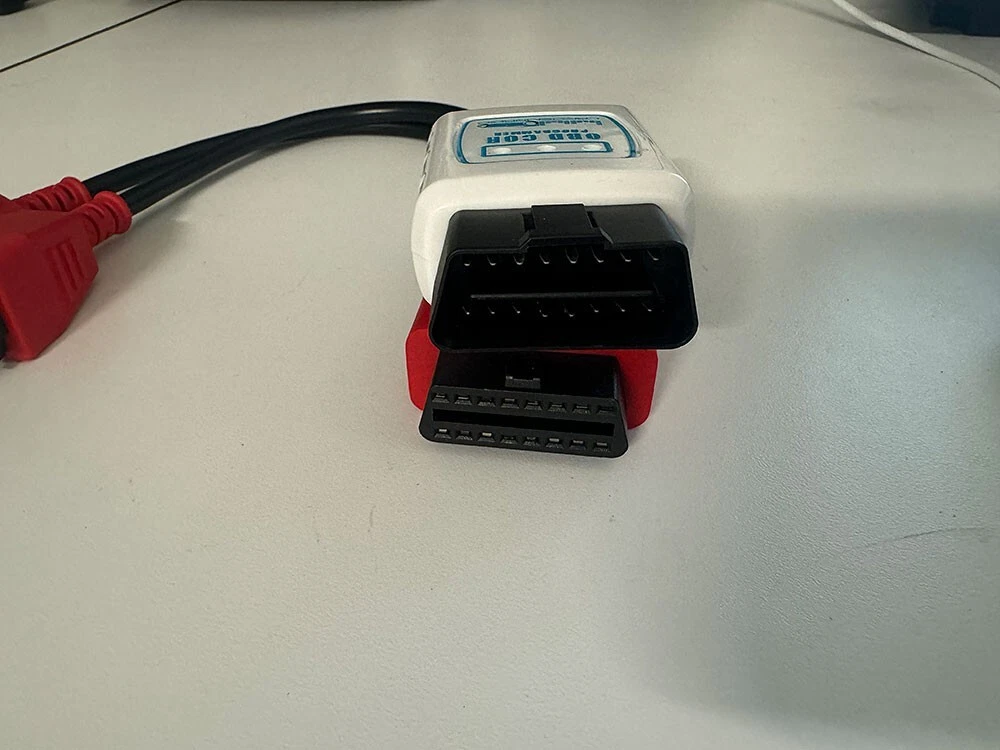

Disconnect the two plugs from the security getaway module and connect them to the security bypass cable, Turn ignition key to the ‘RUN’ position, wait for 1 minute and connect the programmer to the OBD 2 port of the security bypass cable.

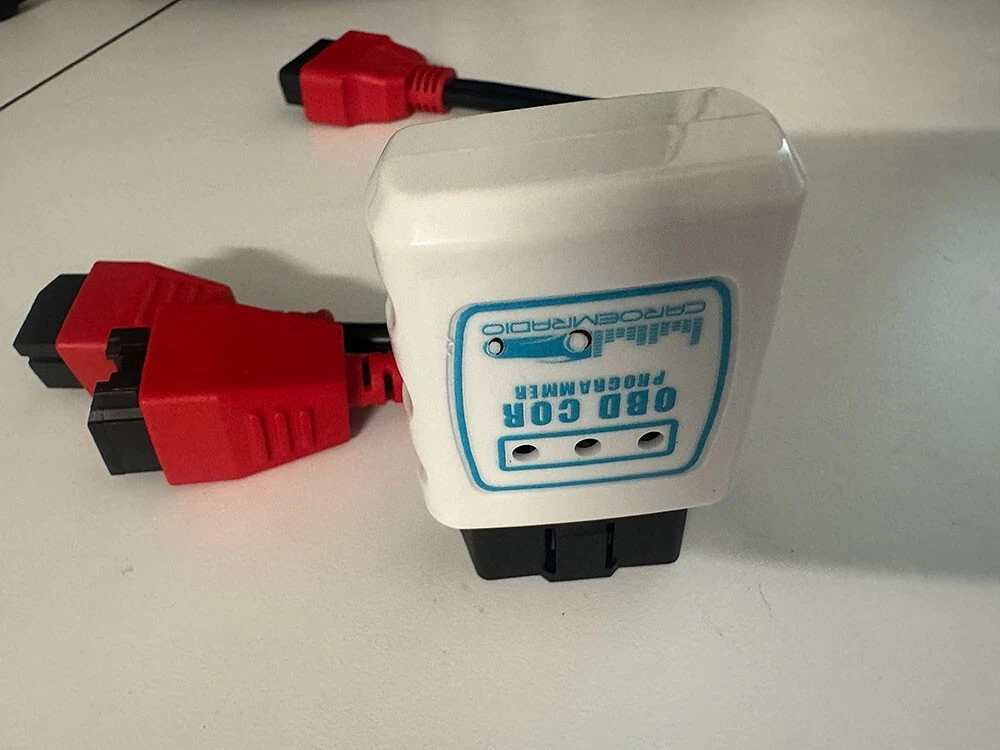

The GREEN indicator will light when programming is complete. Solid red light means programming is in progress, yellow light means VIN does not match.
Once the green light is on, wait for 20 seconds and turn off the car. Disconnect the security bypass cable, reconnect the security gateway plugs. Leave the car off for about 15 minutes, and now your screen has to be working. If not, just disconnect the negative (GROUND) connector of the battery for 20 minutes.
Once the programmer is used on a vehicle, it will become locked to that vehicle's VIN and will not work on any other vehicle.
INSTALLATION
For 2018+ model year vehicles, you will need to use the security bypass cable.
Disconnect the two plugs from the security getaway module and connect them to the security bypass cable, Turn ignition key to the ‘RUN’ position, wait for 1 minute and connect the programmer to the OBD 2 port of the security bypass cable.
Once the green light is on, wait for 20 seconds and turn off the car. Disconnect the security bypass cable, reconnect the security gateway plugs. Leave the car off for about 15 minutes, and now your screen has to be working. If not, just disconnect the negative (GROUND) connector of the battery for 20 minutes.
Specifications
- 12" Touchscreen
Vehicle Compatibility
- 18-22 RAM.
