Radiator + AC Condenser for 2010-2015 Chevy Equinox GMC Terrain 2.4L 3.0L 3.6L

Slide Slide Slide Slide Slide Slide Slide Slide Slide
$121.99
Manufacturer Warranty
1 Year
Type
Radiator
Material
Aluminum
Features
100% Leak Tested, 1 Row, Crossflow Radiator
Placement on Vehicle
Engine Compartment
Manufacturer Part Number
BEYSHmG6br
OE/OEM Part Number
7-3789, 73789, 13103
Outlet Diameter
1-5/16 In.
Inlet Diameter
1-5/16 In.
Item Height
16-9/16 In.
Item Length
26 In.
Item Width
1 In. / 26mm（Core Thickness)
Interchange Part Number
CU13103, DPI 13103,GM3010529, 19130404, 25952758, 13139, 13140
Superseded Part Number
7-3789, 3789, 20839794, GM3030284, GM3030303 679-00347
Brand
LEDKINGDOMUS
Transmission Oil Cooler
Yes
Engine Oil Cooler
NO
UPC
197839077997
condition
New
Document


1. The radiator cap that has not passed the test can’t release the pressure when it reaches the pressure value.
2. The damaged thermostat is unable to carry out a large cycle, resulting in a continuous increase in the radiator pressure.
3. The radiator fan does not turn, resulting in high temperature in the water tank.
4. Drain the air from the cooling system. Refer to the user manual or repair manual.
5. Please refer to owner's manual to add coolant.
6. Do not open the hood until the steam has subsided. The engine compartment may be very hot, causing serious injuries such as burns.
7. Please stop the vehicle immediately, when “ENGINE OVERHEAT/High Temperature” shows on the dashboard or steam comes out from under the hood.
8. Keep hands and clothing (especially a tie, a scarf) away from the fans and belts. Failure to do so may cause the hands or clothing to be caught, resulting in serious injuries.
9. Do not loosen the radiator cap while the engine and radiator are hot. Serious injuries, such as burns, may result from hot coolant and steam released under pressure.

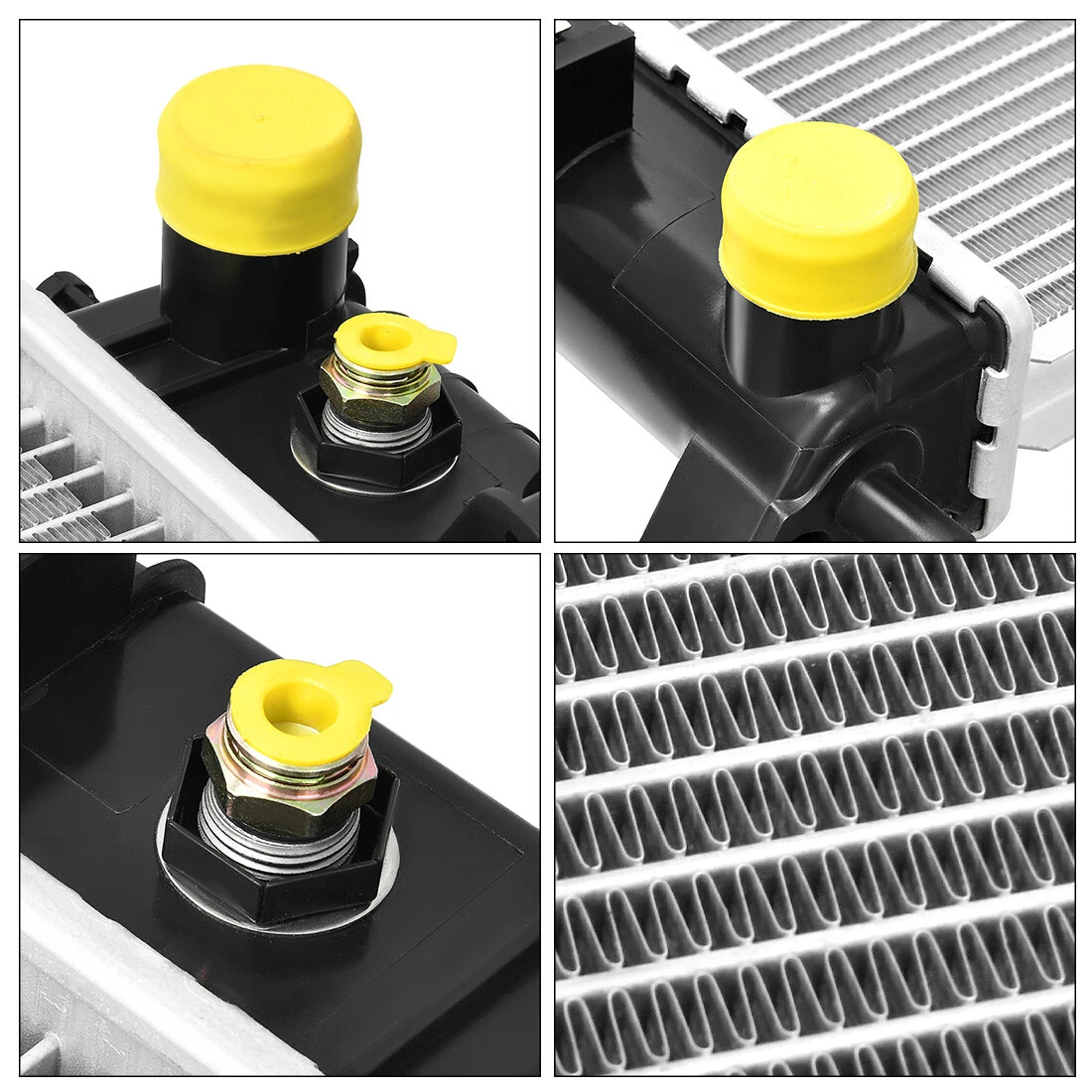

FEATURES:

1. The Core was made of high quality Aluminum.  Effective Heat Dissipation.

2. Good sealing.  All of the new radiators will be inspected before selling (Including 100% leaking test).

3. Radiator is really easy to get damaged during delivery. We have upgraded our package design to avoid this kind of problem.


DETAILS:

Radiator Core Material: Aluminum
Radiator Tank Material: Plastic

Radiator Core Dimension: 26 In. x 16-9/16 In.

Radiator Core Thickness: 1 In.

Radiator Inlet Diameter: 1-5/16 In.
Radiator Outlet Diameter: 1-5/16 In.
Row: 1
Radiator Oil Cooler: Yes
Radiator Cap: NO

Interchange Part Number: CU13103, DPI 13103,GM3010529, 19130404, 25952758, 13139, 13140, 7-3789, 3789, 20839794, GM3030284, GM3030303, 679-00347, SBC3789, SZ3030123, 25952815

Color:  Black and Silver



FITMENT:

For 2010 - 2015 Chevrolet Equinox
For 2010 - 2015 GMC Terrain



PACKAGE:

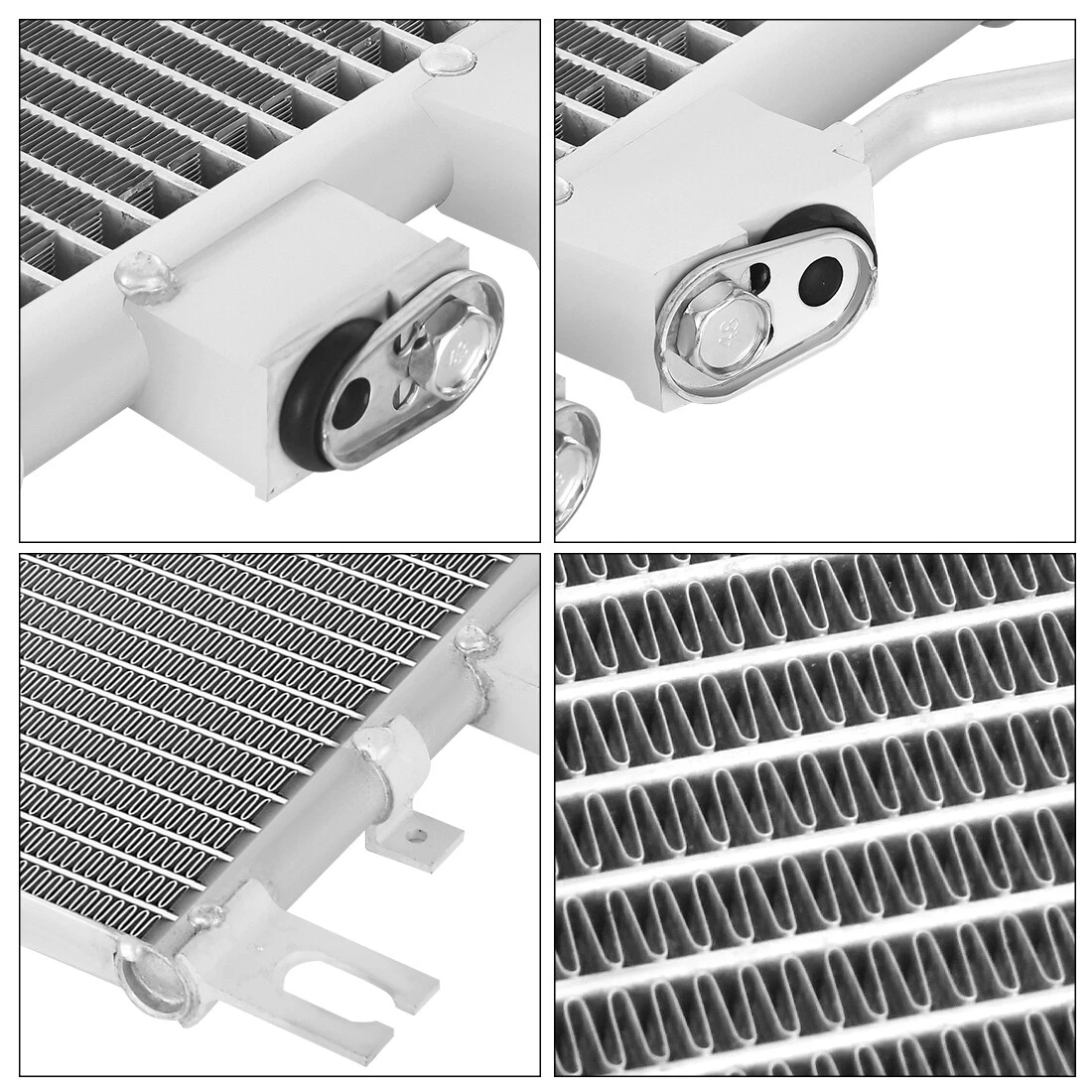

1x AC Condenser W/ Receiver Drier

1x Radiator

(The 2 packages may arrive at different times, please be patient)
