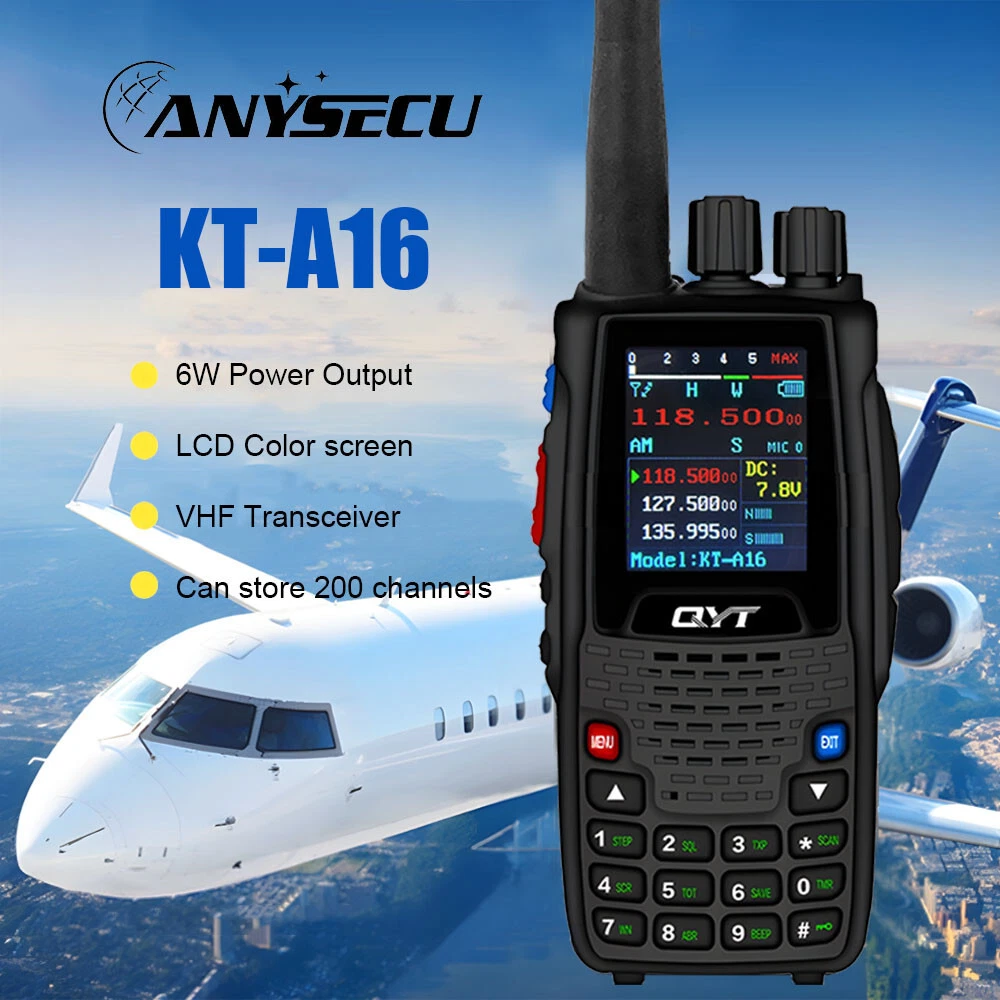

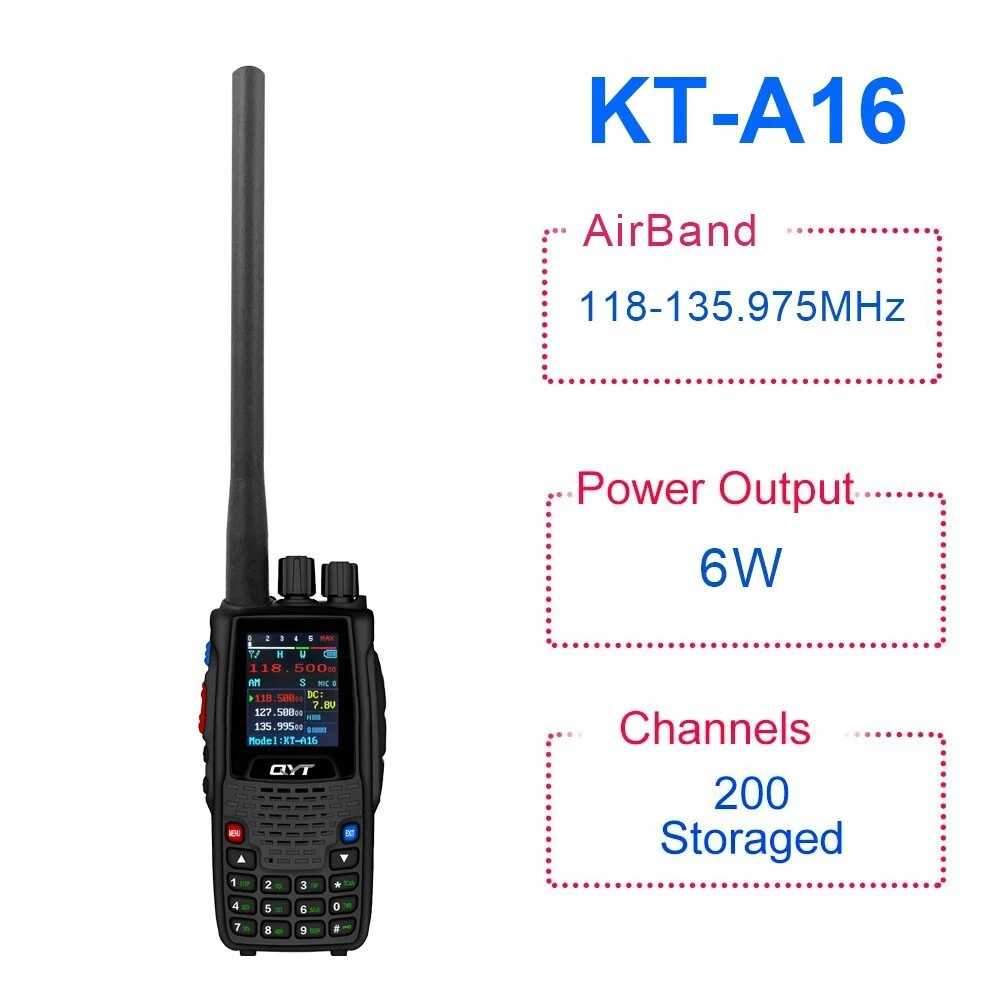

QYT KT-A16 Air Band Radio 6W 10 NOAA Weather Forecast

Channels Handheld Transmit

Features

Superheterodyne Circuit

6W output Power

1.77”TFF-LCD color Screen

200 Memory Channels

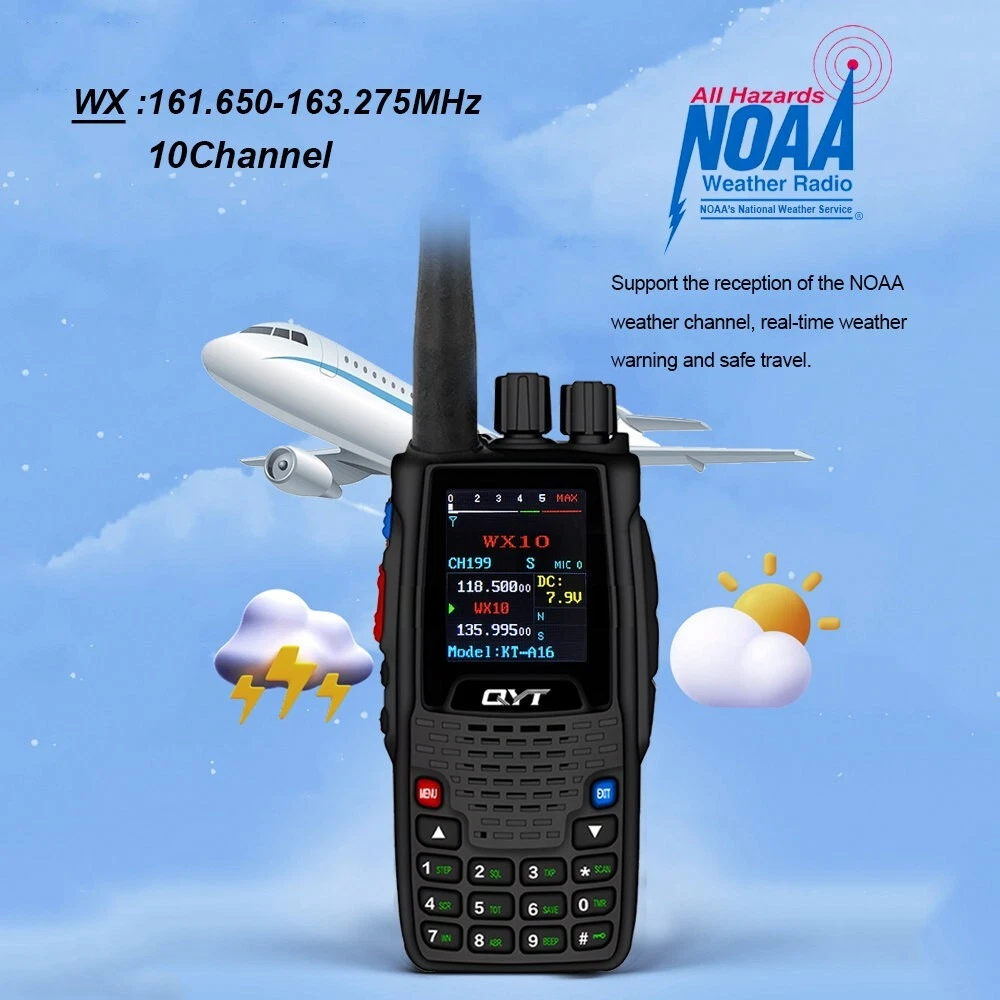

10 NOAA Weather forecast Channels

Channel Spacing 25K / 8.33K for AM mode

VOX

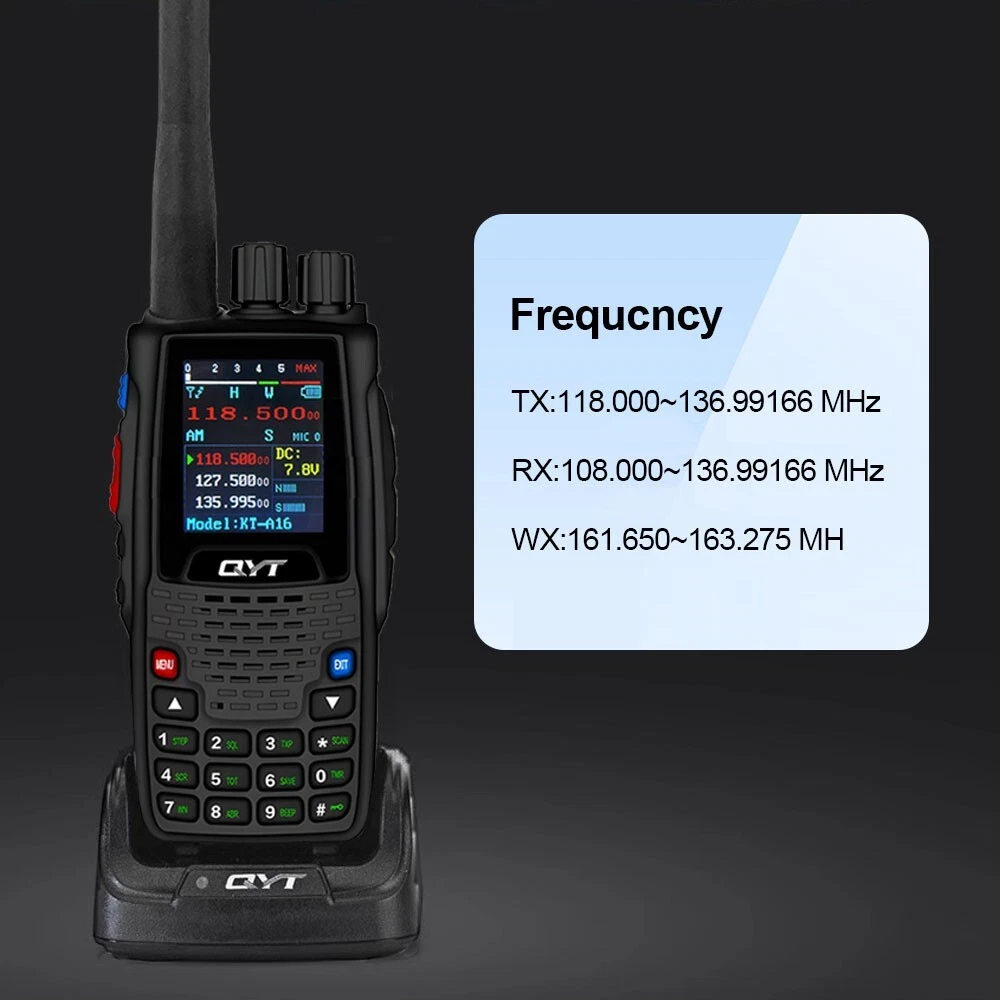

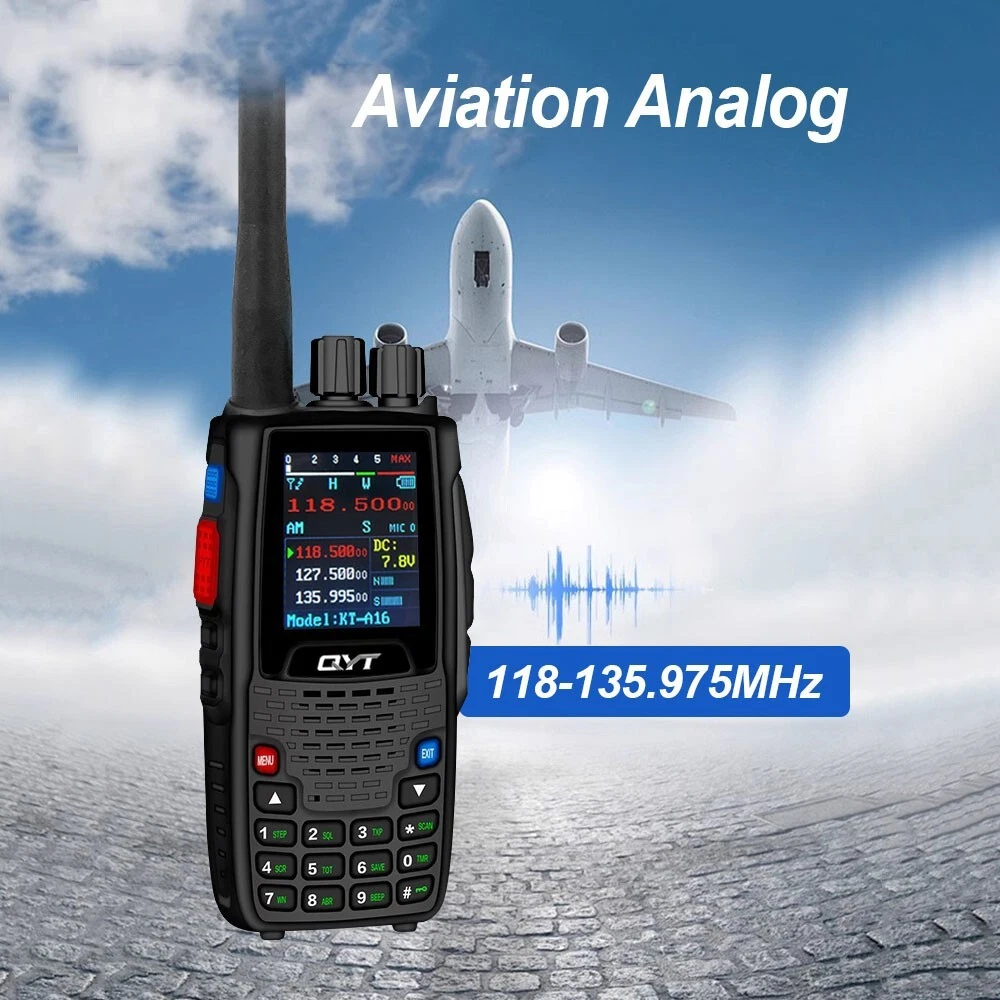

Air Band: 118.00000-136.99975MHz for Tx, 108.00000-136.99975MHz for Rx

2.50/5.00/6.25/10.00/12.50/25.00K Frequency Step

Scanning

Time,Carrier or Search three kinds of Scanning Modes

PC programming

Squelch Level Adjustable

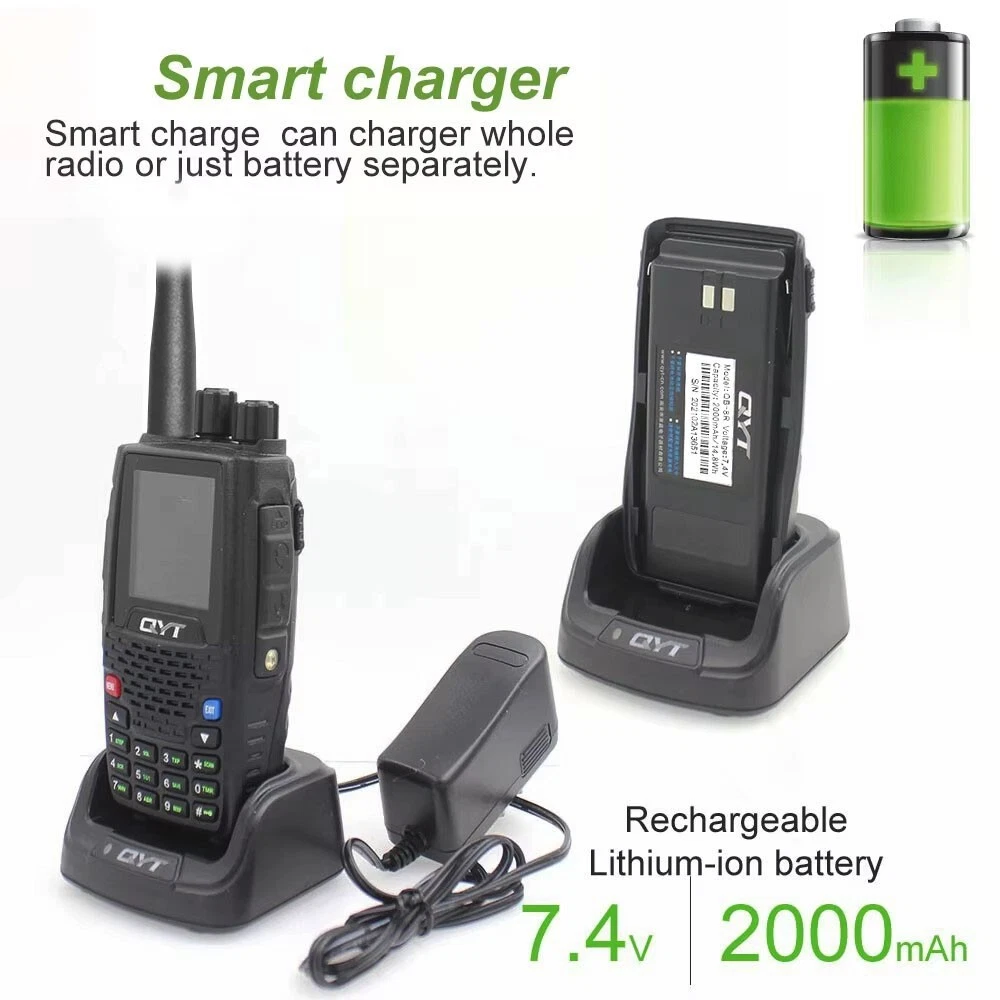

2000mAh Rechargeable Battery Pack

General
Frequency Range	TX:118.00000-136.99975MHz RX:108.00000-136.99975MHz WX:161.650-163.275MHz
Channel Spacing	25kHz
Mode	6k00A3E/5K60A3E
	16K0G3E(WX)
Number of Memory Channels	200
Antenna Impedance	50ohm
Antenna Connector	SMA-Female
Power Supply Requirement	7.2V DC
Current Drain	Less than 1.8A
Operating Temperature range	-10°c`+60°c
Dimensions	62(W)*128(H)*35(D)mm
Weight	239g with 2000mah Battery
Transmitter
Output Power	6.0W(PEP),1.8W(CW)
Modulation Limiting	70-100%
Audio harmonic distortion	Less than 10%(at 60% modulation)
Ham and Noise Ratio	More than 35dB
Spurious emissions	More than 46dB
Frequency Stability	±0.4kHz
Receiver
Receive system	Double conversion superheterodyne
Intermediate frequencies	1st46.35MHz,2nd 450kHz
Sensitivity	COM: Less than 0dBu (at 6dB S/N)
	NAV: Less than 3dBu (at 6dB S/N)
	WX: Less than -8dBu (at 12dB SINAD)
Squelch Sensitivity(Threshold)	COM/NAV: Less than 0dBu
	WX: less than -5dBu
Spurious response rejection Ratio	COM/NAV: More than 60dB
	WX:More than 30dB
