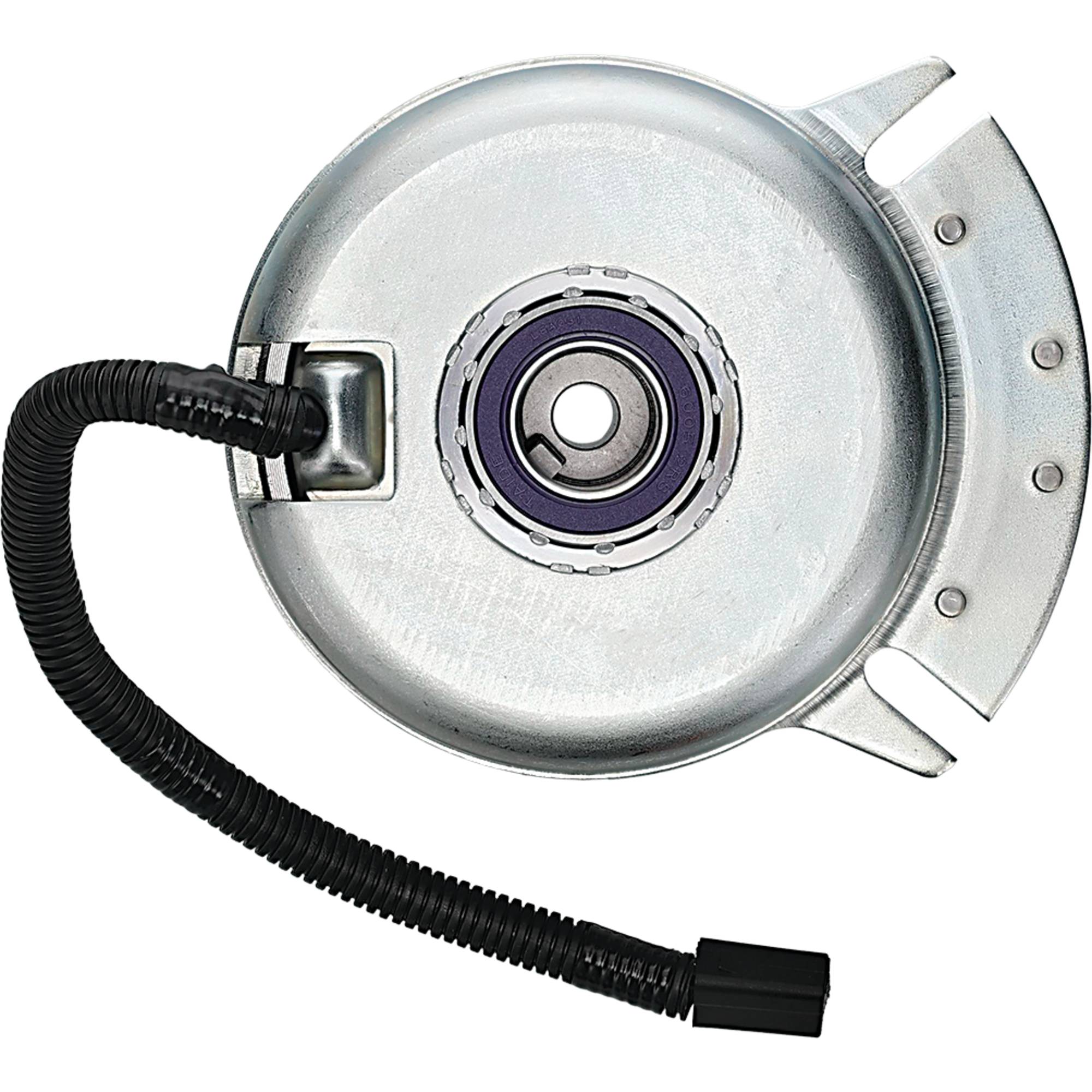

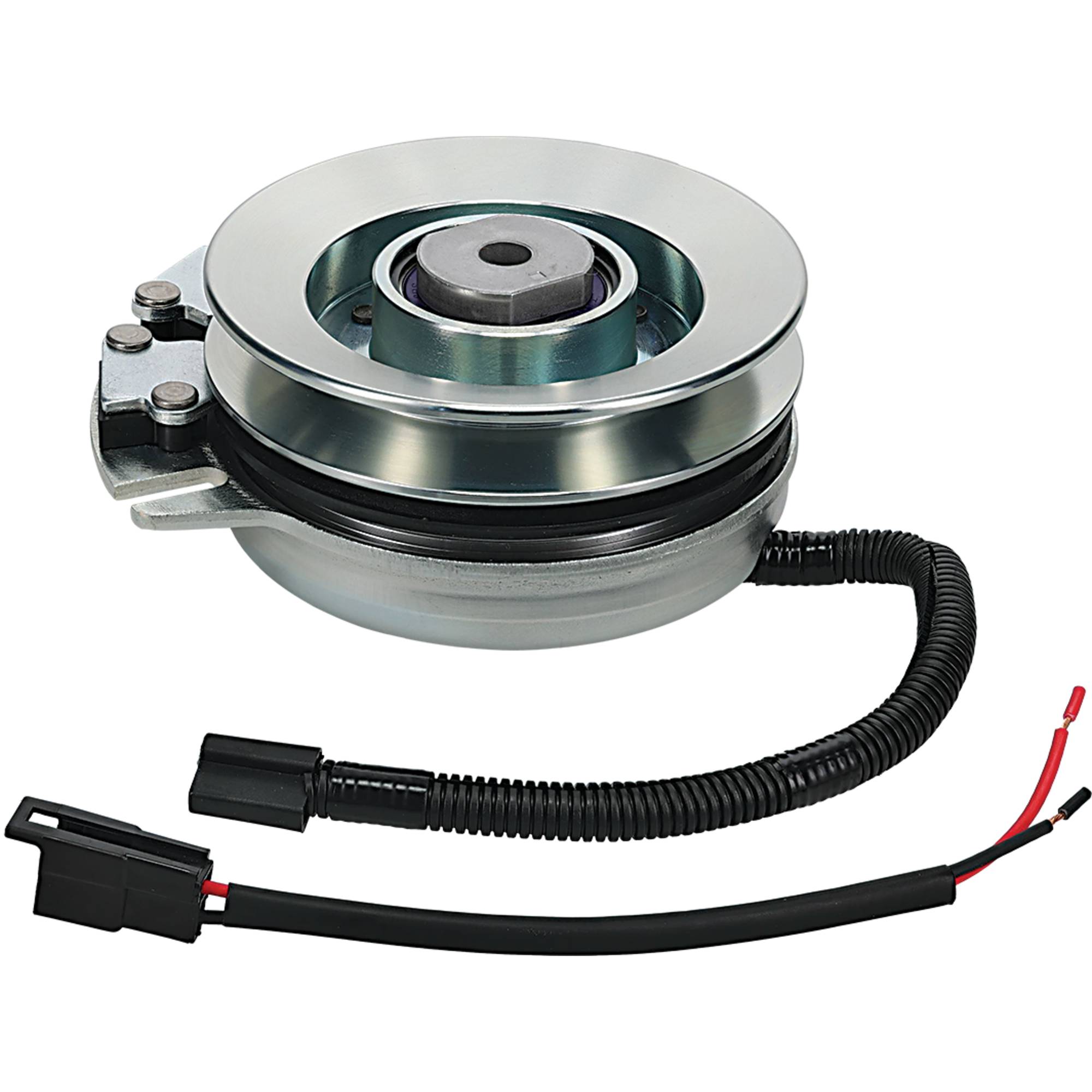

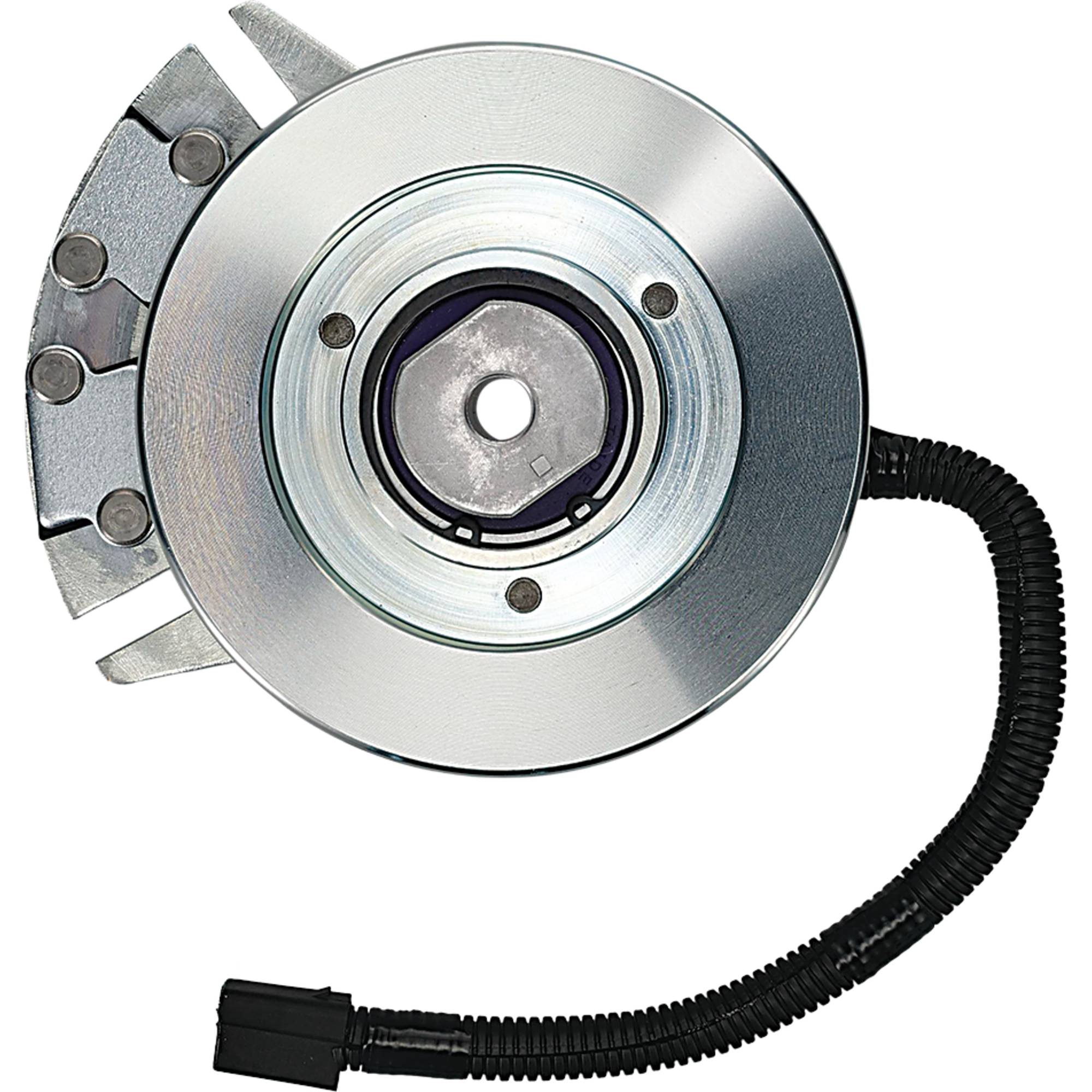

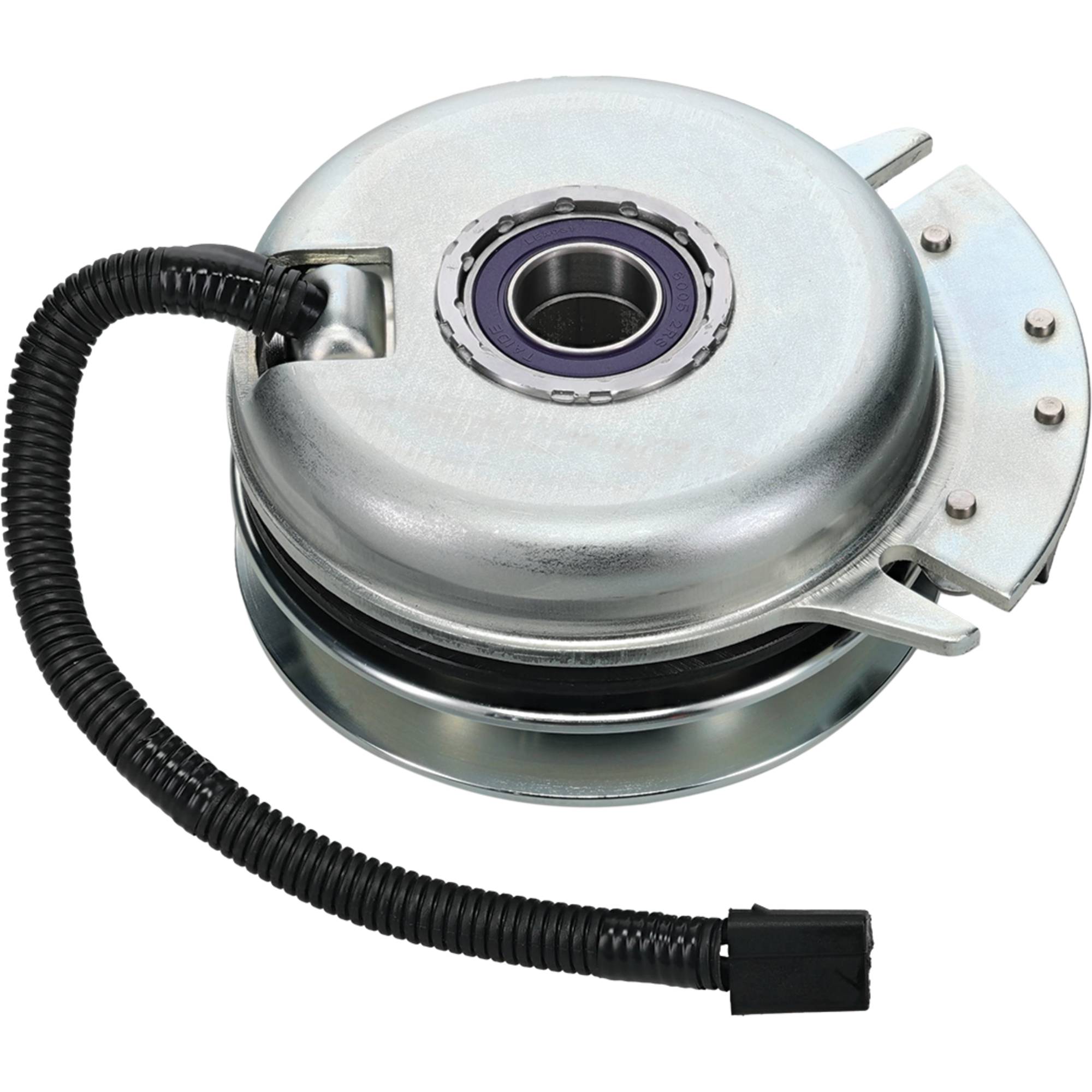

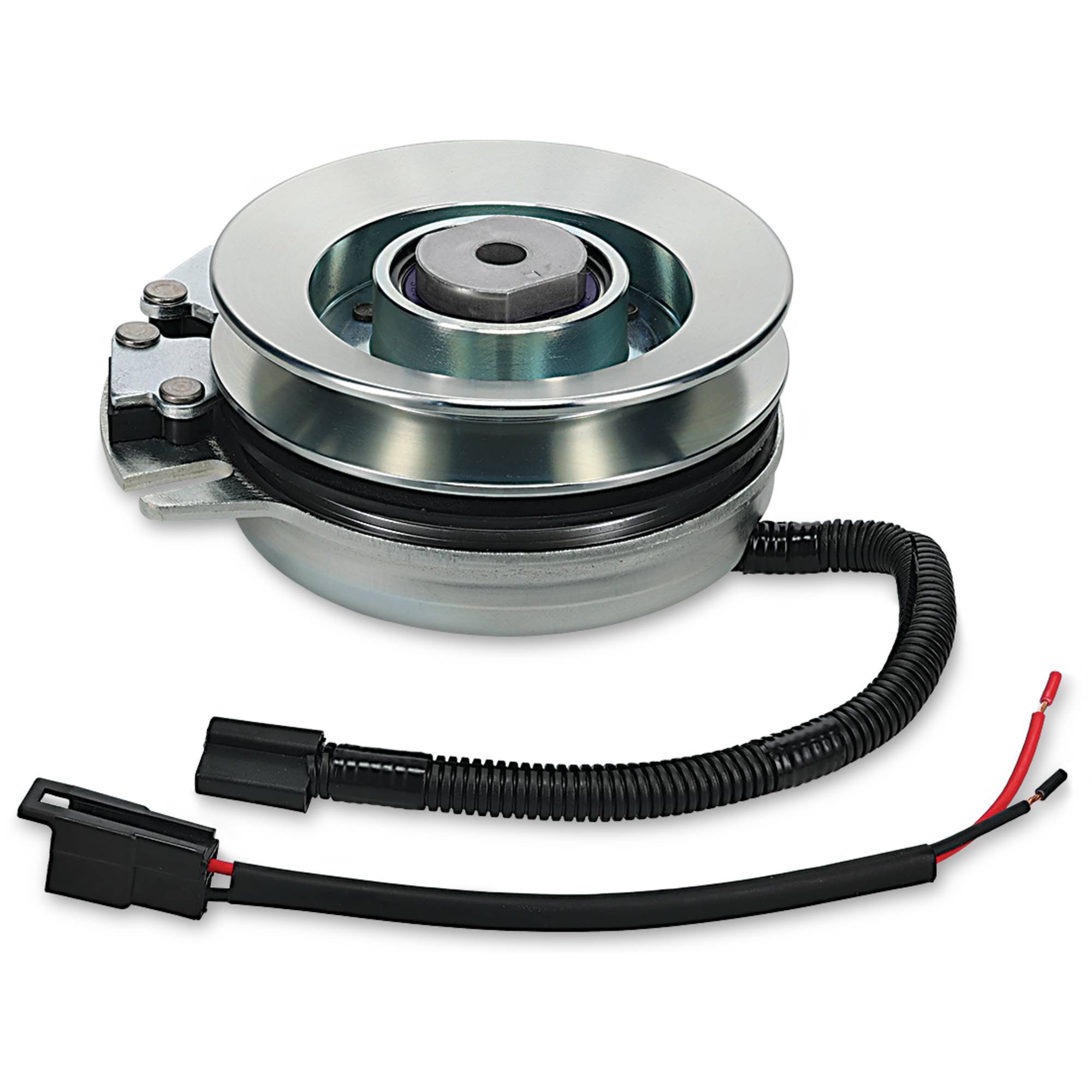

PTO Blade Clutch For MTD 1772388 Electric - Free Upgraded Bearings

$134.95
Brand
Outdoor Power Xtreme Equipment
Type
PTO Clutch
Manufacturer Part Number
X0003
Item Width
9.000
Item Length
11.000
catalogMPN
X0003
Interchange Part Number2
532160889, 1772388, 717-1459, 917-1459
Interchange Part Number3
GW-1772388, 7053740, 688EC, 7053740S
Interchange Part Number4
7053740SM, 504-01698, 104-3334
Interchange Part Number5
TR105D3462, AM119683
Internal Primary
Clutch, Transmission & PTO Components
Internal Secondary
PTO Clutch
PartType
PTO Clutch
Pulley Type

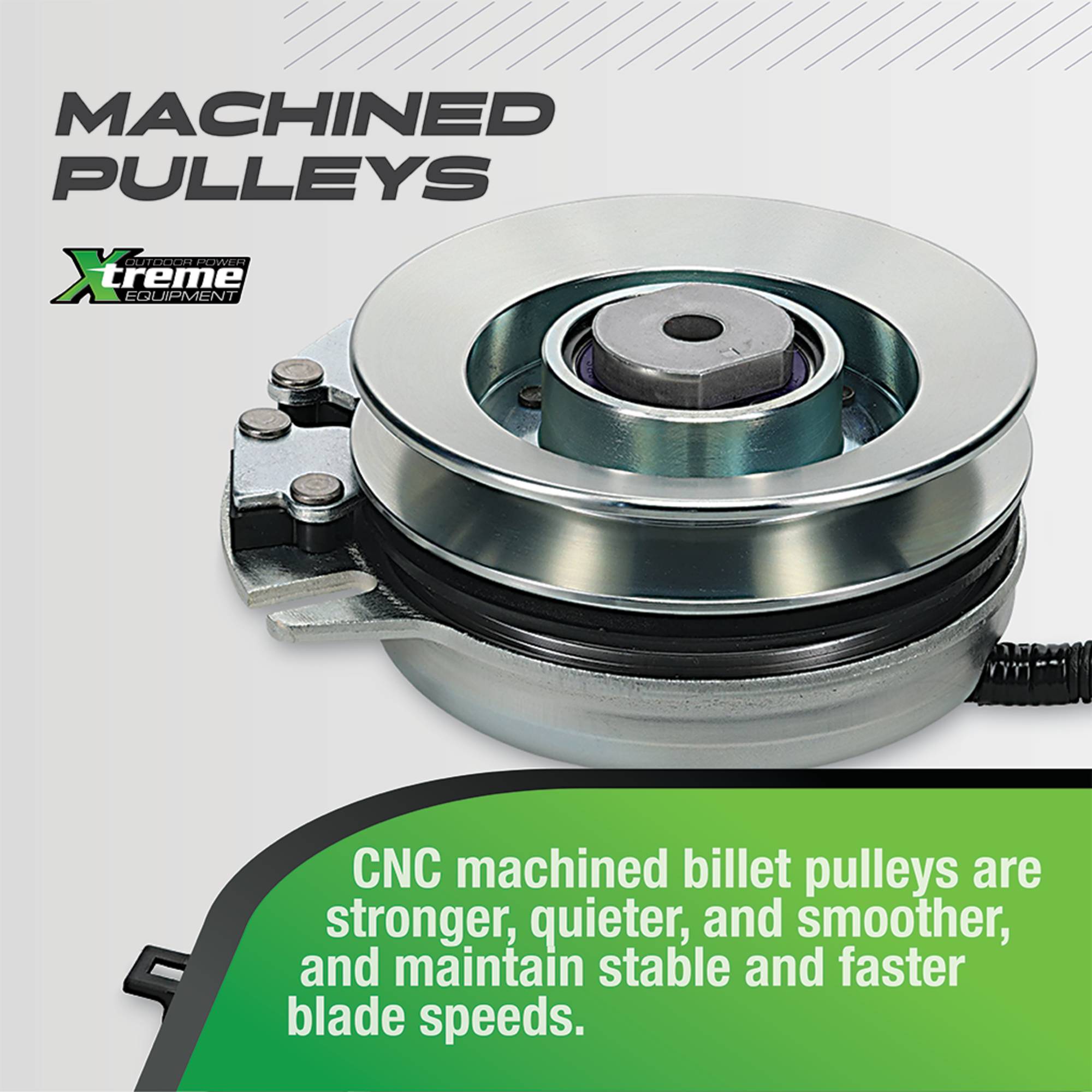

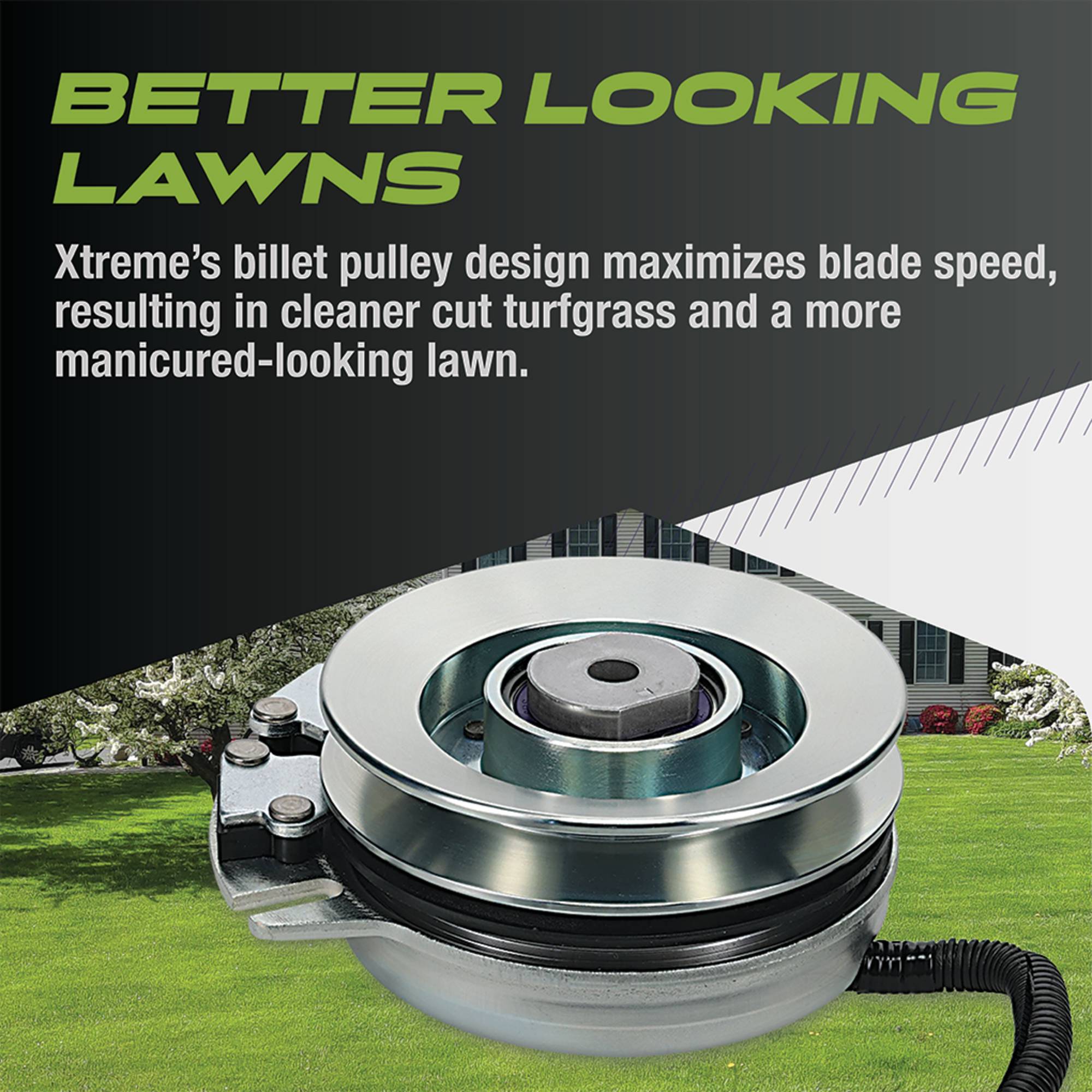

Billet Machined Pulley
Pulleys
Billet Machined Pulley
Rotation
Counter Clockwise
Unit Type
PTO Clutch
UPC
708445000721
condition
New
PTO Blade Clutch For MTD 1772388 Electric - Free Upgraded Bearings !

PTO Blade Clutch For MTD 1772388 Electric - Free Upgraded Bearings

  • Part Number:
  • MPN: X0003 532160889, 1772388, 717-1459, 917-1459 GW-1772388, 7053740, 688EC, 7053740S 7053740SM, 504-01698, 104-3334 TR105D3462, AM119683
  • Part Type: PTO Clutch
  • Warranty: 1 Year
PTO Clutch
Product Features
Specifications
Specs: Description: PTO Clutch, Crankshaft: 1.000, Pulley: 5.345", Rotation: Counter Clockwise, Belt: 1/2" or 5/8" Belt, Xtreme Torque: 80 ft. lbs.
Interchanges
Ariens03643100
AXXOM892595
AYP53740
AYP160889
AYP532160889
Bolens1772388
Bolens717-1459
Bolens917-1459
BolensGW-1772388
Craftsman53740
Craftsman160889
Craftsman1772388
Craftsman03643100
Craftsman7053740
Craftsman532160889
Craftsman688EC
Craftsman7053740S
Craftsman7053740SM
Craftsman717-1459
Craftsman917-1459
CraftsmanGW-1772388
Cub Cadet1772388
Cub Cadet504-01698
Cub Cadet717-1459
Cub Cadet917-1459
Cub CadetGW-1772388
Dixon160889
Dixon532160889
Electrolux160889
Electrolux532160889
Exmark104-3334
Ford/New HollandTR105D3462
Gravely03643100
Huskee1772388
Huskee717-1459
Huskee917-1459
HuskeeGW-1772388
Husqvarna160889
Husqvarna532160889
John DeereAM119683
Jonsered160889
Jonsered532160889
Kees160889
Kees532160889
Massey Ferguson160889
Massey Ferguson1772388
Massey Ferguson7053740
Massey Ferguson532160889
Massey Ferguson717-1459
Massey Ferguson917-1459
McCulloch160889
McCulloch1772388
McCulloch7053740
McCulloch532160889
McCulloch717-1459
McCulloch917-1459
MTD1772388
MTD504-01698
MTD717-1459
MTD917-1459
MTDGW-1772388
Poulan160889
Poulan532160889
Roper160889
Roper532160889
Snapper53740
Snapper7053740
Snapper7053740S
Snapper7053740SM
Snapper Pro53740
Snapper Pro7053740
Swisher688EC
Toro104-3334
Troy-Bilt1772388
Troy-Bilt504-01698
Troy-Bilt717-1459
Troy-Bilt917-1459
Troy-BiltGW-1772388
Warner5217-27
Warner5217-28
Warner5217-35
Warner5217-6
Warner5217-7
Warner5217-9
White1772388
White717-1459
White917-1459
WhiteGW-1772388
Woods03643100
Yazoo160889
Yazoo532160889
Fitment Information
AriensEZR Series
AriensLT and YT Series
AriensMini Zoom Series
AriensSierra Series
AriensSport Zoom Series
AriensZoom Series
Cub Cadet1300, 13A-130F100
Cub Cadet1405, 13A-145F100
Cub CadetPlus Many More!
DixonToo Many To List
ExmarkQuest 42" Deck sn 790,000 and up
Gravely1440 Series
GravelyGLT 440
GravelyGLT 448
GravelyMini ZT Series
GravelySport ZT Series
GravelyZT Series
HusqvarnaLTH130 - LTH140 LTH150 - LTH160
HusqvarnaLTH15 - LTH145
HusqvarnaYTH1542A - YTH1542B
HusqvarnaYTH1542D - YTH1542E
HusqvarnaYTH1746A - YTH1746B
HusqvarnaYTHK1542A - YTHK1542B
HusqvarnaYTHK1746B
John Deere, STX Series, Scotts Series* STX38 and STX46 serial no. 0-270,000 * Used on Black Deck Units
Massey Ferguson - McCullochToo Many To List
MTD - Bolens - Huskee White OutdoorToo Many To List
SnapperLT 145H Hydro Series C (Tractor )
SnapperLT 160H Hydro Series C, D, F, G, H (Tractor)
SnapperLT 180H Hydro Series D, F, G, H, I (Tractor )
SnapperMANY Models use this Clutch. We recommend checking your mower model number
SnapperYard Cruiser Series 0, 1 & 2
SnapperYZ Yard Cruiser ZTR Series 1 (33" & 38")
SnapperYZ Yard Cruiser ZTR Series 2 (33" & 38")
Snapper ProLT 145H Hydro Series C (Tractor )
Snapper ProLT 160H Hydro Series C, D, F, G, H (Tractor)
Snapper ProLT 180H Hydro Series D, F, G, H, I (Tractor )
Snapper ProYard Cruiser Series 0, 1 & 2
Snapper ProYZ Yard Cruiser ZTR Series 1 (33" & 38")
Snapper ProYZ Yard Cruiser ZTR Series 2 (33" & 38")
SwisherToo Many To List
ToroDH-150 - DH-170 - DH-190 Lawn Tractor
ToroDH-200 - DH-210 - DH-220 Lawn Tractor
ToroRTZ480H Riding Mower serial no. 280000001-290999999
ToroTimeCutter 14-38Z , 16-38Z , 16-42Z serial no. 230000001-240999999
ToroTimeCutter Z420 serial no. 250000001-270999999
ToroTimeCutter Z4200 serial no. 230000001-290999999
ToroTimeCutter Z4220 & Z4202 serial no. 280000001-290999999
ToroZD420 & ZD420T Riding Mower serial no. 260000001-311999999
Troy-BiltLTX 13095
Troy-BiltLTX 13102
Troy-BiltLTX 13103
Troy-BiltLTX 13105
Troy-BiltLTX 13123
Troy-BiltLTX13104
WoodsR1540
Yazoo KeesToo Many To List
