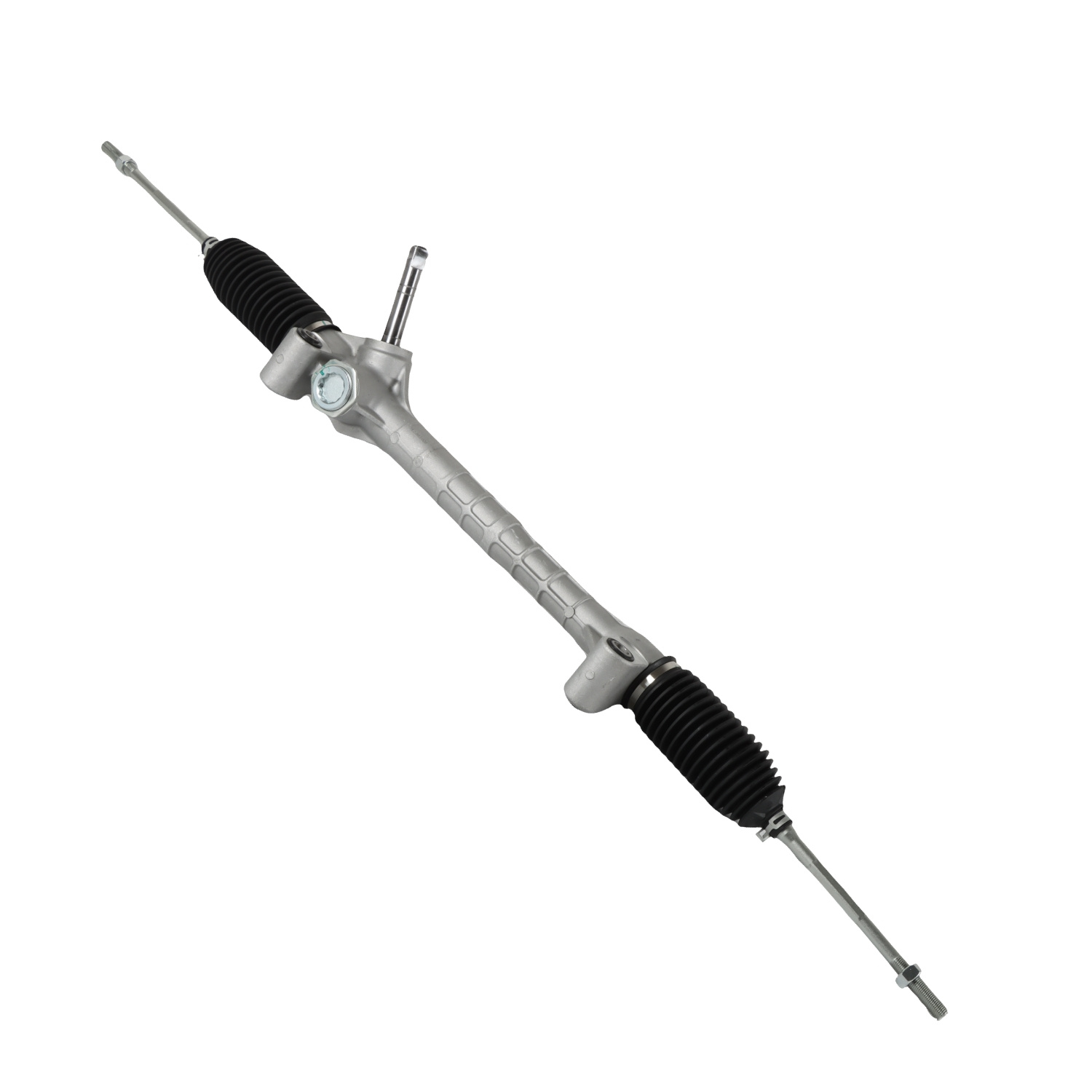

Power Steering Rack and Pinion For CHEVROLET Cobalt 2005-10 HHR 2006-11 23-1811

①Product Specifications

1. Size: 121.3x11.5x18.5(cm)

2. Weight: 6kg

3. Material: Iron/Aluminum

4. Color: Black

5. Placement on Vehicle: Front

6. Input Shaft Diameter(in): 0.75in

7. Input Shaft Length(in): 3.75in

8. Pressure Port Thread Size:

9. Return Port Thread Size:

10. Number of Mounting Holes: 2

11. Distance Between Mounting Holes (in): 17.125in

12. Rack Length (in): 47.813in

②OEM/Interchange Part Numbers

10367075, 10373032, 15140344, 15220342, 15783566, 15788998, 15802532, 15816429, 22680652, 231811, 25956924

23-1811

③Fitment

For CHEVROLET COBALT 2005 - 2010

For CHEVROLET HHR 2006 - 2011

For PONTIAC G5 2007 - 2009

For SATURN  ION 2003 - 2007

④Features

1. Built to strict quality control standards 100% factory tested

2. IATF16949

3. Easy Installation，100% Compatible with OEM Parts, meets Original Equipment Manufacturer (OEM) Standards

4. High Performance

   The steering rack solves abnormal noise and oil leakage problems, ensures that the steering wheel rotation angle is proportional to the tire rotation angle, and reduces the steering wheel's control force when turning, which makes driving safer.

5. 2 in 1 Function

   Conversion of the steering wheel's rotationalmotion into the linear motion needed for thevehicle's wheels to turn

   Reduction of gears, which makes it easierfor the steering wheel to turn the wheels

6. Premium Material

   With the premium aluminum alloy and steel construction, this steering rack assembly has a great anti-rust and anti-corrosive quality for its long service life.

   We put moderate lubricating oil into this assembly so that it can prevent rust and oxidation.

7. Humanized Design

   Ensure a tight seal and smooth steering operation. The hydraulic lines are fully fluid tested at high pressure. And the steel clamps and rubber bellow boots improve steering efficiency.

⑤Package Include

1PC Power Steering Rack and Pinion

⑥Attention

1. Correctly select the model and size of the steering gear: The model and size of the steering gear must be consistent with the original parts of the vehicle, otherwise it will affect the steering sensitivity and stability;

2. Clean the surrounding area first: Before replacing the steering gear, it is necessary to thoroughly clean the surrounding area to prevent small debris residues from damaging new steering gear components;

3. Correct disassembly and assembly of the steering gear: When disassembling an old steering gear, be particularly careful to avoid damaging the original vehicle components, and lubricate the bearings and gears during installation;

4. Use of high-quality steering oil: For hydraulic power assisted steering machines, high-quality steering oil is required;

5. Correctly adjust the wheel angle: After replacing the steering gear, it is necessary to adjust the wheel angle to ensure vehicle stability and safety;

6. Attention to maintenance: Regularly inspect and maintain steering gear components to ensure good operation of the steering gear.

⑦Note

Oil leakage: The oil seal in the steering gear can break due to aging and wear, resulting in loss or leakage of hydraulic oil. Oil leakage can cause difficulty or malfunction in steering operation.

Abnormal noise: A snap, noise, or hiss may be caused by worn steering gear, pin shaft, or rack.

Excessive steering force: Blockage or wear of the steering gear oil pipes or passages can cause excessive hydraulic oil pressure, excessive steering force, or even steering failure.

Steering failure: Steering failure can be caused by reasons such as damage to the steering gear, blockage in the oil circuit, and failure of the oil pump, which will affect driving safety.

Shake or shake: Worn or loose parts in the steering gear can easily cause the vehicle to shake or shake during steering.

Dead center: When turning, if the steering wheel needs to be rotated for a long time until the vehicle turns significantly, this may be a dead center problem with the steering gear.
