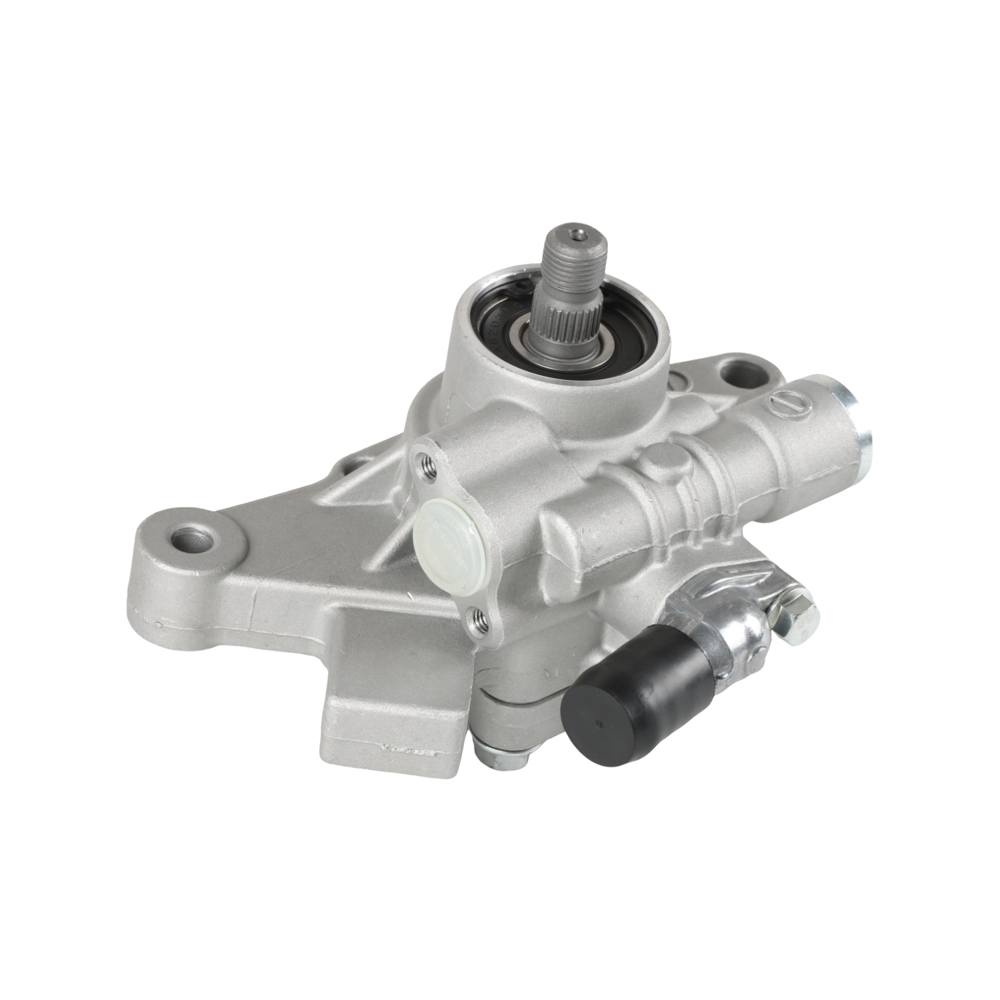

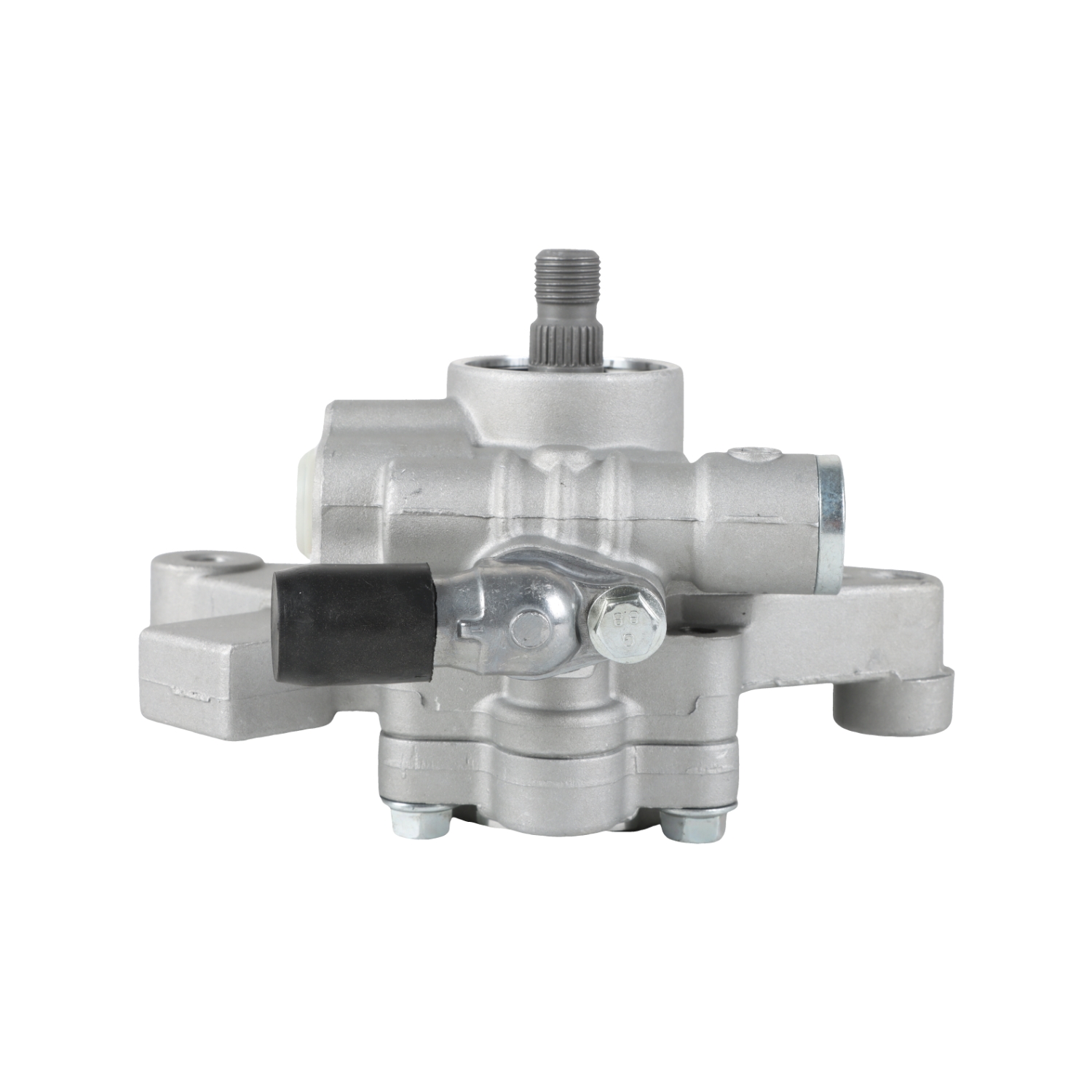

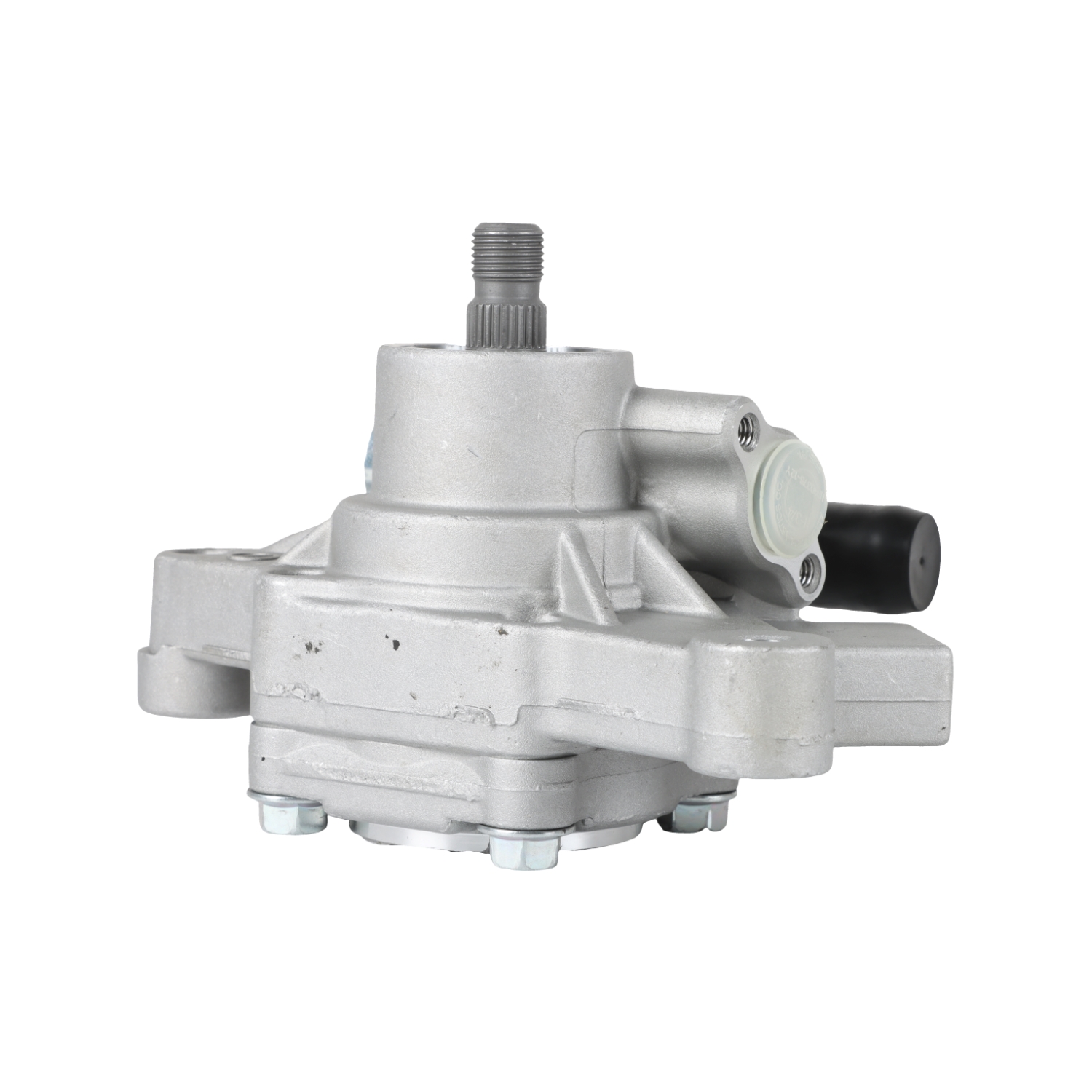

①Product Specifications

Size: 16x16x15(cm)

Weight: 2.0kg

Material: Aluminum

Color: Silver

Placement on Vehicle: Front

Hose Port Type:    O-Ring

Housing Material: Aluminum

Power Steering Outlet Thread Size: M16*1.5

Power Steering Outlet ID Size: 0.71

Power Steering Pump Inlet Attachement Type: Hose Barb

Power Steering Pump Outlet Attachment Type: Threaded

Pulley Attachement Type: Bolt-on

Pulley Included: No

Reservoir Included: No

②OEM/Interchange Part Numbers

56110P2A003, 56110P2A013,

56110P2A023, 56110P2A962,

56110P2A963, 56110P3F003,

56110P3F013

③Fitment

Honda 1996-2000 Civic 1.6L l4

Honda 1997-2001 CR-V 2.0L l4

Acura 1997-2000 EL 1.6L l4

④Features

Built to strict quality control standards 100% factory tested

IATF16949

100% Compatible with OEM Parts, meets Original Equipment Manufacturer (OEM) Standards

This steering pump is made of high-quality material and maintains an excellent strength to give the parts long-term performance

the reservoir into the steering gear and keeps the wheels running in the right conditions

This steering system pump is a direct replacement. If your original power steering pump is failing or leaking, this replacement steering pump could be your solution.

If you have symptoms like whining noise while turning the wheel, steering wheel slow to respond, stiff steering wheel, or squealing & groaning noises when the vehicle starts, and you might need to replace your old Power Steering Pump with this one.

⑤Package Include

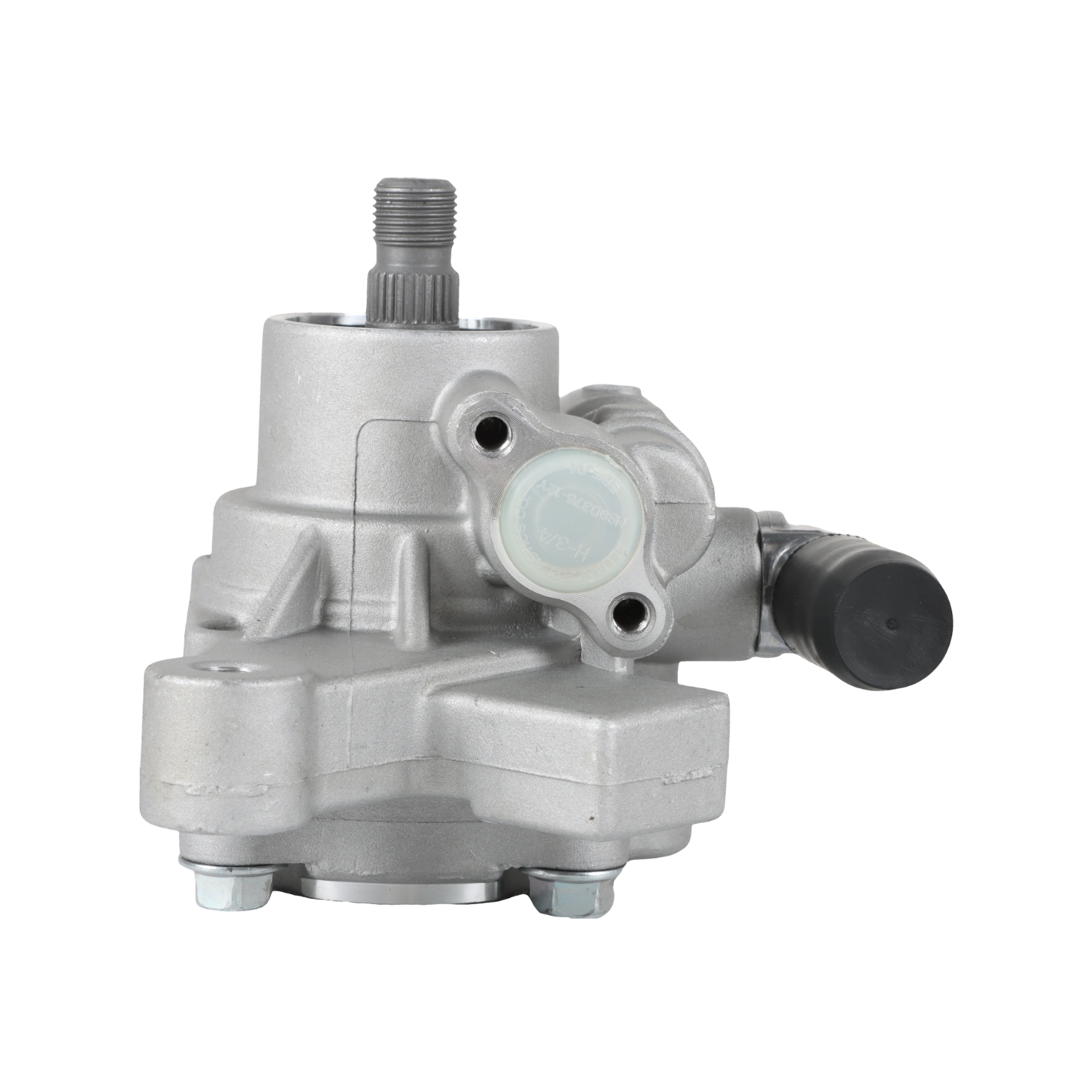

1PC Power Steering Pump

⑥Attention

Ⅰ 1. When disassembling the steering pump of the original car,drain the

   original old hydraulic oil at the same time.

   2.Clean the oil can and the oil pipe, check whether the oilcan is

   damaged,check whether the filter of the oil can isblocked,check whether

   the oil inlet hose is hardened andaging, prohibit the oil with impurities, and

   prohibit the oil fromturning black and opaque

Ⅱ 1.When installing the steering pump,you must lock the oilinlet pipe clamp

   and check whether it is firmly to prevent airintake.

   2.Replace the sealing ring of the high pressure oil pipelinking the steering

   pump to prevent oil leakage, resulting inmisjudgment of oil leakage from

   the steering pump.

Ⅲ note! Follow the process

   1. Instali the steering pump

   2. Fill the oil pot with oil,

   3. After starting the engine, do not turn the steering wheelLet the steering

   pump circulate the oil by itself. Observe theoil in the tank and replenish the

   oil in time until the properlevel is reached.After the installation is complete,

   turn thesteering wheel at last.

⑦Note

before installation, be sure to clean the oil pot and oil pipe. lfthere are impurities, after the car is running, the impurities inthe oil pot and oil pipe will enter the steering pump, resultingin the pump not working.

Once the pump does not work.

please contact us in time and we will send a video of cleaningthe pump. Then follow the steps in the video to clean thepump, the pump will be Ok.
