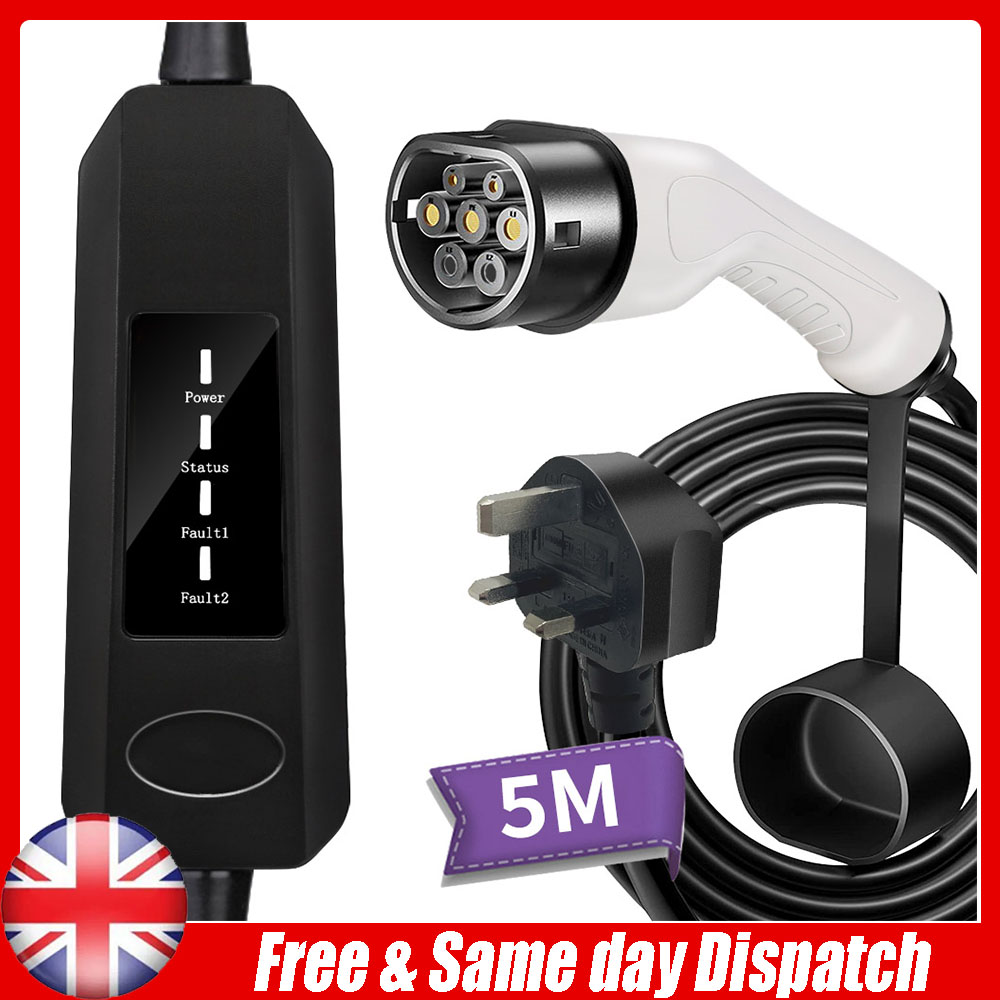

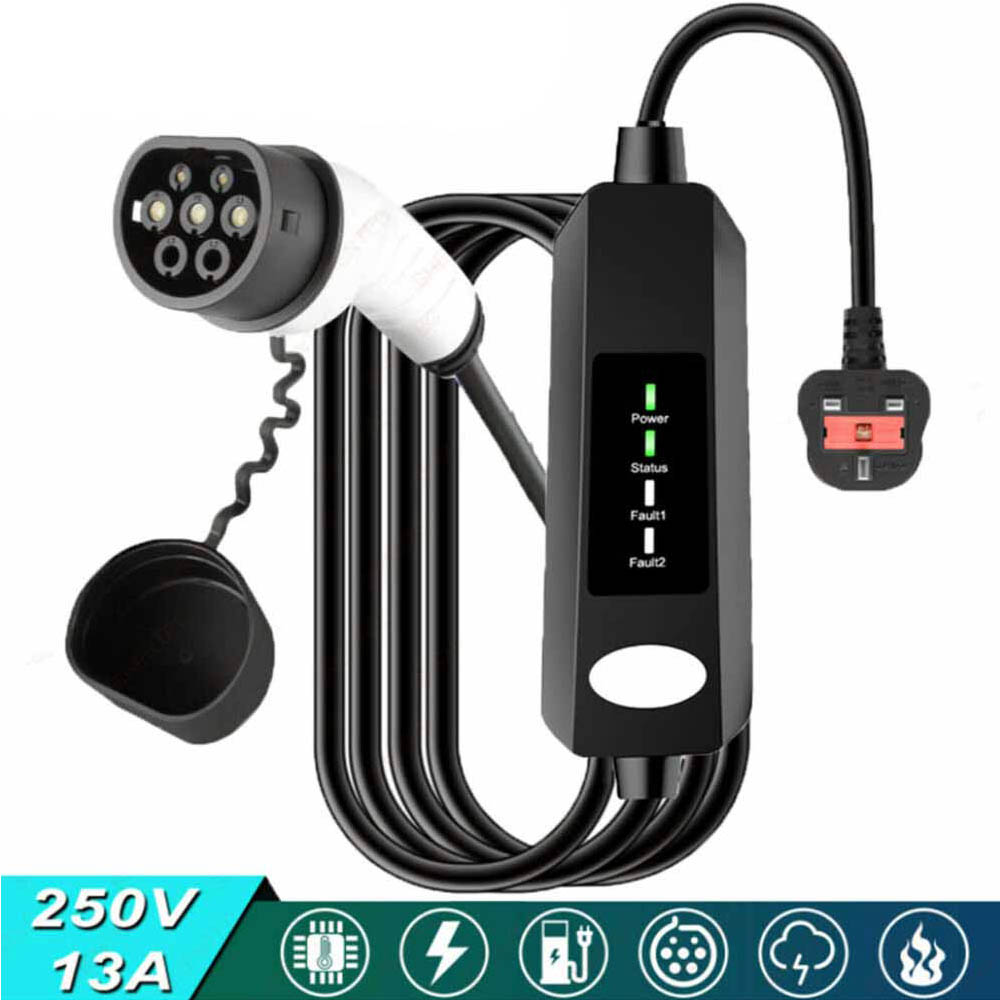

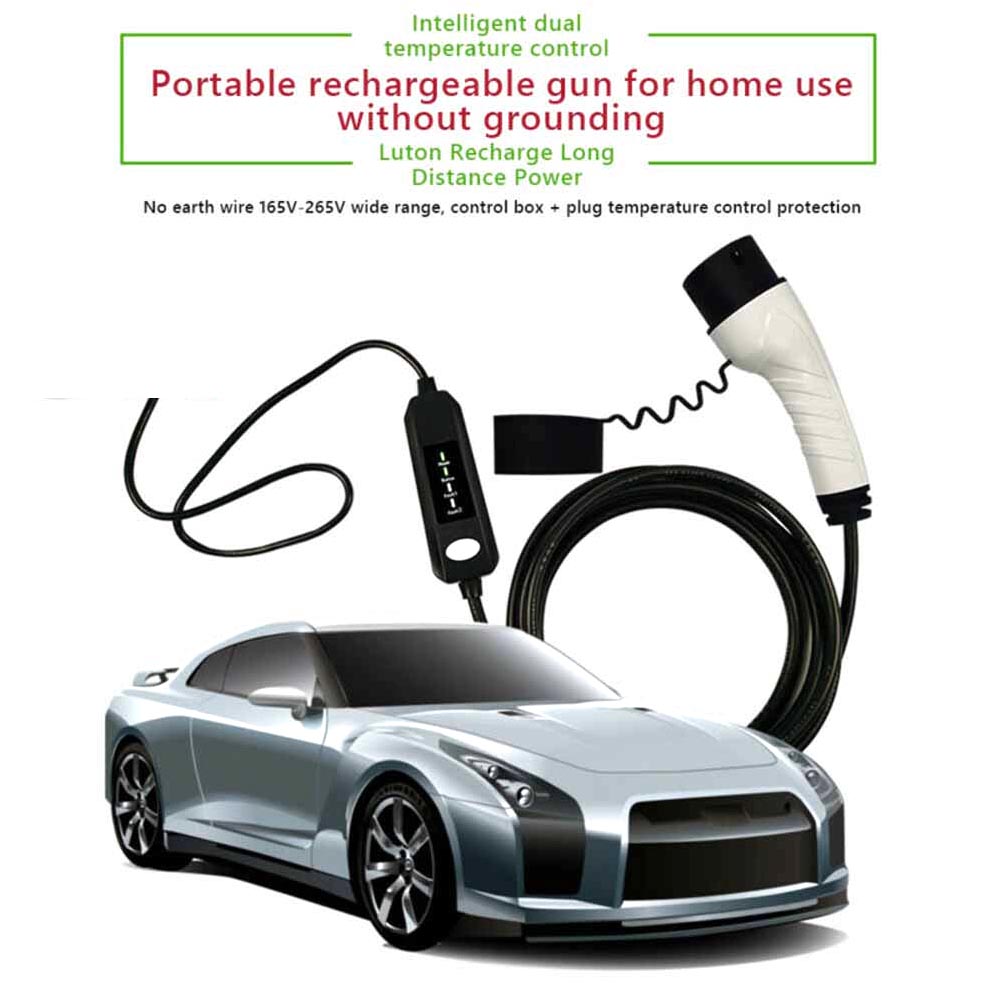

Portable EV Charging Cable Type 2 Plug 3 Pin Electric Vehicle Car Charger 13A UK

Features:

*This Type 2 portable charger has the most common connection for more modern cars, it is compatible with all major electric vehicles with a type 2 socket. You can use it anywhere, and charge your car from any standard 3-pin plug.

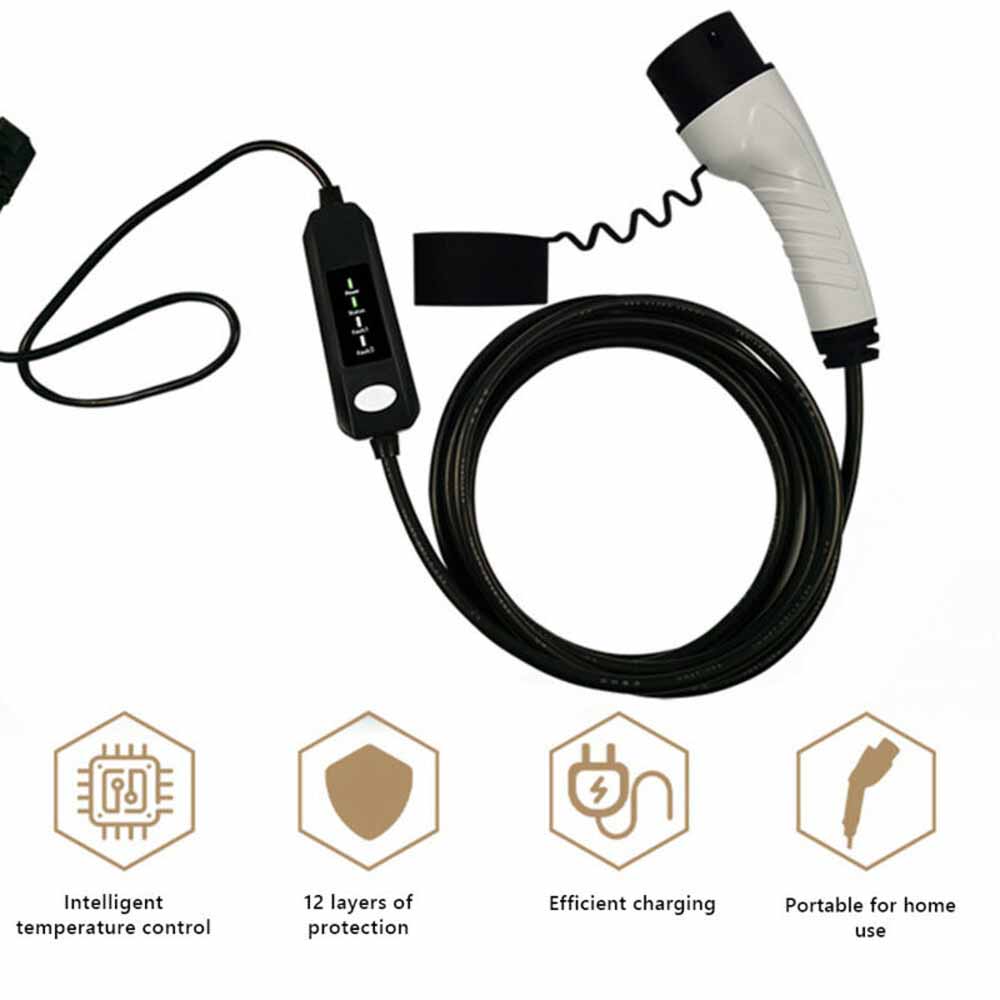

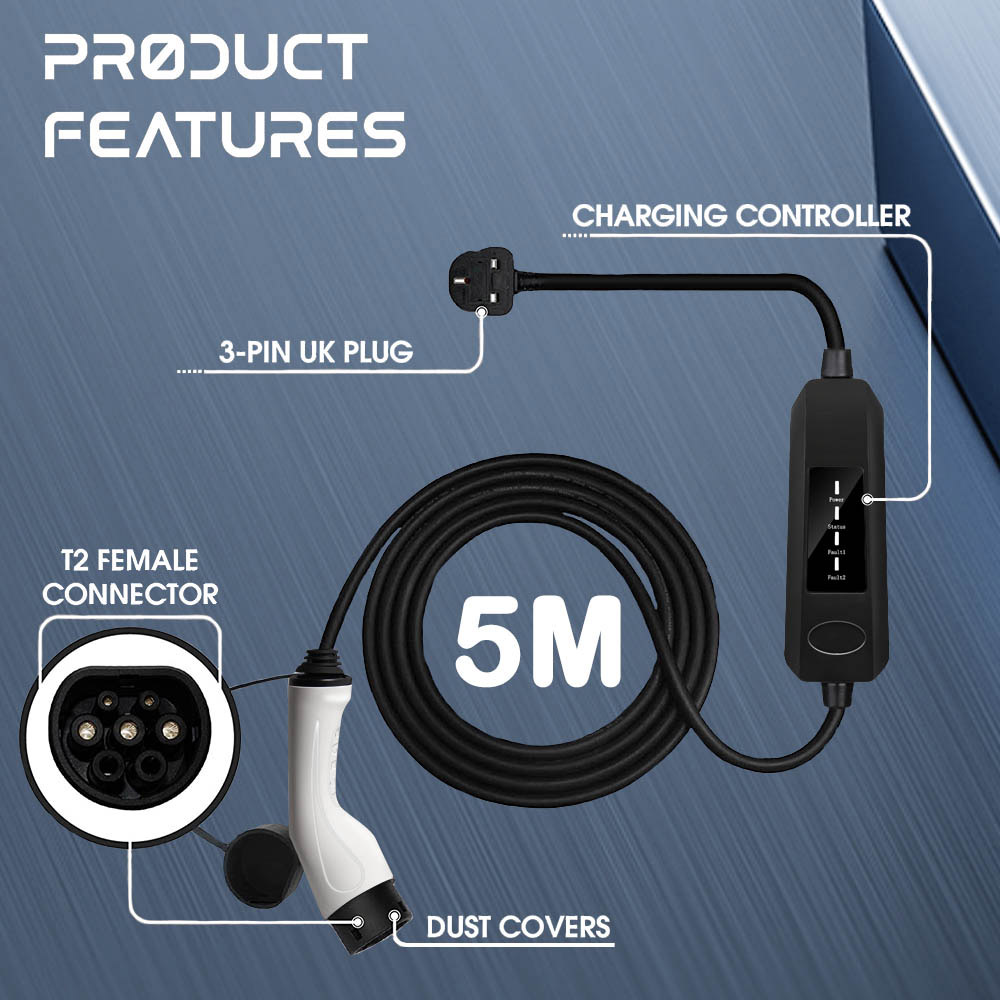

*Portable Design: This Portable EV Charger can be carried with your car anywhere. No need to re-wire, you can charge your electric vehicle at any public or home charging unit.

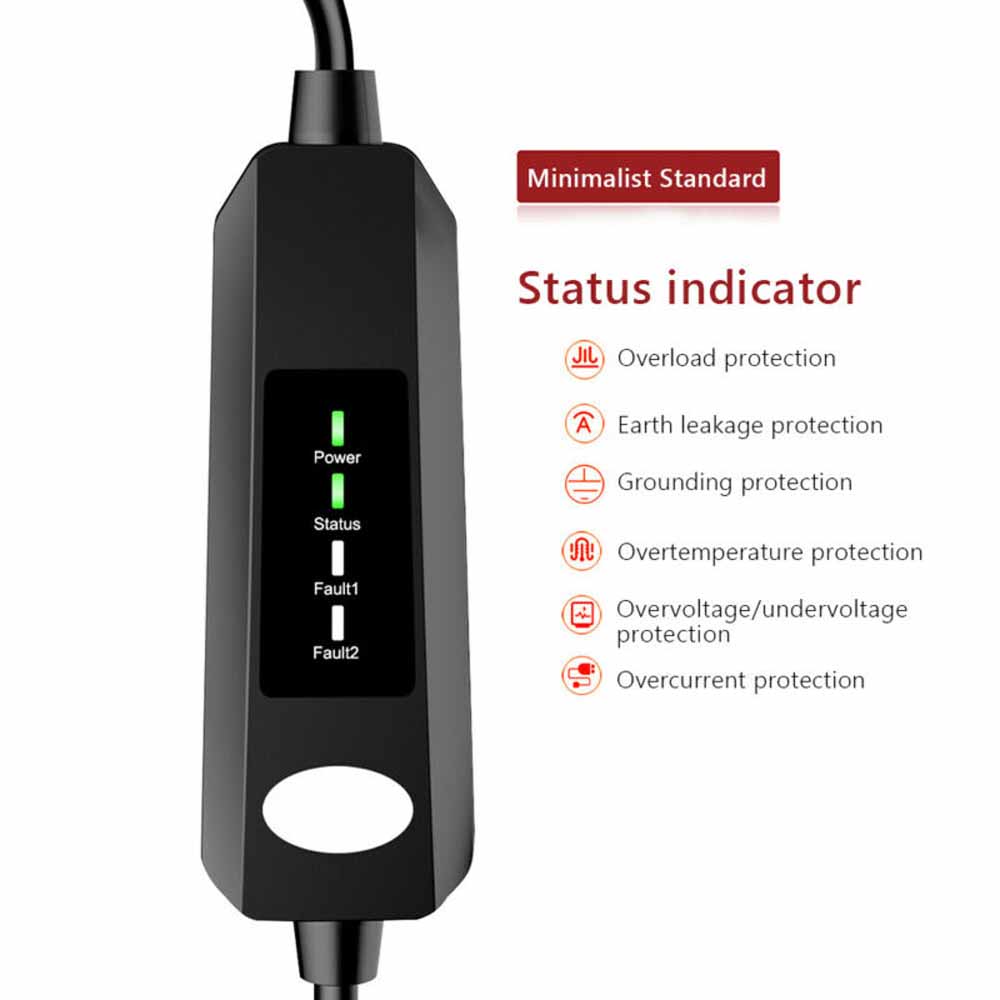

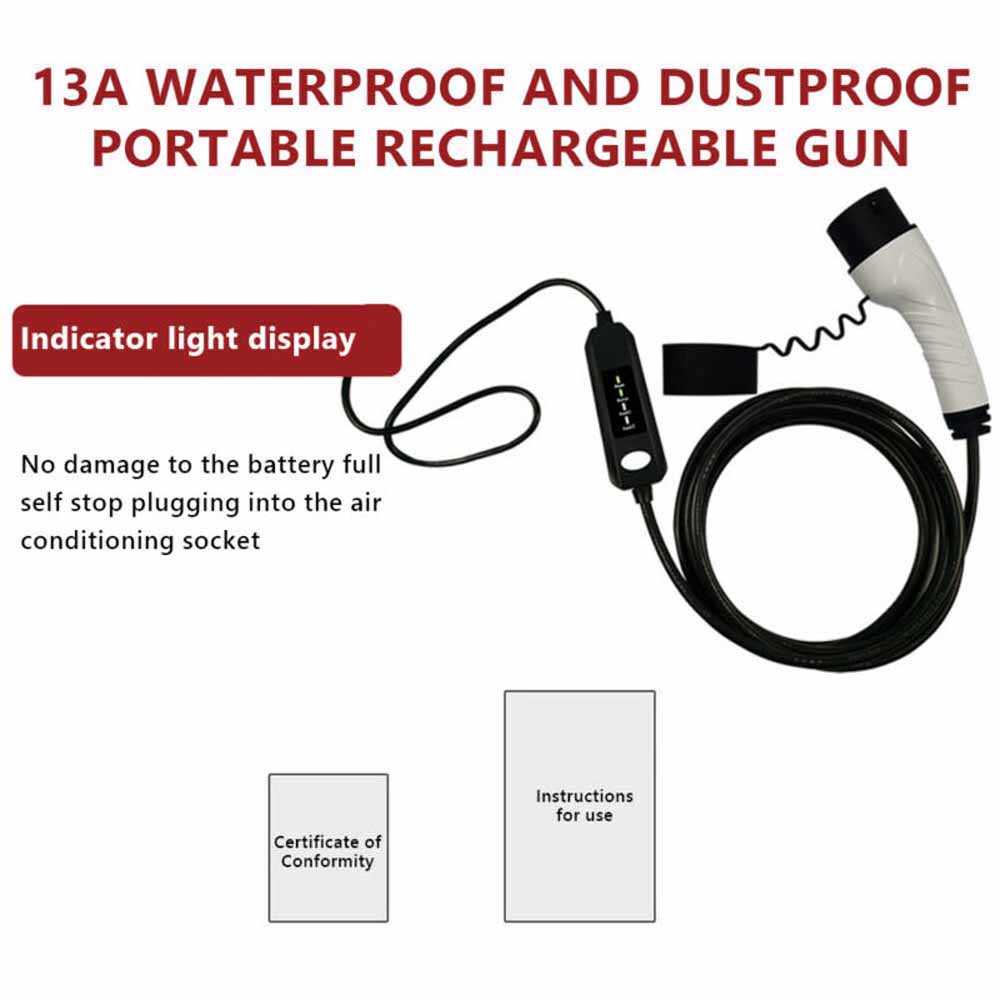

*Control Box Function: The product has a control box with an LED charging status indicator, it can display the charging status in real time.

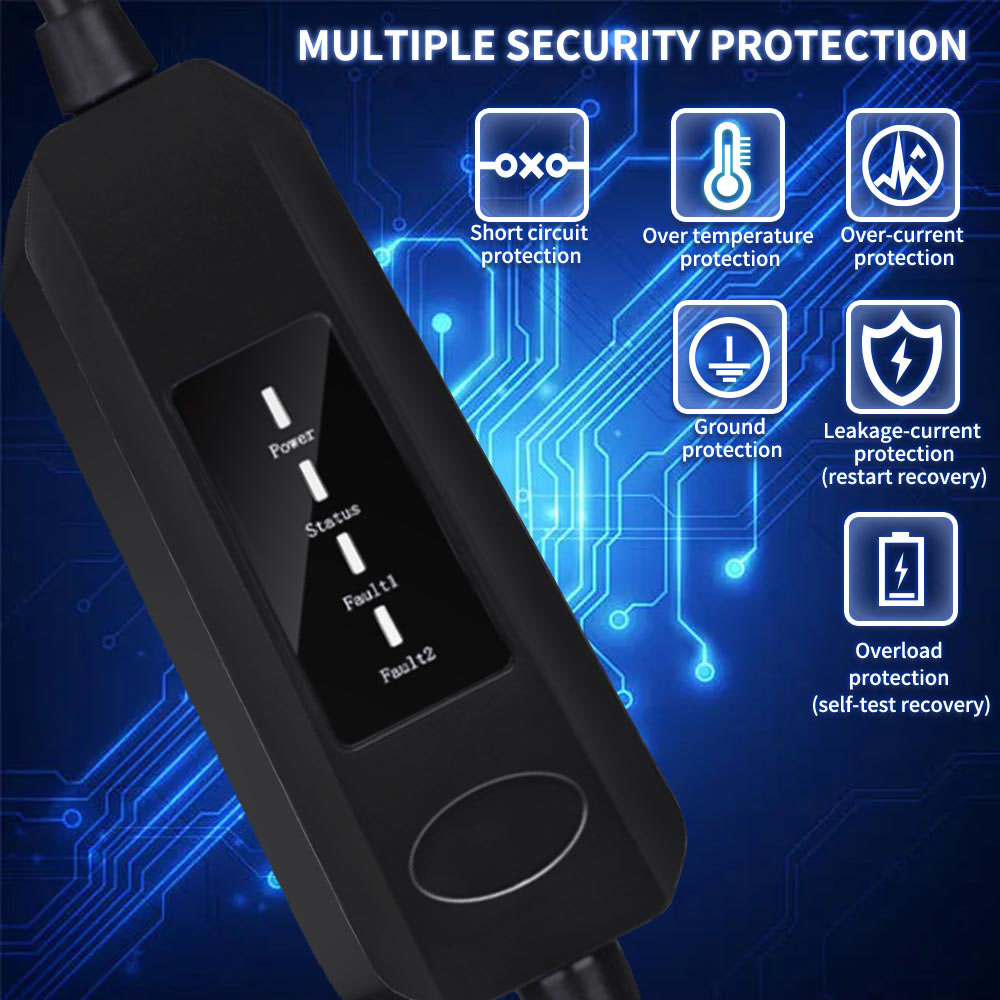

*Highest Safety: This EV charger uses high-strength ABS material, with better quality and longer service life. It has overcurrent protection, overvoltage protection, under-voltage protection, leakage protection, overheat protection, a waterproof rating of IP65, and other protection measures, which can safely charge your car and avoid fire.

*Perfect Compatible: Works with all-electric vehicles which meet IEC 62196-2. Suitable for all brands of electric vehicles and PHEVs. All our products have passed CE and FCC certifications.

Fast Charging Speed: Electric Car Charging has a faster charging speed, 3 times faster than an ordinary charger. It can save you time and no worry about charging anywhere.

*Simple and Fast Operation: Just connect the plug to the electric vehicle jack, and the charger will automatically detect the connection state and start charging. The parameters cannot be set under the charging state, please set them before charging.

Specifications：

Input:  220-240V AC 50Hz

Charging plug:  IEC62196-2 type 2

Primary plug:  UK 3 pin (BS1363 Type G)

ICCPD:  IEC 62752

Nominal power:  3kW

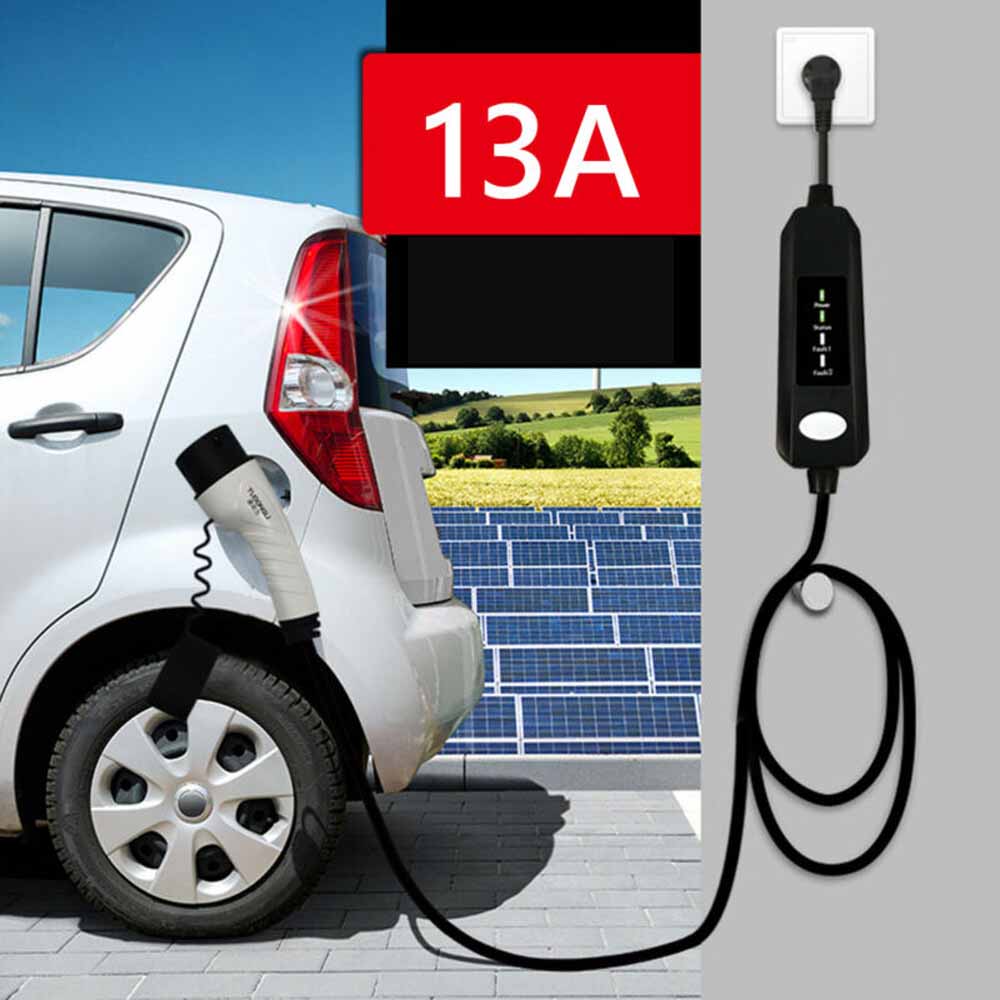

Output:  230V AC 13A

No. of phases:  1-phase

Contact resistance:  ≤0.3mΩ (L/N)

Isolation resistance:  500MΩ (1000V AC)

High voltage resistance:  2600V AC

Contact thermal rise:  ≤50K

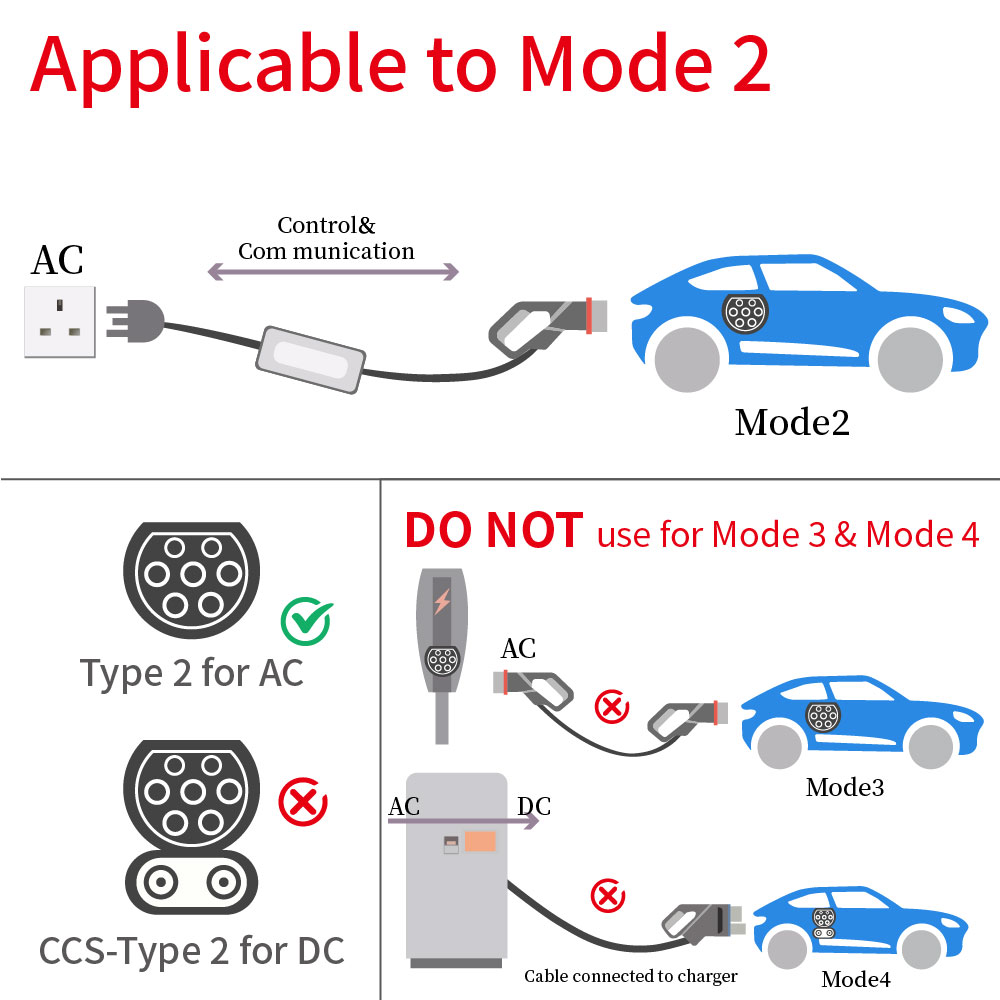

Charge mode:  IEC 62196-2, IEC 61851-1

Working humidity:  5% -95% non-condensed

Protection type:  IP55 (plugged in) IP54 (control box)

Flammability Standard:  UL94 V-0

Protection function:  Overvoltage, under-voltage, overcharge and overheat protection (interrupt charging at +85°C, continue at 60°C), residual current, PE control

Withdrawal force:  45N…80N

Plugging cycles:  ≥10.000x (no load)

Dimensions ICCPD:  185x67x44mm

Operating temperature:  -25°C...+55°C

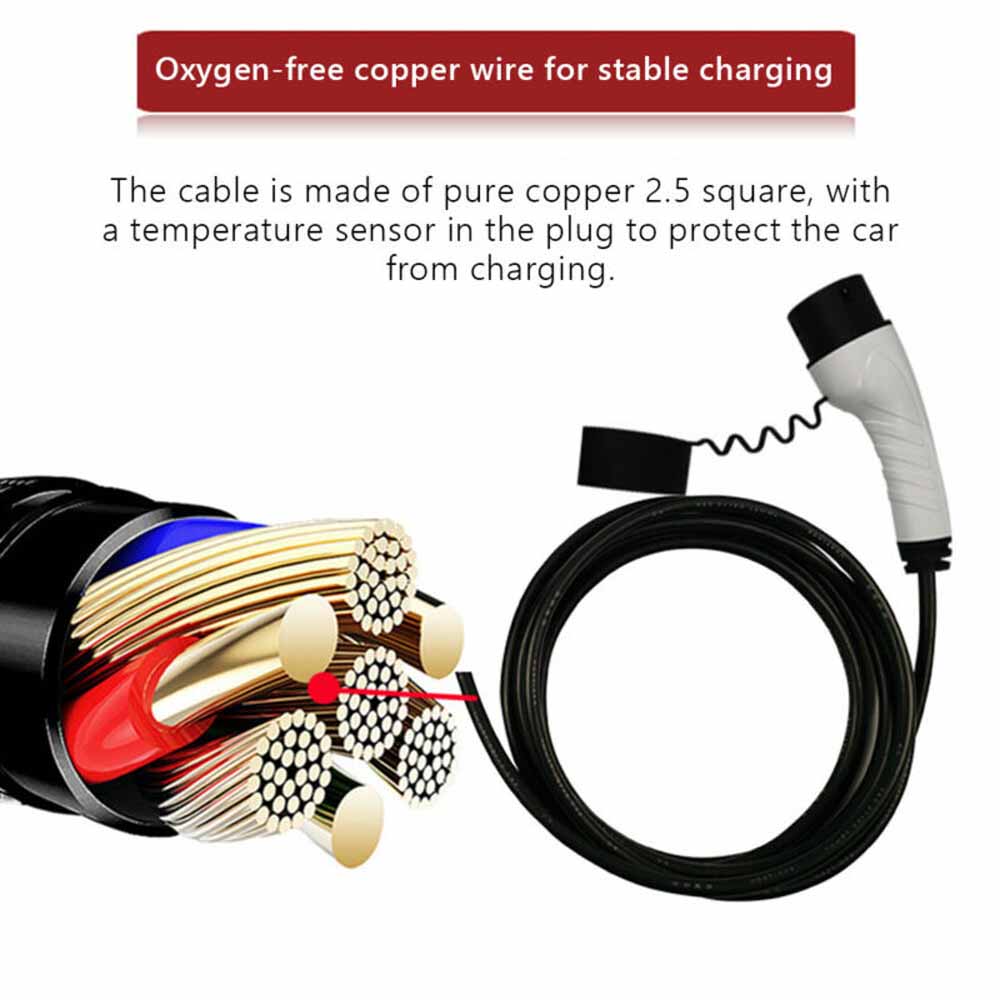

Cable:  3*2.5mm2+0.75mm2

Weight:  2000g （Cable Length 5m）

Protection grade: IP65, UL94-V0

Cable Specification: 3G2.5mm²+2*0.5mm²

Charging plug: meet IEC 62196-2 standard.

Control box: meet IEC 61851 control principle.

Shell Material: thermoplastics, flame retardant grade UL94-V0

Contact bush: Copper alloy, silver plating

Pin: Copper alloy, silver + thermoplastic on the top

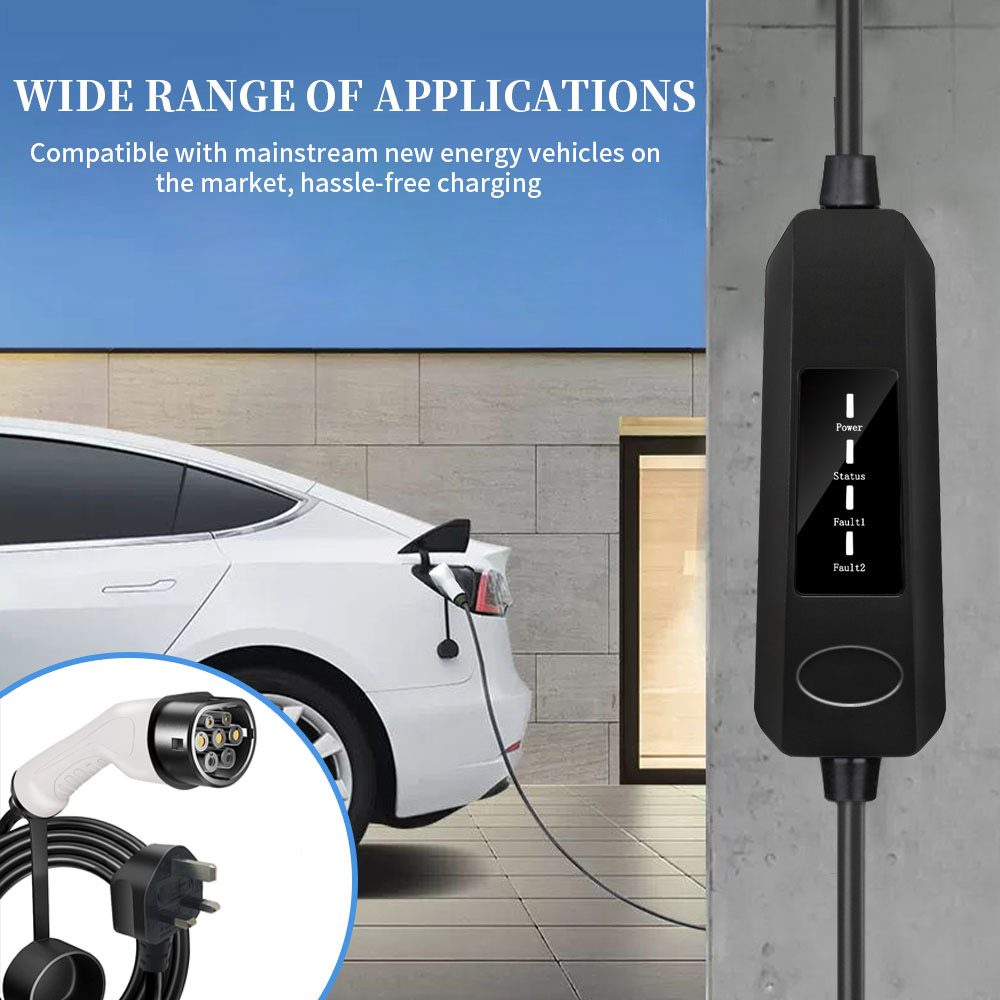

Compatible with E-Vehicle:

AUDI :Q7 E-Tron, A3 E-Tron Quattro, E-Tron Sportback

RENAULT : Zoe, Zoe 2013, Kangoo Ze 2014-2019

BMW : i3, i8, 94AH 3Rex, 2 Series, 530e, 225xe, 330e, 740e, X5

TESLA: X, S, 3. Kia : Niro, Niro Phev, Optima Phev

MERCEDES-BENZ: B Class E-Cell, GLE 500e, E 350e, S500 PHEV, EQC 400, ELS EV, EQA, Vito E-Cell Van

PORSCHE: 918 Spyder, Taycan-Mission E, Cayenne, Panamera S PHEV, Panamera 4 E-Hybrid

VOLKSWAGEN: E-Up, E-Golf, Golf GTE PHEV, Golf 1.4 TSE, Passat GTE, I.D

VOLVO: S90, V90 T8, V60 PHEV, XC90 T8

HYUNDAL: Loniq Electric, Loniq Plug-In, Kona

BYD E6, MORGAN EV, JAGUAR i-Pace, MAHINDAR E20, NISSAN Leaf 2018.

TOYOTA Prius Plug-in-Hybrid 2018

And more others.

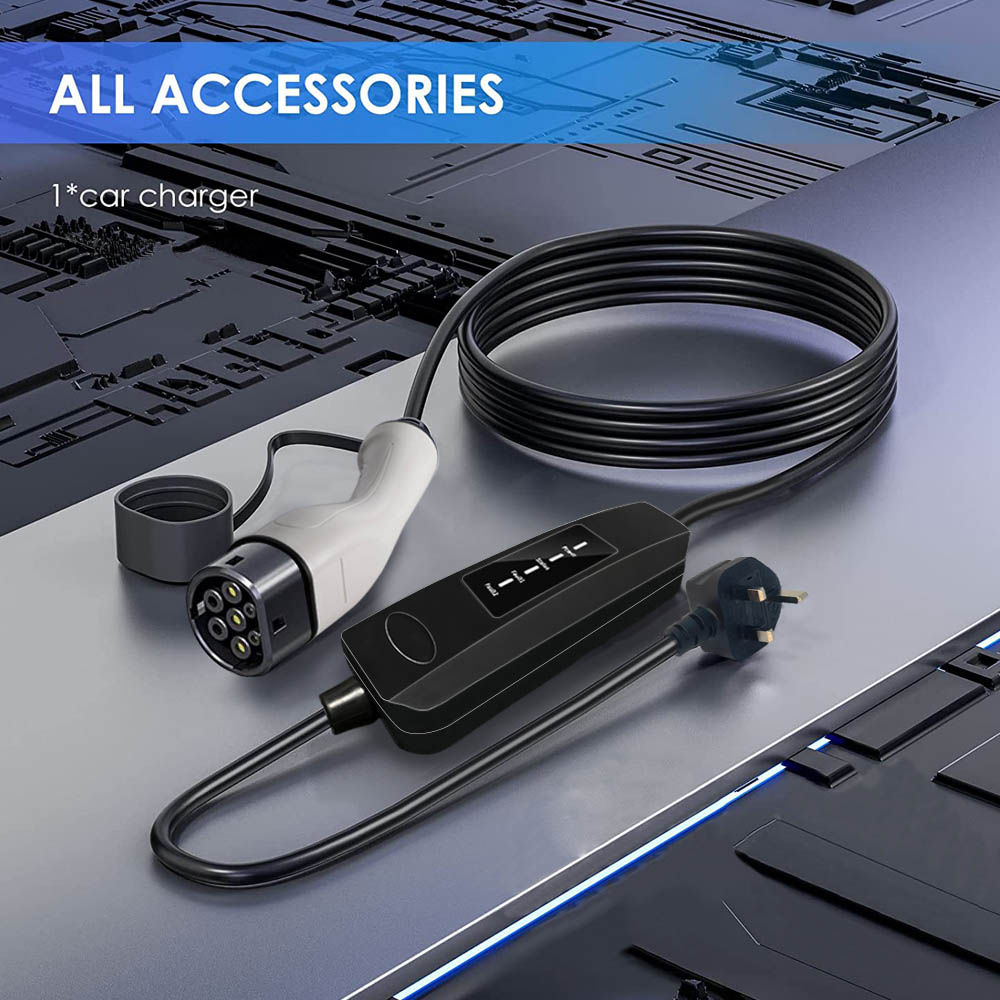

Package Includes:

1 x Car Charger

Notes:

1. Check the power distribution cable for damage before powering it up.

2. Plug the mains plug into the socket.

3. Make sure that the power outlet complies with national standards and that the socket is 13A.

4. Plug the vehicle plug into the socket of your vehicle.

5. Make sure that the vehicle connector is fully inserted until it clicks into place.

6. The charger works automatically, the power lights are on, and the Charger light flashes/1s.

Warnings:

Using a power extension with a thermal cutout for safety would be recommended.
