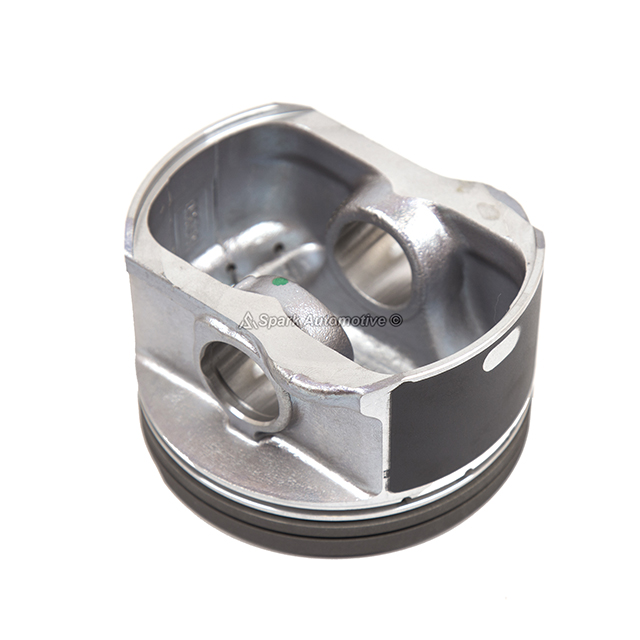

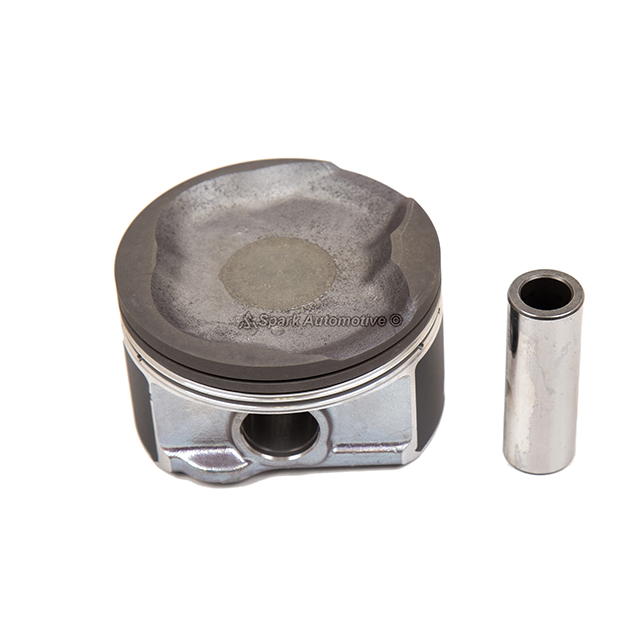

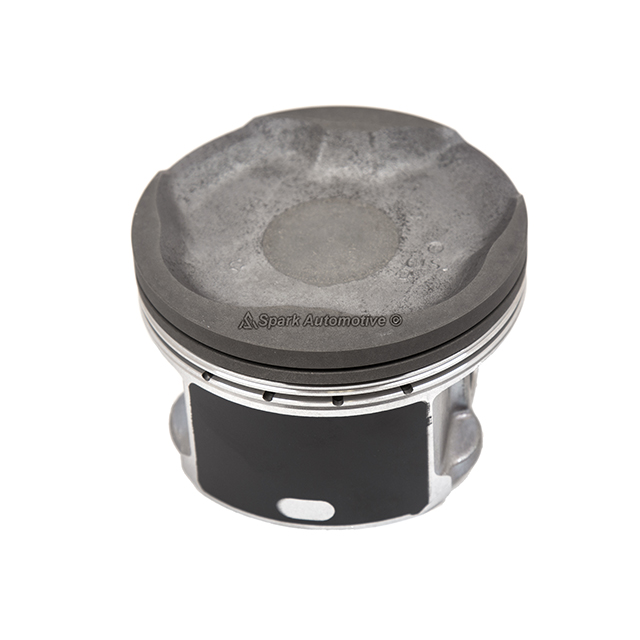

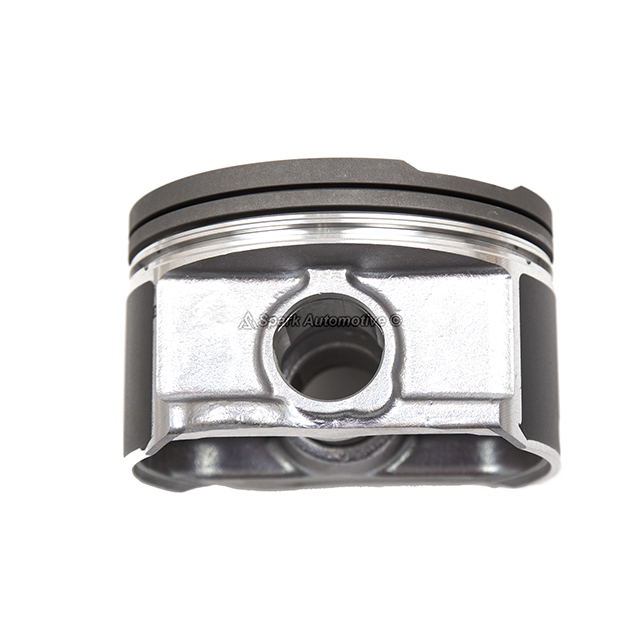

Pistons w/ Rings fit 05-15 Toyota Tacoma 2.7L DOHC 2TRFE
0 reviews
PRODUCT HIGHLIGHTS
- Ultra performance premium grade aluminum alloy pistons
- Gas nitrited steel rings, 50% longer life
- Reduce tension with better fuel economy, reduce cylinder wear
- Much improved design with more efficient oil passage holes in oil ring groove
- Minimizes fractures & cracks, no more gummed up oil and reduces engine failure
Pistons w/ Rings fit 05-15 Toyota Tacoma 2.7L DOHC 2TRFE. This piston set is just what you need to keep your car in good running order. The piston set that you will receive in this kit is a high quality gasket that the dealers and rebuilding shops use everyday. So do not settle for lesser quality parts when it comes to engine repair. These piston sets are designed for the professional installer. It does not come with any installation instructions. If you do not have a service manual, please consult a professional mechanic prior to installing this piston set.
| Year | Make | Model | Engine | Note |
|---|---|---|---|---|
| 2010 | TOYOTA | 4RUNNER | 2.7L 2694CC L4 DOHC | (16 VALVE), ENG. CODE "2TRFE" |
| 2005-2015 | TOYOTA | TACOMA | 2.7L 2694CC L4 DOHC | (16 VALVE), ENG. CODE "2TRFE" |

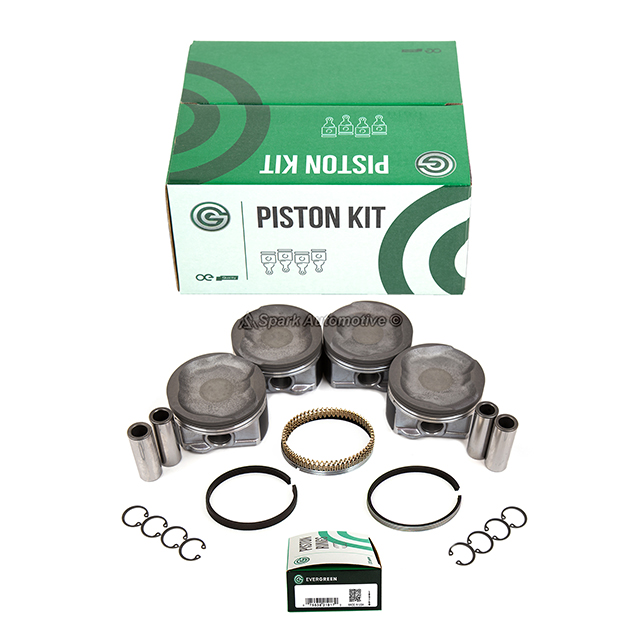

- 4 Pistons with Complete Ring Set (Sizes available: see options above)
- Standard Bore Diameter: 95.00mm
- 1st Group: 1.20mm
- 2nd Group: 1.20mm
- Oil Ring: 2.00mm
- 4 Piston Wrist Pins
- 8 Cir Clips
| Piston Measurements | |||||||||||||||||||||||||
| Piston Part # | UOM | STD | 0.25 | 0.50 | 0.75 | 1.00 | |||||||||||||||||||
| PS2051 | MM | 95.000 | 95.250 | 95.500 | 95.750 | 96.000 | |||||||||||||||||||
| IN | 3.740 | 3.750 | 3.760 | 3.770 | 3.780 | ||||||||||||||||||||
| Piston Ring Part# | Piston Information | ||||||||||||||||||||||||
| SDT10193 | |||||||||||||||||||||||||
  | |||||||||||||||||||||||||
| Specifications | MM | IN | |||||||||||||||||||||||
| Cylinder | 4 | ||||||||||||||||||||||||
| Bore | 95.000 | 3.740 | |||||||||||||||||||||||
| Comp | 39.300 | 1.547 | |||||||||||||||||||||||
|
|
| |||||||||||||||||||||||
| Length | 59.300 | 2.335 | |||||||||||||||||||||||
| Pin Length | 62.000 | 2.441 | ||||||||||||||||||||||
| Pin Diameter | 22.000 | 0.866 | |||||||||||||||||||||||
| 1st | 1.200 | 0.047 | |||||||||||||||||||||||
| 2nd | 1.200 | 0.047 | |||||||||||||||||||||||
| OIL 1 | 2.000 | 0.079 | |||||||||||||||||||||||
| OIL 2 | |||||||||||||||||||||||||
| CAUTION!!: Bore diameter is measured before skirt Surface Treatment. To Determine "Bore" to Diameter, add wall clearance of +0.04mm (0.00157") to maximum Bore Size. | |||||||||||||||||||||||||
