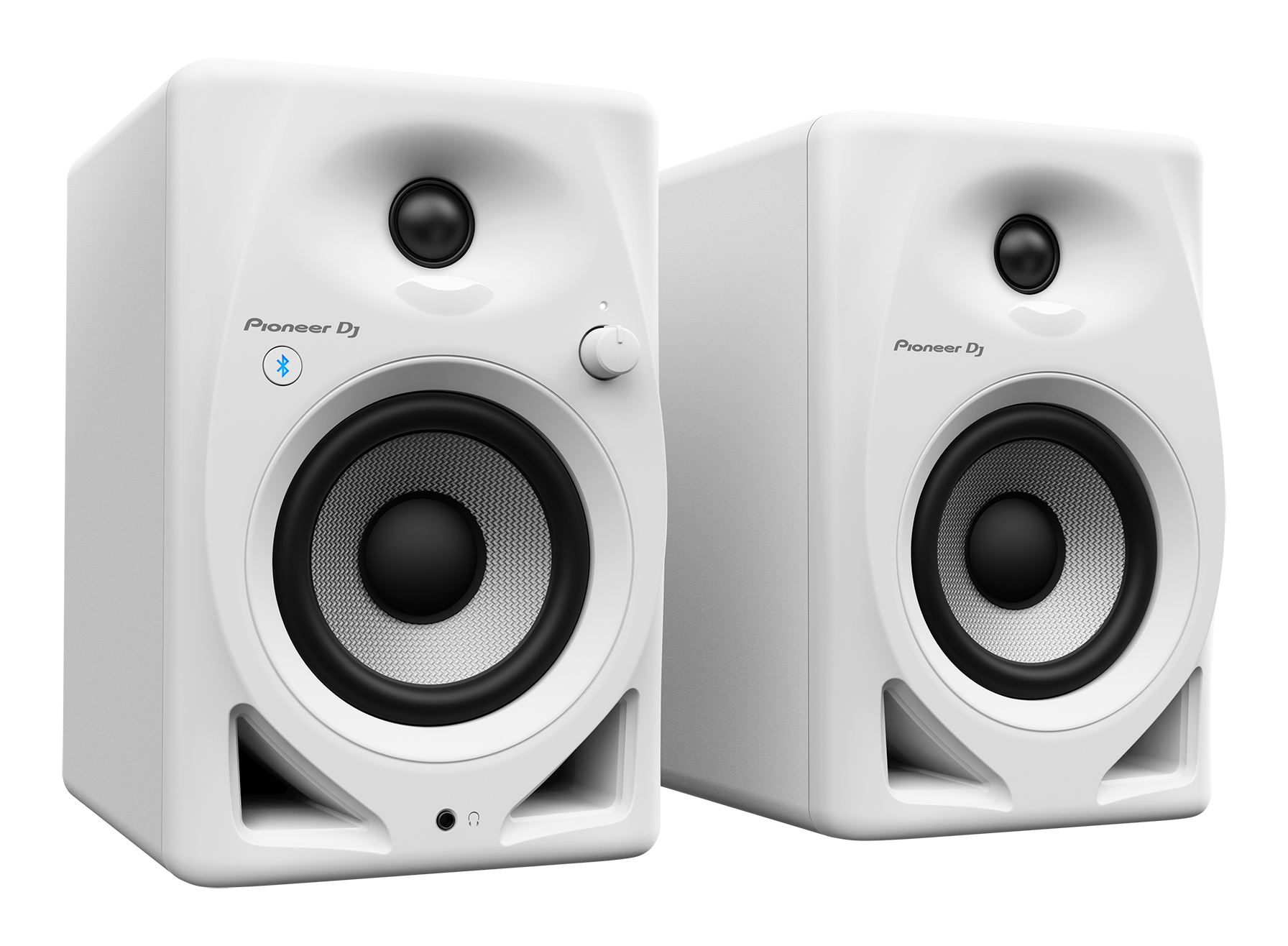

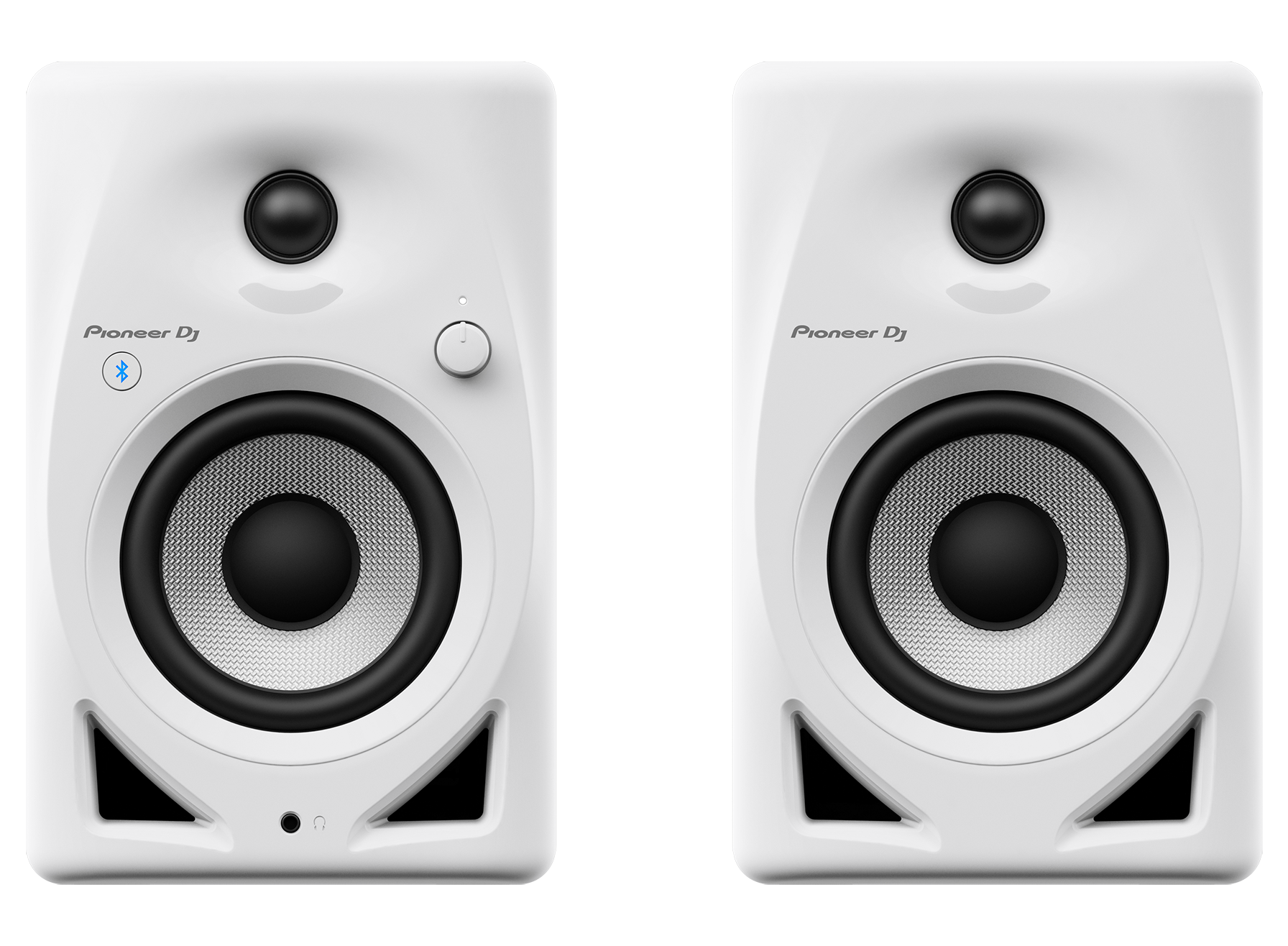

Pioneer DJ DM-40D BT White 4” Desktop Monitor System With Bluetooth
PRODUCT DESCRIPTION
The DM series speakers deliver balanced, punchy bass sound and they can
pump out extra power thanks to the new Class D amplifier and 4-inch
woofer in each unit. Flick the switch to change from DJ mode to
Production mode and the DSP settings will automatically create the best
sound for each application.
2-way sound mode – optimized for DJing and music production
There’s no need to decide whether you want a set of monitors that are best for DJing or making music, because the DM series speakers are perfect for both. Just flip the switch to choose either DJ mode or Production mode and the DSP settings will be optimized for the task, leaving you free to concentrate on your mix.
Easy to use with different DJ or production equipment
With RCA and mini jack terminals you can connect different kinds of gear such as DJ controllers and mixers, or the laptop or soundcard you use. Connecting your headphones is simple via the socket on the front panel and the level knob is right in front of you too.
Main Features
Type
2-way bass reflex, active monitor speakers
Tweeter
3/4” (19 mm) soft dome
Woofer
4-inch Fiberglass
What's in the box
DM-40D
Power cord
Audio converter cable (3.5 mm stereo mini plug to RCA)
Speaker cord
Bottom cushion
Quick Start Guide
Precautions for Use
Warranty
Specifications
Dimensions (W x H x D)
Lch: 146 x 227 x 223 mm / 5.75” x 8.94” x 8.78”
Rch: 146 x 227 x 212 mm / 5.75” x 8.94” x 8.35”
Weight
Lch: 2.5 kg / 5.5 lbs.
Rch: 2.2 kg / 4.9 lbs.
Amplifier Output
Lch: 19 W / 4 Ω
Rch: 19 W / 4 Ω
Impedance
10 kΩ
Enclosure
Bass reflex
Enclosure material
MDF vinyl laminate
Power Consumption
25 W
Power consumption during standby mode
0.3 W or less

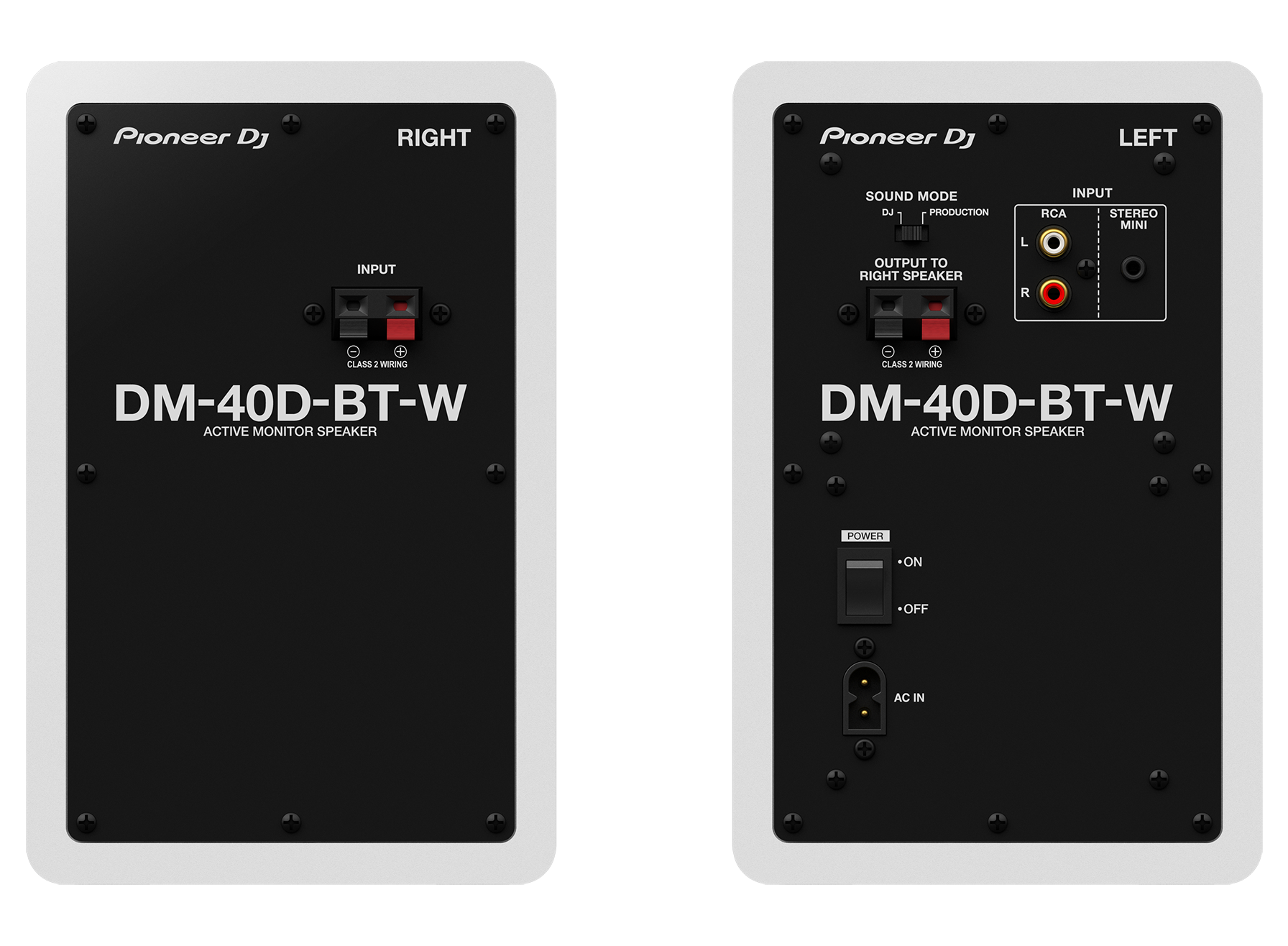

Terminals
Inputs
RCA pin jack x 1 (unbalanced input)
3.5 mm stereo mini jack x 1 (unbalanced input)
Outputs
3.5 mm stereo mini jack x 1
2-way sound mode – optimized for DJing and music production
There’s no need to decide whether you want a set of monitors that are best for DJing or making music, because the DM series speakers are perfect for both. Just flip the switch to choose either DJ mode or Production mode and the DSP settings will be optimized for the task, leaving you free to concentrate on your mix.
Easy to use with different DJ or production equipment
With RCA and mini jack terminals you can connect different kinds of gear such as DJ controllers and mixers, or the laptop or soundcard you use. Connecting your headphones is simple via the socket on the front panel and the level knob is right in front of you too.
Main Features
Type
2-way bass reflex, active monitor speakers
Tweeter
3/4” (19 mm) soft dome
Woofer
4-inch Fiberglass
What's in the box
DM-40D
Power cord
Audio converter cable (3.5 mm stereo mini plug to RCA)
Speaker cord
Bottom cushion
Quick Start Guide
Precautions for Use
Warranty
Specifications
Dimensions (W x H x D)
Lch: 146 x 227 x 223 mm / 5.75” x 8.94” x 8.78”
Rch: 146 x 227 x 212 mm / 5.75” x 8.94” x 8.35”
Weight
Lch: 2.5 kg / 5.5 lbs.
Rch: 2.2 kg / 4.9 lbs.
Amplifier Output
Lch: 19 W / 4 Ω
Rch: 19 W / 4 Ω
Impedance
10 kΩ
Enclosure
Bass reflex
Enclosure material
MDF vinyl laminate
Power Consumption
25 W
Power consumption during standby mode
0.3 W or less
Terminals
Inputs
RCA pin jack x 1 (unbalanced input)
3.5 mm stereo mini jack x 1 (unbalanced input)
Outputs
3.5 mm stereo mini jack x 1
