Standard configurationpower cable and 16PIN cable,
|
Outdoor P5 LED module |
||
|
◆ Technical Specification of P5 mm: |
||
|
Pixel configuration |
SMD2727-3 in 1 |
|
|
LEDs configuration |
Red:wave length: 615~630nm;700-1000mcd |
|
|
Green:wave length: 515~530nm;2100-2300mcd |
||
|
Blue:wave length: 465~475nm;450-600mcd |
||
|
Pixel pitch(mm) |
5 |
|
|
Pixel density(dots/㎡) |
40000 |
|
|
Calibrated brightness (cd/sqm,nit) |
5000 nits(adjustable) |
|
|
Calibrated brightness proportion ratio |
R: G: B = 30%:60%:10%(adjustable) |
|
|
Color temperature |
3,500° — 9,500° K(adjustable) |
|
|
Contrast ratio |
4,000:1(adjustable) |
|
|
Brightness adjustment (dimming) |
100 grade auto/manual-adjustment |
|
|
View angle(degree) (50% brightness) |
Horizontal: 120° (60° off center); Vertical: |
|
|
Readability viewing angle |
Horizontal: 150° (75° off center); Vertical: |
|
|
Color capability |
4.4 trillion |
|
|
Refresh rate(Hz) |
>1200 Hz(adjustable) |
|
|
Frame frequency(Hz) |
>60 Hz |
|
|
Interface port |
HUB75 |
|
|
Protection grade |
IP65 front side |
|
|
LED Drive |
Constant-current drive |
|
|
Lifetime(hours) (50% brightness) |
100,000 hours |
|
|
Signal transmission direction |
Horizontal |
|
|
Operating temperature (Celsius degree) |
-15～+55'' |
|
|
Storage temperature (Celsius degree) |
-30～+65' |
|
|
Operation humidity(RH) |
10-95% |
|
|
Operation humidity(RH) |
10-99% |
|
|
Power |
5 V DC single phase(50-60Hz) |
|
|
Maximum power consumption(W/SQM) |
850 |
|
|
Average power consumption(W/SQM) |
320 |
|
|
Screen operation mode (scan/static) |
1/8 Scan |
|
|
Module configuration (Pixels quantities of the module) |
Length |
64 |
|
Height |
32 |
|
|
Module dimensions(mm) |
Length |
320 |
|
Height |
160 |
|
Complete the complete LED display, the need for the following accessories.

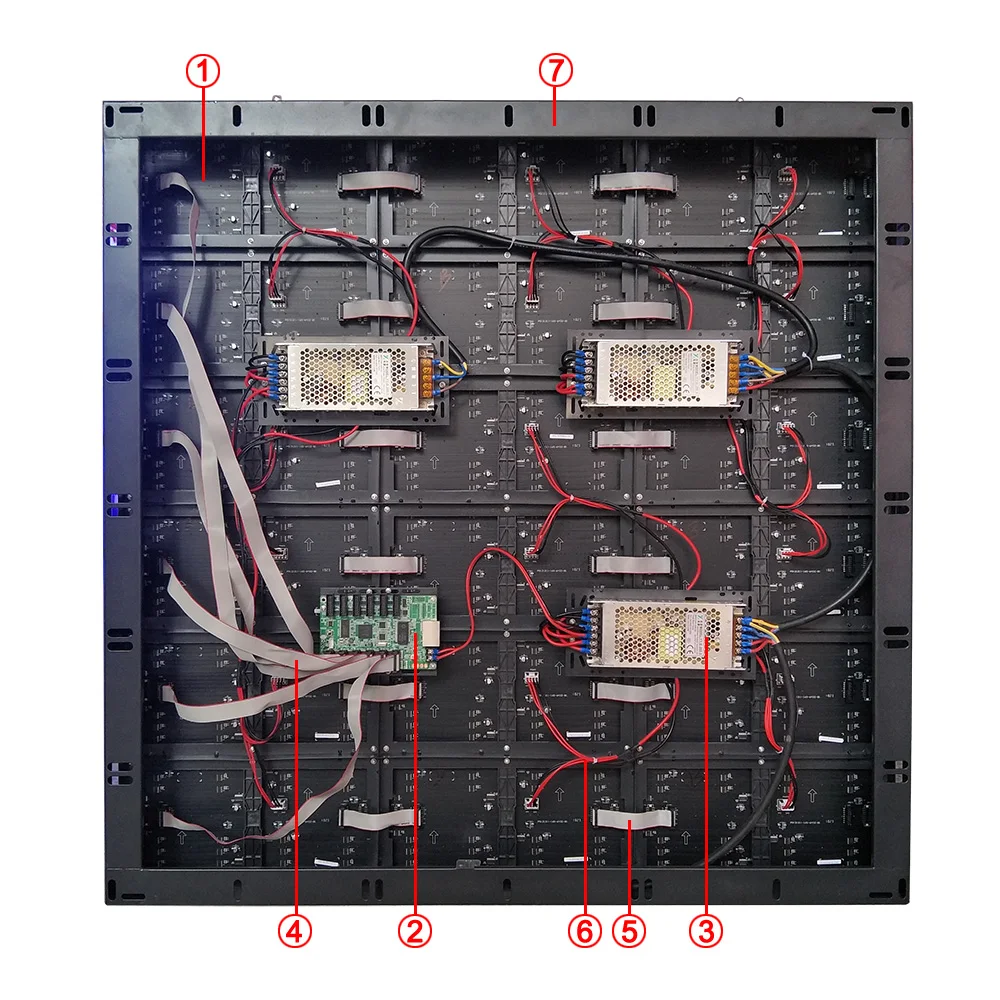

Full-color LED display in FIG following composition,
To purchase other accessories, click on the link to enter and add the required quantity to the shopping cart and submit the order together.
